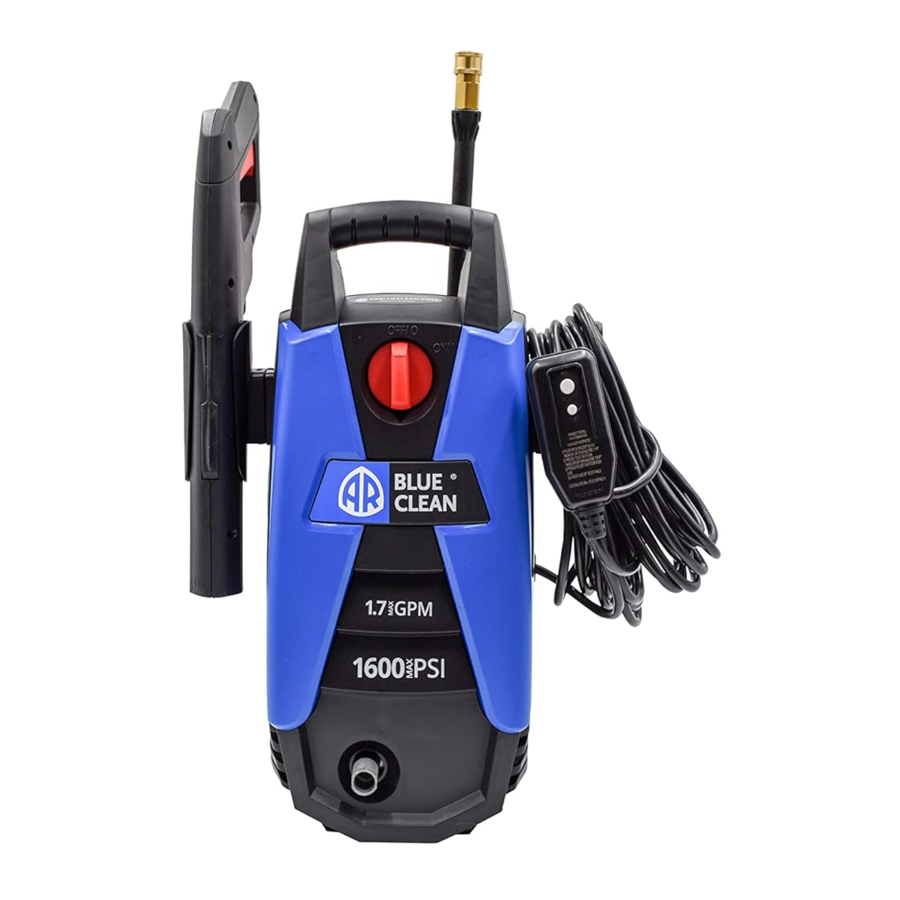

AR Blue Clean BC111HS - 1600 PSI Pressure Washer Manual

Introduction

This product can expose you to chemicals including lead, DEHP, DINP, which is known to the State of California to cause cancer and or lead to birth defects. For more information go to www.P65Warnings.ca.gov
We created this pressure washer from listening to our customers for the past 10 years on how they use their pressure washer for all kinds of cleaning projects.
We are excited to tell you that this pressure washer has a 2-year warranty: First year of the warranty completely covers anything that may happen to it during this time. The second year of the warranty only covers manufacturer defects. If you have any concerns or questions, please contact us at 866-235-5112 or ARBLUECLEAN.COM where you can email or chat with us. Our friendly customer service team based here in Fridley, MN can help you with just about anything.
Lastly we would like to ask a favor, please take a moment to review this pressure washer from the place you purchased it. We look forward to reading your comments.

PRODUCT SPECIFICATIONS

PACKAGE CONTENTS

HARDWARE CONTENTS

Note: Screws are located in manual package.

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, DO NOT attempt to assemble the product.
Please call customer service at 1-866-235-5112. Replacement parts will be sent no charge.
Estimated Assembly Time: 5 minutes.
Tools Required for Assembly (not included): Phillips screwdriver.

ASSEMBLY INSTRUCTIONS

Power Unit Assembly

Install handle (B) to power washer unit (C). Secure with screws (AA).
Note: DO NOT use a power screwdriver. When the screw is completely tight, give a small final clockwise twist of the screwdriver. DO NOT overtighten.

Slide spray gun holster (A) onto left side, when facing the power washer unit (C) as shown.
Note: This step does not require any screws.

Hardware Used:

Slide cord hook holster (D) onto right side, when facing the power washer unit (C) as shown.
Note: This step does not require any screws.

Super Soft High Pressure Hose Assembly

Screw Super Soft high pressure hose (E) clockwise onto bottom front of power washer unit (C). Pull back collar and insert o-ring post into water outlet far enough so collar can thread onto outlet threads until hand tight. If it takes fewer than six turns you have not properly tightened the Super Soft high pressure hose fitting. It is easier to position the power washer in front of you to ensure that the threads are started correctly. Failure to properly tighten Super Soft high pressure hose will result in the hose slipping or popping off immediately upon turning unit on. Do not worry about damage if this occurs–just reinstall and take extra care when screwing on the Super Soft high pressure hose fitting.
Note: DO NOT use pliers or locking pliers to tighten.

Locking Spray Gun (Before Lance Installation)

To lock trigger of spray gun (F), point gun away from you and turn dial to lock ("3" and "9" position). Squeeze or pull trigger to make sure it is locked. ALWAYS leave in locked position when not in use. This ensures the gun is in "safe" mode until it is ready for use. Turn dial to unlock ("12" and "6" position) to release spray gun trigger.
Note: The trigger lock prevents trigger from being accidentally engaged.

Extension Lance Installation

With spray gun (F) in locked position, attach extension lance (I) directly to spray gun. Insert lance extension into gun, pushing together and turning clockwise simultaneously. Turn the extension collar clockwise to lock into place. To remove extension lance (I), turn extension collar counterclockwise to unlock, then push together and turn counterclockwise to release.
Note: The extension lance must be inserted in gun before using any of the other attachments, and in place for storage. It is recommended that once extension is connected to leave it in place.

To remove nozzle (J) pull back on collar of lance (I) and pull out nozzle.

Foam Cannon Installation
The foam cannon comes with a straw which is fitted into high pressure top. If you do not see the straw, look inside the foam cannon and attach it to the high pressure top. When using foam cannon, fill it with a properly formulated detergent or cleaner with a water ratio according to instructions on the container.

• Pressure washer detergents are recommended.
• DO NOT use thick or gel-like detergents as they will clog the foam cannon and can cause damage.

Insert foam cannon (H) into spray gun (F), push in and turn clockwise.
Note: Always lock spray gun when changing the foam cannon to ensure it does not eject with force.

Foam Cannon Storage

Store the foam cannon (H) on the back of the power washer unit (C).

Attach a standard garden hose to the black collar of the garden hose adapter located on the back of the power washer unit (C). The water is now connected to your power washer.
Note: Flush out garden hose before connecting to garden hose adapter.

OPERATING INSTRUCTIONS

• Make sure the "ON/OFF" switch is in the "OFF" position. The power switch has international symbols for 'on' and 'off': On (|) Off (O).
• Unwind the power cord completely and plug the GFCI into a grounded 120 volt outlet.

• Turn on water supply at the faucet to completely open.
• Release safety push trigger lock up and back into trigger. While pointing the spray gun in a safe direction, squeeze the trigger on the spray gun until there is a steady stream of water, letting the water and air out of the hose. Push trigger lock back down to lock back into place.
• Turn the power switch to the "ON" (|) position. The unit will turn on for 1 - 2 seconds and shut off. This is a normal function of the auto start feature.
• Begin power washing by squeezing the trigger on the spray gun all the way into the handle.
• R elease the spray gun trigger to stop the power washer.
• A llow the motor to come to a complete stop before squeezing the trigger again.
• Squeezing and releasing the trigger rapidly will cause the auto start feature to miss an on/off cycle that may prevent it from working properly. Use slow deliberate trigger pulls to avoid such symptoms.


• Always test a small area to avoid chance of damaging the surface.

Operation Tips

• Note: Test the GFCI before each use:

1. Plug GFCI into power outlet. Indicator should turn green to show that cord has power.
2. Press test button, green indicator should turn off to verify that GFCI cut off power to the cord.
3. Press reset button – green indicator should turn on to show that cord has power again.
4. When GFCI is working properly, green indicator will turn on when power is applied. If green indicator turns off, it has detected electric leakage and the GFCI cut off power to the appliance.

• If you hear the motor run intermittently when the trigger is not being squeezed, that is normal. The pump is priming itself so it is ready to operate when the trigger is squeezed. Turn off the power washer if not being used after five minutes.
• The o-rings on the bayonet end of the nozzle should be cleaned regularly and lubricated with non-water soluble grease such as petroleum jelly.
• Keep the nozzle cleaning wire for use in unclogging the nozzle. If you lose the cleaning wire, a straightened paper clip also works.

How to Avoid Damaging Surfaces

• Damage to surfaced being cleaned occurs because the impact force of the water pressure exceeds the durability of the surface. Bare wood can be penetrated, paint can be peeled off, etc. You can vary the force of your power washer by controlling:

1. The angle of the surface being cleaned.
2. The distance of the nozzle from the surface being cleaned.

• NEVER use a narrow high pressure stream of water on soft surfaces susceptible to damage.

Adjusting Soap Levels on Foam Cannon
Twist knob to adjust the level of soap as indicated on the top of the Foam Cannon (H). Twist toward the higher concentration of bubbles for more soap, or the opposite direction for less.

Detergents

• Use detergents designed for power washers. These can be purchased online at our website www. arblueclean.com. Hardware stores or home centers also have power washer detergents for different cleaning projects. The cleaning solution should be the consistency of water in order to prevent clogging your detergent bottle and nozzle.
• This system applies detergent under low pressure. The cleaning power of the detergents is enhanced when applied with low pressure and enough time is given to break down dirt and grime. The combination of low pressure and chemical action is very effective and can be better than scrubbing if applied properly.ALWAYS spray detergent on a dry surface. DO NOT pre-soak area. Wetting the surface first dilutes the detergent and reduces its cleaning ability. DO NOT allow detergent to dry on surface. On vertical surfaces being cleaned, apply detergent to lower surfaces and work your way up to prevent detergent from causing streaks in the dirt and grime. Rinse detergent by pressure washer from bottom up for same reason.
• If a stain is particularly tough, it may be necessary to reapply the detergent and use a bristled brush to scrub the stain. Power washing after brushing should successfully clear the stain.

CARE AND MAINTENANCE

Cleaning Garden Hose Adapter

• The screen inside the adapter should be cleaned periodically. Remove it by dragging a thumb over the screen with enough pressure to pull the screen and washer out. Rinse it with clean water and then place it back in the adapter.

Cleaning Nozzles

• A clogged or partially clogged nozzle can cause significant reduction of water pressure coming out of the nozzle and/or cause the unit to pulsate while spraying.
• Turn off the unit.
• Turn off the water supply to the unit.
• Relieve any pressure trapped in the hose by squeezing the trigger 2-3 seconds, and then lock the spray gun by pushing the lock button.
• Remove the lance from the extension lance.
• Take off the variable spray nozzle lance. Rotate the nozzle to open up the metal blades.
• Using the nozzle cleaner wire provided (or an unfolded paper clip), insert the wire into the nozzle hole and move back and forth until debris is dislodged.
• Tap quick connect end of lance on hard surface several times.
• Back flush water through the nozzles using garden hose and highest pressure available (either standard water nozzle or use your thumb over the nozzle to create water pressure for back flush).

Storage

• When your pressure washer session has been completed, turn off the power switch located on the front of the power washer. Unplug the power cord from the outlet. Turn off the water supply. Pull the trigger on the spray gun 2-3 times to drain out the excess water and to release any remaining water pressure. Disconnect the garden hose adapter from the water inlet.DO NOT allow the power washer to run with no water flowing through it.
• Remove high pressure hose from spray gun.
• Remove lance from the gun. Place the gun in the holster on the side. Lances are placed into any of the slots in the back of the unit.
• Make sure to discard any remaining detergent from the bottle. Residual chemical will stick to the container which could become cotaminated, and can cause the detergent injector to clog and not function properly. Flush the bottle and nozzle head with fresh water to prevent clogging.
• Hook the power cord around the cord hook on the right side of the machine when facing it.
• The pressure hose is stored on the hose hook located on the back of the handle.
• DO NOT store the power washer where it is exposed to freezing temperatures unless you use an antifreeze designed for pumps. Store the power washer indoors to prevent the water in the unit from expanding under freezing conditions. When the water freezes and expands, your power washer will be damaged and become inoperable. Or, if storing outdoors, it is recommended you use pump saver (not included) to protect pumps.

PUMP SAVER

Pump Saver is a product that protects and prolongs the life of the pump. This will keep the internal parts of the pump lubricated and protected from freezing while being stored in ALL climates. It also assists with protection from internal corrosion. The AR Blue Clean part #is: PW64511(16oz. bottle). Order online at www.arblueclean.com

Pump Saver Instructions
Follow the previous storage instructions for your power washer. To prevent staining, protect the surface under the power washer from any excess fluid. Wear eye protection when using this product.
Turn unit off and disconnect the gun before adding pump Saver. Unscrew threaded top from bottle to remove seal and reattach threaded top to bottle. Remove black cap from bottle.

1. Place top of pump saver bottle onto the garden hose adapter.
2. Secure pump saver bottle by turning in a clockwise direction.
3. Turn the power on.
4. Squeeze bottle to help it into the pump.
5. Turn power off when pump saver exits the machine's water outlet.
   Note: Instructions on Pump Saver Bottle are generic and not model specific.

TROUBLESHOOTING

If you have any questions regarding the product, please call customer service at 1-866-235-5112.

REPLACEMENT PARTS LIST

For replacement parts, call our customer service department at 1-866-235-5112, 8 a.m. - 5:00 p.m., CST, Monday - Friday or order online at www.arblueclean.com

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble and operate the product.
This manual contains information that relates to PROTECTING PERSONAL SAFETY and PREVENTING EQUIPMENT PROBLEMS. It is very important to read this manual carefully and understand it thoroughly before using the product. The symbols listed below are used to indicate this information.

Potential hazard that will result in serious injury or loss of life.

Hazard that could result in serious injury or loss of life.

Potential hazard that may result in moderate injury or damage to equipment.
Note: The word "Note" is used to inform the reader of something the operator needs to know about the tool.

To reduce the risk of injury, the user must read and understand the instructions before using this product.

1.
   When using this product, basic precautions should always be followed, including the following.
2. Read all the instructions before using the product.
3. Know how to stop the product and bleed pressures quickly. Be thoroughly familiar with the controls.
4. Keep operating area clear of persons.
5. Do not overreach or stand on unstable support. Keep good footing and balance at all times.
6. Follow the maintenance instructions as specified in the manual.
7. To avoid personal injury and/or damage to property and to maximize your power washer experience, carefully follow all of the safety tips, instructions, warnings and safeguards and become familiar with all of the controls. Be sure you know how to quickly bleed off the pressure from all parts of your power washer and how to turn off the power washer.
8. This power washer conforms to CSA and other safety and consumer standards.DO NOT modify or rebuild any part of your power washer.
9. DO NOT use your power washer when you are under the influence of alcohol or drugs. Use this power tool carefully and only when you are alert.
10. Watch your balance and footing while using your power washer. Surfaces become slippery when wet and are extra slippery when using a detergent or cleaner.
11. NEVER operate the power washer in bare feet, sandals, or open-toed shoes.
12. When using the power washer near children, make sure they are closely supervised by an adult to avoid injury.NEVER let a child use the power washer.
13. Keep fingers, hands, feet and any part of your body clear of the stream of high pressure water. The powerful spray can cause blindness or blast holes in the skin. It can break a window if you are too close when you pull the trigger on the spray gun.
14. ALWAYS wear eye protection to prevent injury to eyes when operating the power washer.
15. To avoid mishaps or injury,ALWAYS use the trigger safety lock when not using the power washer even if only stopping briefly.
16. The power washer is equipped with a Ground Fault Circuit Interrupter (GFCI) which greatly reduces the chance of electric shock while the unit is in use. If replacement of the plug or cord is needed, use only identical replacement parts.
17. P oint the spray gun in a safe direction when beginning a power washer session.
18.
    NEVER spray directly at a person, animal, electrical device or the unit itself.
19. When first using the spray gun, hold the spray gun and lance with two hands when pulling the trigger (one hand to pull the trigger and the other to stabilize the gun assembly) until you get used to the "kickback" from the spray gun.
20. When you turn the power switch off, water pressure may remain in the system. To discharge the pressure, point the spray gun in a safe direction and pull the trigger.
21. NEVER spray flammable liquids.
22. NEVER use the power washer in areas that contain combustible dust, liquids or vapors.
23. Avoid contact of the pressure hose with sharp objects and examine the hose regularly. Replace if damaged. Due to the high pressure involved, it cannot be repaired if cut or damaged.
24. Only use detergent specifically formulated for power washers and follow instructions on the detergent's label. Dish or laundry soap is too thick and will clog the nozzle of your foam cannon.
25. Protect eyes, lungs, and skin from exposure to detergent.
26.
    If connection is made to a potable water system, the system Should be protected against backflow.

    Store the power washer indoors to prevent the water in the unit from expanding under freezing conditions. When the water freezes and expands, your power washer will be damaged and become inoperable. Or, if storing outdoors, it is recommended you use pump saver (not included) to protect pumps.
27. NEVER use hot water with your power washer. It will overheat and damage the high pressure pump.
28. NEVER leave the power washer unattended while it is powered "ON".
29. ALWAYS turn the water supply on before turning the power washer power to on. Running the pump dry will cause damage to the internal components.
30. NEVER use a water supply to your power washer that exceeds 150 PSI maximum.
31. NEVER disconnect the high pressure hose from the power washer while the system is pressurized.
32. NEVER permanently engage the trigger mechanism on the spray gun.
33. NEVER operate the power washer unless all components are properly and securely connected.
34. NEVER allow the power washer pump to run for more than one minute after you have turned off the water supply. This can cause the motor and pump to overheat and fail.
35. NEVER use lances or other parts that are not compatible for this specific AR Blue Clean unit.
36. NEVER use an extension power cord since it defeats the effectiveness of the GFCI and increases the chance of electrocuting the operator.
37. NEVER spray any electrical outlet with your power washer.
38. Inspect the power cord before using.DO NOT use it if it is damaged.
39. Stay alert - watch what you are doing.
