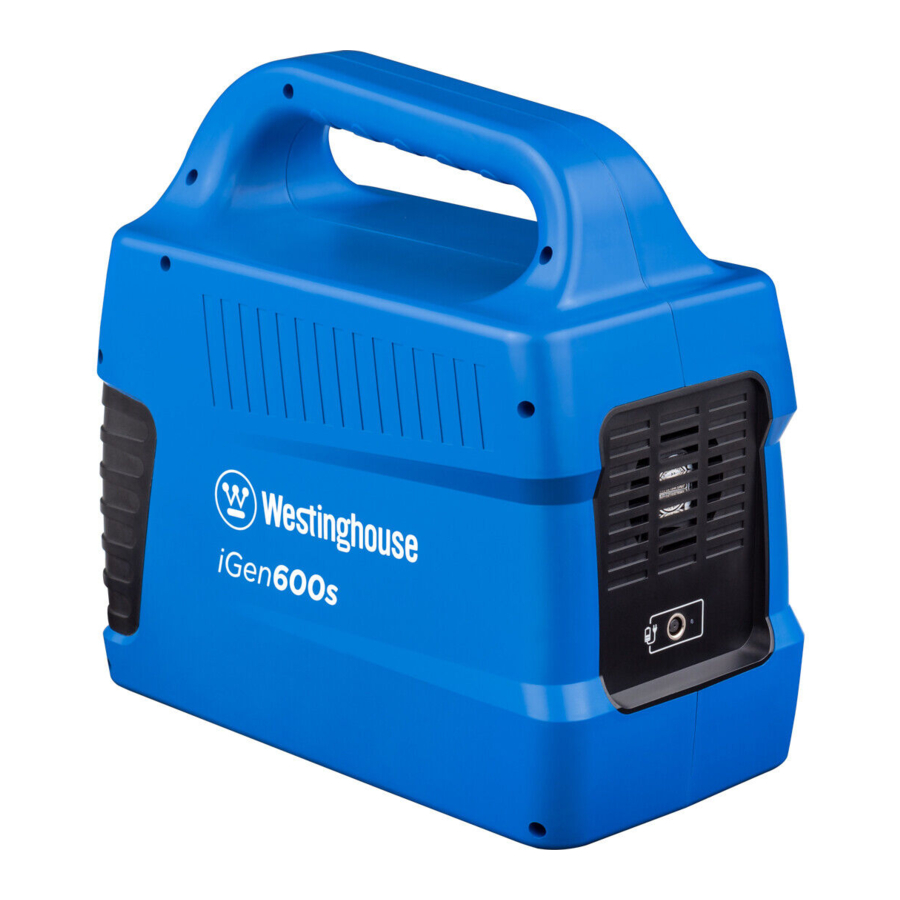

Westinghouse iGen600s - Portable Power Station Manual

WHAT'S IN THE BOX

PLEASE READ BEFORE RETURNING THIS PRODUCT FOR ANY REASON.
If you have a question or experience a problem with your Westinghouse purchase, call us at 855-944-3571 to speak with a service representative
SAVE THIS MANUAL FOR FUTURE REFERENCE.

CHARGE FIRST! Before reading through the manual, you can begin to charge up this device by connecting it to the power supply provided and plugging into a wall socket

Lithium-ion batteries and products that contain lithium-ion batteries can expose you to chemicals including cobalt lithium nickel oxide, and nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm For more information, go to www.P65Warnings.ca.gov

This manual contains important instructions for operating this product For your safety and the safety of others, be sure to read this manual thoroughly before operating the battery/charger Failure to properly follow all instructions and precautions can cause serious injury or death

INTENDED USE: The iGen600s Portable Power Station is a power supply for electronic devices with a maximum power consumption of 600W Our product is not suited for use with equipment that relates to one's own personal safety and relies heavily on electricity, such as medical devices, equipment for nuclear facilities, manufacture of air and spacecraft, etc We assume no liability for accidents involving personal safety, fires, or machine failures caused by using our product with the aforementioned devices

ATTENTION

	Not permitted on airplanes		Use original or certified charger & cables
	To preserve the battery lifespan, use & recharge at least once every 3 months		Avoid extreme temperature
	Dispose of batteries and electronic goods in accordance with local regulations		Do not expose to liquids
	Avoid dropping		Do not disassemble

SAFETY GUIDELINES - DEFINITIONS

It is important to read and understand this manual. The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this information

Indicates an imminently hazardous situation which, if not avoided will result in death or serious injury

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury
NOTICE: Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may result in property damage

REGISTERING YOUR PRODUCT

Register your product online at wpowereq.com/register. To register your power station you will need to locate the serial number on a decal on the bottom of the power station

SPECIFICATIONS

PRODUCT FEATURES

1. Input for charging from solar panels, or AC
2. Cooling Fan
3. LED Display
4. Handle
5. Flashlight ON/OFF Button
6. Flashlight
7. Control Panel

CONTROL PANEL FEATURES

1. AC Power ON/OFF
2. 120V AC, up to 5A, 600W max
3. USB-A, 5V DC, up to 24A, 12W Max
4. USB-A QC (Quick Charge) 30, 5/9/12VDC, up to 30A, 18W Max
5. USB-A QC (Quick Charge) 30, 5/9/12VDC, up to 30A, 18W Max
6. USB-C, PD (Power Delivery), 5/9/12V DC, up to 30A, 18W Max
7. Car Cigarette Lighter Port, 12V DC, Up to 8A, 96W Max
8. 6mm, 12V DC, up to 8A
9. DC Power ON/OFF

LED DISPLAY

1. Remaining Power
2. Equipment Failure Warning
3. AC Output Indicator (in watts)
4. DC Output Indicator (in watts)
5. USB Output Indicator (in watts)
6. Charging Input Indicator (in watts)
7. Temperature Overload Warning

PURE SINE WAVE

The output voltage of a sine-wave inverter has a sine wave-form like the sine wave-form of the mains/utility voltage In a sine wave, the voltage rises and falls smoothly with a smoothly changing phase angle and also changes its polarity instantly when it crosses 0 Volts.
The unit provides Pure Sine Wave output and can be compatible with AC electric appliance that works with Sinusoidal waveform (power≤300W). Appliances that use an AC motor are going to work to full capacity on a pure sine wave, such as an electrical fan. Appliances like refrigerators, microwaves, and compressors that use AC motors and some delicate equipment will be better use with our pure sine wave inverter.

HOW TO POWER AC APPLIANCES

1. Make sure the appliance you are plugging in is turned off
2. Connect the power cable plug of the electrical appliance to the AC outlet of the product
3. Press the "AC Power ON/OFF" button to turn on The button will illuminate when it is on
4. Turn AC appliance on The LED Display will display real-time wattage of the appliance
5. When finished, turn off device, remove power cable and press "AC Power ON/OFF" to turn outlets off (If you leave the AC Power button on it will drain the battery)

NOTICE: If the total output exceeds 300W, the power station will automatically shut off Please ensure the power consumption is less than 300W, then press the AC Power button.

The AC outlets, AC voltage, and frequency are different according to different countries; please carefully check whether the product specifications are consistent with the appliance specifications before use, otherwise, it can lead to dangerous situations
NOTE: When the AC port is not in use, turn "AC Power ON/OFF" button off to conserve power
CAN'T SUPPORT DEVICES MORE THAN 600W

HOW TO POWER DC APPLIANCES

1. Connect the power cable plug of the electrical appliance to USB outlets or 12V ports
2. Press the "DC Power ON/OFF" button to turn on The button will illuminate when it is on
3. The LED Display will display real-time wattage of the appliance
4. When finished, press "DC Power ON/OFF" to turn off DC power.

NOTICE: If the total output exceeds the wattage output of the DC outlet, the power station will automatically shut off Please ensure the power consumption is less than what the outlet is rated for before using the device
QUICK CHARGE OUTPUT: This product supports Type-A QC30 and Type-C PD that output 5V/3A, 9V/2A, and 12V/15A, for smart devices The actual output voltage and current depend on the smart devices, it can be obtained by consulting the smart device manufacturer
12V 6MM OUTPUT: The device comes with a 12V 6mm port This can output 12V DC, up to 8A If you plan on using the 6mm outlet without adapter please confirm whether your DC 12V appliance supports charging with a 6mm DC plug (The diameter of the DC port of the product is 6 mm)
PROTECTION MODE: Short-circuit/Overload Protection: If the AC or DC output is short-circuited or overloaded (- Load(s) power output is greater than 300W), the unit will shut down power output to protect itself Some devices, such as refrigerator, ice maker or a laser printer may require a surge power, the surge power could exceed 600W or even higher, this could cause overload protection with this unit Please remove the devices and consult with the device manufacturers for more information

HOW TO USE THE FLASHLIGHT

1. Press Flashlight ON/OFF button once to turn light on
2. Press button again to make light 50% brightness
3. Press a third time to turn light off

SOS MODE: While the light is on, hold down flashlight button for 3 seconds to activate SOS mode Single press to turn SOS mode off

Do not look directly into the light May cause damage due to the strong light

RECHARGING WITH AC CHARGER

Using the included AC Wall Charger cable, plug the unit into standard wall outlet to charge the unit You will know the unit is charging when the red LED battery indicator light is on The unit is fully charged when all battery indicators on the LED display are illuminated After the unit is fully charged, please remove the AC wall charger

RECHARGING WITH 12V CAR CHARGER

Using the included car charger, plug the unit into a 12V cigarette lighter (carport) in your car You will know the unit is charging when the red LED battery indicator light is on The unit is fully charged when all battery indicators on the LED display are illuminated
Note: To avoid car battery power loss Charging this unit through your car cigarette lighter is only available when your car engine is started

RECHARGING WITH SOLAR PANELS (OPTIONAL)

Make sure to use panel with 8mm output plug Place solar panel where it will get as much direct sunlight as possible Plug the output of the solar panel into the input on the back of the power station to start charging You will know the unit is charging when the red LED battery indicator light is on The unit is fully charged when all battery indicators on the LED display are illuminated
NOTICE: When solar recharging your power station, take note of the voltages of the solar panels and do not exceed 19V Individual solar panels, or solar panels chained in series in excess of 19V cannot be used with the power station and can cause serious damage to the unit For help on chaining solar panels, call our Customer Service Center at 1-855-944-3571

COLD WEATHER USE

Cold temperatures (below freezing) can affect the unit's battery capacity due to chemical characteristics of the battery If you'll be living off-grid in sub-zero conditions, we recommend you keep your unit in an insulated cooler, and connected to a power source (solar panels) The natural heat generated by the unit contained in an insulated cooler will keep battery capacity at its highest

MAINTENANCE

Having your power station connected to a power source, like a solar panel or wall plug, between adventures or while in storage keeps its battery healthy and topped off This prolongs battery life and will ensure your power station is charged and ready to go all day, every day If you can't keep your power station plugged into a power source during storage, fully-charge your power station every 3 months and store it in a cool, dry place Failure to maintain your power station by following these steps can result in battery damage which will void the product warranty

GENERAL SAFETY RULES

• DO NOT disassemble, repair or modify the unit or the battery
• DO NOT place the unit close to or in a fire or expose it to heat. Keep out of direct sunlight
• DO NOT charge, use or store the unit in a bathroom or in an area exposed to rain or moisture
• Only use the output socket to power external devices Never connect the output to mains power under any circumstances
• DO NOT touch the unit or the plug-in points if your hands are wet
• DO NOT connect any metallic objects to the AC input or output
• DO NOT rub your eyes if fluid from inside the unit gets on your hands
• DO NOT dispose the unit together with household waste
• DO NOT use any inappropriate or damaged power cords
• DO NOT operate the unit above the specified input voltage.
• DO NOT use the unit if it is not functioning correctly
• DO NOT move the unit if it is recharging or in use

• Use and store the unit only in a clean and dry environment DO NOT use and store in dusty or wet environment
• Check the unit prior to every use DO NOT use the unit if it is damaged or broken
• Do not use the unit if the power cord is damaged or broken
• Keep the unit away from children. DO NOT let children use the power supply unit
• Keep this product away from pets.
• DO NOT use or store the unit in an area or environment with high temperature
• Should fluid from inside of the unit come in contact with your skin or clothing, wash the affected areas with tap water
• In a storm, unplug the power cord from the socket
• DO NOT charge the unit via power supply systems that operate outside of 100-240V
• DO NOT place the unit on its side or upside down while in use or storage

• If rust, peculiar odors, overheating or other abnormal circumstances are observed, stop using the unit immediately and contact our customer service team
• The unit complies with all legal requirements for transport of dangerous goods
• Make sure that the unit is properly secured when transporting it in a motor vehicle
• Only charge, use and store the unit within an ambient temperature of -10 to 40°C (14° - 104°F)
• Switch the unit off immediately if it has accidentally fallen, was dropped or was exposed to vibrations
• Carefully read the instructions for the electric devices that you intend to connect to your portable power station
• Make sure that the device you are connecting is switched off before you connect it

DO NOT RETURN THIS PRODUCT TO THE STORE
If you have questions or need assistance, please call customer service at 855-944-3571.
