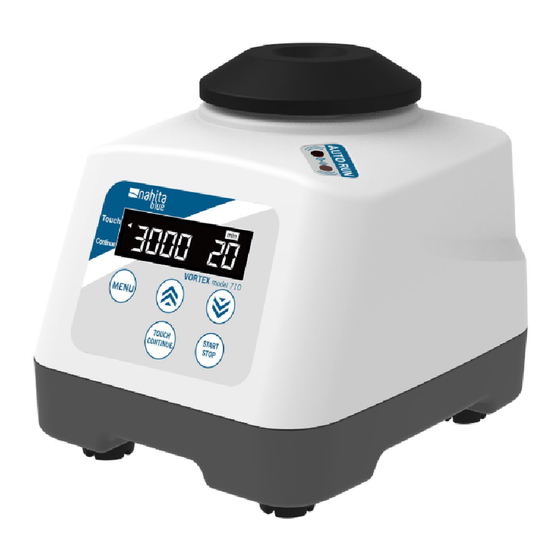

Vortex mixer
Safety rules
☆ For safety, please read the operation manual carefully before starting operation!
☆ Parts subject to heat, humidity and biological changes will cause functional
degradation and even loss of safety leading to accidents!
User's Manual of LGB007
English
Version 1, July 2023
Advertisement
Table of Contents
Related Manuals for Nahita blue LGB007
Summary of Contents for Nahita blue LGB007
- Page 1 English LGB007 Vortex mixer Safety rules ☆ For safety, please read the operation manual carefully before starting operation! ☆ Parts subject to heat, humidity and biological changes will cause functional degradation and even loss of safety leading to accidents! User's Manual of LGB007 Version 1, July 2023...
-
Page 2: Table Of Contents
English table of Contents Foreword ……………………………………………… ………………. 3 Instrumentuse environment …………........…………… ..3 Safety Tips ………………………..........………4 A product brief ..........……………...…………… ..... 5 Product model and its main technical parameters ………………....…… 5 Introduction to the appearance and functions of the three mixers ……….…..6-7 Four operation instructions ………………………………………...………... -
Page 3: Foreword
English Foreword This manual is copyrighted by Our companyl, and no one may reprint or distribute any of the contents of this manual, including pictures and audiovisual materials. The equipment operator can copy some chapters of this operation manual, but only for internal use, for example, to guide the user. - Page 4 English operations on the mixer system. * If the operator encounters a situation not mentioned in this manual, please contact Our companyl or an authorized agent of Our companyl to inquire about the correct treatment method. * Try to use the accessories provided by Our companyl, if the user wants to use other accessories, Our companyl will not be responsible for the adverse consequences.
-
Page 5: A Product Brief
English * Never plug or unplug the power plug while the instrument is live! * It is strictly forbidden to maintain and scrub the instrument while the power is on! * It is strictly forbidden to carry out shaking operation when the sample capacity exceeds 70% of the test tube capacity. - Page 6 English Input power AC100-250V/50/60Hz Output power [w] Motor / drive method dc24v permanent magnet motor / direct drive control method pwm stepless frequency conversion Operation method Jog: photoelectric sensor / continuous Power fuse pptc / resettable fuse / no need to replace Speed range [r / min.] 0/200-3，000r/min.
- Page 7 English A. Main unit b. Operation panel c. Oscillation output fixing plate d. Power switch e. dc24v power jack f. Photoelectric sensor The picture above shows the mixer (appearance diagram one) The picture above shows the mixer (function diagram two) Description shown in functional diagram two >7 User's Manual of LGB007...
-
Page 8: Four Operation Instructions
English 1. Touch / Continue jog and continuous switch mode button. 2.Start / Stop start and stop button, start and stop the instrument in continuous mode 1 ~ 3 fixture 3.Indication of jog mode. 4.Continuous oscillation indication. 5.Time display, corresponding to minutes or seconds. 6.Speed display, the unit is rpm, that is, revolutions per minute. - Page 9 English manufacturer or the distributor authorized by the manufacturer in time, and you must not repair it yourself without the guidance of professional maintenance personnel! 4.1 [Installation of standard gaskets and plate fixtures] a / b. Directional guide installation slot c. Buckle The picture above shows the mixer (board fixture installation diagram three) Place the instrument in a suitable operating area, plug in the power supply,...
-
Page 10: Operating The Mixer
English of the output fixing plate of the oscillation board, and move the buckle inward by hand and Gently press down, when you hear a "click", it means that it is installed in the correct position (to verify that it is in place, just pull the clamp slightly upwards). - Page 11 English host from cracking during use due to scratches or external injuries. 5.2 Regularly check the fixture assembly (especially the plastic bracket) for corrosion spots, grooves, and small cracks. If any of the above conditions are found, please stop using it and contact the production unit. When disassembling the clamp, you should tighten the buckle inward with your hands and lift it up vertically, don't shake it left and right! 5.3 When cleaning the fixture, use a neutral detergent to moisten a sponge or cotton...
- Page 12 English name speed It is used to place test tubes Standard and small containers with a diameter not exceeding gasket 50mm.It adopts a trough Max.3000rpm structure to prevent the Standard container from slipping outside during work. For placing flasks or Flat bottom containers with a flask holder...
- Page 13 English following list, the user should contact production immediately Maintenance personnel of the unit. After an abnormality occurs, the power should be turned off, the plug should be unplugged, and the fault should be restarted. Table 1: Symptoms, causes and solutions Failure phenomeno Causes and troubleshooting...
- Page 14 English does not respond Beyond the above fault Solved by manufacturer professionals! content 8. Warranty (repair) basis The warranty period (warranty period) starts from the user's receipt of the product. During the warranty period (warranty period), if the product fails, the production unit or a sales company authorized by the production unit maintenance personnel is responsible for on-site repairs, if necessary, replacement Parts are due to their own quality, not caused by improper use, they can be replaced free of charge,...
-
Page 15: Maintenance Records
English number Host 1 set Standard gaskets 1 ~ 3 1 set Matching fixture Contract-to-order Certificate of Compliance 1 serving Quality Assurance Page 1 serving Operation manual 1 serving Power Adapter When unpacking, please check it in time.If there is any discrepancy, please contact the production unit or a sales company authorized by the production unit in time! - Page 16 English ---------------------------------------- ---------------------------------------- ---------------------------------------- ---------------------------------------- ---------------------------------------- ---------------------------------------- ---------------------------------------- ---------------------------------------- ---------------------------------------- ---------------------------------------- >16 User's Manual of LGB007 Version 1, July 2023...
