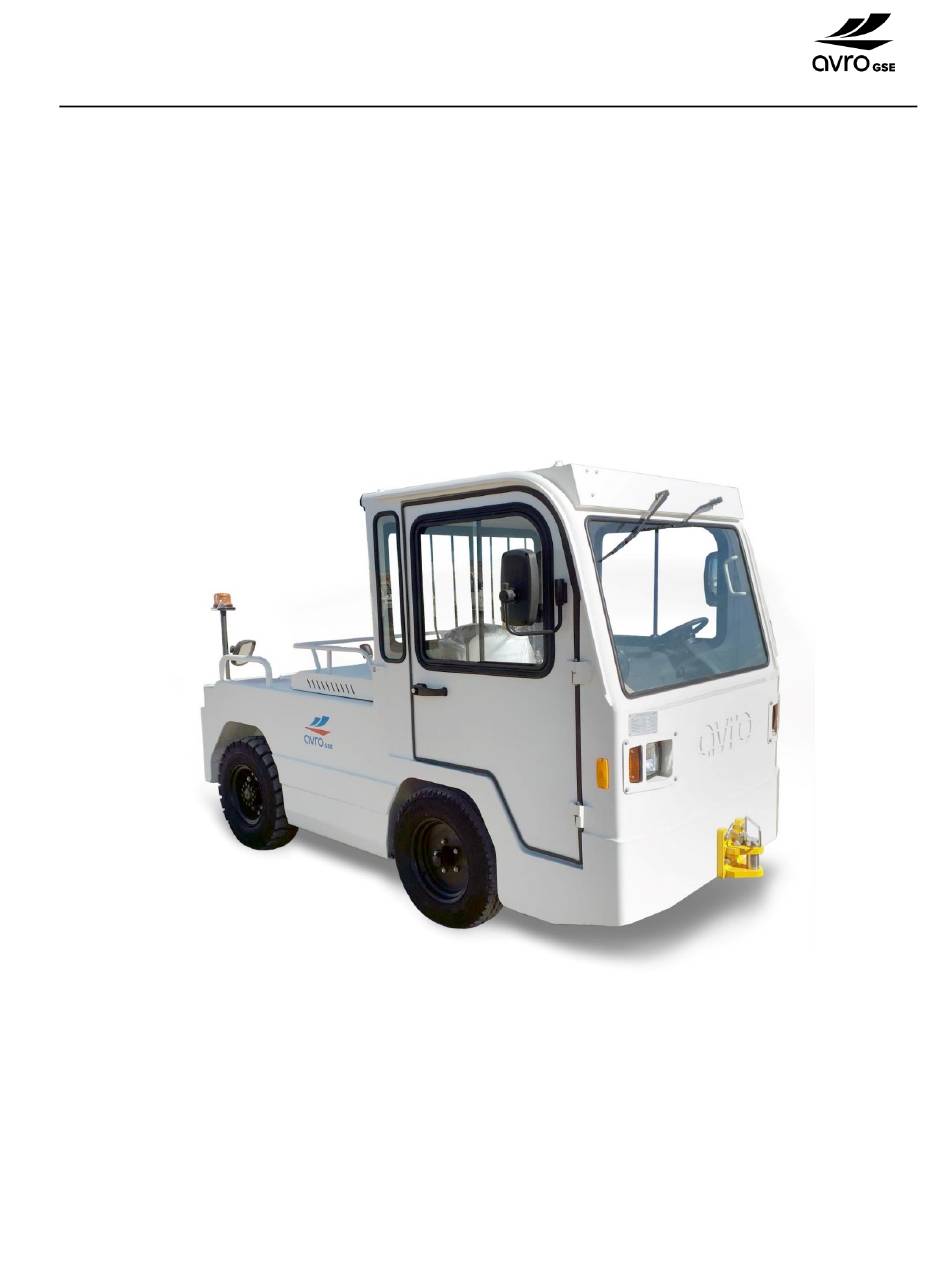

Page 1 ST470E Baggage Tractor ST470E TRACTOR OPERATION, MAINTENANCE AND PARTS MANUAL Issue 1.4, April 2024 ST470E20...
Page 2 Limited. All possible care has been taken in the preparation of this manual, but Avro GSE, its agents and distributors accept no liability for any inaccuracies that may be found. This manual reflects the state of the product at its date of issue, but further enhancements while in service may mean that the manual does not precisely reflect your system.
Page 3: Applicability Of This Manual
APPLICABILITY OF THIS MANUAL ST470E Tractors with a Manufacture Year of 2020 - 2022 (MY2020 - 2022) with Serial Numbers 220120243 - 222121757. If this manual does not correspond to the Manufacture Year (MY) of your Tractor, the correct manual can be obtained from AvroGSE using the contact details given inside the Front Cover of this manual.
Page 4 ST470E Baggage Tractor PAGE INTENTIONALLY LEFT BLANK Page 4 Issue 1.4, April 2024 ST470E20...
Page 5: Table Of Contents
ST470E Baggage Tractor TABLE OF CONTENTS APPLICABILITY OF THIS MANUAL ..........................3 TABLE OF CONTENTS ...............................5 LIST OF ABBREVIATIONS ............................7 SAFETY ..................................9 LETHAL DANGER – CARGO USE ONLY ........................9 LETHAL DANGER – DO NOT USE ON PUBLIC ROADS ....................9 LETHAL DANGER – DO NOT ALTER FACTORY SETTINGS..................9 WARNING –...
Page 6 ST470E Tractor WARNING – BATTERY SAFETY ..........................27 EQUALIZING CHARGE ............................28 REMOVING THE BATTERY ............................. 29 WARNING – WEIGHT OF BATTERY ........................29 BATTERY INSTALLATION ............................29 BATTERY STORAGE ............................... 30 OPERATION................................31 STORAGE................................32 RECEIPT AND PREPARATION FOR FIRST USE ......................32 NEW TRACTOR RUN-IN PERIOD ...........................
Page 7: List Of Abbreviations
ST470E Baggage Tractor LIFTING/SHIPPING THE TRACTOR ........................160 WARNING – SIZE AND WEIGHT OF tractor......................161 WARRENTY ................................. 161 DISPOSAL ................................161 LIST OF ABBREVIATIONS Amp (Ampere) pounds force Amp hours pounds Centigrade light emitting diode cubic centimetres Limited Operating Strategy...
Page 8 ST470E Tractor litre Vehicle Control Language Page 8 Issue 1.4, April 2024 ST470E20...
Page 9: Safety
ST470E Baggage Tractor SAFETY Observe the following safety precautions. LETHAL DANGER – CARGO USE ONLY The Tractor is designed to tow airport ground support equipment only. Do not exceed the Tractors’ towing capacity. It is dangerous to do so and an accident or damage to the Tractor may result.
Page 10: Warning - Alcohol And Drug Use
ST470E Tractor WARNING – ALCOHOL AND DRUG USE The Tractor must not be accessed or operated by anyone impaired by alcohol or drugs. WARNING – SIZE AND WEIGHT OF TRACTOR The Tractor weighs 4300 kg (9480 lbs). When lifting the Tractor for service and maintenance purposes, always use an Automotive Service Lift/Hoist with a Safe Working Load (SWL) rated above the weight of the Tractor.
Page 11: Warning - Battery - Fire And Health Hazard
ST470E Baggage Tractor DO NOT leave any tools on metal/conductive objects on top of the battery. A short circuit of battery cells may result. WARNING – BATTERY – FIRE AND HEALTH HAZARD During charging the battery will release hydrogen and oxygen. When the hydrogen concentration in the air reaches 4% there is risk of an explosion.
Page 12: Precaution - Personal Protective Equipment
ST470E Tractor PRECAUTION – PERSONAL PROTECTIVE EQUIPMENT When operating, moving, lifting, servicing, repairing, or transporting the Tractor, always wear suitable Personal Protective Equipment (PPE) to prevent crushing of hands, feet, or other body parts. For example, wear protective footwear, safety glasses, hard hat, protective gloves, and high-visibility clothing.
Page 13: Warnings And Precautions - Welding, Grinding, And Cutting
ST470E Baggage Tractor WARNINGS AND PRECAUTIONS – WELDING, GRINDING, AND CUTTING WELDING ARC. A welding arc is bright enough to damage eyesight and cause flash burns. Never look directly at a welding arc with unprotected eyes. Always use an approved welding screen or visor.
Page 14: Introduction
INTRODUCTION The function of the ST470E Tractor is to act as a baggage tractor, towing aircraft ground support equipment (GSE) within the confines of airports. The Tractor is NOT suitable for use on public roads. Multiple GSE can be linked together for towing, up to the towing limit of the Tractor and the regulation limits of the relevant airport/transport authorities.
Page 15: Specification
A hitch at the rear allows multiple carts to be linked together. A hitch at the front allows the Tractor to tow carts while reversing. SPECIFICATION The specification of the ST470E Tractor is given in the following Table. Table 1 ST470E Tractor specification ST470E Tractor...
Page 16 Units Notes Draw Bar Pull (DBP) 2132 Max value 4700 Minimum Turning Radius 3250 ST470E has hydraulic power steering. Gradeability (without load) Operating temperature range -20 to +50 deg C Ambient temperature Optimum battery performance is obtained -4 to +122...
Page 17 ST470E Baggage Tractor Figure 2 – ST470E Tractor dimensions Issue 1.4, April 2024 ST470E20 Page 17...
Page 18: Description
ST470E Tractor DESCRIPTION Figure 3 – ST470E Tractor Exterior Page 18 Issue 1.4, April 2024 ST470E20...
Page 19 ST470E Baggage Tractor Warning Beacon Upper brake light Mirror Side Indicator Lights Battery compartment cover Side Mirror Rear electrical compartment Front Hitch Tail Lamp Assembly LED Headlights Main Power Connector Front Indicator Lights Rear Hitch Side Indicator Lights Access hatch (to hydraulic tank)
Page 20 ST470E Tractor DRIVING CONTROLS Lights control Heater Steering wheel Switch for 4-way hazard indicator lights Forward/Reverse direction control Windscreen wiper switch Ignition switch Switch for Rear Working Lamp Dashboard Instrument Display Screen Accelerator pedal EMERGENCY STOP switch Brake pedal Figure 4 –Driving controls Page 20 Issue 1.4, April 2024...
Page 21: Lethal Danger - Do Not Alter Factory Settings
ST470E Baggage Tractor The function of the drivers’ controls and indicators is described in the following Table: Number Description Function Lights control Controls headlamps, and Left/Right turn indicator lights Steering wheel Controls Tractor steering. From full left to full right, the steering wheel will make 3 to 4 complete rotations.
Page 22 ST470E Tractor Fault Code Battery low indicator Speed mode Seat switch indicator Speed Critical battery low indicator Distance travelled (in km) Fault alarm Bar meter showing remaining battery power Park brake indicator Menu up/down/left/right buttons Slow Mode indicator Remaining battery power percentage...
Page 23 ST470E Baggage Tractor PARKING BRAKE AND REAR HITCH LEVER Control lever for Rear Hitch Parking Brake Figure 6 – Parking Brake and Rear Hitch Lever The Parking Brake (Figure 6, item 2) is used to make sure the Tractor does not move when not in use. To apply the Parking Brake, press the button at the front of the Parking Brake and pull the Parking Brake lever upwards as far it will go.
Page 24 ST470E Tractor A lifting handle on the Rear Hitch linkage allows the Rear Hitch to be operated by a person standing beside the rear of the Tractor. EXTERIOR CONTROLS Forward creep button Reverse creep button EMERGENCY STOP switch Figure 7 – Exterior Controls Three control buttons are located on the left rear of the Tractor (Figure 7).
Page 25: Charging The Battery
ST470E Baggage Tractor CHARGING THE BATTERY The Tractor battery MUST be recharged every day after use. Recharge the Tractor battery as follows: NOTE Leaving a battery in a discharged state for more than 24 hours will reduce battery life and performance.
Page 26: Warning - Battery Gases
ST470E Tractor ➢ Visually check the Main Power Connector and associated cable for damage. If damage is observed, do not attempt to recharge the battery, and REPORT the fault. Guard Access hatch (Power Steering hydraulic oil tank) Main Power Connector Figure 8 –...
Page 27: Checking Battery Electrolyte Level
ST470E Baggage Tractor ➢ Continue charging until the battery is fully charged. Most chargers are designed to self monitor the voltage and adjust the charge rate as the battery reaches full charge, then it will shut off at full charge. To fully charge a battery will take 8 to 12 hours, depending upon the charger.
Page 28: Equalizing Charge
ST470E Tractor Figure 9 - Vent cap : checking the electrolyte level ➢ You MUST use distilled water or de-ionised water to top-up the electrolyte. NEVER use ordinary water. ➢ DO NOT put the distilled water or de-ionised water in a container made from iron or steel. Use either a lead container, or a porcelain/pottery container, or a PVC (plastic) container.
Page 29: Removing The Battery
ST470E Baggage Tractor ➢ Close the battery vent cap. The battery can only be used when the vent cap is closed. Make sure that the vent cap is clean. ➢ Check that all the battery terminal posts are tight and smeared with a small amount of dielectric grease.
Page 30: Battery Storage
ST470E Tractor BATTERY STORAGE If a spare backup battery is required and will not be used for a long period of time, it is recommended that a dry-charged battery is purchased. That is, a battery without any electrolyte present. If a battery contains an electrolyte, and it is placed in storage for a long period, it will slowly self-discharge. The self- discharge will reduce the capacity of the battery (the amount of power it can store), cause counter electrode vulcanisation, and damage the battery’s working life due to time migration hazards.
Page 31: Operation
ST470E Baggage Tractor OPERATION Before starting the Tractor: ➢ Ensure that the EMERGENCY STOP switches are in the open position, and the Gear Lever is in the Neutral position. ➢ Rotate the Start Switch in a clockwise direction to the On position. The Main Contactor (in the Rear Electrical Compartment) connects and the whole Tractor switches On.
Page 32: Storage
➢ Store the Tractor under a suitable cover. Indoor storage is highly recommended. RECEIPT AND PREPARATION FOR FIRST USE On receipt of a new ST470E Tractor, before operating the Tractor for the firsts time, you MUST perform the following: ➢ Make sure that all loose packaging has been removed from the Tractor.
Page 33: New Tractor Run-In Period
ST470E Baggage Tractor NEW TRACTOR RUN-IN PERIOD Run-in the Tractor as detailed in the Table below. Run In Table Running Time (Hours) Load Travelling Speed 0 to 10 Unloaded Less than 10 km/hr 10 to 25 Less than 50% Load...
Page 34: Scheduled Maintenance
Scheduled maintenance is limited to the activities specified in the Scheduled Maintenance Table below. The maintenance intervals given are approximate, assume heavy use of the ST470E Tractor, and may be varied by ±10% without adverse effects. Every Tractor should be inspected and serviced based on its own requirements, for example variation in the hours of use and the environment in which it is used.
Page 35 ST470E Baggage Tractor Task Check the windscreen and windows for cracked glass. If glass is cracked, do not use the Tractor until the damaged glass has been replaced. Check that the headlights, indicator lights and rear lights are present and undamaged. Switch ON the ignition and check that all the lights work.
Page 36 ST470E Tractor Task Check that no tools, metal, or conductive items have been left on top of the battery. Perform an “Equalize Charge” on the Battery. Check for water or electrolyte in the steel tray. Remove water and dry tray. Neutralise electrolyte with alkaline water, dilute with water, remove liquid, and dry.
Page 37 ST470E Baggage Tractor Task Check, and if required, adjust the free stroke of the brake pedal and parking brake. Check parking brake cables. Replace if damaged or worn. Adjust if loose. Replace power steering oil. Refer to the Fuel, Lubricants and Consumables section of this manual for details of the power steering oil.
Page 38: Cold/Hot Weather Maintenance
ST470E Tractor Task Check that the LED on the Steering Motor Controller indicates that the Steering Motor Controller is functioning correctly. Then switch Off the Tractor. Lubrication Lubricate Tractor in accordance with the Lubrication Chart (if not already done in this maintenance sequence).
Page 39: Fuel, Lubricants And Consumables
ST470E Baggage Tractor FUEL, LUBRICANTS AND CONSUMABLES Fuel/Lubricant Specification Lubricating Grease 3# Lithium based grease Wheel Bearing Grease Drive Axle Oil ISO 220 Gear Oil Brake Fluid DOT 4 Brake Fluid Power Steering Fluid Universal Tractor Fluid FILL CAPACITIES Item...
Page 40: Lubrication
ST470E Tractor LUBRICATION Lubrication requirements are summarised in this Lubrication Diagram. Figure 10 – Lubrication diagram Page 40 Issue 1.4, April 2024 ST470E20...
Page 41: Test Equipment
ST470E Baggage Tractor TEST EQUIPMENT The following Test Equipment is used during the failure diagnosis and troubleshooting procedures. ➢ A digital multimeter. The multimeter must have a “diode test” function. The use of a multimeter is ESSENTIAL. ➢ Either a Curtis Model 1313 Handheld Programmer, or a Curtis Model 1314 Laptop Based Programmer.
Page 42 ST470E Tractor Figure 12 - Curtis Model 1314 Laptop Based Programmer For brevity, the electrical failure diagnosis and troubleshooting procedures only refer to the use of a Curtis Model 1313 Handheld Programmer. However, all references to the Curtis Model 1313 Handheld Programmer should be taken to mean either a Curtis Model 1313 Handheld Programmer, or a Curtis Model 1314 Laptop Based Programmer.
Page 43: Troubleshooting And Failure Diagnosis
ST470E Baggage Tractor TROUBLESHOOTING AND FAILURE DIAGNOSIS Troubleshooting and failure diagnosis on the XT470LA Tractor is performed by five methods. The nature of the problem will to a large extent determine which troubleshooting methods to use. ➢ Depending upon the problem, a MIL (Malfunction Indicator Lamp) may be displayed on the Dashboard Instrument Display Screen (Dash Display Screen).
Page 44 ST470E Tractor Sub-Assembly Trouble Probable Cause Corrective Action Front wheel or tire is damaged, or Replace. deformed, or has uneven wear. Steering wheel Steering System loose, not Tighten securing hardware. Power Steering vibration, secure. System shaking, or instability Tire pressure incorrect.
Page 45 ST470E Baggage Tractor Sub-Assembly Trouble Probable Cause Corrective Action “Floating” when The volume of oil flowing through Adjust the volume setting on the Power Steering turning and the Power Steering System when flow valve and adjust the bolts System stringing of the turning the Tractor is incorrect.
Page 46 ST470E Tractor Sub-Assembly Trouble Probable Cause Corrective Action Brake Master Cylinder Replace Brake Master Cylinder. unserviceable. Brake cylinder is faulty. Replace Brake Assembly. Tire pressure incorrect. Adjust tire pressure to bring it within specification. Brake clearances are not equal. Adjust brake clearances.
Page 47 ST470E Baggage Tractor Sub-Assembly Trouble Probable Cause Corrective Action brake lights, rear reduced The respective control switch is Replace the switch. working light. brightness faulty or has a bad connection. Headlights, Wiring fault. Referring to the electrical Light does not...
Page 48 ST470E Tractor DIAGNOSTICS The Traction Motor Controller can detect a wide variety of faults or error conditions. Faults can be detected by the operating system (OS) or by the Vehicle Control Logic (VCL) code. Faults detected by the OS are described in the Traction Motor Controller Troubleshooting Table.
Page 49 ST470E Baggage Tractor Example of how to read the flashing LEDs: B+ Under-voltage cutback (Fault Code 23) fault occurs. The Traction Motor Controller’s two LEDs will display this repeating pattern: In the above example, in the Fault menu of the 1313 Handheld Programmer, the words B+ Undervoltage Cutback will be displayed;...
Page 50 ST470E Tractor Traction Motor Controller Troubleshooting Table Fault Effect of Fault Probable Cause Failure diagnosis method Code NOTE If the Traction Motor Controller diagnostics detects a fault, the message FAULT CODE will be displayed at the top of the Dash Display Screen. Below the FAULT CODE message, further fault diagnosis messages will be displayed.
Page 51 ST470E Baggage Tractor Fault Effect of Fault Probable Cause Failure diagnosis method Code The power supply line is Check that the power supply line is functioning disconnected. correctly. Switch signals such as Using the 1313 Handheld Programmer, check if the...
Page 52 ST470E Tractor Fault Effect of Fault Probable Cause Failure diagnosis method Code Motor Control Tuning/Motor Characterization Tests/Test Throttle to +1. At this point, the motor will rotate. If the wheel turns backward, set /Test Throttle to 0, and reset Test Throttle to-1 after the motor stops rotating.
Page 53 ST470E Baggage Tractor Fault Effect of Fault Probable Cause Failure diagnosis method Code The temperature of the Reduce load on Tractor. Controller is above +95 deg C. Controller is operating in Check the cooling measures for the an extreme environment.
Page 54 ST470E Tractor Fault Effect of Fault Probable Cause Failure diagnosis method Code Using the 1313 Handheld Programmer check these Battery parameter settings in Programme/Battery menu: Nominal voltage. Severe User undervoltage. overvoltage. Check the regenerative braking parameter settings in Programme/Current limits menu: Regen current limit.
Page 55 ST470E Baggage Tractor Fault Effect of Fault Probable Cause Failure diagnosis method Code Fault shows that Using a multimeter, measure the battery regenerative braking currents voltage and check that it is approx. 80V DC. If not, elevated the battery voltage perform maintenance on the Battery, or replace during regenerative braking.
Page 56 ST470E Tractor Fault Effect of Fault Probable Cause Failure diagnosis method Code External device failure. Using the 1313 Handheld Programmer, monitor: Monitor/ Digital Output 7 to see the percentage of the output signal of Driver 7. NOTE: The 20th pin of the Controller 35-pin plug is the Driver 7 output signal.
Page 57 ST470E Baggage Tractor Fault Effect of Fault Probable Cause Failure diagnosis method Code Fault in load equipment Check load equipment attached to Coil1 attached to Coil1 Driver. Driver for open or short circuits, or other faults. Dirty connector pins. Check that the wiring is correct, that the pins...
Page 58 ST470E Tractor Fault Effect of Fault Probable Cause Failure diagnosis method Code Coil Driver4 (pin 3) is either Check that the wiring is correct, that the pins open circuit or shorted. are dirt free, and all crimp connections are serviceable.
Page 59 ST470E Baggage Tractor Fault Effect of Fault Probable Cause Failure diagnosis method Code Motor phase U, V, or W is Check the UVW three-phase wiring and open circuit. connections for open circuits. Faulty wiring. Using a digital multimeter, check the UVW...
Page 60 VCL function Programme/Setup_Pot_Faults. Replace accelerator. This Motor Controller This Fault Code should not occur on the ST470E function is not used on the Tractor. In the unlikely event that it does occur, ST470E Tractor.
Page 61 Probable Cause Failure diagnosis method Code This Motor Controller This Fault Code should not occur on the ST470E function is not used on the Tractor. In the unlikely event that it does occur, ST470E Tractor. check that the pins of the Controller 35-pin plug are undamaged, clean and debris free.
Page 62 NOTE Fault codes between 5.1 and 6.7 are OEM (Original Equipment Manufacturer) Faults. These faults are defined by the OEM and are implemented in the VCL code specific to the ST470E Tractor. There is a problem with the CAN Check the vehicle Main Electrical Harness.
Page 63 Failure diagnosis method Code communication failure. Not Applicable. Not Applicable. Fault code 6.2 cannot occur on the ST470E Tractor. Dash Display Incorrect type of Dash Display Check that the Dash Display Screen is the Screen Screen, or Dash Display Screen correct type for the vehicle.
Page 64 Check that the Brake is fully released. Check Motor and Motor Controller for damage. Does not apply to Does not apply to ST470E Does not apply to ST470E Tractor. ST470E Tractor. Tractor. The Motor Controller Check all switch input signals, check whether internal processor detects illegal the switch is damp or damaged.
Page 65 ST470E Baggage Tractor Fault Effect of Fault Probable Cause Failure diagnosis method Code 6=Failed to respond to low voltage. 7=Failure of high-pressure reaction. 8=The Controller cannot detect the Encoder signal. 9=The Motor parameter setting is out of range. Encoder characterization...
Page 66 Using the 1313 Handheld Programmer, check the Emergency Reverse program setting. 9.5 to Does not apply to Does not apply to ST470E Does not apply to ST470E Tractor. ST470E Tractor. Tractor. Illegal model Motor Controller model Check Motor Controller is correct model.
Page 67: Repair
Parts Breakdown List and the numbers on the Exploded Parts View illustrations are keyed to the Parts Breakdown List. A specific procedure is provided for accessing the Rear Electrical Compartment. Replacement parts should be sourced from Avro GSE. The use of major components not obtained from Avro GSE will invalidate the Warranty. NOTE It is expected that replacement fasteners may be sourced locally.
Page 68 ST470E Tractor General recommended torque values Bolt Strength Grade 10.9 Minimum yield strength 340 MPa 480 MPa 660 MPa 940 MPa Bolt Indent hex Hex Socket Recommended Torque 10.4 25.4 37.6 1029 1472 1225 1962 1127 1470 2060 1470 1764...
Page 69 ST470E Baggage Tractor Issue 1.4, April 2024 ST470E20 Page 69...
Page 70 ST470E Tractor Guard Assembly Controller Return Cable M6 x 20 mm screw Rear Main Cover Panel M6 lock washer Main Power Connector – motor/controller side Battery Cable Main Power Connector - battery side Figure 13 – Accessing rear electrical compartment (stage 1) Page 70 Issue 1.4, April 2024...
Page 71 ST470E Baggage Tractor ➢ Taking care not to damage the cables, push the Battery Cable (4) and the Controller Return Cable (5) through the holes in the Rear Main Cover Panel (6). ➢ Refer to Figure 14. Remove and retain the screws (2), lock washers (3) and flat washers (1) that secure the Rear Main Cover Panel (4).
Page 72: Warning - Motor Connections
Tractor moving backwards when forward travel is selected. WELDING REPAIRS, GRINDING, AND CUTTING If any weld repairs, grinding, cutting with power tools or cutting torches, or similar work is to be performed on a ST470E Tractor, the Safety Warnings and Precautions below MUST be complied with.
Page 73 ST470E Baggage Tractor GRINDING, CHIPPING, AND CUTTING. Always wear eye protection (e.g. protective goggles) when using grinding and cutting tools, and when chipping off welding slag. Always wear eye protection when within 4 Meters (13 feet) of grinding, slag chipping, or cutting with power tools.
Page 74: Electrical Schematics
These Electrical Schematics are provided to assist in troubleshooting. This manual covers the build standard of the ST470E Tractor that were manufactured during 2022. For the ST470E Tractor with a MY of 2022, the following electrical diagrams are provided (in this sequence): ➢ ST470E Electrical Schematic 2022 MY ➢...
Page 75 ST470E Baggage Tractor Issue 1.4, April 2024 ST470E20 Page 75...
Page 76 ST470E Tractor Page 76 Issue 1.4, April 2024 ST470E20...
Page 77 ST470E Baggage Tractor Issue 1.4, April 2024 ST470E20 Page 77...
Page 78 ST470E Tractor Page 78 Issue 1.4, April 2024 ST470E20...
Page 79 ST470E Baggage Tractor Issue 1.4, April 2024 ST470E20 Page 79...
Page 80 ST470E Tractor Page 80 Issue 1.4, April 2024 ST470E20...
Page 81 ST470E Baggage Tractor Issue 1.4, April 2024 ST470E20 Page 81...
Page 82 ST470E Tractor Page 82 Issue 1.4, April 2024 ST470E20...
Page 83 ST470E Baggage Tractor Issue 1.4, April 2024 ST470E20 Page 83...
Page 84 ST470E Tractor Page 84 Issue 1.4, April 2024 ST470E20...
Page 85 ST470E Baggage Tractor Issue 1.4, April 2024 ST470E20 Page 85...
Page 86 ST470E Tractor Page 86 Issue 1.4, April 2024 ST470E20...
Page 87: Exploded Parts Views & Parts Lists
ST470E Baggage Tractor EXPLODED PARTS VIEWS & PARTS LISTS Issue 1.4, April 2024 ST470E20 Page 87...
Page 88: Body & Exterior
ST470E Tractor BODY & EXTERIOR Body and Exterior - Exploded Parts View Page 88 Issue 1.4, April 2024 ST470E20...
Page 89 ST470E Baggage Tractor Body and Exterior – Spare Parts List Item Part No. Description Remarks PRFA00132 Nut, Special, M6 PRFA00038 Screw, M6 x 20 mm PRFA00007 Washer, Lock, M6 PRPW01558 Inner Dash Cover Panel PRPW01559 Upper Dash Cover panel PRPW01660...
Page 90 ST470E Tractor Body and Exterior - Exploded Parts View Page 90 Issue 1.4, April 2024 ST470E20...
Page 91 ST470E Baggage Tractor Body and Exterior – Spare Parts List Item Part No. Description Remarks PRPW01776 Taillight Housing, Left PRFA00133 Bolt, M8 x 12 mm PRPW02210 Work Lamp Mount Rear Light Bracket PRPW01777 Hatch Panel PRPW01778 Hinge PRFA00021 Nut, M8...
Page 92 ST470E Tractor Chassis Assembly - Exploded Parts View Page 92 Issue 1.4, April 2024 ST470E20...
Page 93 ST470E Baggage Tractor Chassis Assembly – Spare Parts List Item Part No. Description Remarks PRPW01895 Steering Mount PRFA00061 Bolt, M8 x 16 mm PRFA00010 Washer, Lock, M8 GB/T 93 PRPW00547 Washer, Flat, M8 GB/T 97.1 PRFA00039 Screw, M8 x 20 mm...
Page 94 ST470E Tractor Hitch Assembly - Exploded Parts View Page 94 Issue 1.4, April 2024 ST470E20...
Page 95 ST470E Baggage Tractor Hitch Assembly – Spare Parts List Item Part No. Description Remarks PRPW01900 Handle Mount PRFA0008 Bolt, M10 x 30 mm PRFA00012 Washer, Lock, M10 PRFA00011 Washer, Flat, M10 PRFA00049 Bolt, M10 x 40 mm PRFA00036 Nut, M10...
Page 96 ST470E Tractor Hitch Assembly - Exploded Parts View Page 96 Issue 1.4, April 2024 ST470E20...
Page 97 ST470E Baggage Tractor Hitch Assembly – Spare Parts List Item Part No. Description Remarks PRFA00137 Pin, Split Cotter, 4 x 25mm PRPW01908 Connection Plate PRFA00136 Pin, 12 x 40 mm PRPW01909 Rear Hitch Pin PRPW01910 Rear Hitch Assembly PRFA00110 Bolt, M18 x 75 mm...
Page 98 ST470E Tractor Front Hitch - Exploded Parts View Page 98 Issue 1.4, April 2024 ST470E20...
Page 99 ST470E Baggage Tractor Front Hitch – Spare Parts List Item Part No. Description Remarks PRPW00652 Front Hitch Pin PRPW00653 Pin Lock Mount PRFA00013 Bolt, M8 x 25mm PRFA00010 Washer, Lock, M8 PRFA00009 Washer, Flat, M8 PRPW00649 Hitch Pin Lock PRFA00089...
Page 100: Seats
ST470E Tractor SEATS Seat Assembly - Exploded Parts View Page 100 Issue 1.4, April 2024 ST470E20...
Page 101 ST470E Baggage Tractor Seat Assembly – Spare Parts List Item Part No. Description Remarks PRPW01911 Seat PRFA00021 Nut, M8 PRFA00010 Washer, Lock, M8 PRFA00009 Washer, Flat, M8 PRFA00009 Washer, Flat, M8 PRPW00656 Seat Mounting Bracket PRFA00033 Bolt, M8 x 20 mm Issue 1.4, April 2024...
Page 102: Cab
ST470E Tractor Cab Assembly - Exploded Parts View Page 102 Issue 1.4, April 2024 ST470E20...
Page 103 ST470E Baggage Tractor Cab Mounting – Spare Parts List Item Part No. Description Remarks PRPW00662 Rear Gromet Cover, Left PRFA00033 Bolt, M8 x 20mm PRFA00010 Washer, Lock, M8 PRFA00009 Washer, Flat, M8 PRPW01912 Heater PRFA00007 Washer, Lock, M6 PRPW00364 Seal, Rear Side Glass...
Page 104 ST470E Tractor Left Door Assembly - Exploded Parts View Page 104 Issue 1.4, April 2024 ST470E20...
Page 105 ST470E Baggage Tractor Left Door Assembly – Spare Parts List Item Part No. Description Remarks PRPW00043 Side Mirror, Exterior Refer to Item #28, page 81 PRPW00045 Side Mirror Bracket PRPW00465 Sliding Glass Assembly, Left-Hand PRPW00364 Seal Rear Side Glass Set of 3...
Page 106 ST470E Tractor Right Door Assembly - Exploded Parts View Page 106 Issue 1.4, April 2024 ST470E20...
Page 107 ST470E Baggage Tractor Right Door Assembly – Spare Parts List Item Part No. Description Remarks PRFA00037 Screw, M6 x 16 mm PRFA00006 Washer, Flat, M6 PRPW00046 Exterior Door Handle T20G1-40900 PRPW00824 Gasket Supplied with PRPW00046 PRPW00807 Side Mirror, Exterior PRFA00038D...
Page 108: Controls And Instruments
ST470E Tractor CONTROLS AND INSTRUMENTS Controls and instruments - Exploded Parts View Page 108 Issue 1.4, April 2024 ST470E20...
Page 109 ST470E Baggage Tractor Controls and instruments – Spare Parts List Item Part No. Description Remarks Steering Wheel Assembly Refer to Steering System spare parts list PRPW00898 Gearshift/Turn Signal Control Assembly PRPW00428 Keyless Ignition Switch PRPW00896 Dashboard Instrument Screen PRPW00041 Emergency stop switch - Twist release...
Page 110: Electrical System
ST470E Tractor ELECTRICAL SYSTEM Electrical system - Exploded Parts View Page 110 Issue 1.4, April 2024 ST470E20...
Page 111 ST470E Baggage Tractor Electrical System – Spare Parts List Item Part No. Description Remarks PRPW00693 Turn Indicator PRPW00178 Headlamp Assembly PRPW01131 Front Turn Signal PRPW00693 Turn Indicator PRPW00107 Forward/Reverse switch, button PRPW00041 Emergency stop switch - Twist release Ref . To Item 5 & 6...
Page 112 ST470E Tractor Rear Electrical Compartment- Exploded Parts View Page 112 Issue 1.4, April 2024 ST470E20...
Page 113 ST470E Baggage Tractor Rear Electrical Compartment – Spare Parts List Item Part No. Description Remarks PRFA00114 Screw, M5 x 12 mm PRPW00499 DC – DC Transformer 80V-24V PRPW01077 DC – DC Transformer 80V-12V PRPW01092 Reversing Buzzer PRFA00108 Bolt, M6 x 16 mm...
Page 114 ST470E Tractor Page 114 Issue 1.4, April 2024 ST470E20...
Page 115 ST470E Baggage Tractor Rear Electrical Compartment- Exploded Parts View Issue 1.4, April 2024 ST470E20 Page 115...
Page 116 ST470E Tractor Rear Electrical Compartment – Spare Parts List Item Part No. Description Remarks PRPW01554 Busbar, Copper, Fuse to Contactor PRFA00168 Screw, Pan Head Posidrive, M5 x 8 mm PRFA00116 Washer, Lock, M5 PRFA00117 Washer, Flat, M5 PRPW01265 Contactor, Type SW200-583, 80DC, Co Dust...
Page 117 ST470E Baggage Tractor Battery Compartment - Exploded Parts View Issue 1.4, April 2024 ST470E20 Page 117...
Page 118 ST470E Tractor Battery Compartment – Spare Parts List Item Part No. Description Remarks PRPW00353 Battery, 80V/660Ah PRPW01933 Centre Control Box PRFA00134 Bolt, M12 x 40 mm PRFA00034 Washer, Lock, M12 PRFA00030 Washer, Flat, M12 ATM Mini-Fuse 1, 30 Amp Purchase locally...
Page 119 ST470E Baggage Tractor Cab interior light - Exploded Parts View Issue 1.4, April 2024 ST470E20 Page 119...
Page 120 ST470E Tractor Cab interior light – Spare Parts List Item Part No. Description Remarks PRPW01934 Cab Interior Light If failed, replace complete light (supplied complete with necessary fasteners) Page 120 Issue 1.4, April 2024 ST470E20...
Page 121: Drivetrain
ST470E Baggage Tractor DRIVETRAIN Drive Axle Assembly - Exploded Parts View Issue 1.4, April 2024 ST470E20 Page 121...
Page 122 ST470E Tractor Drive Axle Assembly – Spare Parts List Item Part No. Description Remarks PRPW01546 O-Ring, dia. 90.0 mm x 3.55 mm PRPW01935 Axle Box Assembly PRPW01936 Rim Assembly PRFA00138 Pin, Split Cotter, 5 x 40mm PRFA00072 Washer, Flat, M14...
Page 123 ST470E Baggage Tractor Differential - Exploded Parts View Issue 1.4, April 2024 ST470E20 Page 123...
Page 124 ST470E Tractor Differential – Spare Parts List Item Part No. Description Remarks PRPW01943 Deep Groove Ball Bearing, Type 6214, single row, i.d. 70 mm, o.d. 125 mm, width 24 mm, chamfer 1.5 mm PRFA00121 Bolt, M10 x 1.25 x 75 mm, grade 12.9...
Page 125 ST470E Baggage Tractor Drive Axle Transmission Assembly - Exploded Parts View Issue 1.4, April 2024 ST470E20 Page 125...
Page 126 ST470E Tractor Drive Axle Transmission Assembly – Spare Parts List Item Part No. Description Remarks PRPW01946 Cover Plate, Bearing HDQX25-01020 PRFA00063 Bolt, M10 x 25mm PRFA00123 Washer, Spring, M10 PRPW01946 Cover Plate, Bearing HDQX25-01019 PRFA00122 Bolt, M14 x 1.5 x 40 mm, grade 10.9...
Page 127 ST470E Baggage Tractor Drive Axle Transmission Assembly - Exploded Parts View Issue 1.4, April 2024 ST470E20 Page 127...
Page 128 ST470E Tractor Drive Axle Transmission Assembly – Spare Parts List Item Part No. Description Remarks PRPW01963 Bearing Cap HDQX25-01012 PRFA00127 Bolt, M14 x 1.5 x 90 mm, grade 10.9 PRFA00166 Pin, 10 x 22 mm PRPW01965 Plug DCS25-0008 PRPW01966 Gasket, Combined, M18...
Page 129 ST470E Baggage Tractor Rear Brake /Hub/Axle Assembly - Exploded Parts View Issue 1.4, April 2024 ST470E20 Page 129...
Page 130 ST470E Tractor Rear Brake /Hub/Axle Assembly – Spare Parts List Item Part No. Description Remarks PRFA00142 Bolt, Special 24453-02061B PRPW01969 Shaft, Drive, Left-Hand HDQX15-00021 PRPW01970 Paper Gasket A22A3-02031 PRFA00128 Nut, M58 x 2 mm 25555-00004 PRFA00129 Washer, Lock, M58 25555-00006 PRPW01971 O-Ring, 59.6 x 2.4 mm...
Page 131: Braking System
ST470E Baggage Tractor BRAKING SYSTEM Brake System- Exploded Parts View Issue 1.4, April 2024 ST470E20 Page 131...
Page 132 ST470E Tractor Brake System – Spare Parts List Item Part No. Description Remarks PRPW01985 Reservoir Hose, dia.10 mm, length 600 mm PRPW01986 Clamp, Hose, 20 mm x 12 mm PRPW01987 Brake Fluid Reservoir PRPW01988 Brake Fluid Reservoir Mount PRFA00130 Bolt, M6 x 12 mm...
Page 133 ST470E Baggage Tractor Brake System - Exploded Parts View Issue 1.4, April 2024 ST470E20 Page 133...
Page 134 ST470E Tractor Page 134 Issue 1.4, April 2024 ST470E20...
Page 135 ST470E Baggage Tractor Brake System – Spare Parts List Item Part No. Description Remarks PRPW01961 Brake Line No. 3 PRPW01968 Brake Line No. 4 PRPW01972 Brake Line, Left-Hand PRFA00047 Bolt, M8 x 35 mm PRPW00214 Brake Proportioning Valve T20G7-10009 PRFA00063...
Page 136 ST470E Tractor Park Brake Handle Assembly - Exploded Parts View Page 136 Issue 1.4, April 2024 ST470E20...
Page 137 ST470E Baggage Tractor Issue 1.4, April 2024 ST470E20 Page 137...
Page 138 ST470E Tractor Park Brake Handle Assembly – Spare Parts List Item Part No. Description Remarks PRFA00008 Bolt, M10 x 30 mm PRFA00012 Washer, Lock, M10 PRFA00011 Washer, Flat, M10 PRPW02006 Park Brake Handle Mount PRPW02007 Park Brake Handle Assembly PRPW01974...
Page 139: Suspension
ST470E Baggage Tractor SUSPENSION Rear Suspension Assembly - Exploded Parts View Issue 1.4, April 2024 ST470E20 Page 139...
Page 140 ST470E Tractor Rear Suspension Assembly – Spare Parts List Item Part No. Description Remarks PRFA00097 Spring Bolt PRPW02009 Gasket, Nylon PRPW02010 Rear Leaf Spring Assembly PRFA00167 U-Bolt PRPW00414 Bushing, Rubber PRFA00063 Bolt, M10 x 25mm PRFA00012 Washer, Lock, M10 PRFA00011...
Page 141 ST470E Baggage Tractor Front Axle Suspension - Exploded Parts View Issue 1.4, April 2024 ST470E20 Page 141...
Page 142 ST470E Tractor Front Axle Suspension – Spare Parts List Item Part No. Description Remarks PRFA00164 Pin, 12 x 60 mm PRPW00200 Front Shock Absorber PRFA00165 Bolt, M16 x 100 mm PRPW02016 Welded Spring Pin PRFA00146 Washer, Special PRPW02020 Spring Pin...
Page 143: Axle
ST470E Baggage Tractor AXLE Front Axle - Exploded Parts View Issue 1.4, April 2024 ST470E20 Page 143...
Page 144 ST470E Tractor Front Axle – Spare Parts List Item Part No. Description Remarks PRPW02024 Dust Cap, M63 x 150 324100300 PRPW00161 Nut, Special, M24 x 2 mm 330200300A PRPW00162 Washer, Special, 25 x 45 x 4 mm 351300Q030 PRPW00441 Tapered Roller Bearing, Type 30206, single row, i.d. 30 30206 mm, o.d.
Page 145 ST470E Baggage Tractor Front Axle - Exploded Parts View Issue 1.4, April 2024 ST470E20 Page 145...
Page 146 ST470E Tractor Front Axle – Spare Parts List Item Part No. Description Remarks PRFA00147 Screw, M5 x 15 mm, pitch 0.8 mm 320301Q01B PRPW02314 Grease Nipple, Straight, M6 3371001000 PRPW02032 Steering Rod End, Left, M22 x 1.5 mm 352001Q00A PRPW02033...
Page 147: Steering System
ST470E Baggage Tractor STEERING SYSTEM Steering Assembly - Exploded Parts View Issue 1.4, April 2024 ST470E20 Page 147...
Page 148 ST470E Tractor Steering Assembly – Spare Parts List Item Part No. Description Remarks PRFA00150 Bolt, Special PRFA00151 Washer Nylon, Special PRPW02036 Steering Wheel Assembly PRFA00153 Nut, M14 x 1.5 c/w Steering Column PRFA00072 Washer, Flat, M14 c/w Steering Column PRPW02037...
Page 149 ST470E Baggage Tractor Power Steering System - Exploded Parts View Issue 1.4, April 2024 ST470E20 Page 149...
Page 150 ST470E Tractor Power Steering System – Spare Parts List Item Part No. Description Remarks PRPW02183 Right Angle Connector PRPW02184 Right Angle Connector PRPW02317 Clamp, Hose, 20 x 12 mm PRPW02318 Oil Return Hose, dia. 13 mm, length 500 mm PRPW02185...
Page 151 ST470E Baggage Tractor Power Steering Hydraulic Oil Tank - Exploded Parts View Issue 1.4, April 2024 ST470E20 Page 151...
Page 152 ST470E Tractor Power Steering Hydraulic Oil Tank – Spare Parts List Item Part No. Description Remarks PRPW02194 Magnet PRPW02195 Oil Drain Plug PRPW02196 Sealing Ring, Type ED26, i.d. 26 mm PRPW02197 Oil Tank PRPW02319 Filter PRPW02198 Cover Gasket PRPW02199 Hydraulic Oil Tank Cover...
Page 153: Wheels & Tires
ST470E Baggage Tractor WHEELS & TIRES Front Wheels and Tires - Exploded Parts View Issue 1.4, April 2024 ST470E20 Page 153...
Page 154 ST470E Tractor Front Wheels and Tires – Spare Parts List Item Part No. Description Remarks PRPW00380 Front Rim Assembly PRPW02204 Tire (185R14) Page 154 Issue 1.4, April 2024 ST470E20...
Page 155 ST470E Baggage Tractor Rear Wheels and Tires - Exploded Parts View Issue 1.4, April 2024 ST470E20 Page 155...
Page 156 ST470E Tractor Rear Wheels and Tires – Spare Parts List Item Part No. Description Remarks PRPW00181 Tire (7.00-12-12PR) PRPW00182 Rim, Rear Wheel Page 156 Issue 1.4, April 2024 ST470E20...
Page 157: Labels
ST470E Baggage Tractor LABELS Sheet of Labels Issue 1.4, April 2024 ST470E20 Page 157...
Page 158 ST470E Tractor Labels – Spare Parts List Item Part No. Description Remarks PRPW03220 Set of Labels for ST470E Tractor GCIY1229 (complete set of labels for Tractor) Page 158 Issue 1.4, April 2024 ST470E20...
Page 159: Supplementary Information
ST470E Baggage Tractor SUPPLEMENTARY INFORMATION Issue 1.4, April 2024 ST470E20 Page 159...
Page 160: Lifting/Shipping The Tractor
ST470E Tractor LIFTING/SHIPPING THE TRACTOR The recommended method of loading (or off-loading) the Tractor on to (or off) a truck, is to use a suitable loading dock to slowly and carefully drive on/drive off. If a suitable loading dock is not available, lift the Tractor using a forklift. There are NO lifting points on the Tractor to which lifting slings or chains can be safety attached.
Page 161: Warning - Size And Weight Of Tractor
Lifting Diagram. WARRENTY All Avro GSE products are covered by our Warranty Policy. If you require a copy of our Warranty Policy, please contact us using the contact details given on page 2 of this manual.
Page 162 ST470E Tractor PAGE INTENTIONALLY LEFT BLANK Page 162 Issue 1.4, April 2024 ST470E20...
Page 163 ST470E Tractor Published in Canada by Avro GSE Limited. Back Cover...

AVRO ST470E Operation, Maintenance And Parts Manual

Quick Links

Need help?

Questions and answers

Related Manuals for AVRO ST470E

Summary of Contents for AVRO ST470E

Table of Contents
