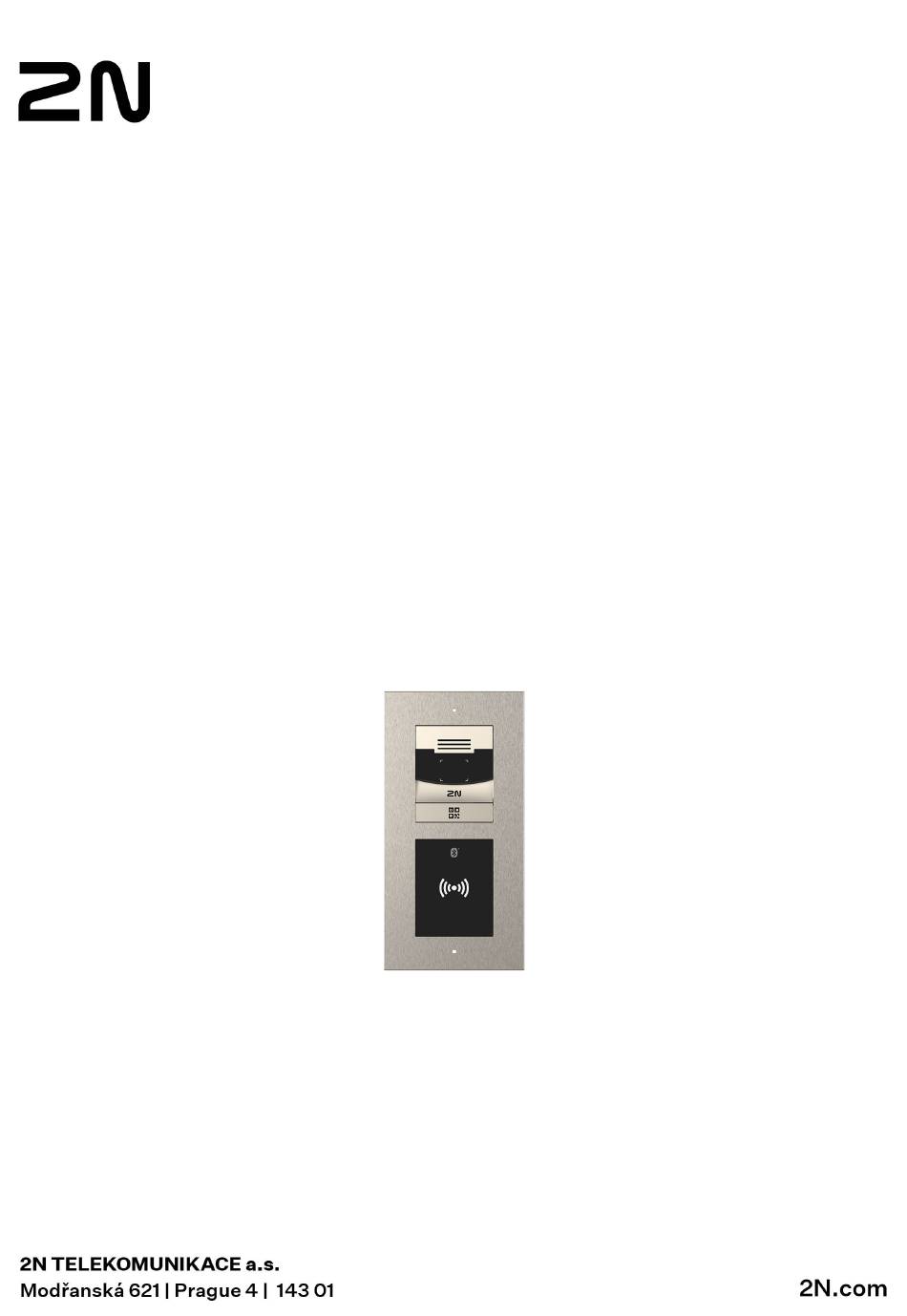

Page 1 2N Access Unit QR User Manual...
Page 2: Table Of Contents
Domain Name ......................... 111 IP address ..........................111 Web Configuration Interface Login .................... 111 IP Address Retrieval ........................112 IP Address Retrieval Using 2N Network Scanner ............... 112 Firmware Update ........................113 Device Restart ..........................113 Restart Using Web Configuration Interface, ................114 Factory Default Reset ........................
Page 3: Symbols And Terms Used
Symbols and Terms Used Symbols and Terms Used The following symbols and pictograms are used in the manual: DANGER Always abide by this information to prevent persons from injury. WARNING Always abide by this information to prevent damage to the device. CAUTION Important information for system functionality.
Page 4: Product Description
The section also includes safety precautions. Basic Features 2N Access Unit QR is an access unit equipped with a full HD camera used as an elegant QR code reader. Thanks to modularity, the assembly can be complemented with another 2N Access Unit 2.0 module (including the compatible 2N IP Verso modules except for 2N IP Verso –...
Page 5: Product Versions
It provides access control via a QR code. One blind module is always supplied with the device. Accessories Accessories for Installation 2N Access Unit QR is designed for outdoor applications and requires no additional roof. Choose the proper a mounting box depending on your particular installation needs.
Page 6 Product Description Part No. 9155014 Axis Part No. 01284-001 Flush mounting box, 1-module The box is designed for brick/plasterboard flush mounting of 1-module. Delivered including accessories for multiple box assemblies. Remember to order it together with a 1-module flush mounting frame, Part No.
Page 7 Product Description Part No. 9155063 Axis Part No. 01295-001 3-module mounting backplate Mounting backplate for glass/uneven surface mounting of 3 modules. Part No. 9155064 Axis Part No. 01296-001 2 x 2-module mounting backplate Mounting backplate for glass/uneven surface mounting of 2 (w) x 2 (h) modules.
Page 8: Frames
1/3/5 m interconnecting cable Interconnection cable for distant module installation. Only one interconnecting cable is allowed per installation. The maximum bus length is 7 m. Frames The above mentioned mounting boxes and 2N Verso extending modules are compatible with 2N Access Unit.
Page 9 Product Description Part No. 9155011 Axis Part Nos. 01278-001 Flush mounting frame, 1 module Covering frame for the 1-module brick/plasterboard flush mounting box. The 1-module frame is used, for example: • When an additional module is added to an existing installation. •...
Page 10 Product Description Part No. 9155013 Axis Part No. 012345 Flush mounting frame, 3 modules Covering frame for the 3-module brick/plasterboard flush mounting box. Remember to order the frame when you order a 3-module flush mounting box, Part No. 9155016. Part No. 9155013B Axis Part No.
Page 11: Extenders
Surface mounting frame, 3 modules Part No. 9155023B Axis Part No. 012345 Surface mounting frame, 3 modules – black Extenders 9155032 - predecessor of 91550941? 916031 - predecessor of 916019 NOTE 2N Access Unit QR also supports the 2N IP Verso extending modules.
Page 12 The digits and symbols are backlit. Part No. 9155031B Axis Part No. 01254-001 2N IP Verso – Keypad – black The numeric keypad module helps you dial users via their phonebook positions or phone numbers. Also, it helps you control the lock and other functions via a numeric code.
Page 13 • Mobile Key Part No. 9160342-S Axis Part No. 02142-001 2N IP Verso 13.56 MHz, secured NFC ready It provides access control via contactless cards or key fobs. The mod- ule supports the following 13.56 MHz cards or other carriers:...
Page 14 Part No. 9160344 Axis Part No. 02138-001 2N IP Verso RFID – 125 kHz, 13.56 MHz, NFC It provides access control via contactless cards or key fobs. The mod- ule supports the following 13.56 MHz cards or other carriers: Compatible with firmware version 2.13 and higher.
Page 15 Part No. 9160336 Axis Part No. 02546-001 2N IP Verso Touch keypad & RFID – 125 kHz, 13.56 MHz, NFC A combined touch keypad – card reader module helps you control ac- cess using a numeric code, contactless cards or key fobs. The module supports the 125 kHz and 13.56 MHz cards and/or other carriers.
Page 16 Part No. 9160347 Axis Part No. 02776-001 2N IP Verso Touch keypad & Bluetooth & RFID - 125 kHz, 13.56 MHz, NFC A combined touch keypad – Bluetooth – card reader module helps you control access using an access code, Mobile Key in your smartphone or an access card.
Page 17 Part No. 9160347-S Axis Part No. 02777-001 2N IP Verso Touch keypad & Bluetooth & RFID - 125 kHz, secured 13.56 MHz, NFC A combined touch keypad – Bluetooth – card reader module helps you control access using an access code, Mobile Key in your smartphone or an access card.
Page 18 Axis Part No. 02577-001 OSDP Module The OSDP module provides OSDP communication with a connected OSDP device (control panel, door controller) and 2N Access Unit QR (placed outside). The module is installed below another module, i.e., needs no separate position.
Page 19 Product Description Part No. 9155198SET Axis Part No. 01975-001 Security package for 2N devices The security package provides increased door security. The safety package includes a safety relay, a protection switch and an I/O module.
Page 20: Electric Locks
Product Description Electric Locks Part No. 11202101 Electric opener Mini 5 series – short The electric opener is designed for door frame installation, especially for such narrow profiles as aluminum, wooden or PVC frames Features: • short sheet metal front cover version (130 mm) •...
Page 21 Product Description Part No. 11202103 Electric opener Mini 5 series with mechanical blocking – short The electric opener is designed for door frame installation, especially for such narrow profiles as aluminum, wooden or PVC frames Features: Part No. 11202103-L Electric opener Mini 5 series with mechanical blocking – long The electric opener is designed for door frame installation, especially for such narrow profiles as aluminum, wooden or PVC frames Features:...
Page 22 Product Description Part No. 11202105 Electric fail safe opener Mini 5 series with mechanical blocking – short The electric opener is designed for door frame installation, especially for such narrow profiles as aluminum, wooden or PVC frames Under voltage, the opener is secured, i.e. blocked, once voltage is stopped, the opener is unblocked and the door can be opened.
Page 23 The self-locking 72/55 lock with panic function is a suitable solution for emergency exits. A key is necessary to open the door from the outside (or an electric pulse from a connected 2N IP intercom/reader). Part No. 11202201-M Electromechanical lock SAM 7255 with monitoring The self-locking 72/55 lock with panic function is a suitable solution for emergency exits.
Page 24 Product Description Part No. 11202302 Cable bushing FX510 Provides secure passage and protection of the power cable between the door frame and the door wing. Features: • 510 mm length Part No. 11202303 Cable protector FX300G Provides secure passage and protection of the power cable between the door frame and the door wing.
Page 25 Interconnectable with a motion sensor and electronic access control system. Can be used both for the right and left doors and is available in the IN/OUT opening design. FAQ: Electric locks – Differences between locks for 2N IP access systems...
Page 26: Power Supply
Product Description Power Supply Part No. 91378100E (with EU cable) Part No. 91378100US (with US cable) Axis Part No. 01403-001 One-port PoE injector For intercom supply via Ethernet cable where the PoE switch is absent. Part No. 91341481E (with EU cable) Part No.
Page 27 Product Description Part No. 9159013 Axis Part No. 02523-001 Departure button The departure button is connected to the device logic input for opening the door from inside the building. Part No. 9159012 Axis Part No. 01388-001 Magnetic door contact Set for installation on a door, enabling the status of door opening to be ascertained.
Page 28 Product Description Part No. 9134166E Axis Part No. 01396-001 RFID chip fob EM, 125 Hz RFID chip fob, type EM4100, 125 kHz. Part No. 11202601 Axis Part No. 02787-001 RFID chip card MIFARE DESFire, 13.56 MHz RFID chip fob, type MIFARE DESFire EV3 4 K, 13.56 MHz (ISO/ IEC14443A).
Page 29 • FeliCa (Standard, Lite) • ST SR (SR, SRI, SRIX) • Mobile Key The device can also read the 13.56 MHz 2N PICard RFID cards. Part No. 9137424E Axis Part No. 01527-001 External secured RFID reader, 13.56 MHz + 125 kHz, NFC/HCE External secured RFID card reader connectable to a PC via a USB interface.
Page 30 IP de- vice. You do not have to configure anything, all you need is one 2N 2Wire unit at each end of the cable and a power supply connected to at least one of these units.
Page 31: Package Completeness Check
The one-button blind helps blind a button on the main unit. Part No. 9155051B Axis Part No. 01523-001 2N Access Unit QR One-button blind, black The one-button blind helps blind a button on the main unit. Package Completeness Check Please check the product delivery before installation. Contents:...
Page 32: Installation
Installation Installation For optimal functionality, the device is recommended to be placed at a height according to the following scheme: Mechanical Installation General Mounting Principles • Before starting the mechanical installation on a selected place, make sure carefully that the preparations associated with it (drilling, wall cutting) cannot damage the electrical, gas, water and other existing wires and pipes.
Page 33: Flush Mounting - Into Classic Bricks, Hollow Bricks, Thermally Insulated Fronts, Etc
The one-module frame is designed for stand-alone installations of extending modules such as OUT readers, etc. A 2-module frame is required for the main unit installation. To install a device 2N Access Unit QR into a wall, mount the flush mounting box first. Then install the device into it.
Page 34 Installation 1-Module Installation...
Page 35 Installation Box Installation...
Page 36 Installation CAUTION When the walling material has hardened, break off the side stops.
Page 37 Installation WARNING Make sure that the flush mounting box edges are not aligned with the wall but overlap the wall surface. When the proper box installation instructions are not met, water might get in and destroy the device installed. Side stops are used for a correct wall position.
Page 38 Installation 1-Module Installation into Box...
Page 39 Installation...
Page 40 Installation 2-Module Installation...
Page 41 Installation Box Installation...
Page 42 Installation CAUTION When the walling material has hardened, break off the side stops.
Page 43 Installation WARNING Make sure that the flush mounting box edges are not aligned with the wall but overlap the wall surface. When the proper box installation instructions are not met, water might get in and destroy the device installed. Side stops are used for a correct wall position.
Page 44 Installation 2-Module Installation into Box...
Page 45 Installation Frame Attachment Check the frame sealing before fitting the frame. Screw the flush mounting frame in the upper and bottom parts.
Page 46 Installation 3-Module Installation...
Page 47 Installation Box Installation...
Page 48 Installation CAUTION When the walling material has hardened, break off the side stops.
Page 49 Installation WARNING Make sure that the flush mounting box edges are not aligned with the wall but overlap the wall surface. When the proper box installation instructions are not met, water might get in and destroy the device installed. Side stops are used for a correct wall position.
Page 50 Installation Installation of Multiple 3-Module Boxes Next to Each Other...
Page 51 Installation...
Page 52 Installation...
Page 53 Installation 3-Module Installation into Box...
Page 54 Installation Frame Attachment Check the frame sealing before fitting the frame. Screw the flush mounting frame in the upper and bottom parts.
Page 55: Flush Mounting - Into Plasterboard
The one-module frame is designed for stand-alone installations of extending modules such as OUT readers, etc. A 2-module frame is required for the main unit installation. To install a device 2N Access Unit QR into a wall, mount the flush mounting box first. Then install the device into it.
Page 56 Installation 1-Module Installation...
Page 57 Installation Box Installation...
Page 58 Installation WARNING Make sure that the flush mounting box edges are not aligned with the wall but overlap the wall surface. When the proper box installation instructions are not met, water might get in and destroy the device installed. Side stops are used for a correct wall position.
Page 59 Installation 1-Module Installation into Box...
Page 60 Installation Frame Attachment Check the frame sealing before fitting the frame. Screw the flush mounting frame in the upper and bottom parts.
Page 61 Installation 2-Module Installation...
Page 62 Installation Box Installation...
Page 63 Installation WARNING Make sure that the flush mounting box edges are not aligned with the wall but overlap the wall surface. When the proper box installation instructions are not met, water might get in and destroy the device installed. Side stops are used for a correct wall position.
Page 64 Installation Installation of Multiple 2-Module Boxes Next to Each Other...
Page 65 Installation...
Page 66 Installation...
Page 67 Installation 2-Module Installation into Box...
Page 68 Installation Frame Attachment Check the frame sealing before fitting the frame. Screw the flush mounting frame in the upper and bottom parts.
Page 69 Installation 3-Module Installation...
Page 70 Installation Box Installation...
Page 71 Installation WARNING Make sure that the flush mounting box edges are not aligned with the wall but overlap the wall surface. When the proper box installation instructions are not met, water might get in and destroy the device installed. Side stops are used for a correct wall position.
Page 72 Installation 3-Module Installation into Box...
Page 73 Installation Frame Attachment Check the frame sealing before fitting the frame. Screw the flush mounting frame in the upper and bottom parts.
Page 74: Surface Installation
Installation Surface Installation What you need for mounting: • 2N Access Unit QR, • a proper frame, • for 1-modules: frame (Part Nos. 9155021/9155021B) • for 2-modules: frame (Part Nos. 9155022/9155022B) • for 3-modules: frame (Part Nos. 9155023/9155023B) NOTE The one-module frame is designed for stand-alone installations of extending modules such as OUT readers, etc.
Page 75 Installation WARNING • Make sure that the installation surface is flat with a maximum inequality of 0.5 mm. (e.g. prefabricated boards, glass, cut stone, etc.). If the installation surface is not even, use the flush mounting type or equalize the wall surface with a backplate (Part No. 9155061– 9155062 or make the wall surface perfectly flat.
Page 76 Installation 1-Module Installation...
Page 77 Installation...
Page 78 Installation Frame Attachment Check the frame sealing before fitting the frame. Screw the flush mounting frame in the upper and bottom parts.
Page 79 Installation 2-Module Installation...
Page 80 Installation...
Page 81 Installation Frame Attachment Check the frame sealing before fitting the frame. Screw the flush mounting frame in the upper and bottom parts.
Page 82 Installation Installation of Multiple 2-Modules Next to Each Other...
Page 83 Installation...
Page 84 Installation Frame Attachment Check the frame sealing before fitting the frame. Screw the flush mounting frame in the upper and bottom parts. 3-Module Installation To install a 3-module, put a 2-module with a 1-module together.
Page 85 Installation...
Page 86 Installation...
Page 87 Installation Frame Attachment Check the frame sealing before fitting the frame. Screw the flush mounting frame in the upper and bottom parts.
Page 88 Installation Installation of Multiple 3-Modules Next to Each Other...
Page 89 Installation...
Page 90 Installation...
Page 91 Installation Frame Attachment Check the frame sealing before fitting the frame. Screw the flush mounting frame in the upper and bottom parts. Backplate Use For uneven surfaces, use a backplate for the required count of modules (Part Nos.9155061–9155063).
Page 92 Installation On uneven wall...
Page 93 Installation On glass The backplate for uneven surfaces can also be used for installation on glass.
Page 94 Installation...
Page 95: Installation Completion
Installation Installation Completion Check the connection of all wires and in the board connector. WARNING • Make sure that all the terminals of the unused connectors are properly tightened to avoid vibrations caused by sound. • An incorrectly made installation may compromise the device waterproofness. Water infil- tration may damage the electronic part.
Page 96: Electric Installation
Electric Installation Power Supply 2N Access Unit QR can be fed either directly from the LAN if equipped with PoE 802.3af supporting network elements or from an external 12 V ±10 % / 3 A DC power supply. CAUTION The device must be part of the electrical system of the building.
Page 97: Power Supply Installation
Available power output [W] Combined Power Supply 2N Access Unit QR can be fed from an external power supply and PoE at the same time. In this configura- tion, the maximum power for the connected modules is available. Power Supply Installation...
Page 98: Device Connectors
Installation Device Connectors Figure 1. Main unit connector wiring...
Page 99 Installation GROUND Grounding terminal symbol CAUTION We recommend that a grounding cable of the cross-section of 1.5 is used. IN1 terminals for input in passive/ active mode (−30 V to +30 V DC) • OFF = open contact or U >...
Page 100: Lan Connection
LAN Connection 2N Access Unit QR is connected to the LAN by inserting a SSTP cable (category Cat-5e or higher) in the dedicated LAN connector on the device. As the device is equipped with the Auto-MDIX function, you can use either the straight or crossed cable version.
Page 101 Installation Examples of Overvoltage Protection Installation Figure 4. Overvoltage protection installation diagram for a device installed on the building facade and cables outside the building...
Page 102 Installation Figure 5. Overvoltage protection installation diagram for a device installed on the building facade and cables inside the building...
Page 103: Main And Extending Modules
• Infopanel (p. 108) NOTE 2N Access Unit QR also supports the 2N IP Verso extending modules. Module Interconnection All the modules that can be connected to the device are interconnected via a bus. The bus starts on the main unit and goes over all the modules.
Page 104: Module Power Supply
Installation The Wiegand, OSDP and I/O modules include an 80 mm long bus cable. These two modules can be hidden inside one of the modules described below (Infopanel, Keypad, RFID card reader, Bluetooth) or can be freely placed behind the device (in a mounting box, e.g.). The Tamper Switch, which is not on the bus, is interconnected with one of these modules.
Page 105 Installation Main unit Maximum consumption [W] At relax LED – lock 0,072 LED – secured 0,096 Unit backlight 0,072 Relay 1 0,132 OUT1 Total 6,372...
Page 106 Installation Module Maximum idle con- Full load [W] sumption [W] 2,36 11,57 Main unit with camera Infopanel 0,17 0,35 Keypad 0,12 1,54 Touch keypad 0,12 1,54 Fingerprint reader 0,73 1,54 125 kHz RFID card reader 1,31 0,52 13.56 MHz RFID card reader 0,44 0,82 125 kHz, 13.56 MHz, NFC Bluetooth &...
Page 107: Module Specifications
The Keypad module (Part No. 9155031/9155031B) is used for numeric access to the system. Features • The module contains two bus connectors for the 2N Access Unit QR bus. • These two connectors are fully interchangeable and can be used either as inputs from the main unit or outputs to other modules.
Page 108 Bluetooth & 125 kHz, 13.56 MHz, NFC RFID Card Reader Module The Bluetooth & 125 kHz and 13.56 MHz card reader module (Part Nos. ) is used for access control using a smartphone/tablet with 2N Mobile Key or an access card, for making user calls and/or controlling other functions.
Page 109 69.2 x 86.7 mm (tolerance: +0; −0.5 mm) Security Relay The Security Relay (Part No. 9159010) is used for enhancing security between 2N Access Unit QR and the connected electric lock. The Security Relay significantly enhances security of the connected electric lock by preventing unlocking due to device tampering.
Page 110 • to the passive output in series with the external power supply. The Security Relay also supports the Departure button connected to the ‘PB’ and ‘– HeliosIP/2N IP intercom’ terminals. Once the Departure button is pressed, the output is activated for 5 seconds.
Page 111: Brief Guidelines
Factory Default Reset (p. 114) Device Configuration Interface Access 2N Access Unit QR is configured via the administration web interface. Connect the device to the LAN IP and make sure it is properly powered. You have to know the IP address for access.
Page 112: Ip Address Retrieval
To retrieve the device IP address, take the following steps: • Use the freely accessible 2N Network Scanner. IP Address Retrieval Using 2N Network Scanner The application helps you find the IP addresses of all the 2N devices in the LAN. Download 2N Network Scanner from the 2N.com website.
Page 113: Firmware Update
• various characters from different character sets are combined (small/capital letters, digits, special characters, etc.). Firmware Update We recommend that the firmware is also updated during the 2N Access Unit QR installation. Refer 2N.com for the latest FW version. Refer to Maintenance for the firmware upgrade procedure.
Page 114: Restart Using Web Configuration Interface
Maintenance > System using Restart . Factory Default Reset Follow the instructions below 2N Access Unit QR to reset the factory default values: Located among the main unit connectors, the CONTROL (p. 98) button helps you reset the factory default values.
Page 115: Device Control
• using RFID cards and chips – by tapping a card/chip on the device, • using the 2N Mobile Key application – by pressing the device touchscreen in the vicinity of a mobile device with 2N Mobile Key logged in, •...
Page 116: Maintenance - Cleaning
Maintenance - Cleaning Maintenance - Cleaning If used frequently, the device surface gets dirty. Use a piece of soft cloth moistened with clean water to clean the device. It is recommended that the principles below are followed while cleaning: • Use appropriate cleaning agents suitable for glasses, optical devices, screens, etc. •...
Page 117: Troubleshooting
Troubleshooting Troubleshooting Refer to faq.2n.cz for the most frequently solved problems.
Page 118: Technical Parameters
Technical Parameters Technical Parameters Power Supply Types PoE, IEEE 802.3af, Class 0 (0,44–12,95 W) 12 V ±10 % Audio Microphone Integrated Amplifier 5 W (class D) Speaker 2 W / 8 Ω Sound pressure level (SPL max) 78 dB (for 1 kHz, distance 1 m) LINE OUT 1 VRMS / 600 Ω...
Page 119 Technical Parameters Camera Sensor 1/2.7'' colour CMOS JPEG resolution Up to 1920 x 1440 Video resolution 640 x 480 1920 x 1440 Frame rate up to 30 frames Sensor sensitivity 5,6 V/lux-sec (550 nm) Viewing angle 128° (H), 95° (V), 134° (D) Infrared illumination Sensor sensitivity without IR light 0.1 Lux ±...
Page 120 Technical Parameters Bandwidth used Audio codecs • PCMA, PCMU – 64 kbps (with 85.6 kbps headers) • G.729 kbps – 16 bps (with 29.6 kbps headers) • G.722 – 64 kbps (with 85.6 kbps headers) • L16 / 16 kHz – 256 kbps (with 277.6 kbps headers) Video Codecs Set streaming in Services >...
Page 121 • HID PAC (HID SEOS, HID iClass SE, iClass SR, HID MIFARE DESFire with SIO, HID MIFARE Clas- Maximum magnetic field strength at 10 m: sic with SIO) 66 dBμA/m • Mobile Key • 2N PICard Maximum magnetic field strength at 10 m: 60 dBμA/m...
Page 122 Technical Parameters Bluetooth module Bluetooth 4.0 in compliance with BLE (Bluetooth Low Energy) Security Encoding: • asymmetric RSA-1024 • symmetric AES-128 Range Adjustable: • short ~ 0.5 m • medium ~ 2 m • long ~ up to 10 m RX sensitivity up to –93 dBm Consumption...
Page 123 Technical Parameters Touch Display module Resolution 320 x 214 px Slideshow mode resolution 214 x 214 px Contrast ratio Brightness 350 cd/m Viewing angle 80° from any direction Weight 280 g Minimum consumption 1.36 W Maximum consumption 2.40 W Operating temperature –20°C to 60°C Resistance level IK07...
Page 124 Technical Parameters Mechanical Parameters Cover Robust zinc casting with surface finish (minor surface shade nuances are acceptable). • Black version: • Material - Zamak 410 - Zn95Al4Cu1 • Surface treatment – PUR Wet coating 15-25 μm, RAL 9005 Jet black, inner side - passivated zinc Dimensions (w x h x d) Wall (surface) mounting frame: –...
Page 125: Directives, Laws And Regulations - General Instructions And Cautions
Directives, Laws and Regulations - General Instructions and Cautions Directives, Laws and Regulations - General Instructions and Cautions 2N Access Unit QR conforms to the following directives and regulations: Industry Canada This Class B digital apparatus complies with Canadian ICES-003/NMB-003.
Page 126 / devices of other suppliers, the customer agrees that the 2N TELEKOMUNIKACE a.s. company shall not be held liable for any functionality limitation of such a product or any damage, loss or injury related to this potential functionali- ty limitation.
Page 127: Electric Waste And Used Battery Pack Handling
Directives, Laws and Regulations - General Instructions and Cautions All applicable legal regulations concerning the product installation and use as well as provisions of technical standards on electric installations have to be obeyed. The manufacturer shall not be liable and responsible for damage or destruction of the product or damage incurred by the consumer in case the product is used and handled contrary to the said regulations and provisions.
