Sennheiser MM 200 Instruction Manual

Bluetooth stereo headset
Hide thumbs Also See for MM 200:
Table of Contents

Advertisement

Quick Links

MM 200
Bluetooth Stereo Headset
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MM 200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sennheiser MM 200

Summary of Contents for Sennheiser MM 200

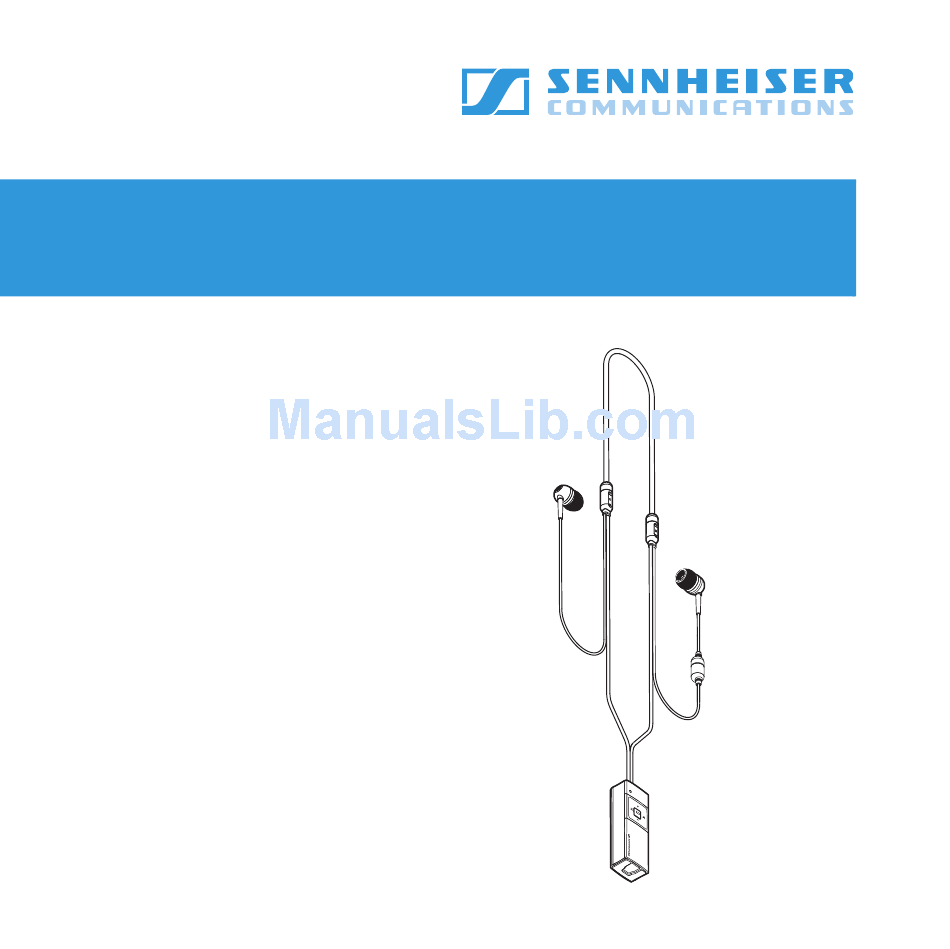

  • Page 1 MM 200 Bluetooth Stereo Headset Instruction Manual...

  • Page 2: Quick Setup Guide

    Quick Setup Guide Charging...
  • Page 3 Pairing 20 cm MM 200 Keyword 0000...
  • Page 4 English...

  • Page 5: Table Of Contents

    Listening to music ................37 Calling...................... 38 Muting/unmuting the headset’s microphone ........ 44 Changing the volume ................44 If you are out of the transmission range ......... 46 Maintenance and care ................. 48 Accessories ....................49 Specifications ....................50 Manufacturer declarations ................. 51...
  • Page 6 Thank you for choosing Sennheiser! We have designed this product to give you reliable operation over many years. Over 60 years of accumulated expertise in the design and manufacture of high-quality electro-acoustic equipment have made Sennheiser a world-leading company in this field.

  • Page 8: Important Safety Information

    • Read these instructions. • Follow these instructions. • Keep the CD enclosing these instructions in a location where it is accessible to all users at all times. • Always include the warranty booklet and the CD with this instruction manual when you pass the MM 200 on to third parties.
  • Page 9 (A2DP) or an audio/video remote control profile (AVRCP). It is intended for wireless communication via Bluetooth in dry environments. It is considered improper use when the MM 200 is used • for any application not named in these instructions, •...
  • Page 10 Before operation • Use the MM 200 in dry places only and keep liquids and small electrically conductive parts away from the MM 200 and its connecting sockets.
  • Page 11 Sennheiser Communications’ charging units. • Never try to charge batteries other than the one in the MM 200 headset with the MM 200 power supply or car charger unit. • Avoid listening at high volume levels for long During operation periods since this leads to permanent hearing damage.
  • Page 12 After the usage • Dispose of the built-in batteries according to period local regulations. Do not dispose as household waste. Safety instructions for Lithium-Polymer rechargeable batteries The MM 200 has a built-in Lithium-Polymer rechargeable battery. If abused or misused, rechargeable batteries may leak.
  • Page 13 Do not heat above 40 °C/104 °F, e.g. do not expose to sunlight or throw into a fire. Do not expose to moisture. Do not short-circuit. Do not mutilate or dismantle. Store the units/rechargeable batteries in a cool and dry place at room temperature (approx.
  • Page 14 Only charge rechargeable batteries at ambient temperatures between 10 °C and 40 °C. Do not charge the rechargeable battery if the unit is obviously defective. Return defective units or units with defective rechargeable batteries to your specialist dealer.

  • Page 15: Delivery Includes

    Delivery includes 1 MM 200 Bluetooth stereo headset with built-in rechargeable Li-polymer battery 2 ear pads, size S 2 ear pads, size M (already mounted) 2 ear pads, size L 1 clothing clip (not mounted) 1 MM 200 power supply...

  • Page 16: Features

    • Unobtrusive ear canal phones which effec- tively block out surrounding noise • 3 ear pad sizes allow for superior individual fit and optimal acoustics • Bluetooth 2.0 – compatible with all Bluetooth 1.1, 1.2 and 2.0 devices that support the hands free...
  • Page 17 • 2 simultaneous sources - e.g. MP3 player and mobile phone • Mobile phone control – answer/end/reject – mic muting – transfer call*, redial*, voice dial* (*functions need to be supported by the mobile phone) • Long battery life time –...

  • Page 18: Operating Elements

    Operating elements ³ · º ¿ » ¶ ´ ² ¾ ¹ ³ · ¸ µ...
  • Page 19 (removable) µ socket for power supply · ear canal phones (under strap) » ¸ microphone clothing clip (detachable, on the back side) ¿ Play/Pause button ¹ ´ Next button lanyard ² volume down button (removable) ¶ Prev. button safety clip º...
  • Page 20 USB plug USB socket USB cable power supply unit charging plug...

  • Page 21: Button Overview

    24, 38 for 2 sec mute/unmute the microphone for 5 sec enter pairing mode increase the ring volume or audio volume short by 1 step increase the ring volume or audio volume for 2 sec...
  • Page 22 5 sec enter pairing mode short skip backward/accept call 37/38 reject a call transfer calls between for 2 sec headset and mobile phone* voice dial* for 5 sec enter pairing mode * this function needs to be supported by the mobile phone...

  • Page 23: Led Indications

    LED indications Meaning during operation LED flashing Meaning during operation blue and red pairing mode once every 3 seconds standby mode glowing slowly every 4 seconds audio streaming mode rapidly (once every second) active call mode...
  • Page 24 Meaning during operation several times every second searching mode slowly (once every second) idle mode For a more detailed description of the LED indications, please see “Switching the headset on” on page 24. LED colour Meaning during operation blue battery charge status OK...
  • Page 25 Meaning during charging LED colour Meaning during charging charging mode blue* charging complete * The LED switches off after 1 hour to save battery power.

  • Page 26: Set Up

    If you charge the MM 200, it will stop any operation and go into charging mode. A fully charged battery provides a playback time of up to 9 hours or a standby time of up to 300 hours. When the battery is about to run flat: ¹...
  • Page 27 There are two ways to charge the headset’s built-in battery: 1. Via the MM 200 power supply unit 2. Via the USB socket of a computer Take off the headset and switch it off (see page 24). Connect the charging plug to the socket µ...

  • Page 28: Switching The Headset On

    ¹ and the LED indicates the current operating mode. Flashing in blue indicates that the battery charge status is OK; flashing in red indicates a low battery (see page 19). ¹ Searching mode The LED flashes several times every second:...
  • Page 29 ¹ The LED flashes slowly (once every second): Idle mode The headset is paired to one or several Bluetooth devices. However, there is no current connection because the Bluetooth device is switched off or out of range. ¹ The LED...
  • Page 30 The headset is paired to one or several Bluetooth devices and there is currently an active call. Pairing mode If you switch on the headset and keep the Play/ ¿ Pause button pressed for 5 seconds, the headset will go into pairing mode (see “Pairing the headset”...

  • Page 31: Establishing Bluetooth Connections

    Establishing Bluetooth connections If the MM 200 is not yet paired to any device, see “Pairing the headset” on page 29. After switch-on, the headset tries to connect to the Bluetooth device to which it was last connected. If this device cannot be detected, the headset will go into idle mode.
  • Page 32 The headset saves up to 8 Bluetooth connection profiles of Bluetooth devices with which it has been paired. If you want to re- establish a connection with a device with which the headset has been paired, the connection needs to be established from this device (for details, please see the manual of the Bluetooth device).

  • Page 33: Switching The Headset Off

    Pairing and volume settings are saved automatically when the headset is switched off. Pairing the headset You can pair the headset to up to 8 devices. Bluetooth devices supporting: • the advanced audio distribution profile (A2DP), e.g. a music mobile phone, a...
  • Page 34 “Charging the headset battery” on page 22, • that your mobile phone is switched on and Bluetooth visibility is enabled, • that the headset is switched off and placed close to the mobile phone (approx. 20 cm...
  • Page 35 ¿ If the headset is already switched on and is in standby or idle mode, you can enter pairing mode by pressing the Next or Prev. button for 5 seconds.
  • Page 36 Once paired, most mobile phones are able automatically transfer the audio to the headset and, in addition, show a headset symbol in their display. Pairing is not If pairing is not successful within 60 seconds, successful the headset returns into idle mode.
  • Page 37 A2DP, e.g. a mobile phone and a MP3 player. Pair the MM 200 to one of the devices (see “Pairing the headset” on page 29). If the MM 200 is only paired as either a HFP/HSP or an A2DP device, you can pair it to a secondary Bluetooth device.

  • Page 38: Operating

    Carefully remove the ear pads from the ear canal phones. Mount the new ear pads to the ear canal phones. The headset comes with ear pads in 3 different sizes: S, M and L. M size ear pads are already mounted to the ear canal phones.

  • Page 39: Wearing The Headset

    If required, fasten the operating unit your clothing with the detachable clothing ¸ clip Note on the sound quality: The perceived sound quality and bass performance of the ear canal phones depend largely on the correct fit of the ear canal phones in the ear.
  • Page 40 If inserted too far or without ear pads, the ear canal phones can injure your ear canals and ear drums. Mount the suitable ear pads (S, M or L) to the ear canal phones (see page 34). Never insert the ear canal phones without...

  • Page 41: Listening To Music

    Listening to music If your Bluetooth device supports the audio/ video remote control profile (AVRCP), you can operate the audio player via a remote control. To ... Press start playback pause playback skip to the next track in the playlist/ folder...

  • Page 42: Calling

    Calling Provided the headset is switched on, paired and within the transmission range of a mobile phone (see page 29), you can accept and make calls with the MM 200. When you receive a call while listening music, music automatically pauses and starts playing again after the call has ended.
  • Page 43 ¿ If you make a call from your mobile phone, any Making a call music playback is paused. A confirmation beep is heard in the headset.
  • Page 44 ¶ ´ ¶ Press the Prev. button for 2 seconds. A confirmation beep is heard in headset. Say the name of the other party that you recorded in the phone. The mobile phone or Bluetooth device automatically dials corresponding number.
  • Page 45 To stop dialling during a redialling or voice Stopping redialling dialling attempt, press the Play/Pause or voice dialling ¿...

  • Page 46: Muting/Unmuting The Headset's Microphone

    To mute the headset’s microphone during a call: ¿ for 2 Press the Play/Pause button seconds. A mute indication beep is heard in the head- set every 4 seconds while the microphone is muted. To unmute the headset’s microphone: ¿ ¿...
  • Page 47 1. The audio volume can be changed as long as the headset plays audio. 2. The volume of the other party can be changed as long as a telephone call lasts. 3. The volume of the headset ring tone can be changed: –...

  • Page 48: If You Are Out Of The Transmission Range

    With a free line of sight, the transmission range of most mobile phones or Bluetooth devices is up to 10 metres. If the headset leaves the transmission range of the mobile phone or Bluetooth device: •...
  • Page 49 Bluetooth device or requires an acknowledgement to do so. • When there is a loss of connection, an alert tone is heard in the headset. • Depending on the connection maintained, the headset will then go into idle mode (no...

  • Page 50: Maintenance And Care

    Maintenance and care Cleaning the headset Only clean with a dry cloth. Do not use any liquids, solvents or cleaning agents. Storing the headset If you do not use the headset for extended periods of time: Charge the built-in rechargeable battery every 6 months for about 1 hour.

  • Page 51: Accessories

    Power supply, EU version 502311 Power supply, UK version 502312 Power supply, US version 502313 Car charging power supply 512816 Spare ear pads L (5 pairs) 512815 Spare ear pads M (5 pairs) 512814 Spare ear pads S (5 pairs)

  • Page 52: Specifications

    Specifications Specifications Dimensions 20.5 mm x 64 mm x 18.5 mm (W x H x D) Weight 28 g without clothing clip 30 g with clothing clip Power supply input 100–240 V AC, output 5 V DC, 150 mA Listen time...

  • Page 53: Manufacturer Declarations

    The guarantee is void if the product is manipulated by non- authorised persons or repair stations. In the case of a claim under the terms of this guarantee, send the device, including accessories and sales receipt, to the responsible service partner. To minimise the risk of transport damage, we recommend that the original packaging is used.
  • Page 54 If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •...
  • Page 55 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. this device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation.
