Version: V1.0

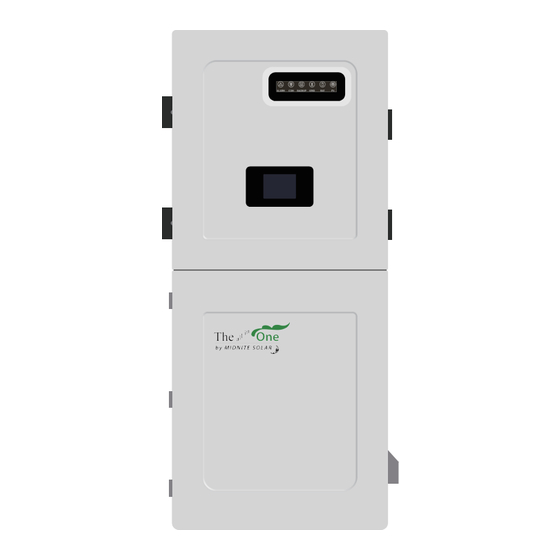

MN 15-12KW-AIO
All in one Inverter/Charger System
QUICK INSTALLATION GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the The all in ONE MN 15-12KW-AIO and is the answer not in the manual?

Questions and answers

Related Manuals for MidNite The all in ONE MN 15-12KW-AIO

Summary of Contents for MidNite The all in ONE MN 15-12KW-AIO

  • Page 1 Version: V1.0 MN 15-12KW-AIO All in one Inverter/Charger System QUICK INSTALLATION GUIDE...

  • Page 2: Packing List

    1. Packing List The box should include all items shown in the component guide. If there is damage or missing parts, immediately call the phone number (USA) (360)-403-7207. Mounting hole center projection line 1-1/4in 1-1/4in 1-1/4in 1-1/4in 1-1/4in Component Description Quantity Inverter Mounting Bracket...

  • Page 3: General Description

    1.1 General Description BAT+ BAT- SMART LOADS AC INPUT LOAD LOAD LOADLOAD AC OUT AC COUPLING GRID GEN INPUT INPUT NEUTRAL GROUND 1 2 3 4 1 2 3 4 PARA 1 2 3 4 5 6 7 8 9 1 2 3 4 CT/Meter RS485...

  • Page 4: Specifications

    1.2 Specifications 10.11" 17.32"(440.0mm) 16.54" (256.8mm) (420.0mm) 16.00"(406.4mm) 2×Φ0.31" (Φ8.0mm) 0.31" 9.06" (8.0mm) (230.0mm) 0.28" 37.40" (7.0mm) (950.0mm) 24.97" (634.3mm) 9.52" (241.8mm) 13.32"(338.4mm) 10.16"(258.0mm) 6.61"(167.8mm) 3.84" (97.6mm) 6×Φ1.75" (Φ44.45mm) 3×Φ2.50" (Φ63.4mm) 8.08" (205.3mm) 5.70" (144.8mm) 1.74" (44.1mm) 4.78" (121.4mm) 8.39"(213.0mm) 11.93"(303.0mm) Terminal Torque [in-lb]...
  • Page 5 1.3 Wire Gauge Guide 1. AC Input/Outputs: • “AC INPUT GRID” Terminal 100A MAX passthrough, 2 AWG conductor. • “AC OUTPUT” Terminal 100A MAX passthrough, 2 AWG conductor. • Backed up Sub-panel may have more than 100 amps of load circuits although the utility pass through current is limited to 100 amps continuous per leg.

  • Page 6: Installation

    Heat transfer and cooling is done from bottom to top at a rate of 525W/hr C. The MIDNITE MN MN 15-12KW-AIO is a NEMA 3R - IP65 enclosure that is rated for outdoor installation but can also be installed indoors.
  • Page 7 I. Mount the inverter in the optimal orientation as shown below. ≤15° 90° Upright Lean back ≤15° Horizontal Upside-down 2.2 Connecting PV Modules The inverter has 3 independent MPPTs and each can handle up to 2 PV strings. Each MPPT can operate at a current of 30A/22A/22A (self-limiting) and a MAX Voc of 600V.
  • Page 8 • BTS: Battery temperature sensor, not polarity sensitive. Used for voltage compensation for Lead Acid batteries. The standard MidNite MNBTS. • RSD: Normally open dry contact for EPO (emergency power off). The built in transmitter is Sunspec compatible. MidNite Solar manufacturers String level Sunspec receivers that work with this inverter.
  • Page 9 2.5 Wi-Fi / Ethernet Antenna (Dongle) The appearance of actual modules may be slightly different. The figures shown here are only for illustration. For details, please refer to the corresponding Module Installation Guide in the packing. × 1.2N·m 1. Unscrew and remove the cover. 2.
  • Page 10 CT+Meter for Parallel Systems 120V/240V Split phase • CT+meter sensors are essential for stacking is highly recommended for multi-system installs. • Please contact sales at 360-403-7207 to purchase the meter and bigger CT. Function Description Meter (DTSU666) 2 32 5 35 8 38 11 12 (HY94C5-500）...

  • Page 11: Parallel Communication

    1 2 3 4 PARA PARA 2.8 Power ON MIDNITE MN MN 15-12KW-AIO A. Power on the PV. B. Power on the battery from the battery breaker and any external battery switches or breakers. C. Power on the AC IN GRID breaker.

  • Page 12: Power Off Sequence

    2.9 Power Off Sequence A. Power off the AC OUT breaker. B. Power off the SMART LOAD breakers C. Connect the cell phone App via Bluetooth. And click the Power OFF on the App. Or you can hold the ON/OFF button on the side of the inverter for 5 seconds in this step when performing subsequent shutdown D.
  • Page 13 3. App Setting Guide Download App for Local Setting • Scan the QR code to download the App MidNite Pro. • Download the APP from the App Store or Google Play Access Permission Before using the local setting, the APP should access some permissions. (You can allow them when you install the APP or grant permissions in your own phone setting.) When the APP asks for permission, please click Allow.
  • Page 14 3.1 Installer login Select the installer role to log in. Select the installer Enter the password Home 3.2 Stored energy A. Set the work mode. B. If the user want to sell back, please disable the Zero Export button. C. Set the related battery parameters. Click the Settings Click the Stored energy Set the parameters...
  • Page 15 3.2.1 Work Mode: Self Consumption 3.2.2 Work Mode: Grid Feed in priority(Sell to grid)
  • Page 16 3.2.3 Work Mode: Off Grid...
  • Page 17 3.3 Communication Connect to the router. Click Communication Connect to Wifi 3.4 Grid Set the grid parameters. Click Grid parameters...

  • Page 18: Power Control

    3.5 Power control Set the power control parameters . Click Power control Set parameters 3.6 Equipment maintenance Synchronize date and time, Click Equipment maintenance then click the button...

  • Page 19: Wiring Diagrams

    4. Wiring Diagrams These wiring diagrams are examples for common inverter installation. Diagrams must meet local electrical code and authorized jurisdiction requirements.
  • Page 21 NOTE 614-00645-00...
