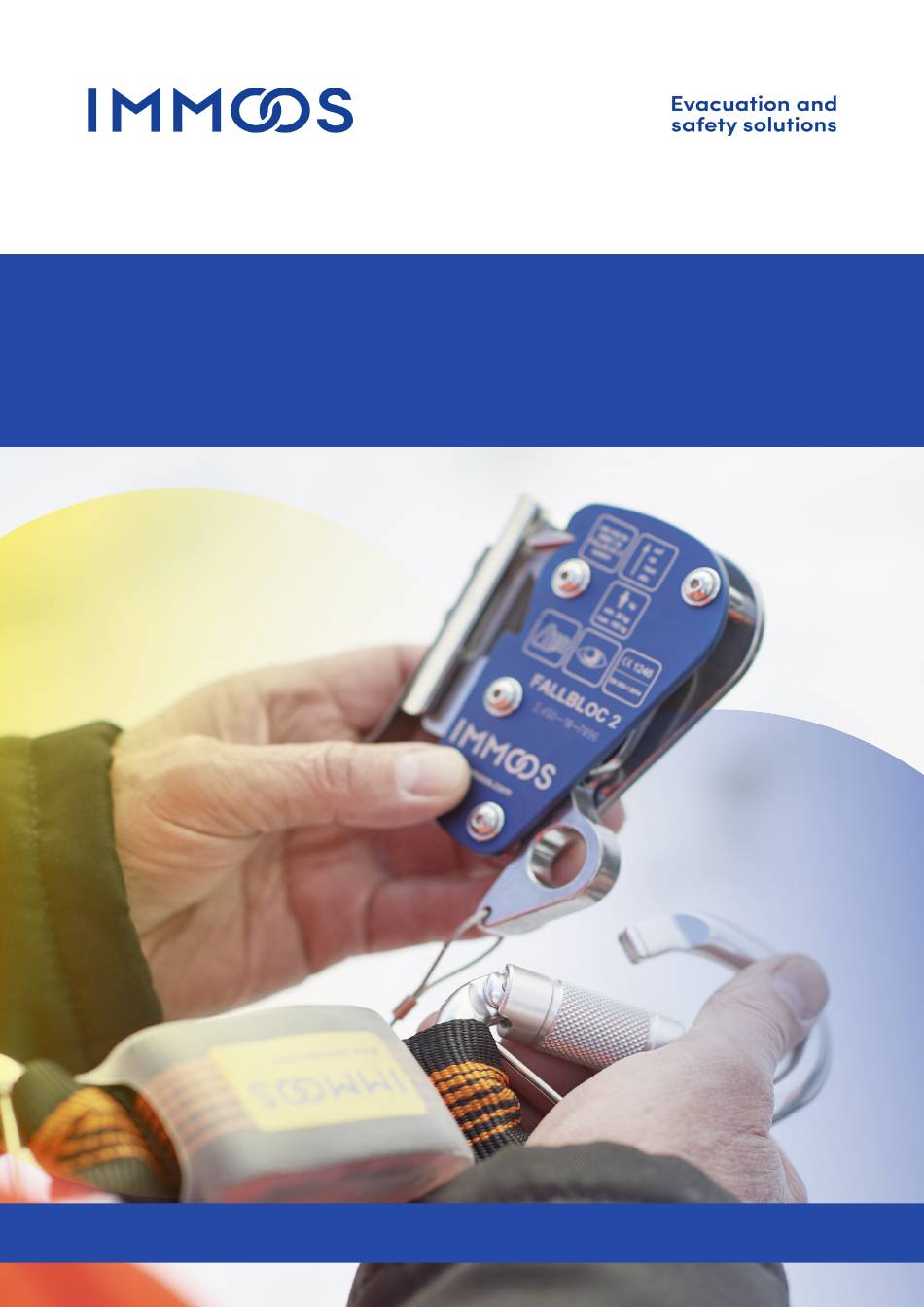

- Page 1 Instructions for use Guided fall arrester including fixed guide in accordance with EN 353-1:2014+A1:2017 with IMMOOS fall arrester type “Fallbloc 2“ GA_EN_Steigschutzläufer_Fallbloc_2_Rev 13; Date: 09/2023 Page 1 GA_EN_Steigschutzläufer_Fallbloc_2_Rev 13; Date: 09/2023 Page 1...
-
Page 2: Table Of Contents
2. Area of application and use ........................3 3. Directions for use ............................4 4. Hazards ................................5 5. IMMOOS climbing protection system assembly types ................ 5 6. Usage ................................6 7. Attaching the fall arrester ...........................7 8. Storage and cleaning ..........................8 9. -
Page 3: Important Information
Area of application and use The "Fallbloc 2" fall arrester is placed on the fixed guide (rope 8 mm) and accompanies the user during ascent and descent from masts, antennas, walkways or other structures. In the event of a fall, it automatically locks onto the fixed guide. -
Page 4: Directions For Use
The IMMOOS fall arrester type "Fallbloc 2" may only be used by 1 person at a time. The IMMOOS climbing protection system type "Fallbloc 2" may be used by 4 persons at a time. A distance of 2 meters must be maintained between one-another. -
Page 5: Hazards
Hazards The IMMOOS fall arrester type "Fallbloc 2" must not come into contact with chemicals or other aggressive substances. In case of doubt, contact the manufacturer. The weight of the user, including tools and equipment, must not exceed the maximum nominal load of 100 kg. -
Page 6: Usage
(>21 kN for inclined guid- ance) Fixed guidance Wire rope 8 mm Traversable rope guide Traveling fall arrester "Fallbloc 2" Energy absorber and 2 carabiners with bar Lower anchoring Bottom anchor point 1.5 kN for vertical appli- cation (>15 kN for inclined guid- ance) GA_EN_Steigschutzläufer_Fallbloc_2_Rev 13;... -
Page 7: Attaching The Fall Arrester
A helmet in accordance with EN 12492 must be worn to protect the head against an impact during a fall arrest proce- dure. If there is any doubt about the use of the IMMOOS fall arrester type "Fallbloc 2" with energy absorber, the device must not be used. -
Page 8: Storage And Cleaning
(not underneath the clamping lever) to prevent malfunction of the clamping mechanism. Storage and cleaning The fall arrester type "Fallbloc 2" incl. strap energy absorber must be stored in a well-ventilated room, protected from direct sunlight and extreme temperatures. - Page 9 IMMOOS Manufacturer logo Type Product designation, type designation Dwg. no. + Serial no. Drawing number, serial number Year of manufacture Year of manufacture Warning symbol "Follow instructions for use": It is essential to follow the manufacturer's instructions for use supplied with the...
-
Page 10: Inspection, Maintenance, Repair
Visual inspection (check): Carry out a thorough visual and functional inspection before using each time: Function check of fall arrester type Fallbloc 2 The fall arrester must be inspected for deformations and distortions. Pay special attention to the moving parts. After being pushed up, the latch must return to its original shape automatically and without manual intervention. -
Page 11: Service Life
At the end of the service life of the strap energy absorber, it must be replaced in accordance with the inspection in- structions (IMMOO fall arrester type "Fallbloc" and "Fallbloc 2"). Use only original IMMOOS parts for replacement. The safety of the user depends on the effectiveness and durability of the equipment. This must be ensured by regular inspections must ensure this. -
Page 12: Documentation Of The Inspection
13. Documentation of the inspection Prescribed verification of the inspection carried out. (One sheet must be filled in for each product) Product: IMMOOS fall arrester type FALLBLOC 2 Owner: ............................Serial number: ............................Year of manufacture Purchase date Date of first usage .... -
Page 13: Notes
14. Notes Head office Immoos GmbH Tramweg 35 6414 Oberarth Switzerland T +41 41 857 06 66 Branch office Austria Immoos GmbH Kirchstrasse 32 6923 Lauterach Austria T +43 664 134 44 38 info@immoos.com www.immoos.com GA_EN_Steigschutzläufer_Fallbloc_2_Rev 13; Date: 09/2023 Page 13...
