- Page 1 Operating instructions traveling fall arrest device fixed guide according to EN 353-1:2014 IMMOOS Fall Arrest System Model „Fallbloc 2“ GA_EN_Steigschutzläufer_Fallbloc_2_Rev 11; Datum: 03/2020 Page 1 Page 1 GA_EN_Steigschutzläufer_Fallbloc_2_Rev 11; Datum: 03/2020...
-
Page 2: Table Of Contents
Table of Contents Important Information Area of Appliance and usage Regulation of Usage Hazards Assembly Types for the IMMOOS Fall Arrest Device Usage Mounting the Fall Arrest Device Storage and Maintenance Identification Inspection, Maintenance, Overhaul Longevity Disclaimer Documentation of inspections Notes GA_EN_Steigschutzläufer_Fallbloc_2_Rev 11;... -
Page 3: Important Information
Prior to using the device, it is essential a evacuation plan is determined. It is forbidden to alter or modify, either totally or partially, the original state of the fall arrest device „Fallbloc 2“ or the stationary guidance. -
Page 4: Regulation Of Usage
The permissible temperature range is between -30° C and +40° C. The IMMOOS fall arrest device „Fallbloc 2“ may only be used when properly mounted on the guidance with the specific cable (delivery must be made only by IMMOOS GmbH). -
Page 5: Hazards
Hazards The IMMOOS climbing protection runner type „Fallbloc 2“ must not come into contact with chemicals or other aggressive substances. In case of doubt, please contact the manufacturer. The weight of the user, incl. tools and equipment must not exceed the maximum nominal load of 100 kg. The weight of the user without tools and equipment must be greater than or equal to the minimum nominal load of 30 kg. - Page 6 b) Anchoring and Rope Guidance Upper anchor Use with forward tilt with an angle of 15° - 45° from the vertical The upper anchorage point and the upper anchorage must have a holding force of at least 21kN. Vertical use: (+/- 15° on all sides) The upper anchorage point and the upper anchorage must have a holding force of at least 17.5kN.
-
Page 7: Usage

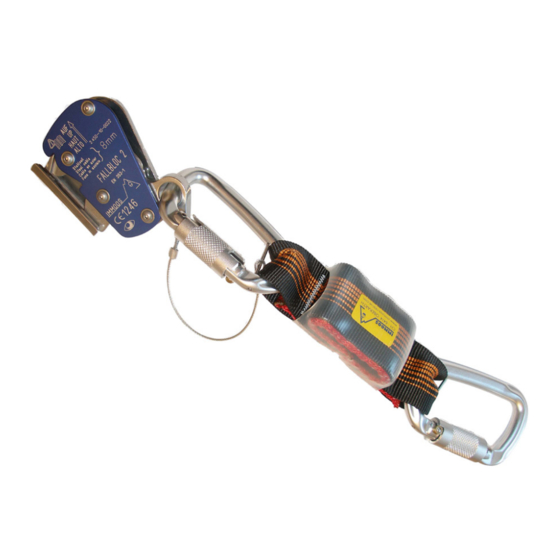

Fixed guidance wire rope 8 mm Passable Cable guide Accompanying Climbing protection absorber „Fallbloc 2“ Connection means with shock absorber and 2 carabiners with bridge Lower anchor Lower anchor point 1.5 kN for vertical appli- 1.5 kN for vertical appli-... -
Page 8: Mounting The Fall Arrest Device
- Hook the lanyard with the special absorber and karabiner (EN 362) to the fall arrest eyelet of the full body harness (EN 361). In case of doubt regarding usage of the fall arrest device „Fallbloc 2“, it is insisted not to use the device. Attention: The lanyard 1.08.011 (comprising 2 karabiner with bar and a absorber strap - total length is 30 cm) may not be... -
Page 9: Storage And Maintenance
Storage and Maintenance The fall arrest device Fallbloc 2 including absorber strap must be stored in a facility which is aerated, dark, dry and not effected by the elements. Avoid contact with chemicals, acids and oils. Clean all equipment and components after usage. Clean using warm water. Possibly use fat/oil desolving spray. - Page 10 The shrink sleeve over the fall attenuator must also not show any damage. In case of damage or soiling, the strap fall attenuator must be replaced. Function check of the fall arrest device „Fallbloc 2“ - General condition - tightness of all screws...
-
Page 11: Longevity
(IMMOO climbing protection runner type „Fallbloc“ and „Fallbloc 2“). Only original parts from IM- MOOS may be used for replacement. 12. Disclaimer IMMOOS GmbH will not be held liable in any way or form due to accidents or damages caused by any of the following: • Non-compliance of legal and authority regulations. -
Page 12: Documentation Of Inspections
13. Documentation of inspections Prescribed proof of examination. (Fill out 1 page for each product) Product name: IMMOOS Fall arrest device FALLBLOC 2 Owner: ............................Serial no.: ............................Year of production: Date of purchase: Date of 1st usage: .................. -
Page 13: Notes
14. Notes Headquarters Immoos GmbH Tramweg 35 6414 Oberarth Schweiz T +41 41 857 06 66 Branch office Österreich Immoos GmbH Kirchstrasse 32 6923 Lauterach Österreich T +43 664 134 44 38 info@immoos.com www.immoos.com GA_EN_Steigschutzläufer_Fallbloc_2_Rev 11; Datum: 03/2020 Page 13...
