USAutomatic 030223 Quick Start Manual

WARNING
FCC WARNING: This equipment may generate or use radio frequency
energy. Changes or modifications to this equipment may cause harmful
interference unless the modifications are expressly approved in the
instruction manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is made. This device
complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer for help.
The rating information is located at the bottom of the unit.
PRODUCT LIMITED WARRANTY
USAutomatic, LLC warrants to the first retail purchaser of this product that
it is free from defects in materials and/or workmanship for a period of one
(1) year following the original purchase date of the product, this limited
warranty does not cover 1) installation on any brand of gate operator
other than USAutomatic 2) normal wear and tear 3) failures due to a)
improper installation, operation, care, and maintenance b) misuse/
unintended use c) abuse, negligence d) accidental damage e) unauthorized
repairs or alteration f) use of improper voltage g) electrical outage short
circuit 4) acts of nature.
For products returned for warranty which are confirmed to be defective
and are covered by this limited warranty, we will replace or repair the
product at no extra cost to you. Products may be repaired or replaced by
refurbished parts or units or by different models of similar functionality at
our sole discretion. We will not cover any product installation costs or any
labor associated with other manufactures' products or any repair or
replacement or damage costs related to other products and services.
Any warranty claim must be accompanied by the first retail proof of
purchase receipt showing the original first date of purchase, which is used
to determine the warranty period.
We do not warrant that the operation of the product will be error-free or
uninterrupted. Except to the extent set forth in this limited warranty, the
product is provided on an "as is" basis, and all implied warranties,
including but not limited to any implied warranties of merchantability and
fitness for a particular purpose, are limited in duration to the applicable
limited warranty period set forth, and no implied warranties will exist or
apply after such period. No person or entity is authorized to assume for us
any other liability in connection with the sale of this product.
* * * AT T ENT ION : PL EA SE REA D F IR ST * * *
This device is only intended for properly equipped, compatible USAutomatic gate operators.
Use with any other brand of gate operator will void the factory warranty and will not be supported.
Verify that your USAutomatic gate operator control board is compatible
with the USAutomatic Nexx Gate APP receiver. Compatible control
boards will have the DB9 connector shown here
and will be labeled with a USAutomatic part #
as per the list below:
• Patriot Swing Gate part # 500018
• Patriot RSL Slide Gate part # 500026
• Ranger HD Swing Gate part # 500027
• Ranger 500 Swing Gate part # 500028
If your control board is not listed please use this
QR code or go to USAutomatic.com/app-info
for additional information.
030223

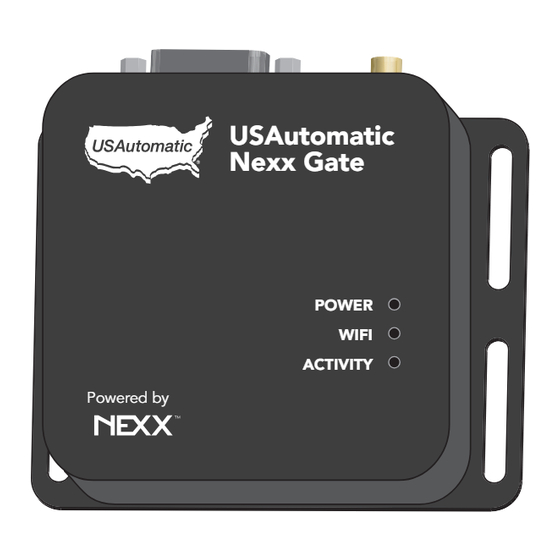

USAutomatic Nexx Gate
WiFi Receiver
USB POWER
USB Micro-B connector
May be used to power
module if WiFi connection
is being setup prior to
connecting to control
board.
RESET
In case you need to reset
the device, use a paper clip
or similar wire to press and
hold the factory reset
button until steady Activity
orange light is visible.
Pressing the RESET for 1
second will turn ON the
indicator lights.
COMPATIBILITY CHECK
If the gate operator battery is AC charged, no
additional upgrades are required.
If solar charged, it is recommended that the
charging system be upgraded to a 20 watt solar
panel to accommodate the APP receiver current
consumption ~55ma.
If you have any questions regarding your battery
charging needs with this product, contact us.
support@usautomatic.com

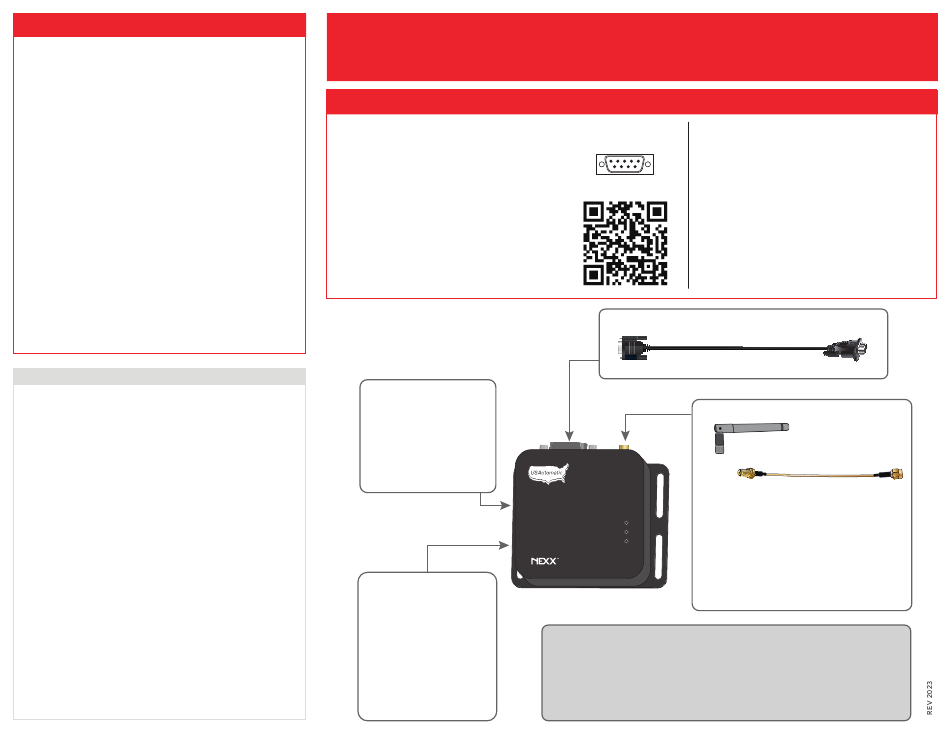

OPENER CONNECTING CABLE
DB9 to DB9 cable
USAutomatic
Nexx Gate
If installing in a metal control box, an
extension cable must be used.
Control box will have a hole located in the
POWER
upper right corner of the control box on
WIFI
the right side wall.
ACTIVITY
Powered by
Older models might not have an antenna
hole. Care should be taken to prevent metal
shavings from falling onto the control board
when drilling.
APP RECEIVER MODULE
*Important Safety Considerations:
Nexx Gate will allow gate to be opened or closed remotely. Only use this
device on USAutomatic gate operators that have entrapment protection
devices installed, car detection safety devices installed and are properly
maintained and tested for obstruction and force testing.
EXTERNAL ANTENNA
EXTERNAL ANTENNA
EXTENSION CABLE
