USAutomatic 030214 Use And Installation Manual

Use and installation manual
Made in
Italy
Thank you for choosing this product .
You are recommended to read this manual carefully before
installing this product.
1 - INTRODUCTION
The Garage Door Receiver ( #030214) is single conversion
superheterodyne receiver oeperating at 433,92 MHz in AM/ASK
modulation.
It is designed for automatic closing systems and anti-burglar
systems.
The antenna is direct connected with 6,5" wire .
The relay K1 available output is only with NO type contact
The operating mode of K1 is Pulse and or Latch ( see below for its
configuration).
The power supply is 9 Vdc provided by its own 9 Vdc / 300 mA
external power supply.
The IP grade of 2X allows only indoor installations.
The product fully complies with the EMC European Regulations
(CE) and the FCC Part 15 Regulations.

2 - TECHNICAL SPECIFICATIONS

Receiver type
Carrier Frequency
Local oscillation frequency
Demodulation
Local oscillator type
Channel width
Intermediate frequency
Input sensitivity
Spurious emissions
Input load
Operating voltage
Max power on relay contacts
Relay number

Operating modes

Max activation delay
Memory
Security protocol
Code combinations
Operating temperature
Enclosure IP grade
Dimensions ( main box)
(800) 878-7829
GARAGE DOOR RECEIVER
#030214
Superheterodyne
433.92 MHz
6.6128 MHz
AM/ASK
VCO / PLL
> 25 KHz
10.7 MHz
-115 dBm
< -57 dBm
50 Ohm
9 Vdc
24 VA
1
Pulse / Latch
300 mS
100 TX
Fixed Code
9
3
-4°/+158°F
IP2X
1.57 x 0.9 x 2.2 in
www.USAutomaticGateOpeners.com

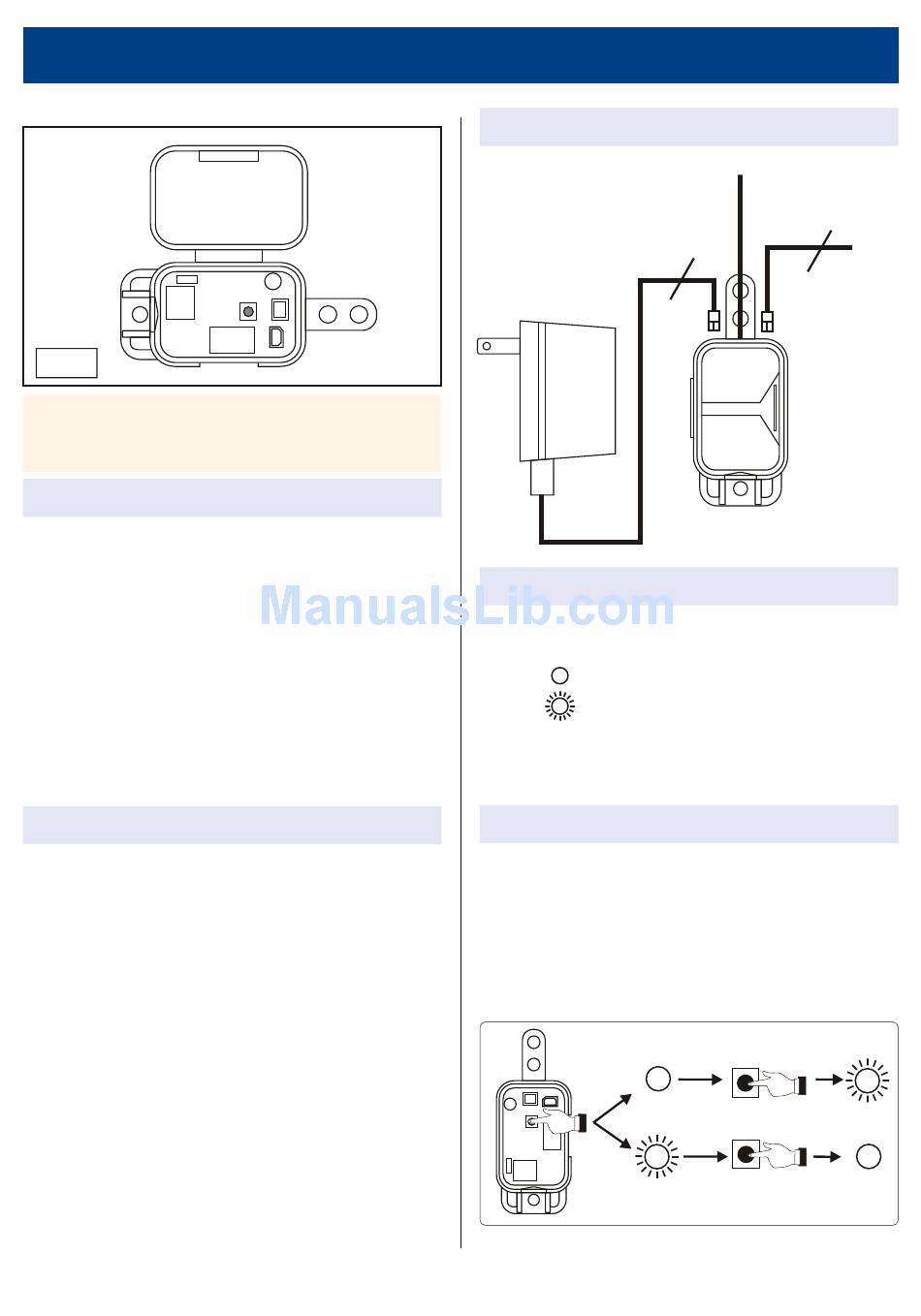

3 - WIRINGS
Power
supply
4 - OPERATING MODES
The operating mode can be Pulse or Latch according the following
diagram.
LD STEADY ON : PULSE Mode
LD BLINKING : LATCH Mode
LD gives the operating mode. To display the current operating
mode push P1 for 4 sec
5 - OPERATING MODE SETTING
Procedure
1) Press and hold the push-button P1 for 4 sec. until the green
led LD comes ON ( Fig. 3); the led display the current
operating mode according to par. 4.
To modify push again P1 and release it within 1 sec.: once
released P1:
· from steady ON it will begin to blink ( Latch mode );
· from blinking it will come steady ON ( Pulse mode ).
LD
P1 4s
P1
LD
Antenna
Relay NO Output
2
2
1s
P1
1s
P1
LD
LD
Fig. 3
