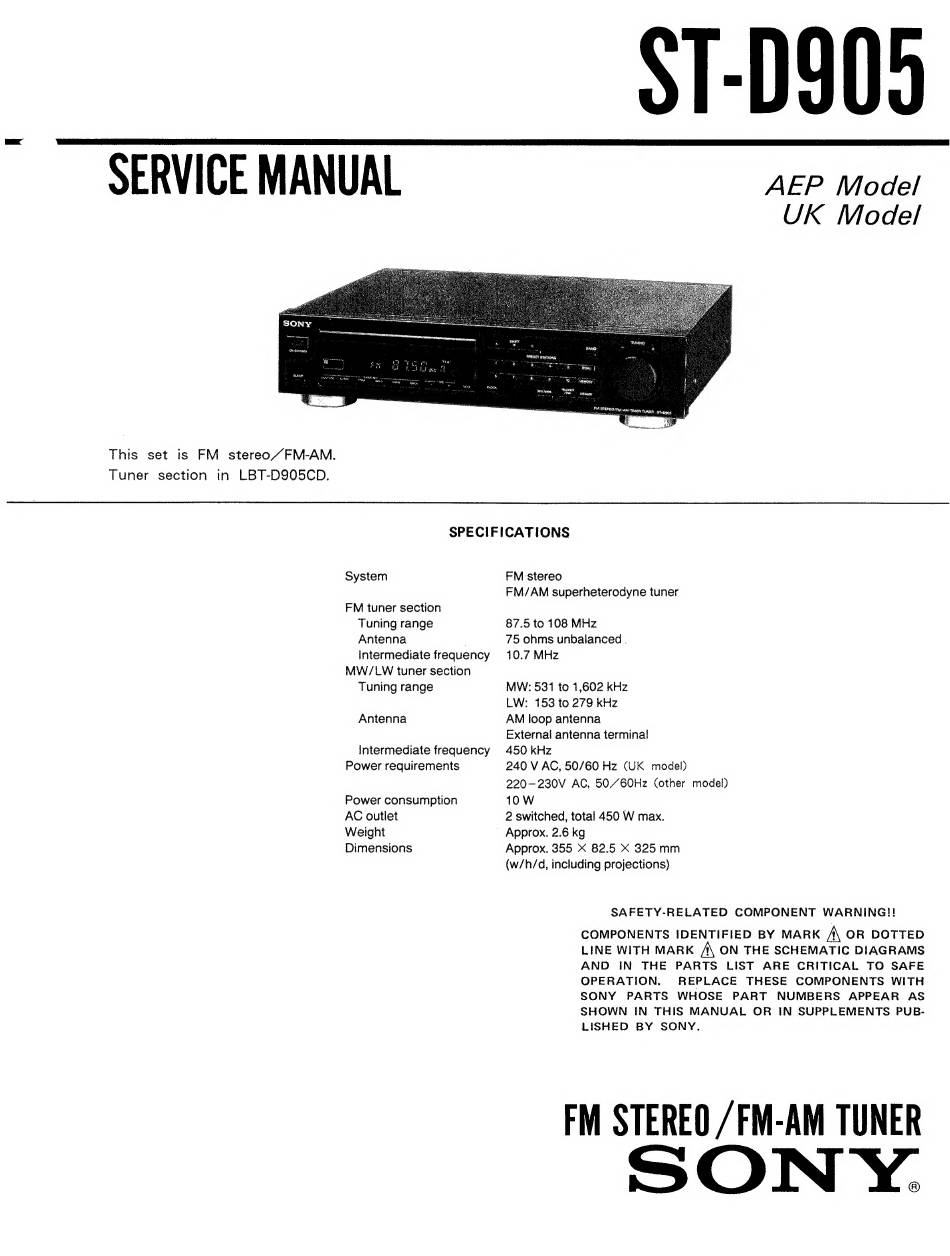

SERVICE MANUAL
This set is FM stereo "FM-AM.
Tuner section in LBT-D905CD.
ST-D903
AEP Model
SPECIFICATIONS
System
FM tuner section
Tuning range
Antenna
Intermediate frequency
MW/LW tuner section
Tuning range
Antenna
Intermediate frequency
Power requirements
Power consumption
AC outlet
Weight
Dimensions
FM stereo
FM/AM superheterodyne tuner
87.5 to 108 MHz
75 ohms unbalanced .
10.7 MHz
MW: 531 to 1,602 kHz
LW: 153 to 279 kHz
AM loop antenna
External antenna terminal
450 kHz
240 V AC, 50/60 Hz (UK model)
220-230V AC, 50,/60Hz (other model)
10W
2 switched, total 450 W max.
Approx. 2.6 kg
Approx. 355 X 82.5 X 325mm
(w/h/d, including projections)
UK Model
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
FM STEREO /FM-AM TUNER
ON Y.
