- Page 1 Deutsch MKE 1 Instruction manual English Français Italiano Español Neder- lands...
-
Page 2: Table Of Contents
Contents The MKE 1 microphone ........... 2 Features ..............2 Delivery includes ............. 2 Treble boost ............. 3 Make-up protection ..........3 Attachment of the microphone ......4 Specifications ............5 Accessories and spare parts ........7 Manufacturer Declarations ........8... -
Page 3: The Mke 1 Microphone

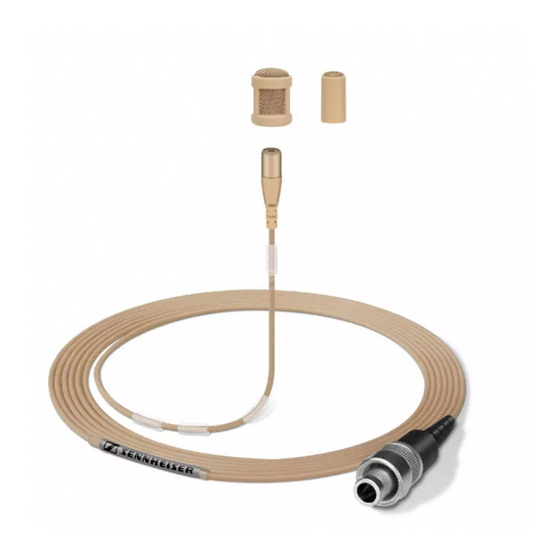

(ENG). The MKE 1 is fitted with a very thin (only 1 mm) yet extremely rugged cable, making this microphone an ideal partner for all live sound applications. -
Page 4: Treble Boost
15 dB and provides an extended protection against the ingress of moisture. Slip the cap of your choice onto the microphone until it locks into place. Make-up protection When putting on make-up or hair spray, protect... -
Page 5: Attachment Of The Microphone
Depending on the area of application, you can attach the MKE 1 in different ways to either clothing or the body. To do so, use the optional MZ 1 accessory kit (see page 7) that offers multiple and secure attach- ment possibilities. -
Page 6: Specifications
Pick-up pattern omni-directional Frequency response 20–20,000 Hz, ± 2.5 dB Sensitivity 5 mV/Pa, (free field, no load) (1 kHz) ± 2.5 dB 1,000 Ω Nominal impedance Min. terminating impedance 4.7 KΩ Equivalent noise level A-weighted (DIN IEC 651) 27 dB... - Page 7 MKE 1 -4-1 -4-2 -4-3 Color black white brown beige Connector 3-pin special connector Power via SK 5212, SK 5012, SK 250, supply SK 50, SK 3063 transmitter MKE 1 -5-1 -5-2 -5-3 Color black white brown beige Connector open-ended cable...
-
Page 8: Accessories And Spare Parts
Pin assignment of an MKE 1 with open-ended cable 18 kΩ 1µF core Ground shield required connection (amplifier circuit) Accessories and spare parts Item Cat. No. MZC 1-1 cap, small, black 513179 MZC 1-1 cap, small, white 533612 MZC 1-1 cap, small, brown... -
Page 9: Manufacturer Declarations
Manufacturer Declarations Warranty Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product. For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner. In compliance with the following requirements •... - Page 10 Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com Printed in Germany Publ. 12/09 520110/A01...
