Installation and Users Instructions
Model: E122S Fireplace Mantel
For use with E222A
PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING THE APPLIANCE.
INSTALLER: DO NOT DISCARD THIS MANUAL – LEAVE WITH THE CUSTOMER
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Appliance Development Services Ltd
Tel 01723 583227
Advertisement
Related Manuals for Mantel E122S
Summary of Contents for Mantel E122S

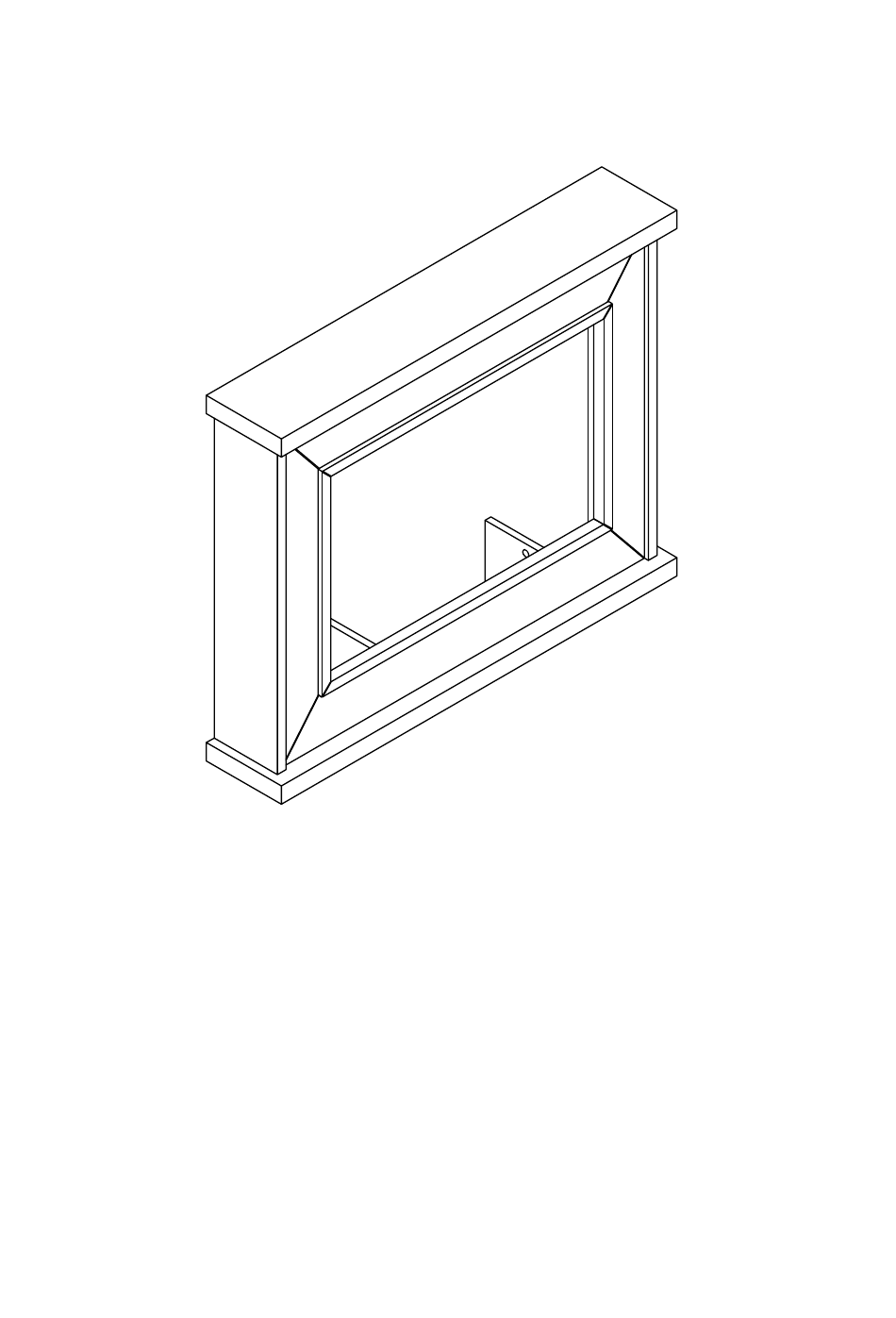

- Page 1 Installation and Users Instructions Model: E122S Fireplace Mantel For use with E222A PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING THE APPLIANCE. INSTALLER: DO NOT DISCARD THIS MANUAL – LEAVE WITH THE CUSTOMER SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Appliance Development Services Ltd...
-
Page 2: Section 1 Dimensions
SECTION 1 DIMENSIONS Dimensions in mm SECTION 2 ASSEMBLY AND INSTALLATION 2.1 Unpack Open the package carefully and remove all pieces. Carefully inspect each part for any damage before you begin assembly. Ensure that you have all the parts listed opposite before assembling. ... - Page 3 Loosely fit all screws then tighten both sides simultaneously to ensure the surround is square. This fireplace suite must be fitted to the wall. Mirror plates are supplied with the mantel but any other suitable concealed fixing may be used.
- Page 4 1) Attach the 4 Corner brackets (F) to front panel (3) as shown. 4x12mm F x4 2) Taking right hand (7) & left hand (6) side panels, attach 3 cam pins (B) into each piece as shown. B x6 3) Attach right hand (7) & left hand (6) side panels onto the front panel (3) using cams (C) as shown.
- Page 5 7) Laying the top panel (1) on the floor attach to the part assembled piece as shown Ensure the LED cable is positioned on the inside of the mantel. C x 5 6x30mm A x 4 A x4 C x5...
-
Page 6: Section 3 Cleaning & Maintainence
D x11 SECTION 3 CLEANING & MAINTAINENCE 1.Your fireplace mantel surface coating will give off a slight smell for a short period of time. Try to ventilate as much as possible during this time. 2.Daily cleaning: Clean the mantel surfaces with a soft, lint-free cloth. Do not use cleaning or polishing products and try to avoid heavy or sharp articles which may damage the surface.
