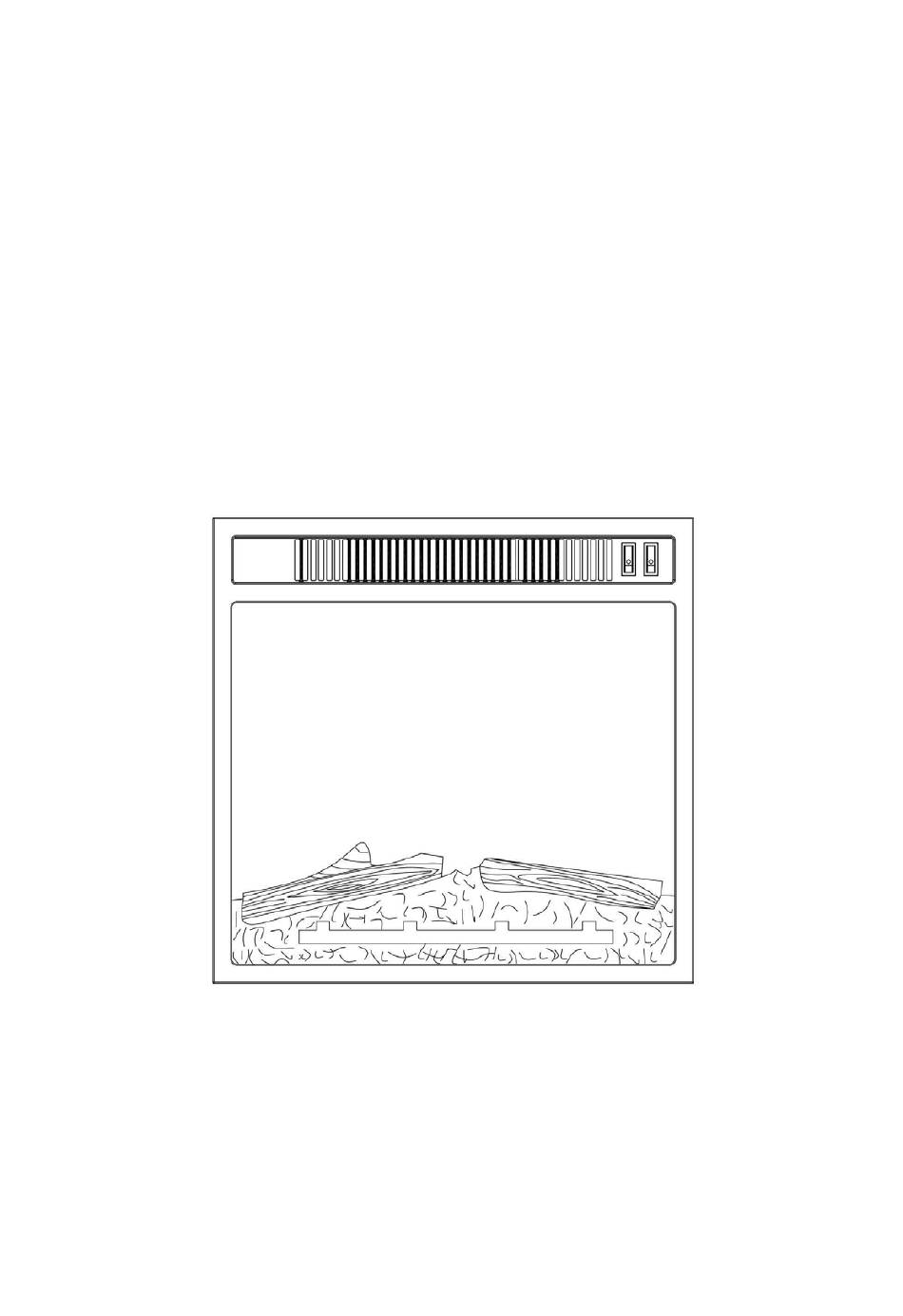

- Page 1 User Manual Electric Fireplace Ref. Code: ELP-10-128 + ELP-10-130 + ELP-10-131 Ref.code: ELP-10-128 Model No:SE103-18C Mantel assemply page 7-12...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............... 2 Pre-installation ..............4 Electrical Specifications ............4 Safety Information .............. 2 Important Safety Information .............2 Package Contents ..............4 Save These Instructions ............2 Assembly ................5 Safety Information (continued) ..........3 Operation ................6 Grounding Instructions ..............3 Care and Maintenance ............ -
Page 3: Safety Information (Continued)
Safety Information (continued) GROUNDING INSTRUCTIONS DANGER: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product. -
Page 4: Pre-Installation
Pre-installation ELECTRICAL SPECIFICATIONS □ Voltage: 220 VAC, 50 Hz □ Watts: 1500 Watts TOOLS REQUIRED Phillips screwdriver (not provided) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Screw 12 + 3 extra PACKAGE CONTENTS Part Description Quantity Fireplace Insert Top Trim... -
Page 5: Assembly
□ Carefully set the fireplace insert (W) into the back of the mantel and center it in the opening. Use care not to scratch the wood. Check the alignment, and then attach the fireplace insert (W) to the mantel by inserting the screws (18) through the drilled holes on the trims (X and Y) and securely screw into place using a Phillips screwdriver. -
Page 6: Operation
Operation □ Read all instructions and warning prior to operating the appliance. □ Ensure that all controls are in the “OFF” position before plugging the appliance in to a properly grounded electrical outlet. □ The main control panel is located behind the cover at the top right corner on the front. Care and Maintenance WARNING: Do not use this fireplace insert if any part of it has WARNING: Always disconnect from the power supply before...
