Seatex AI71/AI70
Quick Start Guide

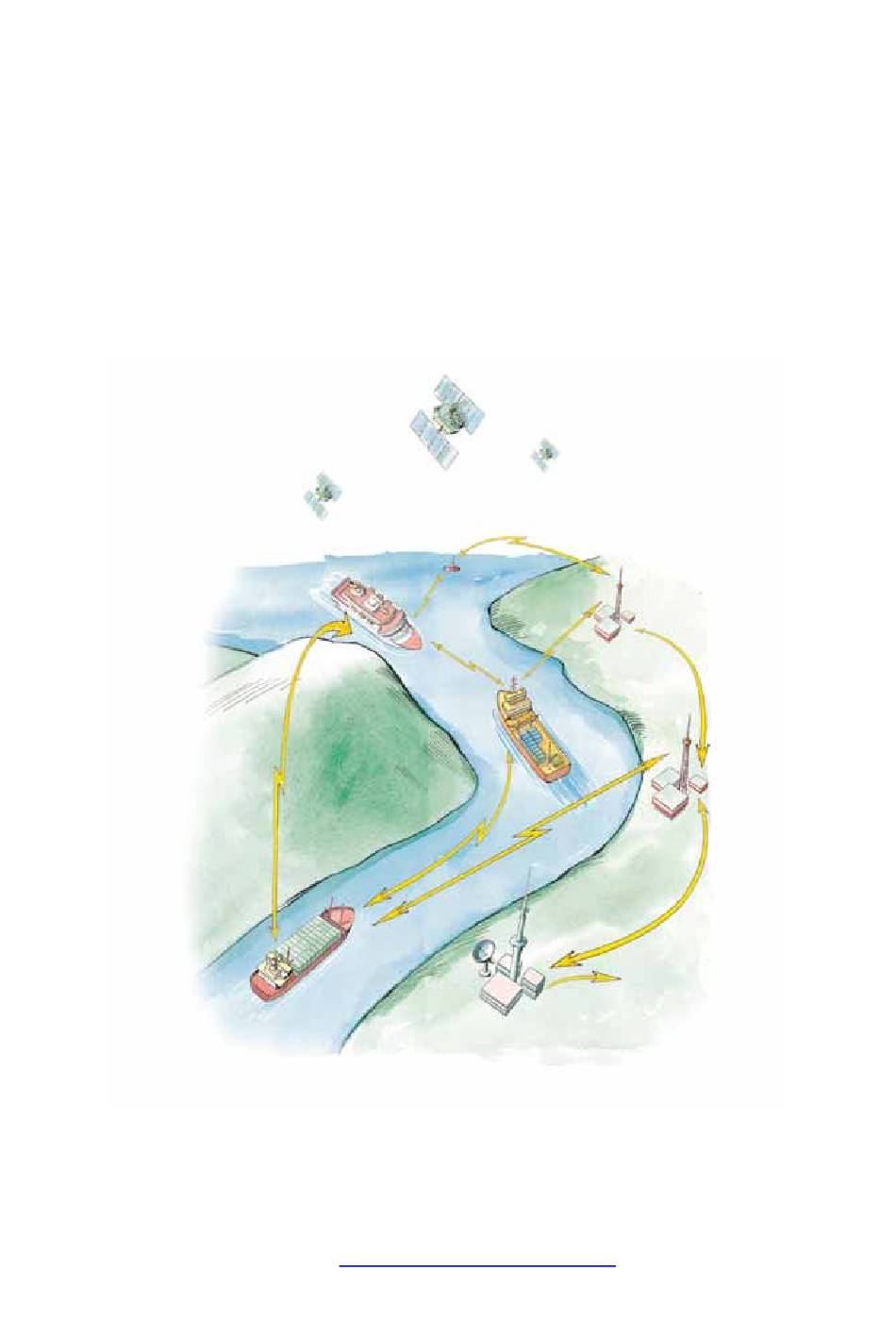

GNSS Satellites
AIS Base Station
AIS VHF Link
AIS VHF Link
VTS Centre
Kongsberg Seatex AS
Pirsenteret N-7462 Trondheim Norway
Telephone: +47 73 54 55 00 Facsimile: +47 73 51 50 20
E-mail:
firmapost@kongsberg-seatex.no
2003-04-04

Advertisement

loading
Need help?

Need help?

Do you have a question about the AI71 and is the answer not in the manual?

Questions and answers

Related Manuals for Seatex AI71

Summary of Contents for Seatex AI71

  • Page 1 Seatex AI71/AI70 Quick Start Guide GNSS Satellites AIS Base Station AIS VHF Link AIS VHF Link VTS Centre Kongsberg Seatex AS Pirsenteret N-7462 Trondheim Norway Telephone: +47 73 54 55 00 Facsimile: +47 73 51 50 20 E-mail: firmapost@kongsberg-seatex.no 2003-04-04...

  • Page 2: Abbreviations And Acronyms

    This list shall be completed and signed by the person installing and configuring the unit. The checklist shall be stored together with the instruction manual at an appropriate location. For more information about the AI71/AI70, see the AI71/AI70 Instruction manual. References...
  • Page 3 Seatex AI71/AI70 Quick Start Guide, rev. 0 Installation, configuration and functionality Installation, configuration and functionality Equipment A Seatex AI71/AI70 consists of the following parts: 1 AI71/AI70 unit 1 GPS antenna 1 GPS antenna bracket 1 VHF antenna with bracket 2 adapter cables (RG-58 pigtail cables with TNC-N connectors)

  • Page 4: Installation Procedure

    Seatex AI71/AI70 Quick Start Guide, rev. 0 Installation, configuration and functionality In addition to the above listed equipment, antenna cables must be included. The total attenuation of the GPS antenna cable should be less than 10 dB as higher attenuation may degrade the quality and the accuracy of the position data.
  • Page 5 10. Connect an adapter cable to the GPS antenna cable. 11. Mount the AI71/AI70 unit in a rack or onto the deck/bulkhead. Secure the unit with four screws. 12. Connect the GPS antenna cable to the connector marked GPS at the rear of the AI71/AI70 unit.
  • Page 6 On the MKD, do the following: 1. Enter the Main Menu page by pressing the Menu button. 2. At the bottom of the page, the AI71/AI70 software version is displayed. Fill in the number in the list in chapter 3.
  • Page 7 6. On the MKD, press the Menu button and select Dynamic Data. Press the Arrow down button on the MKD. Verify that external GNSS (GPS) is used. 7. Connect the GPS antenna cable to the connector marked GPS at the rear of the AI71/AI70 unit. Verify that the GPS LED starts to blink green.

  • Page 8: Commissioning Report

    Seatex AI71/AI70 Quick Start Guide, rev. 0 Commissioning report Commissioning report Installation Not OK Power from emergency supply Pilot plug installed PWR LED indicator green TX LED indicator green & amber blink MSG LED indicator green & amber blink GPS LED indicator green blink...
