Seatex AIS 100 Operational Description

Hide thumbs

Advertisement

Table of Contents

Seatex AIS 100

Operational Description

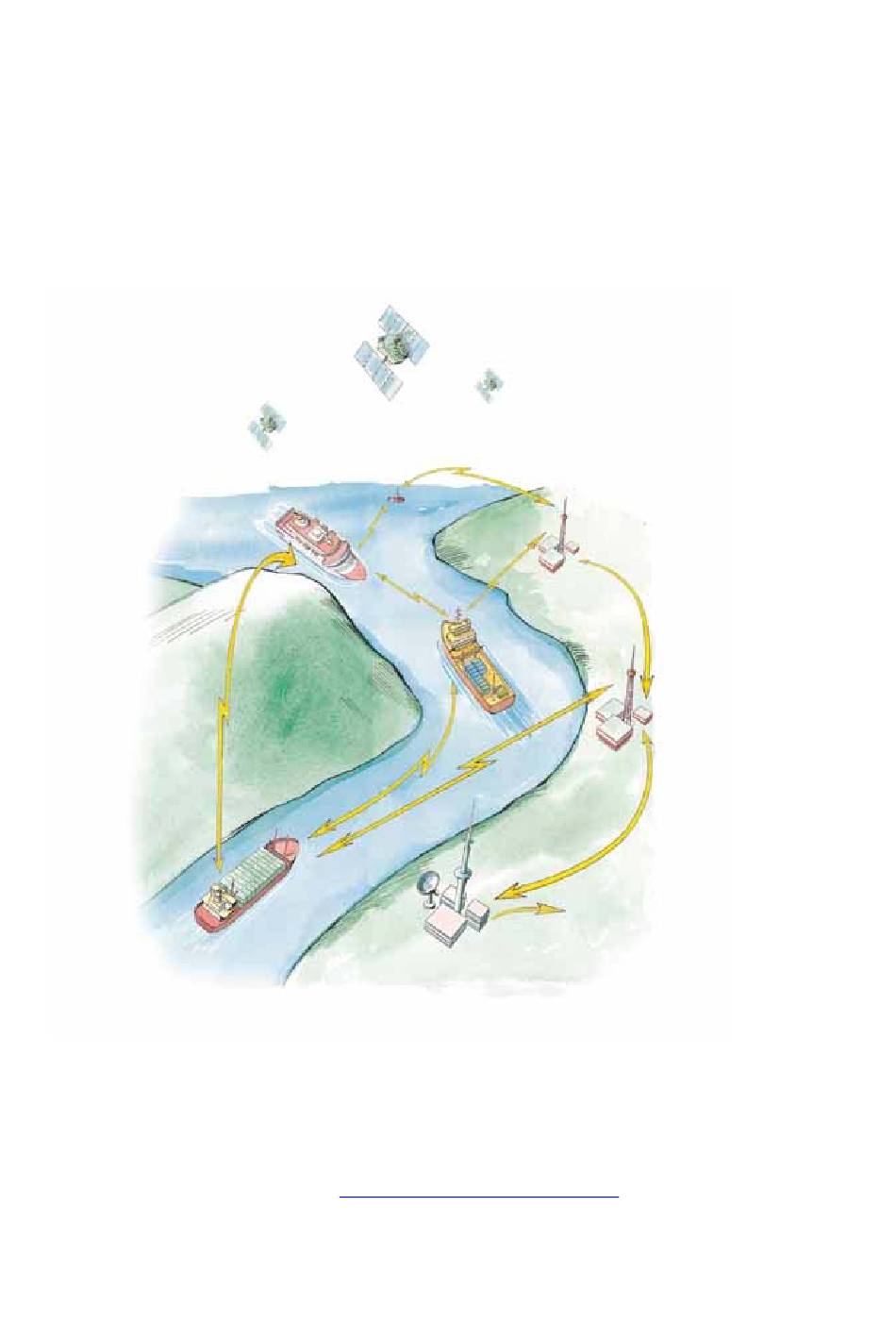

GNSS Satellites
AIS Base Station
AIS VHF Link
AIS VHF Link
VTS Centre
Kongsberg Seatex AS
Pirsenteret N-7462 Trondheim Norway
Telephone: +47 73 54 55 00 Facsimile: +47 73 51 50 20
E-mail:
firmapost@kongsberg-seatex.no
2003-06-19
