Summary of Contents for PowerTran M 8303

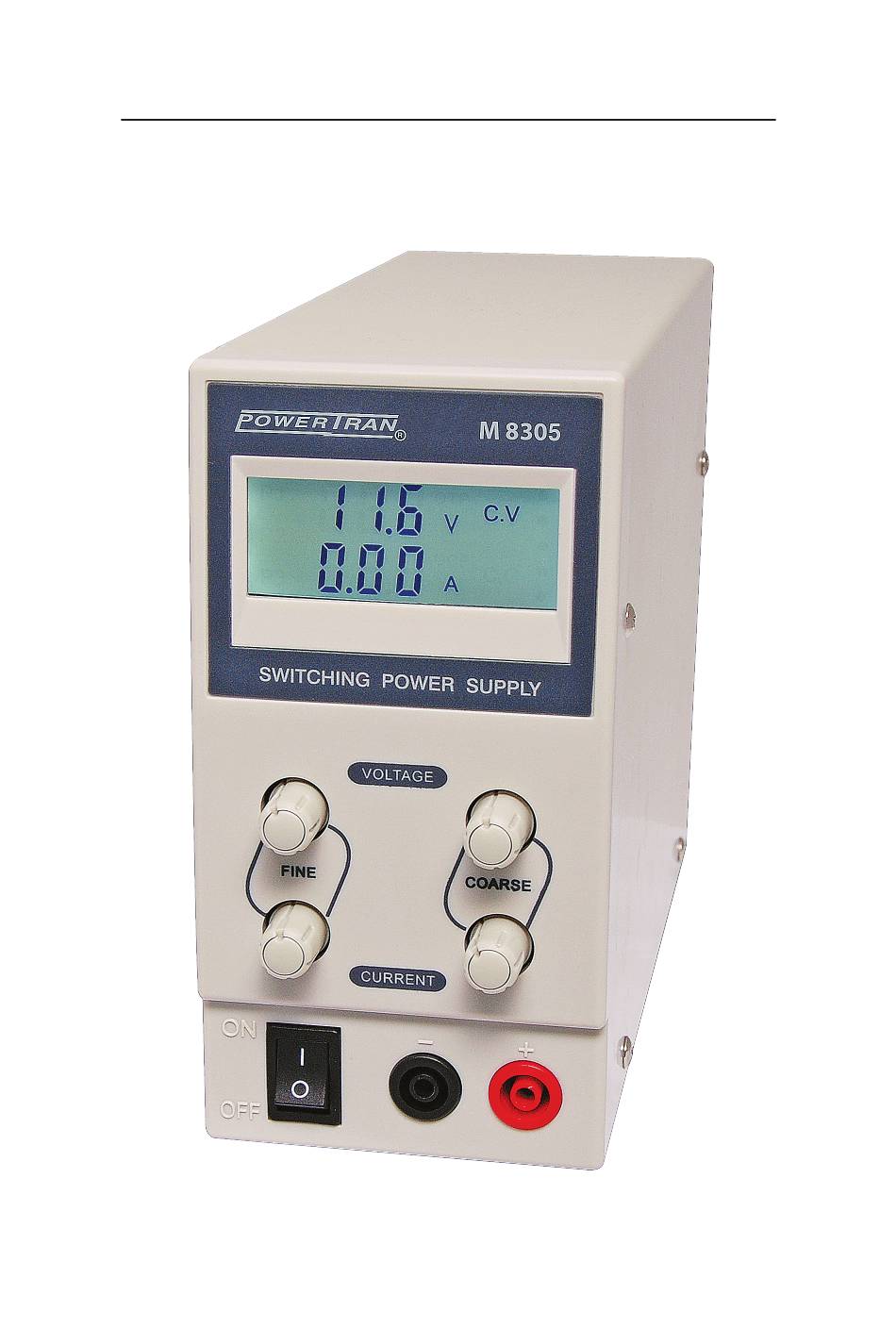

- Page 1 30V 5A Regulated Bench Top Power Supply Calibration Procedure M 8303 | M 8305...
-
Page 2: Specifications
Overview A compact, efficient bench top power supply for use in servicing, repair and design of electronics. The low noise switchmode design offers excellent regulation for low current requirements. Fine/ coarse voltage and current controls allow you to set the desired settings quickly. Backlit LCD ensures a clear view. - Page 3 Thank you for purchasing the M 8303/M 8305 DC switching power supply. Please read this manual before using. Keep the manual for reference. 1. F General 2. I These DC switching power supplies are fitted with a 3 digit LCD meter for precise measure‐...
- Page 4 Current Zero Display Adjustment Open the housing case and follow below steps: Step 1 – Please check the cable is plugged tightly into cable socket. Step 2 – Please check the cable is plugged tightly into cable socket. Step 3 – Push and hold the “Reset Button” of the PCB for around 3~5 seconds to return zero display.
- Page 5 Remarks Please refer the below picture showing all potentiometers...
