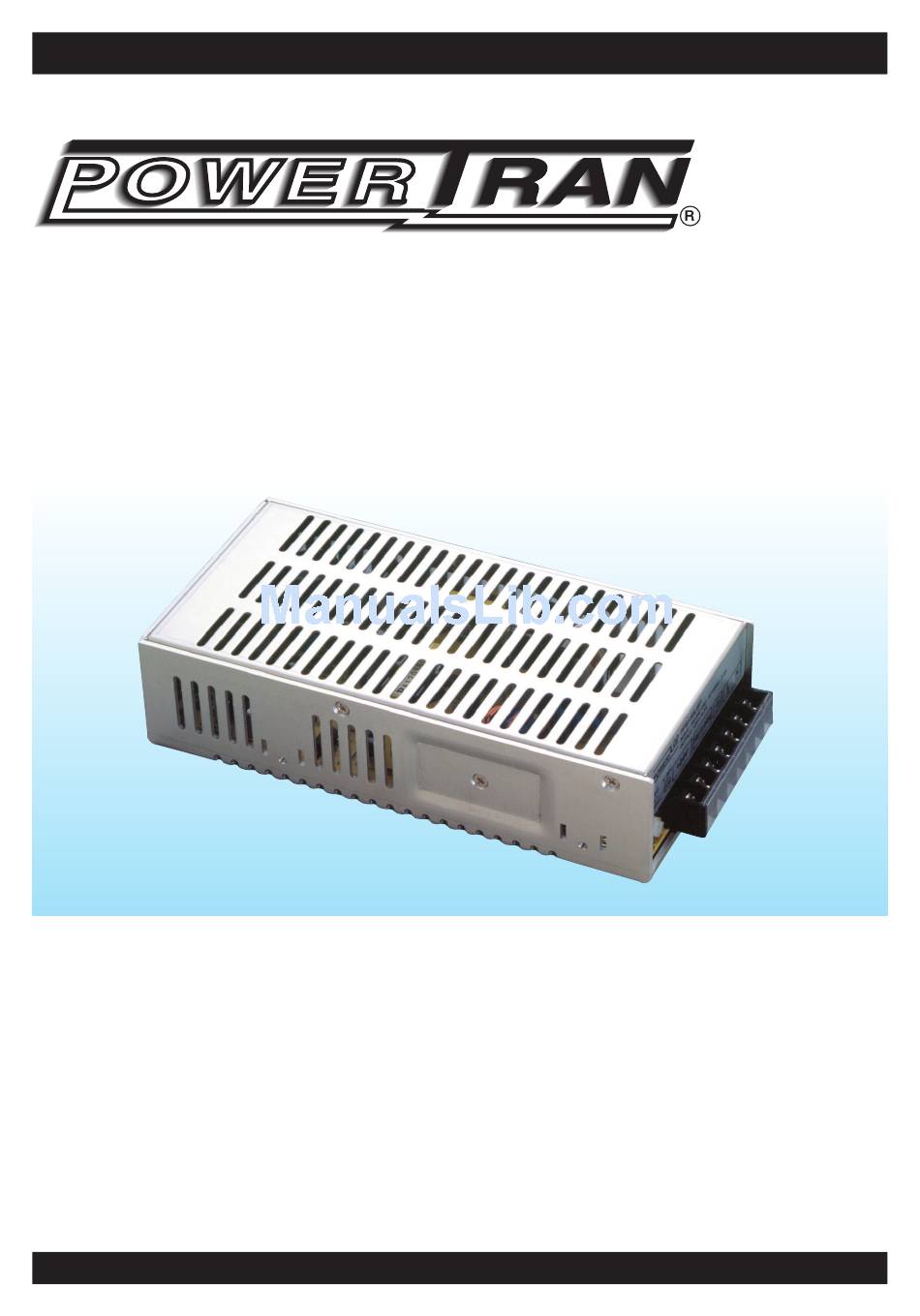

Page 1: Operating Instructions
POWERTRAN ® M 8737 & M 8776 150W Switchmode Power Supply M 8737 (12V) & M 8776 (24V) 150W Switchmode Power Supply Operating Instructions Made in Taiwan for Altronic Distributors Pty Ltd Revised 28/09/11... - Page 2 POWERTRAN ® M 8737 & M 8776 150W Switchmode Power Supply POWERTRAN ® M 8737 & M 8776 150W Switchmode Power Supply INTRODUCTION Switchmode power supplies as compared with traditional linear transformer power supplies are light weight, small- er and more efficient.
- Page 3 POWERTRAN ® M 8737 & M 8776 150W Switchmode Power Supply SPECIFICATIONS Input range: ......................90 - 264 VAC, universal Frequency: ............................ 47 - 63Hz Inrush current: ..................40A Typ. Cold start @ 25 C, 115VAC Efficiency: ......................65% - 80% typical at full load EMI filter: ....................
- Page 4 POWERTRAN ® M 8737 & M 8776 150W Switchmode Power Supply POWERTRAN ® M 8737 & M 8776 150W Switchmode Power Supply Ground term. (from mains) Neutral Input Output -ve Output +ve (from mains) terminal terminal Active C° Input Figure 2. Derated Load vs Temperature Curve Figure 1: Terminal connection details.
