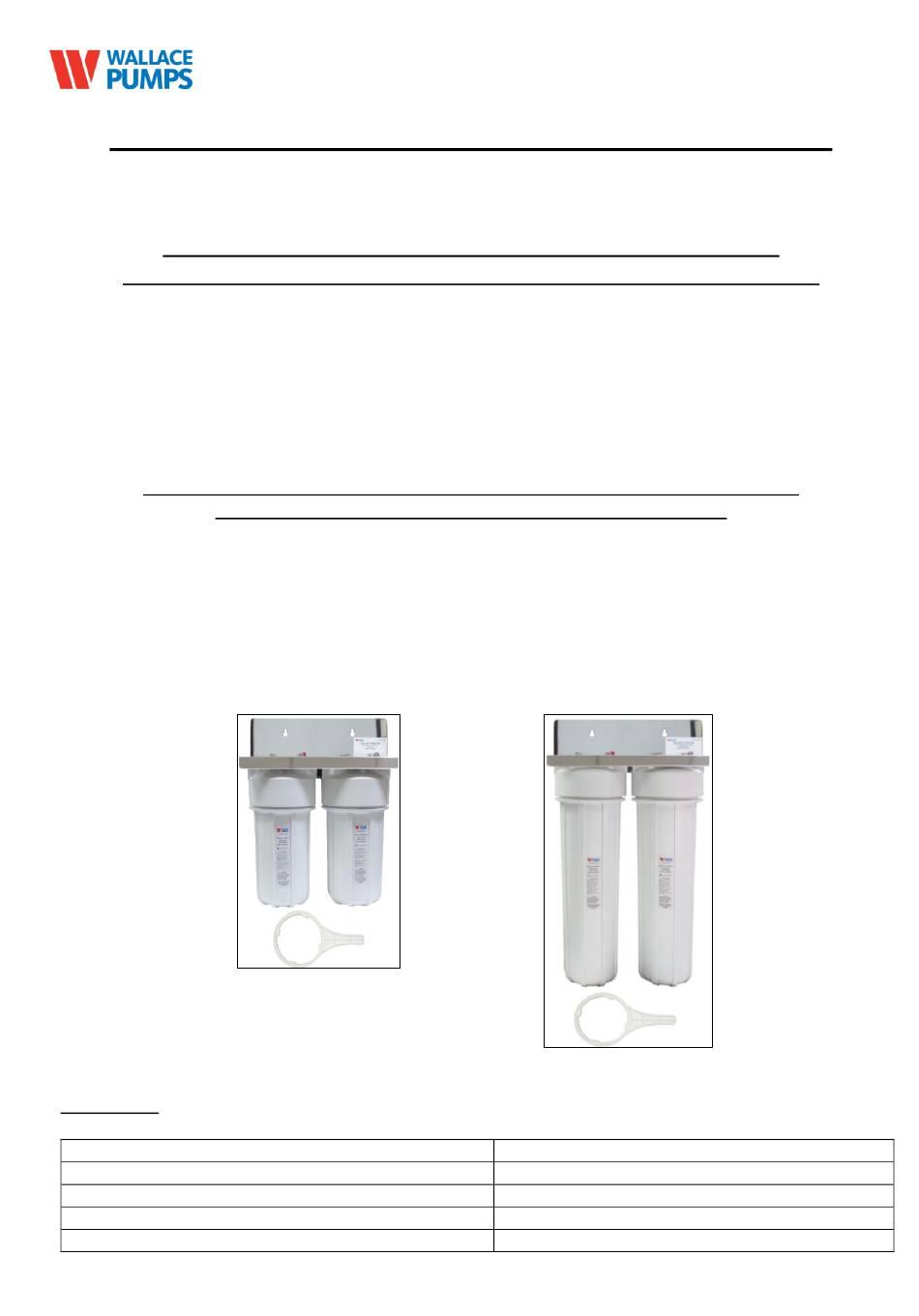

TWIN 10" & 20"JUMBO WATER FILTERS.
Model nos. "10BTWIN" & "20BTWIN"
INSTALLATION, MAINTENANCE & SERVICING MANUAL
PLEASE READ ALL INSTRUCTIONS PRIOR TO PROCEEDING WITH ANY WORK
These are TWIN 10" and 20" Jumbo Water filter packages includes Filter housing of size ordered and
1 X 20µ Pleated and 1 X 1µ Poly-Spun PP Filter cartridges of respective size supplied loose to be
installed by installer/user. System is designed mainly for treating rainwater. System for treating mains
water is available with appropriate filter cartridges. Please ask Wallace pumps.
Before deciding to install the product, you must consult with your local respective authorities for
regulations and any approval / permit that may need to be obtain before installation.
AFTER INSTALLATION, THE INSTALLER MUST HAND THIS MANUAL TO THE OWNER
FOR THE PROPER OPERATION AND MAINTENANCE OF THE UNIT
Failure to do so will result in the installer being made liable under the current legislation for any
future claims resulting from any malfunction of unit &/or damage to property or person.
Congratulations on your purchase of 10" or 20" TWIN Jumbo water filter package. For this product to
meet its expected lifetime please ensure it is installed by a qualified technician and follow these
installation, servicing and maintenance instructions. For maintenance schedule refer "Section 8"
"Care & Servicing of Unit". Please keep a record of by whom and when the maintenance /replacement
was completed, that need to be provided to when asked for.
