Magellan Power SEA400/32Y-E-P Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

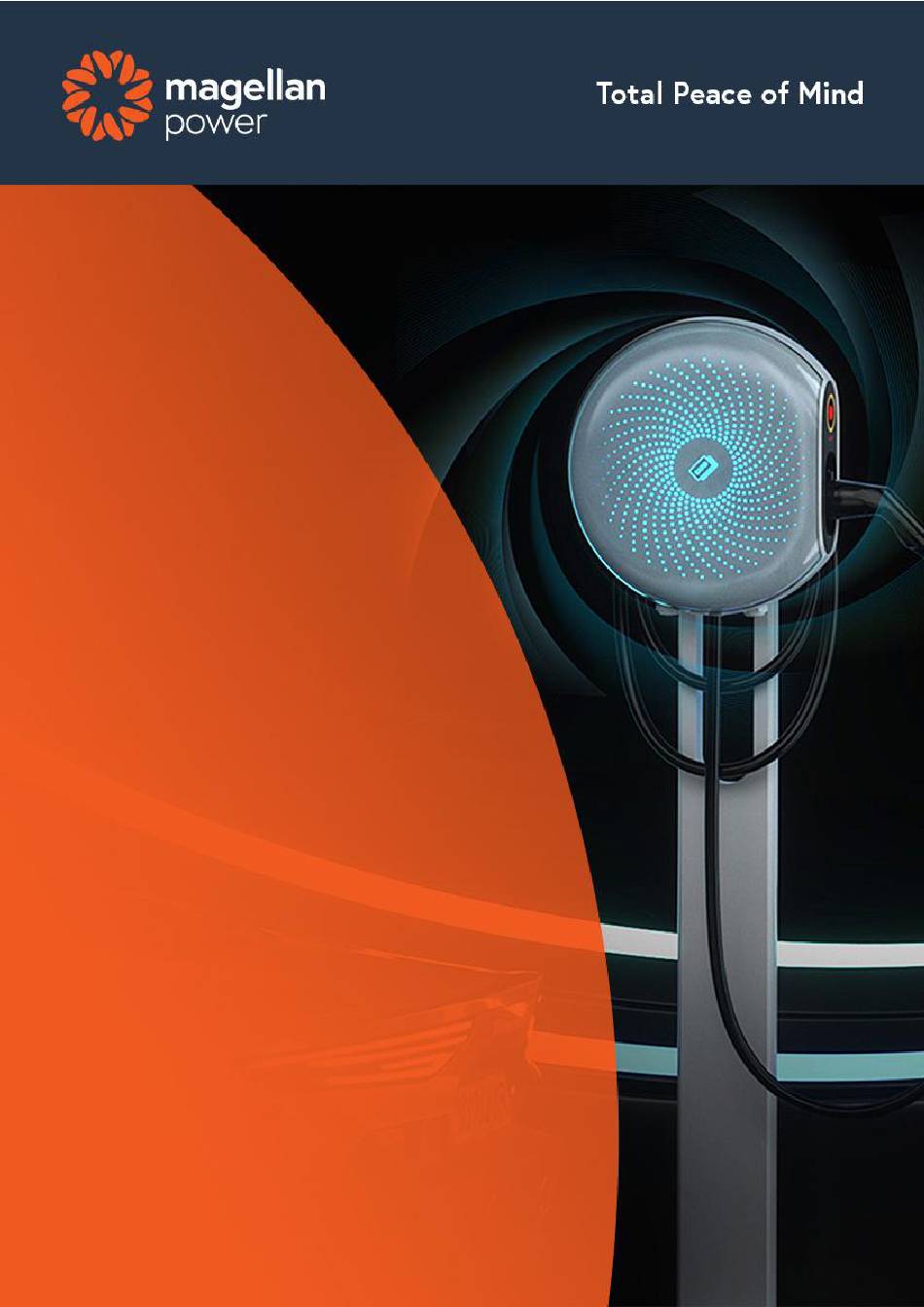

Sinexel
Magellan
Power
AC EV
Charger
Installation Manual
magellanpower.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEA400/32Y-E-P and is the answer not in the manual?

Questions and answers

Related Manuals for Magellan Power SEA400/32Y-E-P

Summary of Contents for Magellan Power SEA400/32Y-E-P

  • Page 1 Sinexel Magellan Power AC EV Charger Installation Manual magellanpower.com.au...

  • Page 2: Table Of Contents

    Contents 1. About the document 2. Description 3. Preparation before installation 4. Installation procedure 5. Charging procedure 6. Maintenance and cleaning 7. Troubleshooting 8. Cybersecurity 9. Warranty 10. Contact us Version1.1...

  • Page 3: About The Document

    1.3 How to use this document Please read this document carefully and make sure that you know all the instructions in this manual. Magellan Power will not be responsible for accidents or damage caused by improper installation and operation. (Refer to section 9.3)

  • Page 4: Description

    2.1 General description 2.3 Nameplate This EV AC charger supplies electricity to the EV. The product adopts DLM system and IMD technology, Magellan Power EV AC Charger delivering strong charging performance and great Model: SEA400/32Y-E-P Rated Voltage/Current: 400Vac/32A product quality. It has multiple safety protection...
  • Page 5 2.4 Work principle 2.5 Overview of the EVSE, exterior emergency button logo connector breathing light RFID area Note: The emergency button is not a reset button so it is forbidden to press it in non-emergency situa- Note: The emergency button is not a reset button so it is forbidden to press it in non-emergency situa- tions.
  • Page 6 2.6 Overview of the EVSE, interior Mainboard Smart meter（optional） Light board Circuit breaker Maintenance cover Terminal block RFID reader Part Function Maintenance cover For maintenance and on and off operations Circuit breaker For short circuit protection，overload protection and leakage protection Smart meter For metering Mainboard...
  • Page 7 2.7 Pedestal（Optional）...
  • Page 8 2.8 LED Description Status Light description Standby Green -constant light Connection Blue-constant light Charging Blue-breathing light Emergency Red-constant light shutdown Red-2s flashing light; Blue -constant light Over/under voltage RCD fault Red-2s flashing light Overcurrent Red-500ms flashing light Relay adhesion Red-constant light; Green -500ms flashing light Meter communication Red-constant light;...
  • Page 9 2.9 Specifications Magellan Power (Residential Use) Rated Power 22kW 11kW Input/Output Single-Phase 230V Three-Phase 400V Three-Phase 400V Voltage Input/Output Current Weight 7.5KG 7.5KG W406*H450*D162 Dimensions Frequency 50Hz Connector IEC Type 2 Cable Length 3m(5m optional) Charging Status Information Authorization Plug and Charge...
  • Page 10 Magellan Power (Commercial Use) Rated Power 22kW 11kW Input/Output Single-Phase 230V Three-Phase 400V Three-Phase 400V Voltage Input/Output Current Weight 7.5KG 7.5KG W406*H450*D162 Dimensions Frequency 50Hz Connector IEC Type 2 Cable Length 3m(5m optional) Charging Status LED/Display(optional) Information Authorization NFC/RFID/Plug and Charge/APP(optional)
  • Page 11 2.10 Parts included in the delivery Wall-mounted Specification Quantity Parameter EVSE Materials： PBT+PC Wall-mounted template L160*W299*D15mm RFID card abotage - proof hexalobular Stainless steel M4X10 socket screw Cable ties Product manual & installation manual Product certification Wrench Stainless steel T20 Expansion tube ￠6*30mm(PE) Cross recessed pan head self -...

  • Page 12: Preparation Before Installation

    3. Preparation before installation 3.1 Safety instructions ●The power cable must be connected to the power distribution box (with isolating switch and circuit Please read this document carefully before installa- breaker) directly, and each EVSE should be tion and pay attention to the rules below. equipped with an independent circuit breaker.
  • Page 13 3.3 Parts included in the delivery Monkey wrench Cross screwdriver Percussion drill and drill bits（Φ6，Φ12） Wire stripper PVC insulation tape M8 hexagon wrench Tape measure（5m） Wire crimper Insulating gloves 3.4 Cable specifications for AC input(Recommended) Cable Capacity of Max.Output Capacity specification superior Cable termina l...

  • Page 14: Installation Procedure

    4. Installation procedure 4.1 Wall-mounted 4.1.1 Installation dimensions (Unit: mm） 4.1.2 Installation procedure Step 1: According to the drilling hole locations as shown in figure 4.1.2-1 , install four Φ6*30mm expansion tubes in advance(diameter of the drill is Φ6). Install 4 mounting holes on the wall and fix with screws by required specifications Figure 4.1.2-1 Hole locations of the template...
  • Page 15 Step 2: Fix the wall-mounted template on the wall with four cross recessed pan head self-drilling screws (ST4.2*30mm). Refer to figure 4.1.2-2. Figure 4.1.2-2 Fixation of the template Type stainless steel ST4.2*30mm（4pcs）...
  • Page 16 Step 3: Hang the charger on the template with the two hooks on the back and screw it with sabotage-proof hexalobular socket screw（M4*10） at the bottom as shown in figure 4.1.2-3. Figure 4.1.2-3 Charger installation Fix the template at the bottom with M4*10 sabo- tage-proof hexalobular-...
  • Page 17 Step 4: Open the EVSE as shown in figure to do wiring installation. Unscrew four Sabotage-proof hexalobu- lar socket screws on the left cover of the EVSE by a screwdriver, and pull the hook to remove the cover from the EVSE.
  • Page 18 Step 5: Connect the Ethernet cable as shown in the figure. Unscrew the waterproof connector under the EVSE, insert the Ethernet cable into the EVSE through the middle inlet hole, and plug it into the Ethernet socket. Finally, tighten the waterproof connector with the monkey wrench to ensure that the cable cannot be pulled out.
  • Page 19 Step 6: Connect the AC input cable as shown in the figure. Unscrew the waterproof connector under the EVSE, insert the incoming wire into the EVSE and connect the cable connector to the terminal block accord- ing to the screen printing. Tighten the screw of the terminal block with a tool to clamp the incoming cable. Finally, tighten the waterproof connector with the monkey wrench to ensure that the incoming cable cannot be pulled out.
  • Page 20 Step 7: Follow the process of step 4 reversely to close the EVSE. Step 8: Put the connector into a fixed position on the right of the EVSE. After the power is on, the LED will light up, and the installation will be completed. If there is an abnormal state, please solve it in time according to the trouble-shooting table (Refer to section 7).
  • Page 21 4.2 Ground-mounted 4.2.1 Installation dimensions (Unit: mm） Figure 4.2.1-1 Hole locations of pedestal 4.2.2 Installation procedure Step 1: According to the drilling hole locations of the pedestal as shown in figure 4.2.1-1，get the installa- tion position and install the cable in advance. Make sure that the length of the embedded cables out of the ground is over 1500mm.
  • Page 22 Step 2: Use the percussion drill to drill four holes on the ground, and install four GB/T 22795-2008 reinforced expansion anchors (TGQ) M8*80 for preparation as shown in figure 4.2.2-1. Figure 4.2.2-1 Embedded expansion anchor Drilling hole diameter: M6 series:10mm M8 series:12mm M10 series:14mm M12 series:16mm...
  • Page 25 Tighten the sabotage-proof hexalobular socket screw M4*10(1pc)
  • Page 26 Step 4: Use four M4*10 hexalobular socket screw set to fix the wall-mounted template on the pedestal and hang the charger on it, then fix it with the hexalobular socket screw set (M4*10)as shown in the follow figures.
  • Page 27 Step 5—Step 9: Repeat step 4 to step 8 of the wall-mounted installation procedure.

  • Page 28: Charging Procedure

    5. Charging procedure 5.1 Charging procedure (EVSE with display) 5.1.1 Connect to the connector 1)Take the charger cable from the enclosure or the hanger installed on the pedestal and connect to the EV. 2)After the connector is inserted correctly, the EVSE will be ready to charge. 5.1.2 Standby screen 1）The display shows the standby screen as shown in the figure when the EVSE is in the idle status 2）The lights on the enclosure turn from dark to green, as shown in the figure below.
  • Page 29 5.1.3 Prepare to charge screen Authorize the use of EVSE by RFID card,password and operator APP. 5.1.4 Start to charge screen 1）The interface jumps to the charging information screen when the EVSE starts to charge, as shown in the figure below. 2）During the charging session, the lights on the enclosure turn from green to blue, as shown in the figure below.
  • Page 30 5.1.5 Stop charging screen 1）During the charging session, using the RFID card, password and operator app can stop the EVSE from charging. When fully charged, the EVSE will automatically stop charging. In an emergency, pressing the emergency stop button will cut off the power. 2）When the charging cycle is completed, the display will be as shown in the figure below.
  • Page 31 5.2 Charging procedure (EVSE without display) 5.2.1 Connect to the connector 1）Take out the connector from the enclosure or the hanger installed on the pedestal and connect it to the EV. 2）After the connector is plugged in correctly, the EVSE will be ready to charge. 5.2.2 Start to charge There are two ways to charge which depends on customer requirement.

  • Page 32: Maintenance And Cleaning

    6. Maintenance and cleaning 6.1 Maintenance and cleaning 1)Please do a visual check for damage on the cabinet cover, outlets, cables and connectors at each use. 2)Please do a visual check for damage on the display at each use. 3)Please use low-pressure water to clean the enclosure of the EVSE every four months. In case of stubborn dirt, please apply a cleaning agent and clean it manually.
  • Page 33 3) Unscrew screws C, D, E, F on circuit board and G on copper busbar. Disconnect neutral wire (H), L1 (I), L2 (J), L3 (K), earth wire (L). 4) Unscrew screws N and O which are used to fix hose clamp M. 5) Untighten the water-proof clamp P and pull out the cable.
  • Page 34 6.3 Assemble the connector cable Reverse to the process documented in 6.2.

  • Page 35: Troubleshooting

    7. Troubleshooting Error code Problem Possible cause Possible solution If the problem has been solved, In an emergency Emergency turn the emergency button Error 1 situation, the shutdown gently in arrow indicating emergency button is direction to reset. pressed. Check whether there is over- The voltage is over Error 2 Overvoltage...
  • Page 36 The Residual Current Check if there is Monitor fails or Error 10 Electric leakage leakage at the circuit. residual current exists. Check the grounding The EVSE is not Error 11 Earth fault status of the charger. properly grounded Note: If you are unable to resolve the problem using this manual, please contact the manufacturer.

  • Page 37: Cybersecurity

    Magellan Power is not liable for damages and losses related to such security breaches, any unauthorized access, interference, intrusion, leakage and theft of data or information.

  • Page 38: Warranty

    ● Ensure that the EVSE has enough space for passage and maintenance. ● It is necessary to be fully aware that changes and changes without the permission of Magellan Power may affect the user's operating authorization and may also affect the warranty.
  • Page 39 9.4 Disclaimer The EVSE needs to be used normally within a certain range of conditions. Magellan Power will not be responsible for accidents or damages caused by one of the following situations: ● Products and accessories not marked by our company;...

  • Page 40: Contact Us

    10. Contact us Our company provides customers with a full range of technical support, if you have any questions about the product or technical problems, please feel free to contact us.
  • Page 41 Address: 64 Bushland Ridge, Bibra Lake, WA 6163 Email: onlineenquiry@magellanpower.com.au Phone: +61 (08) 9434 6621 Fax: +61 (08) 9434 6623...
