- Page 1 Henley Fan Zephyr Wireless Hotel Wall Control Radio wifi wall control for Zephyr ceiling fans only Model COHZWC The Henley Fan Company Ltd Unit 1 22 Harrison Close Twyford Berkshire RG10 0LL England Office: 01256 636 509 www.henleyfan.com...
- Page 2 Transmitter module Battery cover Holder plate Retaining screw Screw with wall anchor (2×)
- Page 3 The radio wall control is used exclusively for controlling EC/DC ceiling fans with and without lighting. This wall control can be used to control the Henley Fan Zephyr ceiling fans only. Any number of radio receivers/ceiling fans in the transmission range of the hand-held transmitter can be programmed and controlled simultane- ously.
-
Page 4: Initial Operation
Replacing the batteries (fig. 4 – 7, page 29) • Disengage the transmitter module from the holder plate s. section Mounting • unscrew and remove battery cover • Change batteries. Only use two Type AAA 1.5 V batteries. Make sure the polarity is correct. - Page 5 Disposal / Recycling The packaging is made of environmentally friendly materials that you can dispose of at local recycling points. The labelling of packaging materials helps with waste separation, these are marked with abbreviations (a) and numbers (b). These have the following meaning: 1 –...

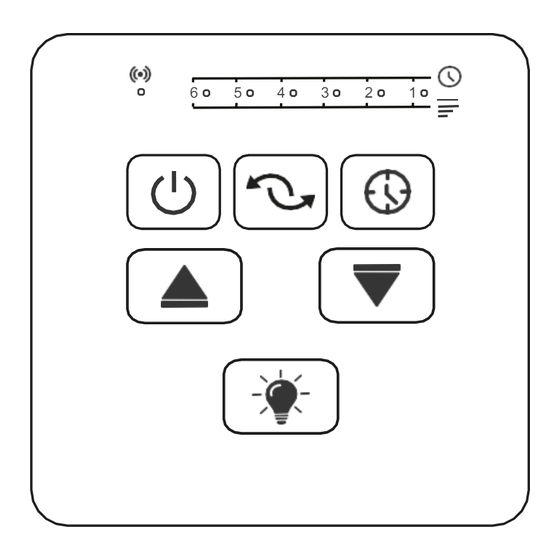

- Page 6 Operation LED Signal indication LED Flashes timer active 1-6 hr LED Inication speed 1-6 Fan OFF Forward/reverse Motor timer +1 hour Off (> 3 seconds) Speed up Speed down LED on/off + dim the light (>1 second)
- Page 7 fig. 2 fig. 3 Ø 3mm 44 mm...
- Page 8 © CasaFan 2023...
