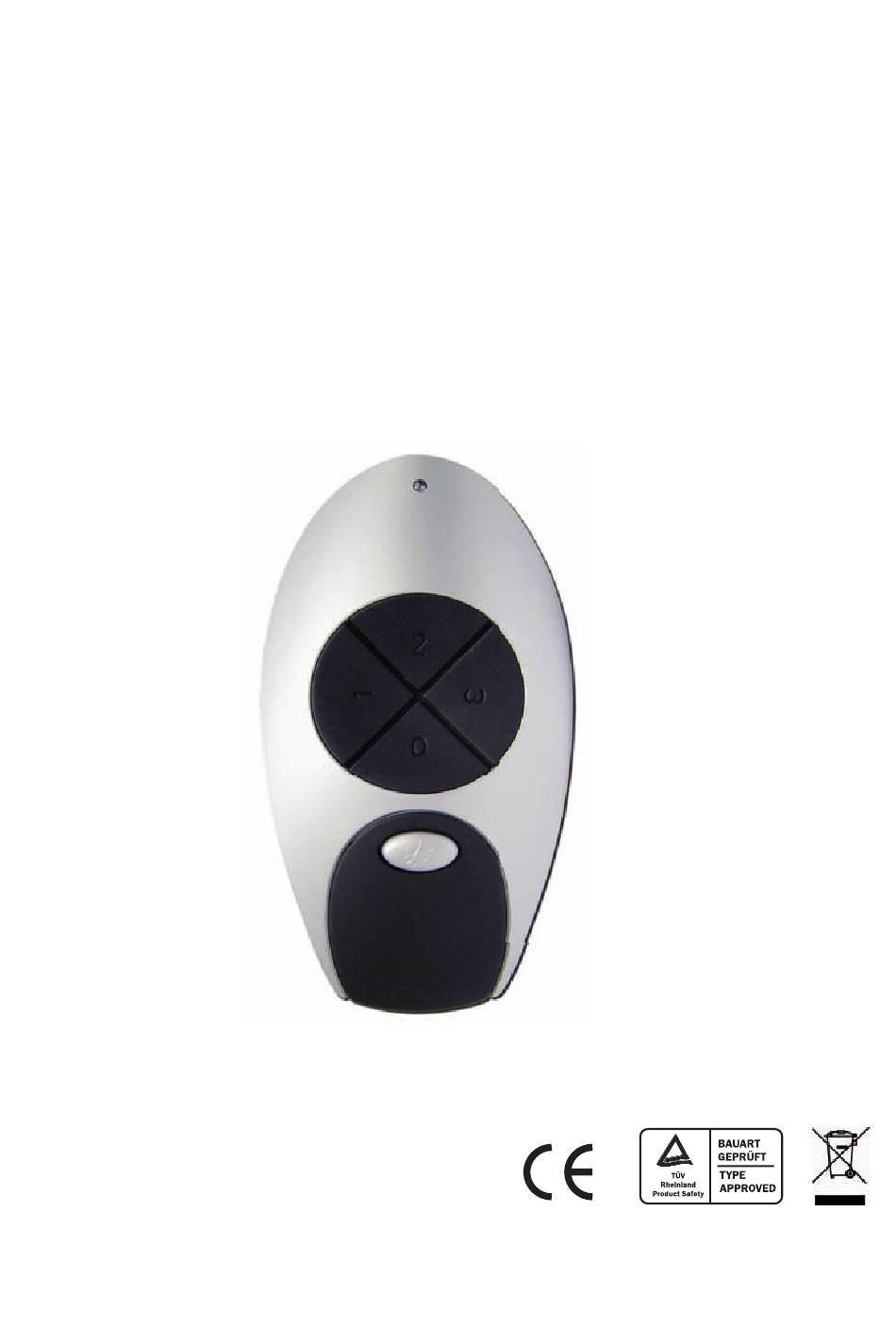

- Page 1 Mounting and operating manual Powerboat Radio remote control for ceiling fans...
- Page 2 The remote control Powerboat is developed exclusively for controlling ceiling fans with and without light kits. The motor can be switched between 3 speeds and off. If present, a light kit could be switched independantly from motor function on and off (Powerboat oD) and dimmed by a full range dimmer (Powerboat).
- Page 3 Caution The pull chain switch of your fan must be set on highest speed. Damages as result of disregarding this rule are not covered by any warrenty! Only operate the unit when completely assembled! Installation advice Caution According to VDE 0100 rule this device should only be installed by a qualifi ed technician.
- Page 4 Positioning the remote control at fans with downrod sketch 2 sketch 1 receiver canopy canopy downrod downrod 1. Place the receiver as shown in sketch 1 and 2 into the mounting bracket. Lay the back antenna wire on top of the receiver into the canopy. 2.
- Page 5 Coding your Powerboat Receiver (sketch 4) and transmitter (sketch 5) must have the same code setting! Slide code switches to your choice of up or down position.(Factory setting is all „up“). Use a small screwdriver or ball point pen to fi rmly slide up or down!
- Page 6 - Light on/off, continuous pressure on the light button dimms light in a continuous cycle from lightest to darkest (Powerboat). No dimmer at model Powerboat oD STRICTLY Caution If your ceiling fan has a reverse function by slide switch, only reverse the fan while not in operation (motor OFF)! In case of nonobservance damages on the motor and/or the receiver they are not covered by the warranty.
