User & Installation
All spares available from
Copyright Notice: All rights reserved. No parts of this manual may be reproduced in any form without
express written permission of Maidaid-Halcyon (A trading name of Buttress Group Ltd)

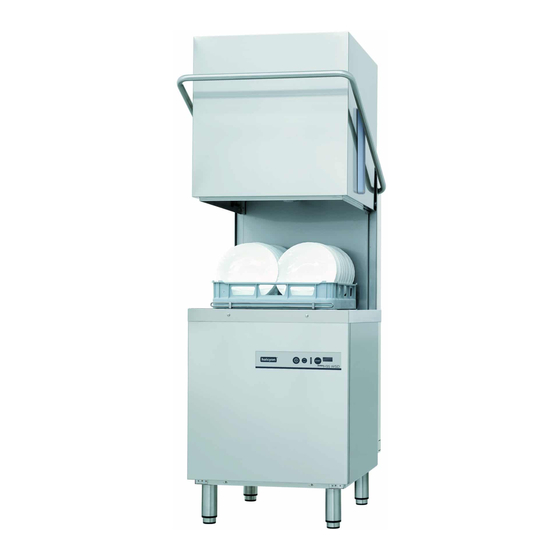

AMIKA
95XL
Guide
FROM S/N-4296709
The Engine Shed
Top Station Road
Brackley
NN13 7UG
Tel: 0845 1308060
Fax: 01280 845345
Web: www.caterparts.com
REF:PT811ESHALWRAS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Maidaid Halcyon AMIKA 95XL
Summary of Contents for Maidaid Halcyon AMIKA 95XL
- Page 1 AMIKA 95XL User & Installation Guide FROM S/N-4296709 REF:PT811ESHALWRAS All spares available from The Engine Shed Top Station Road Brackley NN13 7UG Tel: 0845 1308060 Fax: 01280 845345 Web: www.caterparts.com Copyright Notice: All rights reserved. No parts of this manual may be reproduced in any form without express written permission of Maidaid-Halcyon (A trading name of Buttress Group Ltd)
-
Page 4: Table Of Contents
INSTRUCTION MANUAL FOR DISHWASHERS TRANSLATION FROM THE ORIGINAL INSTRUCTIONS CONTENTS CHAP 1 PREFACE ........................2 CHAP 2 INSTALLATION ......................2 ........................2 NPACKING ........................3 OSITIONING ....................3 LECTRICAL CONNECTION ....................4 ATER CIRCUIT HOOKUP ..................4 ONNECTION TO THE DRAIN LINE .................... -
Page 5: Chap 1 Preface
INSTRUCTION MANUAL FOR DISHWASHERS Chap 1 PREFACE This manual contains important safety warnings relating to installation, use and maintenance. Failure to observe the instructions in the enclosed documentation may compromise the safety of the appliance and immediately voids the warranty. Warnings: Keep all documentation in the vicinity of the appliance;... -
Page 6: Positioning
INSTRUCTION MANUAL FOR DISHWASHERS 2.2 Positioning • Check that there are no objects or materials in the installation area which may be damaged by the steam emitted by the appliance during operation, or if there are, make sure they are properly protected. •... -
Page 7: Water Circuit Hookup
INSTRUCTION MANUAL FOR DISHWASHERS 2.4 Plumbing connection The appliance is to be connected to the water network with a hose. There must be a slide on-off, ball or gate valve able to quickly and completely turn off the water if necessary between the water network and the appliance's solenoid valve. -
Page 8: Chap 3 Risks And Important Warnings
INSTRUCTION MANUAL FOR DISHWASHERS Chap 3 RISKS AND IMPORTANT WARNINGS • This appliance is intended solely for the use for which has been designed. Any other use is improper and hazardous. • The specialised technician responsible for installing the appliance must instruct the user on its operation and any attendant safety measures, including practical demonstrations. -
Page 9: Chap 4 Using The Machine
INSTRUCTION MANUAL FOR DISHWASHERS Chap 4 USING THE MACHINE 4.1 Key and symbols Referring to Fig.1: ON/OFF BUTTON 4 INFORMATION DISPLAY PROGRAMME SELECTION BUTTON 5 STATUS BAR (LED) START BUTTON Switching the dishwasher on Referring to Fig.2: • Turn on the main power switch and open the external water tap. •... -
Page 10: Continuous Washing (*Optional)
INSTRUCTION MANUAL FOR DISHWASHERS Continuous washing (*optional) • This is an extended cycle; the time varies according to the model. • The cycle duration may be varied as required by pressing START (3) during the wash cycle, to interrupt the wash and start the rinse phase. 4.6 Automatic cycle start-up This function is used to make the chosen cycle start automatically when the door is closed. -
Page 11: Displaying Information
INSTRUCTION MANUAL FOR DISHWASHERS • Rinse the area around the salt cap by hand and run a self-cleaning cycle to avoid any risk of corrosion. • The ‘ST’ warning will disappear after a few minutes. The warning rE on the display indicates that the machine is running a resin regeneration cycle, needed to ensure the correct operation of the water softener;... -
Page 12: Chap 5 Maintenance
INSTRUCTION MANUAL FOR DISHWASHERS Chap 5 MAINTENANCE 5.1 General rules Before doing any maintenance, completely drain out all water, shut off the power supply and close the water supply cock. Do not use water under pressure - it can damage the electrical equipment. Only wash the body panelling when it is cold, using only product specifically designed for steel. -
Page 13: Chap 6 Self Diagnostics
INSTRUCTION MANUAL FOR DISHWASHERS Chap 6 SELF DIAGNOSTICS The machine is equipped with a self-diagnosis system that registers and warns of a number of malfunctions. Fault Description and possible remedies No rinsing. The rinsing cycle was not completed correctly. Make sure that the rinsing nozzles are clean. -
Page 14: Chap 7 Settings
INSTRUCTION MANUAL FOR DISHWASHERS Chap 7 SETTINGS The following settings should only be configured by a qualified technician. The parameters listed below can be set during installation of afterwards, accessing the settings menu as follows: • Machine in standby with door open. •... -
Page 15: Hardness Settings For The Incorporated Water Softener
INSTRUCTION MANUAL FOR DISHWASHERS 7.1 Hardness settings for the incorporated water softener Set the hardness level of the water supply dH in the settings menu following the instructions given in the following table: Measured hardness °fr n° 0 ÷ 20 0 ÷...
