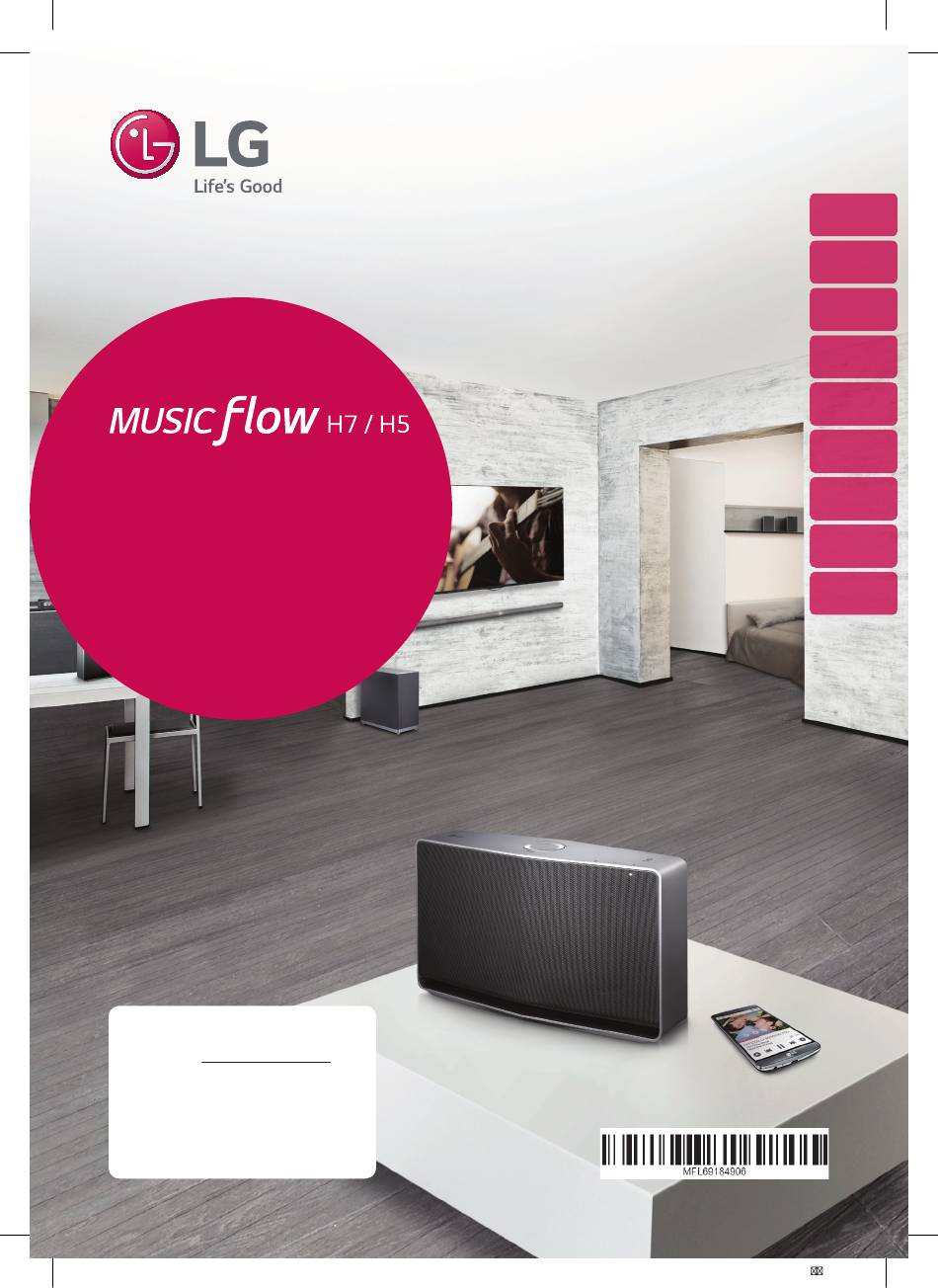

SMART Hi-Fi AUDIO
Wireless Multi-room
Model : NP8740 (H7)
NA9740 (H7)
NP8540 (H5)
NA9540 (H5)
ENGLISH | SIMPLE MANUAL
To view the instructions of advanced
features, visit http://www.lg.com and
then download Owner's Manual.
Some of the content in this manual may
differ from your unit.
The actual product may differ from the
image.
NP8740-M0.BDEULLA_SIM_MFL69184906_ENG.indd 1
ENG
DEU
FRE
DUT
SLN
ITA
SPA
GRE
POR
2015-05-07
4:44:07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NA9540 and is the answer not in the manual?

Questions and answers

Related Manuals for LG NA9540

Summary of Contents for LG NA9540

  • Page 1 NP8540 (H5) NA9540 (H5) ENGLISH | SIMPLE MANUAL To view the instructions of advanced features, visit http://www.lg.com and then download Owner’s Manual. Some of the content in this manual may differ from your unit. The actual product may differ from the image.
  • Page 2 NP8740-M0.BDEULLA_SIM_MFL69184906_ENG.indd 2 2015-05-07 4:44:07...
  • Page 3 Getting Started Safety Information CAUTION : Do not use high voltage products around this product. (ex. Bug Zapper) This product may malfunction due to electrical shock. CAUTION CAUTION : Only use the AC adapter supplied with this device. Do not use a power supply from RISK OF ELECTRIC SHOCK another device or another manufacturer.
  • Page 4 2. The correct disposal of your old be requested through the following postal address: appliance will help prevent potential negative consequences for the LG Electronics European Shared Service Center B.V. environment and human health. European Standard Team Krijgsman 1 3. For more detailed information about...

  • Page 5: Table Of Contents

    Table of Contents Table of Contents Getting Started Using External device Safety Information Using External device – 1. PORTABLE IN connection Unpacking – 2. BLUETOOTH® connection Top Panel Rear Panel Troubleshooting Using Multi-Room Troubleshooting Multi-Room Network Setup Appendix – Step 1. Home Network Requirement –...

  • Page 6: Getting Started

    Getting Started Unpacking LAN cable Simple Manual AC adapter Unit Power cord y Depending on the region, the supplied accessories may differ. Top Panel c d e button a 1/!/ Bluetooth status LED (page 18) - Power On / Changing the mode - Switching to the standby mode Portable In status LED (page 18) b Volume wheel...

  • Page 7: Rear Panel

    Getting Started Rear Panel a Speaker duct d DC IN (AC adapter input) A hole for plentiful bass sound on speaker e PORTABLE IN connector cabinet. f ETHERNET (LAN) port b Wi-Fi SETUP button Connects initial MUSICflow product to your network wirelessly.

  • Page 8: Using Multi-Room

    Using Multi-Room Multi-Room Network Setup Step 1. Home Network Requirement Make sure that a wireless network environment using a router is installed at your home. The home router should be connected to the internet. Connect your smart device to your home network. Connect the speaker to the power supply.

  • Page 9: Step 2. Installing "Music Flow Player

    Media server software allows you to access audio files stored in media server (PC, Mac or Network storage) and enjoy them on your speaker via home networking. On www.lg.com website, type model name in the search bar and find media server software on support tab.

  • Page 10: Step 3. Initial Multi-Room Setup

    Using Multi-Room Step 3. Initial Multi-Room Setup When installing the MUSICflow product for the first time, you can choose two types of connection as below. Option 1. Wired connection (MUSICflow Mesh Network Connection) Connect the one of MUSICflow products (sound bar, speaker or bridge) to the home router using LAN cable. Then you can connect the additional MUSICflow products (Optional) to your home network wirelessly (MUSICflow Mesh Network).
  • Page 11 Using Multi-Room Option 2. Wireless connection (Standard Wireless Connection) When the wired connection is unavailable between MUSICflow products and home router, MUSICflow products offer music streaming service within home router’s Wi-Fi coverage. Connect one of the MUSICflow products (sound bar, speaker) to the home router wirelessly. (Option) Then you can connect the additional MUSICflow products to your home Wi-Fi network wirelessly.

  • Page 12: Step 4. Add Speakers (Optional)

    Using Multi-Room Offers music streaming service in MUSICflow system within home router’s Wi-Fi coverage. In the below case, Standard wireless connection is recommended. 1. When all speakers are within the home router’s Wi-Fi coverage. (If case that your home router supports 802.11n 2.4/5 GHz ) 2.

  • Page 13: Using The Bridge

    Using Multi-Room , Note for Multi-Room Setup y You can make all wireless/wired connection according to the location of the router. But we recommend that you connect the first speaker or bridge to the router using LAN cable and connect additional speakers for network stability.

  • Page 14: Enjoying Multiple Musicflow Product

    Enjoying Multiple MUSICflow Product 1. Home Cinema Mode (Surround Sound Mode) Simply add a LG MUSICflow sound bar to your network and synchronize it with your LG MUSICflow speakers to enjoy a home cinema system experience. If you have a bridge Bridge (Wired Connection) à...

  • Page 15: Using External Device

    Using External device Using External device Using External device 1. PORTABLE IN connection Connect any device which has portable out ( ) to the PORTABLE IN connector of the unit by using a 3.5 mm stereo cable. 2. BLUETOOTH® connection NFC for Easy Pairing (Android Only) 1.

  • Page 16: Troubleshooting

    Troubleshooting Troubleshooting Troubleshooting 2-2. Connect the speaker with a LAN cable, and for additionally installed speakers, if they are not close enough to the speaker connected with a LAN cable, additionally Software Update install Bridge or another speaker in the middle location between the speaker When the MUSICflow device is connected to your connected with LAN cable and the...
  • Page 17 3. The sharing may be blocked, so check DLNA register several speakers. server program setting or firewall setting. For details, refer to http://www.lghomechat.com. y If you are using LG Musicflow PC software, when you designate shared folder, the Note corresponding folder will be automatically Depending on the region, some services (ex.

  • Page 18: Appendix

    Appendix Appendix About Status LED’s Condition Bluetooth Color Status The unit is waiting for Bluetooth pairing (Off) (White) The unit is paired to Bluetooth (White) Portable In Color Status Portable cable is connected. (White) Network Color Status The unit is waiting for network connection (Off) (White) The initial unit is being connected to the network...

  • Page 19: Specification

    NP8540 (NA9540): 10 W are available for download. Networked standby: 5.4 W LG Electronics will also provide open source code (If all network ports are activated.) to you on CD-ROM for a charge covering the cost Bluetooth: Codec SBC...
  • Page 20 LG Customer Information Center Country Telephone Austria / Österreich 0810-144131 Slovenia / Slovenija 080-543543 0900 543 5454 (NL) Benelux 015 200 255 (BE) Schweiz / Suisse / Svizzera / 0848-543543 Switzerland České republiky nebo Slovenské CZ: 810 555 810 republiky / Českej republiky alebo...
