General purpose power unit

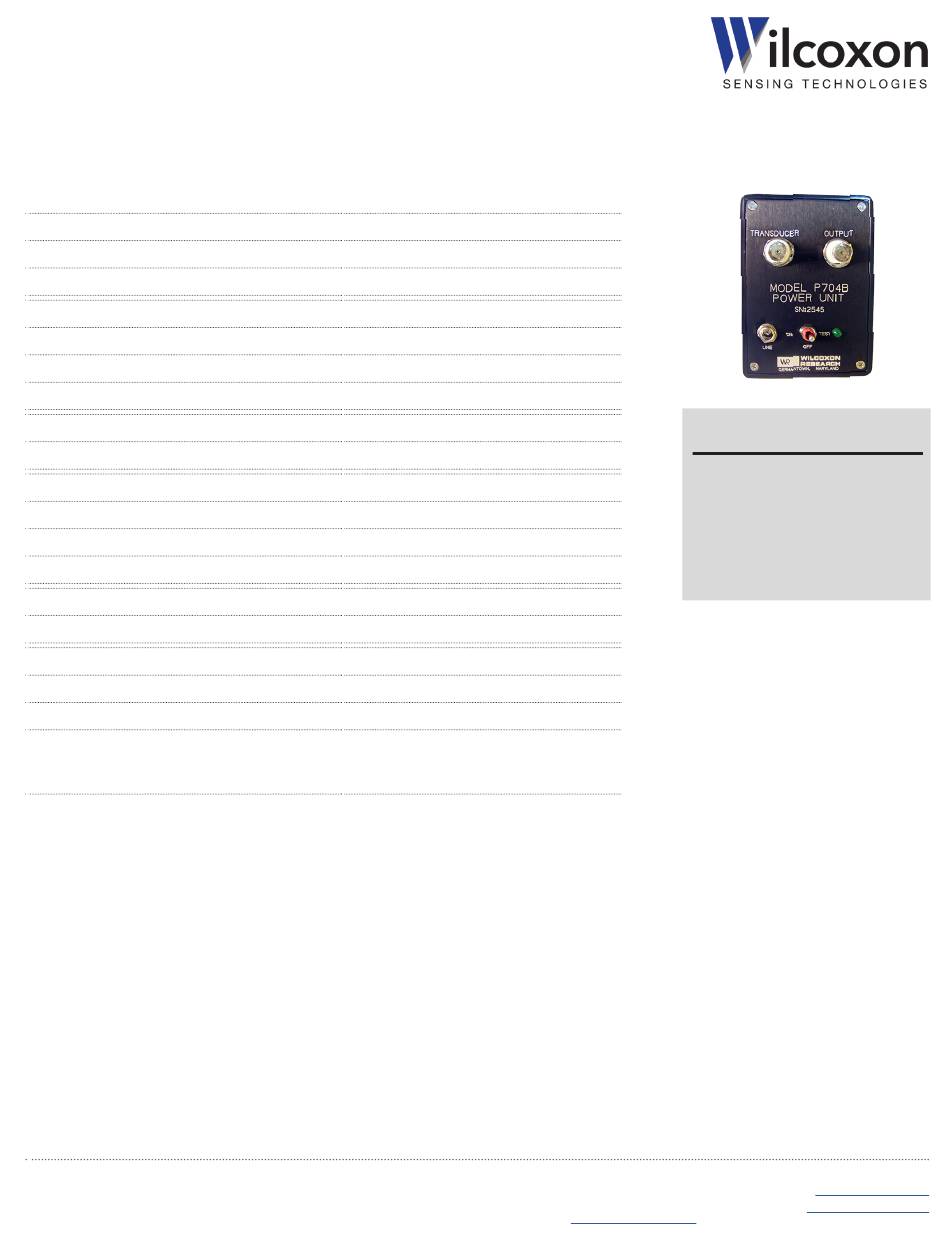

P704B
SPECIFICATIONS
INPUT CHARACTERISTICS
Voltage to transducer
Current to transducer, ± 20%
OUTPUT CHARACTERISTICS
Output impedance
Recommended load impedance
Decoupling capacitator
TRANSFER CHARACTERISTICS
Frequency response
BATTERY TEST CIRCUIT / POWER REQUIREMENTS
LED lights
Battery life
Batteries
2
ENVIRONMENTAL
Temperature range
PHYSICAL CHARACTERISTICS
Size (W x H x D)
Weight
Connectors:
Signal input
Signal output
Notes:
25 VDC when using Ni-Cad batteries.
1
For extended operation, the NC3 Ni-Cad battery kit should be used.
2
Accessories supplied: (3) 9V alkaline batteries
Accessories available: NC3 Ni-Cad battery kit; LA704B line adaptor (110V); LA704B-220 line adaptor
(220V); BNC series adaptors
See reverse for operating instructions.
Note: Due to continuous process improvement, specifications are subject to change without notice.
This document is cleared for public release.
Wilcoxon Sensing Technologies
An Amphenol Company
98450 Rev.C.1 09/18
27 VDC
1
2.4 mA DC
same as transducer
>100 kΩ
22 µF, 35 VDC
same as transducer
>18 VDC
>120 hours
9V alkaline (3)
0° to +55°C
3 x 2.4 x 4 inches
0.84 lb
BNC
BNC
8435 Progress Drive
Frederick, MD 21701
USA
Key features
• Powers most 700 series
accelerometers
• Portable and lightweight
• Battery condition light
• Manufactured in an ISO 9001
facility
Tel: +1 (301) 330-8811
Fax: +1 (301) 330-8873
info@wilcoxon.com
buy.wilcoxon.com
www.wilcoxon.com
