PRODUCT INFORMATION

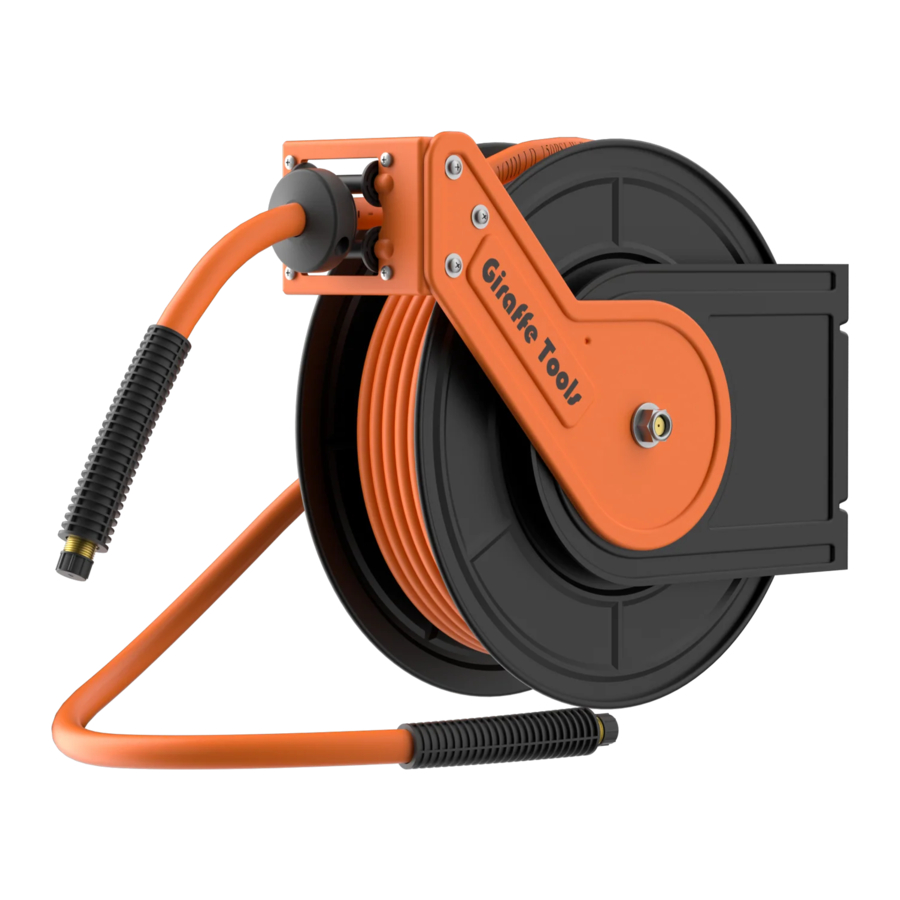

The Giraffe Tools pressure washer hose reel is made of quality materials with an autoretractable feature. The pressure hose reel can be mounted on the wall or the ceiling, is equipped with a single guide arm that can be repositioned within 225° for better function.
PRODUCT DIMENSIONS

Type	Pressure Hose Reel
Length	65 feet
Inner Diameter	1/4 in.
Max. Working Pressure	3200PSI
Mount Type	Wall, Ceiling, Floor

WHAT'S INSIDE THE BOX

1 x Retractable Pressure Hose Reel
4 x Expansion Bolt: Φ12*70
1 x Owner's Manual
2 x M22-15mm Quick Connector

OPEN-BOX CHECK

Check whether the parts above are complete and in the box.
Check for (white) scratches on the product.

If you have any of the issues mentioned above, please contact the Giraffe Tools customer service team in due time.

Tips: If the received package has a strange scent, know that this is caused by the sealed environment during shipment overseas.

TOOLS REQUIREMENT

Electric drill (9/16")
Hammer
Socket set or a Phillips screwdriver

START TO INSTALL

Choose a place

Due to the weight of the filled reel and the pulling force during use, the reel must be installed on a solid surface, that can withstand 20kg of force. As a matter of convenience, please install the hose reel close to your compressor outlet.

Installing the product

Use the installation template (See Installation Template) to mark the location of the 4 holes.
Use a 9/16" drill bit to drill 2 1/10 in. deep holes.
Tips: Depth is important. Mark a 2.1 in. depth with tape around the drill bit. If the hole is too deep and the wall anchor is rotating, use a matchstick or similar tool to tighten the hole.
Hammer the wall anchors into the 4 holes.
Hang the reel on the anchors, put on the washers and screw on the nuts, then use a socket set or a Phillips screwdriver to tighten.

If desired, follow steps 5 to 7 to re-position the guide arm.

Pull out the hose and lock it.
Remove the nut and washer on the guide arm base.
Rotate the arm to the desired position, and re-tighten the washer and nut.

Your hose reel is now installed and ready to use!

PRODUCT TESTING

Check whether the hose retracts as intended:

Doesn't retract automatically
Unable to pause

If you have any of the issues above, please contact the Giraffe Tools customer service by sending an email to service@giraffetools.com and provide a corresponding video and your order number.

HOW TO

Lock / Extend the hose

There are serial locking and non-locking areas in the steel body, and clicks can be heard when passing through the locking areas. Pull out the hose and stop when hearing the "click" sound to lock the hose.

Retract / Shorten the hose

To unlock the hose, give the hose a small tug until reaching the non-locking area (when not hearing the click) to start retraction.
To shorten the hose, start retraction and stop when hearing the click.

Tips: Hose can only be locked during pulling out process, and can not be locked during retraction. Always gently retract the hose. If this is not done with caution, the hose reel might get damaged. When walking backwards at a steady speed, the self-segmenting mechanism inserts the hose and weaves neatly into the reel, to ensure that it is free from kinks and tangles.

Recommended usage

Always retract the hose after each use.
There is an "STOP" indication sticker 3 7/25 feet before the maximum length, don't pull the hose past this point, otherwise, the retraction mechanism will be destroyed.

PROBLEM GUIDE

The product fell off the wall

Check whether the reel was installed correctly.

The hose cannot be locked

Pull or retract the hose a little until you hear the click. Because of the distance between lock points and unlock areas is very short, if you pull too quickly, you may miss the lock point.

The hose cannot be retracted or extended

It is possible for the hose to become jammed if it retracts unassisted. To free the hose of a jam, pull the hose firmly until it is fully extended. It should now be able to retract once again. Be sure to walk with the hose in hand at a slow speed as it retracts, until it is fully stowed.

The hose is hard to pull

Is the hose reel installed at the correct position? If the hose bends too much at the outlet, the hose may rub on the orifice, making it difficult to pull.
All mounting holes must be fixed to the wall.
Send a photo of the problem to the customer service center for help.

Leakage

If a leakage occurs, please contact our customer service team by sending an email to service@giraffetools.com with your order number and a picture of the issue.

MAINTENANCE

PRESSURE WASHER TOOL PRECAUTIONS

Inspect the tool's pressure hose for cracks, fraying or other faults before each use. Discontinue use if the pressure hose is damaged or hissing is heard from the pressure hose or connectors, while operating the tool. Replace the defective component/ pressure hose.
Do not allow people, mobile equipment, or vehicles to pass over the unprotected pressure hose. Position the pressure hose away from high traffic areas, in a reinforced conduit or place planks on both sides of the pressure hose to create an enclosed area.
Prevent damage to the pressure hose by observing the following:
1. Never carry the tool by the pressure hose.
2. Keep the pressure hose away from heat, oil, sharp edges or moving parts.
Check the maximum pressure rating for pressure washer tools and accessories. Compressor outlet pressure must be regulated to never exceed the maximum pressure rating of the pressure tool.

CARE & MAINTENANCE

Release pressure from the hose reel system before servicing the reel.

Maintain the pressure tool with care. A tool in good condition is efficient, easier to control and will have fewer problems.
Inspect the reel, pressure hose, and accessories for damage or excessive wear before each use. Have damaged or worn components repaired or replaced by an authorized technician.
Only use identical replacement parts when servicing.
Only use accessories intended for use with this pressure tool.
Maintain the pressure tool's labels and name plates. These carry important information.

If unreadable or missing, contact us for replacements.

Only qualified service personnel should repair the pressure tool. An improperly repaired tool may present a hazard to the user or others.

CLEANING

Wipe the surface with a clean, moist cloth. Do not use solvents when cleaning.

SAFETY

Read and understand all instructions before using this pressure tool. The operator must follow basic precautions to reduce the risk of personal injury or damage to the equipment.
Keep this manual for safety warnings, precautions, operating or inspection and maintenance instructions.

HAZARD DEFINITIONS

Please familiarize yourself with the hazard notices found in this manual. A notice is an alert that there is a possibility of property damage, injury, or death if certain instructions are not followed.

This notice indicates that if proper precautions are not taken, a specific hazard or unsafe practice could result in severe personal injury or death.

This notice indicates that if proper practices are not taken a potentially hazardous situation may result in minor or moderate injury.

NOTICE!
This notice indicates that a specific hazard or unsafe practice will result in equipment or property damage, but not personal injury.

WORK AREA

Operate in a safe work environment. Keep your work area clean, well-lit, and free of distractions.
Keep anyone not wearing the appropriate safety equipment away from the work area.
Store unused pressure tools properly in a safe and dry location to prevent rust or damage. Lock tools away and keep out of reach of children.

PERSONAL SAFETY

Wear personal protective equipment approved by the Canadian Standards Association (CSA) or American National Standards Institute (ANS).

PERSONAL PROTECTIVE EQUIPMENT

Always wear impact safety goggles that provide front and side protection for the eyes. Eye protection equipment should comply with CSA Z94.3-07 or ANSI Z87.1 standards, depending on the type of work that is performed.
Wear gloves that provide protection from the work materials or to reduce the effects of tool vibration.
Wear protective clothing designed for the work environment and tools.
Non-skid footwear is recommended to maintain balance in the work environment.

PERSONAL PRECAUTIONS

Control the pressure tool, personal movement, and the work environment to avoid personal injury or damage to the pressure tool.

Do not operate any tool when tired or under the influence of drugs, alcohol, or medications.
Avoid wearing clothes or jewelry that can become entangled with the moving parts of a tool. Keep long hair covered or bound.

SPECIFIC SAFETY PRECAUTIONS

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to the tool's safety rules. If you use this pressure tool unsafely or incorrectly, you can suffer serious personal injuries.

Direct exposure of pressurized air or fluids to skin could result in severe bodily injuries.

Use the correct tool for the job. This pressure tool was designed for a specific function. Do not modify or alter this pressure tool or use it for an unintended purpose.
Ensure that the reel is properly installed before connecting the input and output pressure hoses.
Remove system pressure immediately if a leak occurs in the hose or reel, or if the reel ceases to wind and unwind.
Release the pressure hose slowly and control it as it retracts.
