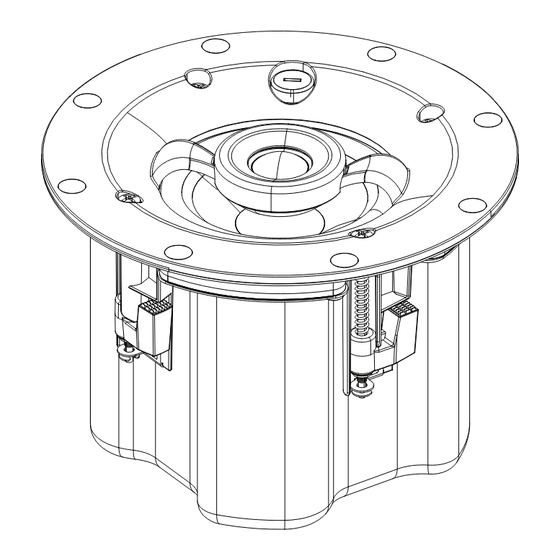

Bluesound BCS250 Owner's Manual

Passive ceiling speaker

Download this manual

BCS250

Owner's Manual

Passive Ceiling

Speaker

Need help?

Do you have a question about the BCS250 and is the answer not in the manual?

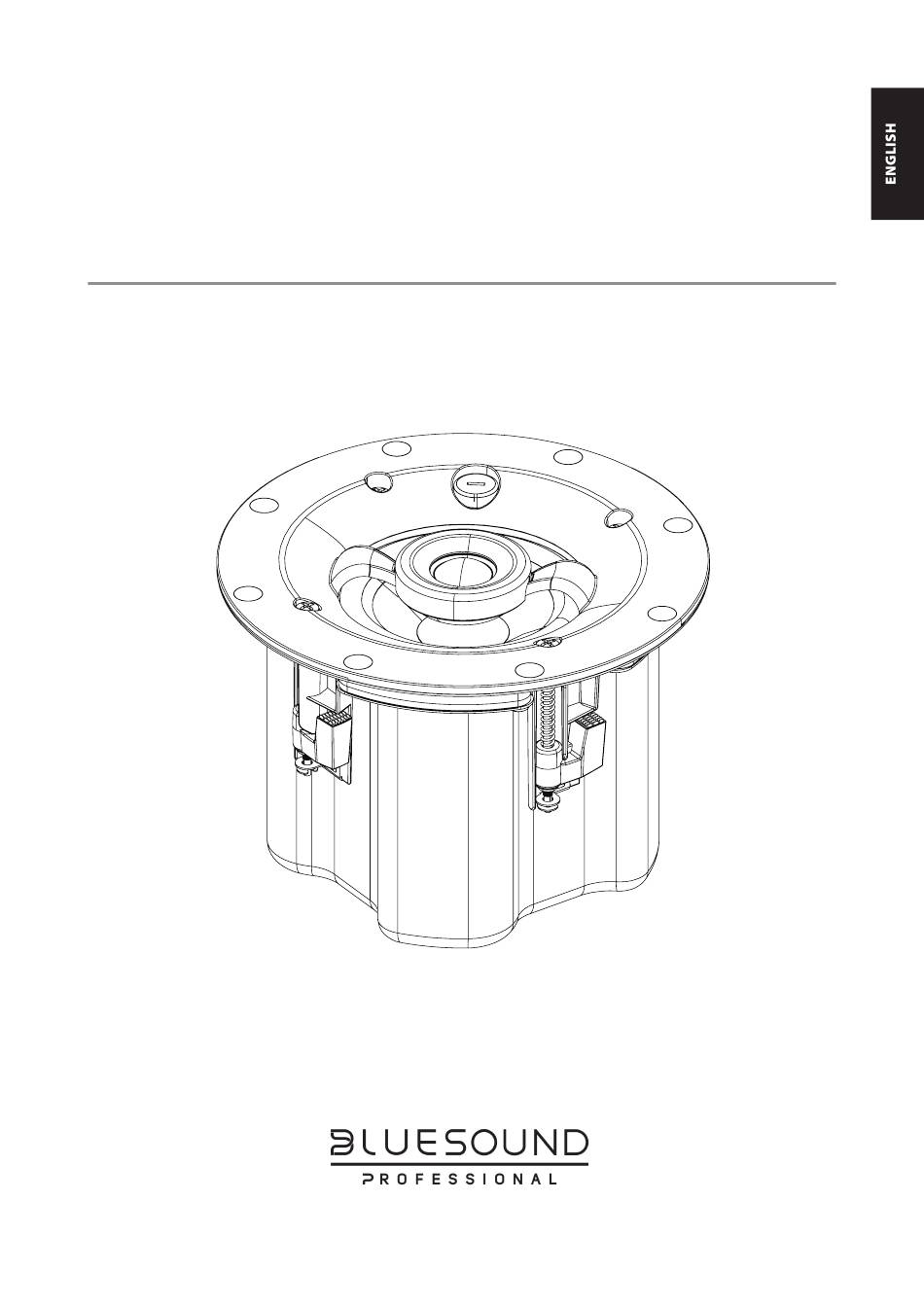

Page 1 BCS250 Passive Ceiling Speaker Owner’s Manual...
Page 2 SAVE THE PACKAGING Please save the box and all of the packaging in which your BCS250 arrived. Should you move or otherwise need to transport your BCS250, this is by far the safest container to do so. We’ve seen too many otherwise perfect components damaged in transit for lack of a proper shipping carton, so please: Save that...
Page 3 B170S Speaker Out setting to 100V B170S 100V 2 Position BCS250 in-ceiling Ceiling 6 inches (152 mm) cut-out hole 3 Loosen dogleg to unlock counterclockwise counterclockwise...
Page 4 4 Tighten dogleg. Be sure not to tighten too fast or too tight. clockwise 5 Repeat Step 3 and 4 for the three other doglegs. 6 Adjust Tap Selector switch to desired setting Tap Selector Switch Low Impedance setting • Rotating Tap Selector switch will change settings for Constant Voltage taps.
Page 5 7 Install supplied grille Grill Options • BCS Round Grille White (supplied) • BCS Round Grille Black (sold separately) • BCS Square Grille White (sold separately) • BCS Square Grille Black (sold separately)
Page 6 All rights reserved. Bluesound and Bluesound logo are trademarks of Bluesound Professional, a division of Lenbrook Industries Limited. No part of this publication may be reproduced, stored or transmitted in any form without the written permission of Bluesound Professional. BCS250 OM EN V05 - MAR 2024...
