Adaptive Technologies Group FP-CX121-3X1 Installation Manual

Installation Guide
20°
17.5°
15°
12.5°
10°
7.5°
5°
2.5°
0
2.5
5
7.5
Adaptive Technologies Group
1635 E. Burnett Street | Signal Hill, CA 90755 USA
Ph: 562.424.1100 | Fax: 562.424.3520
www.adaptivetechnologiesgroup.com
10°
7.5°
0° 0° 5°
2.5°
20
17.5
15
12.5
10
Figure 1

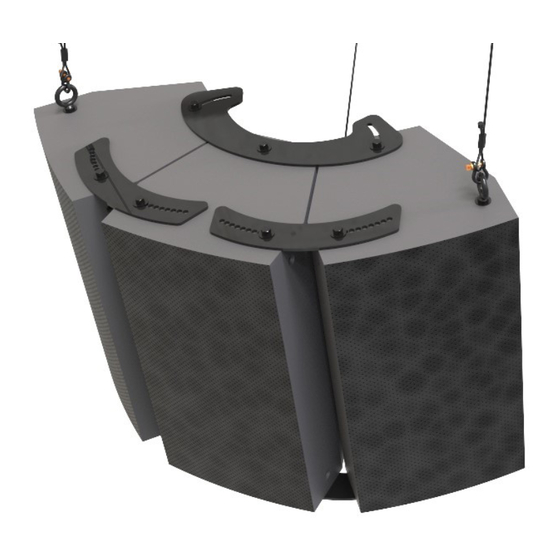

The FP-CX121-3X1 planar array kit give designers, contractors
and audio consultants the ability to create a three wide speakers
cluster in a tight pack planar array and line array configurations.
The FasPac™ provides a method of flying a tight pack array
while offering the capability of allowing cabinets to be adjusted
relative to each other to find the optimum sound directivity. A
series of holes are provided to easily adjust the splay angle from
0° to 20° at an increment of 2.5 degree.
Contents:
Be sure that all of the following items are included in this kit
before proceeding:
4 pcs Front Joiner Plate
2 pcs Rear Joiner Plate
14 pcs Hex bolt, M10x50mm long
14 pcs Split lock washer, M10
18 pcs Flat Washer, M10
2 pcs M10 X 35mm Eyebolt
2 pcs M10 x 50mm Eyebolt
1 pc Instruction Sheet
Installation Procedure:
Planar Array Configuration:
20°
17.5°
15°
Step 1.
12.5°
Flip speakers so that the bottom is facing up. Unscrew the
speaker screws where the joiner plates will be atatched and
discard.
Step 2.
Determine the splay angle of the speaker and the holes to use
on the front joiner plate (Figure 1).
Step 3.
Install the rear joiner plate on the rear rigging inserts to secure
the side speakers to the center using the slots of the plates. Use
the provided M10 screws and washers (Figure 2). Install two
front joiner plates on the two front rigging inserts of the speakers
using the corresponding holes for the appropriate splay angles
using the, screws, and washers (Figure 1). Do not tighten
screws; leave it snug until all plates are in position.
WARNING: Mounting and/or suspension of audio and video equipment requires
experienced professionals. Improperly installed loudspeakers can result in
property damage, personal injury and/or liability to the installing contractor.
FP-CX121-3X1
3 WIDE PLANAR ARRAY KIT
Rated for indoor use.
