TKR-840
UHF FM REPEATER
SERVICE MANUAL
GENERAL ......................................................................... 2
SYSTEM SET-UP ............................................................. 2
INSTALLATION ................................................................. 3
OPERATING FEATURES ................................................. 4
REALIGNMENT .............................................................. 13
APPLICATION NOTE ..................................................... 15
CIRCUIT DESCRIPTION ................................................ 24
SEMICONDUCTOR DATA ............................................. 42
DESCRIPTION OF COMPONENTS ............................... 44
PARTS LIST .................................................................... 46
EXPLODED VIEW .......................................................... 61
PACKING ........................................................................ 63
TERMINAL FUNCTION .................................................. 64

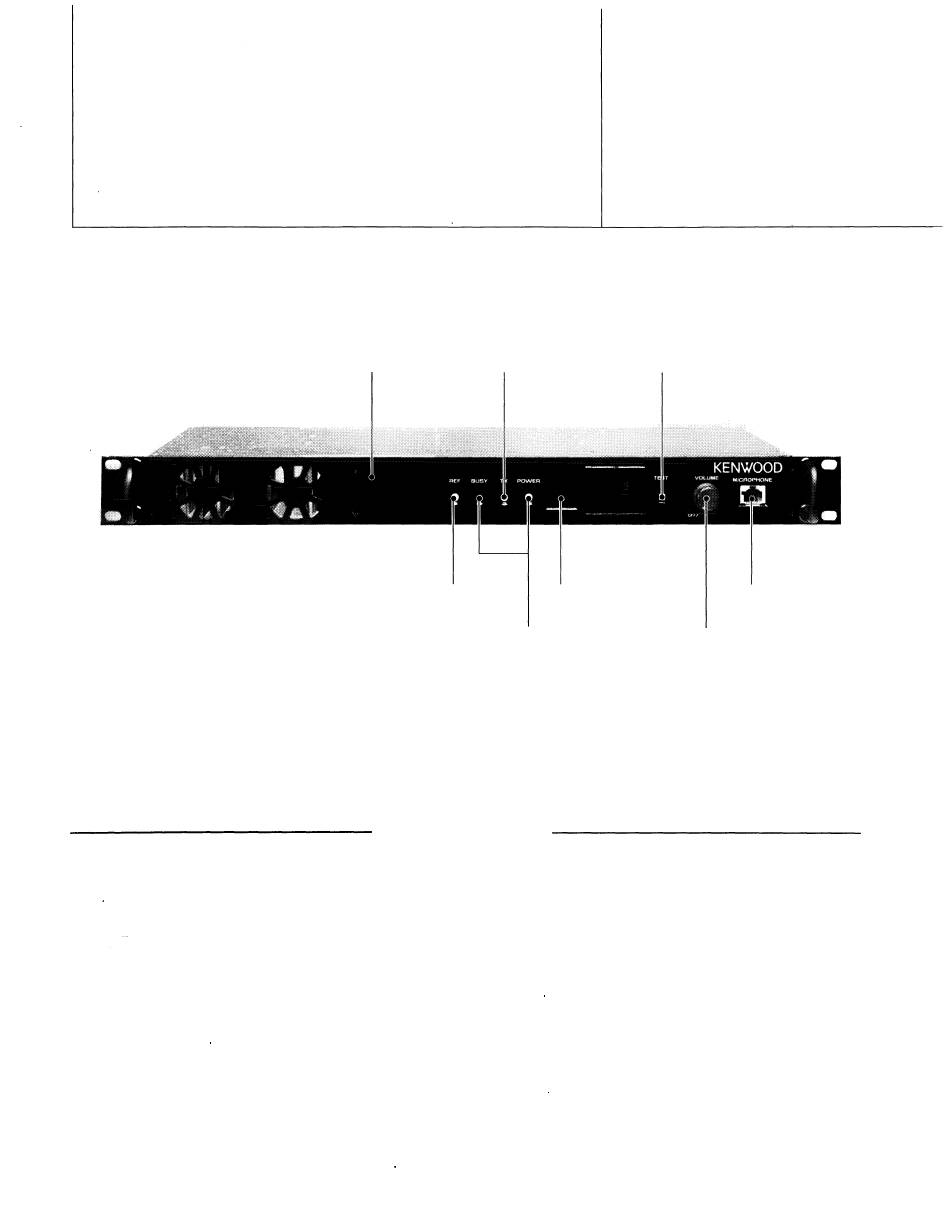

Panel (Front)
LED
(A62-0726-03)
(830-2197-05)
LED
(830-0864-05)
CONTENTS
ADJUSTMENT ................................................................ 69
PC BOARD VIEW
CONTROL UNIT (X53-3880-10) ............................... 83
TX UNIT (X56-3050-XX) ........................................... 93
RX UNIT (X55-3060-XX) ......................................... 105
SCHEMATIC DIAGRAM ............................................... 111
BLOCK DIAGRAM ........................................................ 123
LEVEL DIAGRAM ......................................................... 125
INTERCONNECTION DIAGRAM ................................. 127
KES-4(EXTERNAL SPEAKER) .................................... 129
SPECIFICATIONS ....................................... BACK COVER
KENWOOD
©
1999-11 PRINTED IN JAPAN
B51-8506-00(S) 1534
PUSH KNOB (TEST)
(K29-3002-14)
LED ASSY
(LA301 DB)
LED
KNOB (VOL)
(830-2198-05)
(K29-4539-04)
MODULAR JACK
(E08-0876-05)
