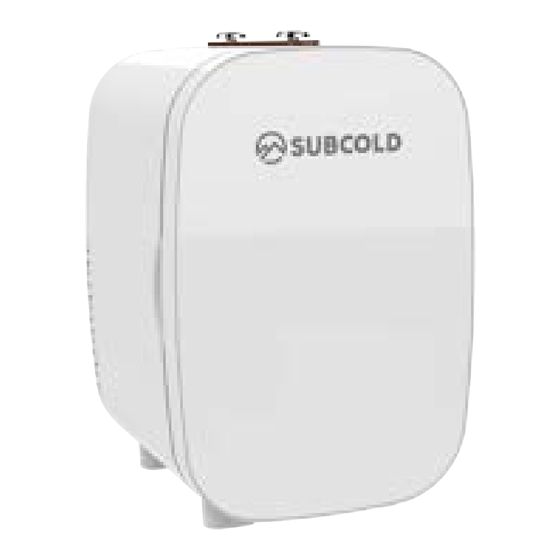

- Page 1 MINI FRIDGE Pro4 and Pro 6 PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS BEFORE USE...
-
Page 2: Table Of Contents
Contents Important Safety Instructions ................Product Features ………………................Operating Instructions …..…................Adapter Installation ..………………..............Specifications & Parameters ................Usage & Application ................... Maintenance …………..…................. Troubleshooting Guide ..................9-10 Warranty Registration ..................Environmental Friendly Disposal .............. -
Page 3: Important Safety Instructions
Important Safety Instructions Read these operating instructions carefully before using this appliance and keep them for future use. • Avoid covering the rear fan outlet with curtain or clothing to prevent overheating. • Ensure AC/USB power cables are correctly connected to their respective inputs at the back of the appliance. -
Page 4: Product Features
Product Features • The mini fridge utilises advanced thermoelectric cooling technology, known for its quiet operation, absence of CFC, low power consumption, efficient cooling and extended lifespan, sleek design, compact size, and portability, while also being environmentally friendly. • By incorporating the innovative Peltier effect, this product eliminates the need for bulky and noisy compressors, as well as ozone-depleting fluorocarbons, ushering in a new era of convenience and environmental responsibility. -
Page 5: Operating Instructions
Operating Instructions Using Household Power • Connect the lead to the appliance, do not for the power cord into the product. • Securely plug the power lead into the household power outlet and turn on the power. • Ensure good air circulation around the fridge during operation. Do not block or cover the product. -
Page 6: Adapter Installation
Adapter Installation Remove the plug: press the push key and turn the plug counterclockwise at the same time,pull plug off PUSH Install the plug: align it with the clamping position and directly turn it clockwise, installation is complete... - Page 7 Adapter Installation...
-
Page 8: Specifications & Parameters
Specifications & Paramters Pro4 / Pro6 Model 4L / 6L Capacity 100V-240V Voltage (AC) 6.5W / 20W Power (USB/AC) 5 V / 9 V Voltage (USB/DC) 18°C Below Ambient Temperature Cooling... -
Page 9: Usage & Application
Usage & Application Suitable for use in a variety of settings including vehicles, homes, boats, offices, and more. This mini fridge is ideal for refrigerating items such as fruit, beer, canned soda, cosmetics,makeup, skincare products, and more. Not Suitable For: Ice cream, frozen food, raw fish, meat or perishables. Maintenance Before cleaning, ensure the switch is turned off and unplug the fridge to disconnect the power supply. -
Page 10: Troubleshooting Guide
Troubleshooting Guide Some issues with your appliance may have straightforward solutions. Before contacting customer service or a repair professional, please refer to the following: PROBLEM POSSIBLE CAUSES & SOLUTIONS Contact Customer Support. Blinking Green Light (at back of appliance). The fan may make a slight whirring sound, this sound is normal. Loud Noises/Unit Isn’t Cooling. - Page 11 Troubleshooting Guide PROBLEM POSSIBLE CAUSES & SOLUTIONS Thermoelectric units operate by transferring heat from one side Back of the fridge is hot. to the other when a DC electric current flows through the device. It's essential to maintain a clearance of at least 10cm to ensure adequate airflow and circulation.
-
Page 12: Warranty Registration
Warranty Registration To register your product warranty, kindly visit www.subcold.com/pages/product-registration and fill out the online form. Environmental Friendly Disposal To avoid any harm to the environment or human health caused by improper disposal of electrical waste, recycle the device responsibly to promote the reuse of material resources. - Page 13 @subcoldltd 01506 440557 (UK Office Hours) @subcold_official sales@subcold.com Authorised Representative: Eurolink Europe Compliance Limited 28/2 Firth Road 25 Herbert Place Houstoun Industrial Estate Livingston, EH54 5DJ Dublin, D02 AY86 Republic of Ireland. United Kingdom.
