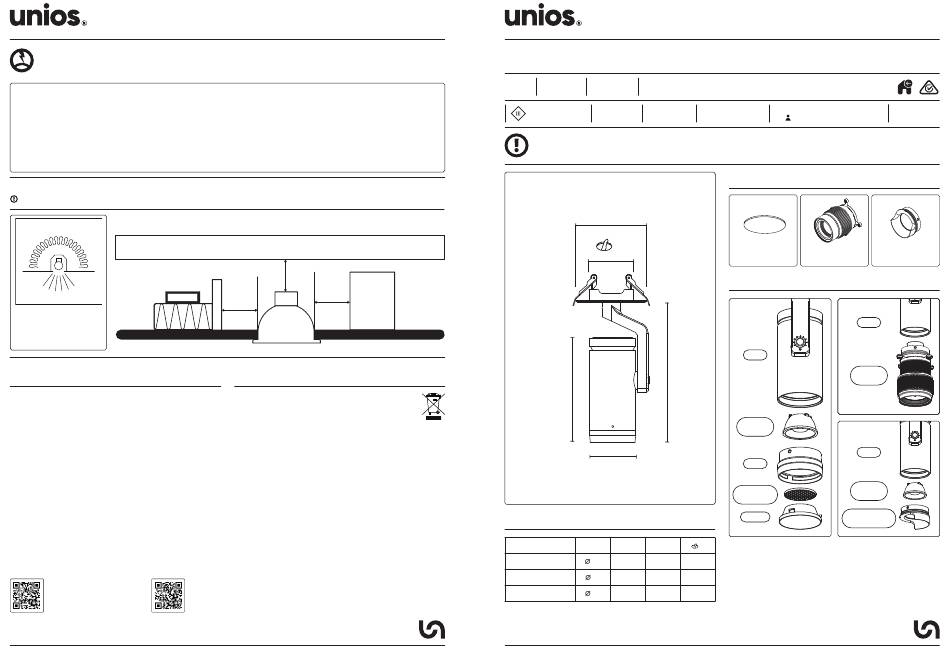

unios ION S IONSSR08 Quick Start Manual

Surge Protection
For comprehensive protection of a luminaire against electrical surges, surge protection shall be installed
on the mains supply where required to protect luminaires and drivers from transient voltage damage.
For warranty information visit unios.com/warranty
Please read these installation instructions carefully before installing this luminaire. This product must be installed and
maintained by a suitably qualified person/s in compliance with the latest applicable regulations and relevant legislation.
Unios does not warrant any claim based on defects or damage caused by misuse, improper installation, improper
operation and/or modifications carried out by the purchaser or third parties. This luminaire will not be used as a
'Working light' during construction. This will result in the warranty of the luminaire to be void. For warranty duration,
please refer to the data sheet.
Minimum clearance for luminaire
Risk of Fire – Required clearance from structure members and building elements. Details below:
Barrier required for loose fill insulation
or loose combustible materials
IC-4
Driver
Thermal
IC-4 Luminaire
Insulation
Tested to and in
accordance with
AS/NZS 60598.2.2:2016
Cleaning
Always clean carefully using a soft cloth and a
ph-neutral, alcohol-free, non-abrasive cleaning cloth.
Clean & Maintain the finish twice a year to avoid rust,
oxidation or limescale deposits.
ION S Track Light
Installation Instructions
unios.com/ionstrackims
Edition 20.3.24 | Product design and technical data may be subject to change
Please ensure the driver is
fixed above any insulation
Building Element Above Fitting
0
Building
0
Structural
0
Member
Recessed
Luminaire
All measurements are based in millimetres.
Disposal
Ensure correct disposal of this
product (waste electrical and
electronic equipment)
ION S Surface Mounted Spotlight
Installation Instructions
unios.com/ionssmims
Page 4 of 4
unios.com/ions
ION S
Base Small
Codes
IONSSR08
Class III
Luminaire only
CAUTION – This product must be installed by a qualified installer
Please read instruction manual carefully before installing luminaire
Ceiling
B
Sizing Variations
Product Code
IONSSR08
IONSMR18
IONSLR32
Edition 20.3.24 | Product design and technical data may be subject to change
Medium Large
IONSMR18 IONSLR32
IC Rating Material Operating Temp
IC-4 Aluminium <25°C
Additional Accessories
100
D
Secondary Optics
See spec sheet
Product Assembly
Standard
Body
C
Primary
Optic
A Trim
Secondary
Optic
Baffle
A B C D
50 125 168 76
65 148 197 76
85 160 209 63
All measurements are in millimetres.
Page 1 of 4
unios.com/ions
RECESSED SPOTLIGHT
IP20
Install Person/s Power
1x 8-32 Watts
Framer Lens Wallwasher
See spec sheet
Trim
Framer
Body
Framer
Lens
Wallwasher
Body
Primary
Optic
Wallwasher
Trim
