Description

Almost all of the automobiles produced today

are required, by law, to provide an interface for the

connection of diagnostic test equipment. The data

transfer on these interfaces follow several standards,

but none of them are directly usable by PCs or smart

devices. The ELM327 is designed to act as a bridge

between these On-Board Diagnostics (OBD) ports

and a standard RS232 interface.

In addition to being able to automatically detect

and interpret nine OBD protocols, the ELM327 also

provides support for high speed communications, a

low power sleep mode, and the J1939 truck and bus

standard. It is also completely customizable, should

you wish to alter it to more closely suit your needs.

The following pages discuss all of the ELM327's

features in detail, how to use it and configure it, as

well as providing some background information on

the protocols that are supported. There are also

schematic diagrams and tips to help you to interface

to microprocessors, construct a basic scan tool, and

to reduce power consumption.

Applications

• Diagnostic trouble code readers

• Automotive scan tools

• Teaching aids

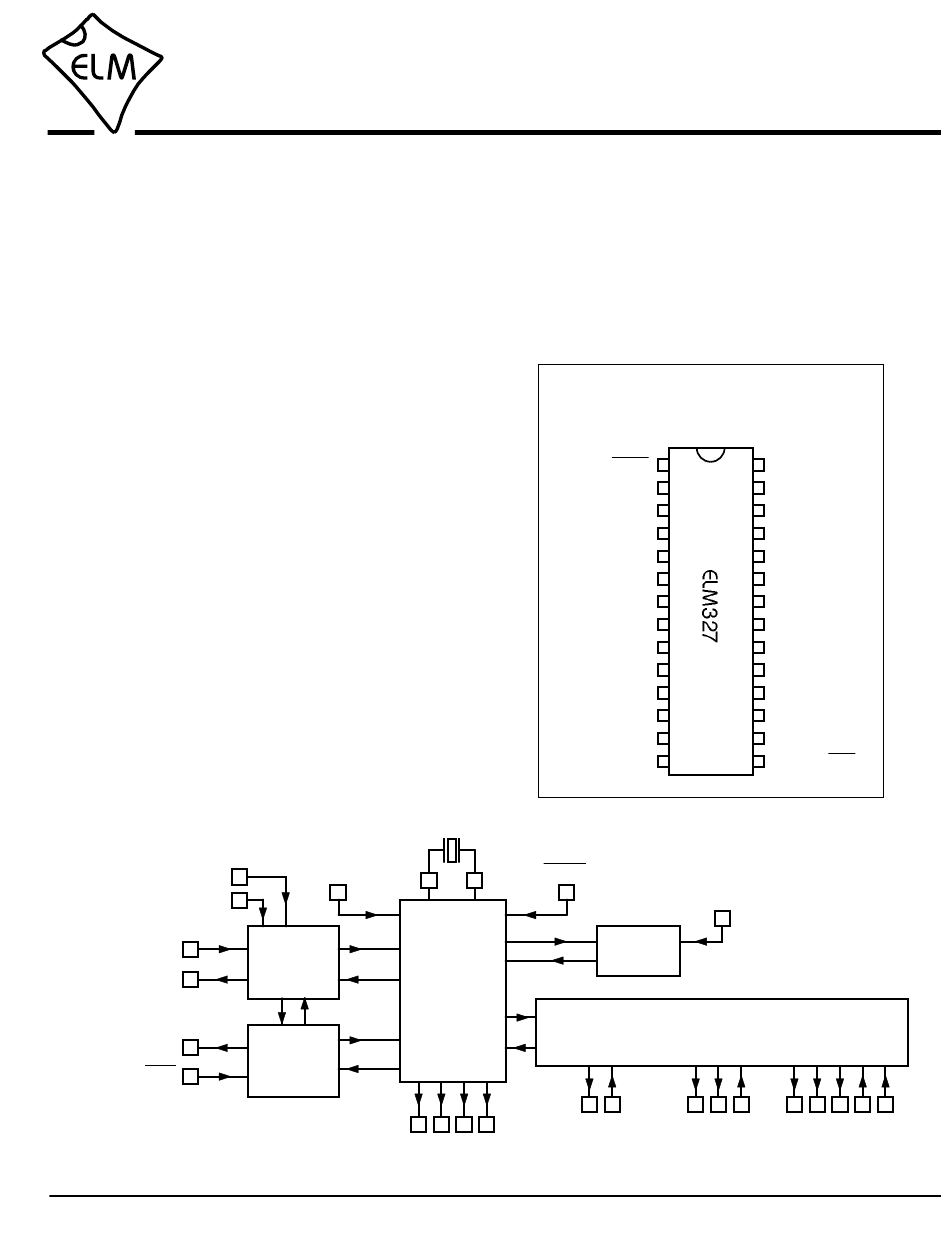

Block Diagram

Baud Rate

LFmode

RS232Rx

RS232Tx

PwrCtrl / Busy

IgnMon / RTS

ELM327DSH

Memory

XT1

RS232

Interface

Power

Control

status LEDs

Elm Electronics – Circuits for the Hobbyist

www.elmelectronics.com

OBD to RS232 Interpreter

Features

• Power Control with standby mode

• RS232 baud rates to 500 kbps

• Automatically searches for protocols

• Fully configurable with AT commands

• Low power CMOS design

Vmeasure

J1850 Volts

J1850 Bus+

Baud Rate

J1850 Bus-

4.00 MHz

MCLR

XT2

Command

and

Protocol

Interpreter

ISO 15765-4

SAE J1939

Connection Diagram

PDIP and SOIC

(top view)

MCLR

OBD Tx LED

OBD Rx LED

RS232 Tx LED

RS232 Rx LED

Memory

CAN Rx

CAN Tx

LFmode

ISO L

ISO K

XT1

XT2

VPW In

RS232 Rx

ISO In

RS232 Tx

PWM In

PwrCtrl / Busy

IgnMon / RTS

Vmeasure

A/D

Converter

ISO 9141-2

ISO 14230-4

OBD interfaces

ELM327

SAE J1850

PWM & VPW

1 of 76
