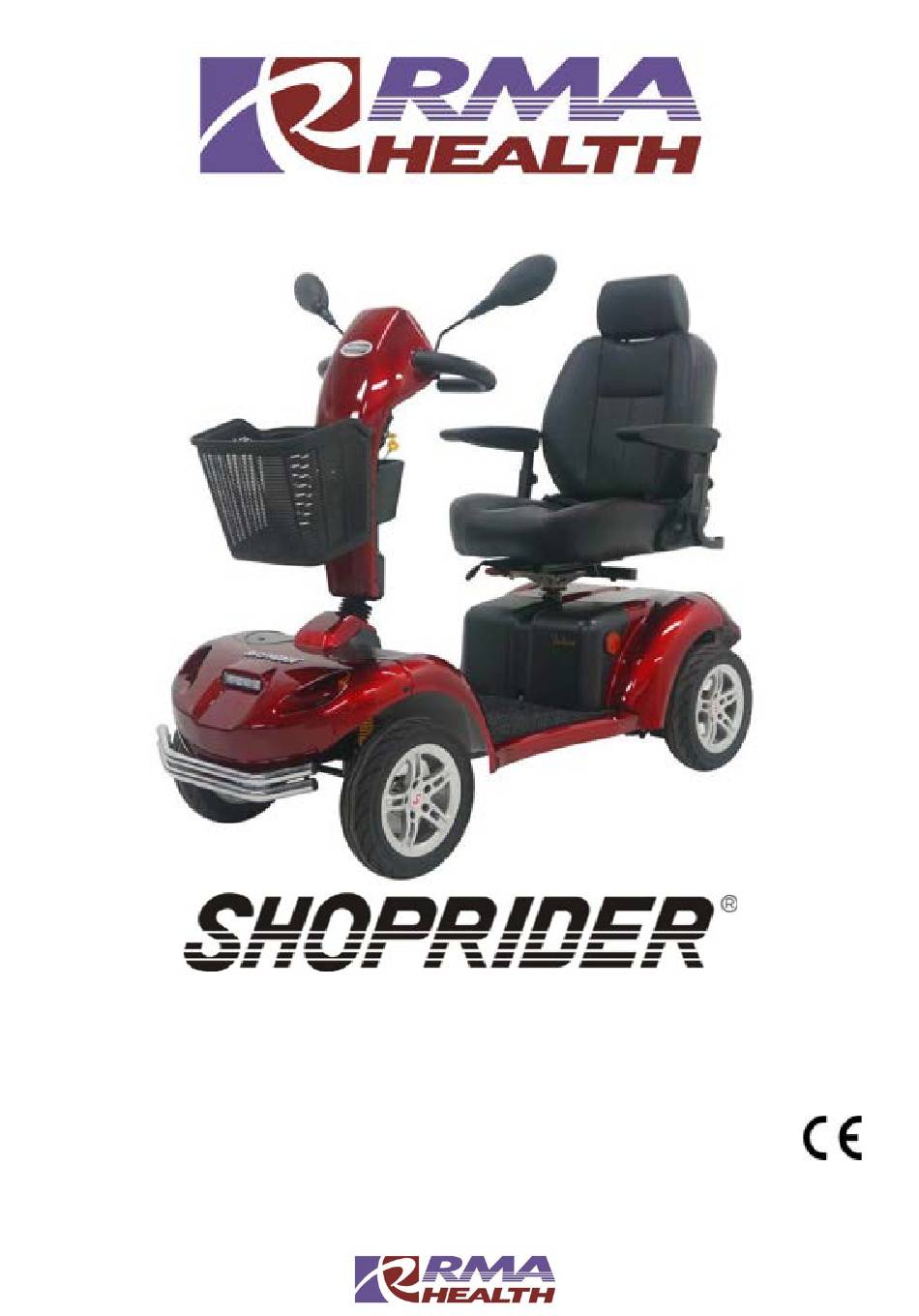

- Page 1 889AE Girona Mobility Scooter User Manual Please ensure that this user manual is read and understood before using the scooter. Version 1 (2021)
-
Page 2: Table Of Contents
Contents Page Introduction Intended Use Technical Specifications Feature Guide Safety Advice Adjustments Þ Tiller Angle Seat Height Þ Backrest Folding & Angle Þ Seat Position & Swivel Þ Seat Removal & Height Þ Lap Belt Þ Armrest Height Þ Armrest Width Þ... -
Page 3: Introduction

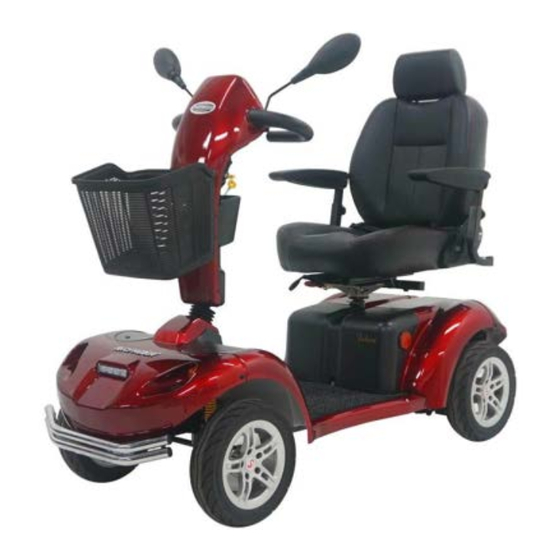

Introduction Thank you for your purchase of the Girona mobility scooter. Roma Medical Aids (RMA) are pleased to supply you with the Girona (model TE-889AE) mobility scooter which is manufactured by the ® ® trusted and reputable Shoprider brand. Both RMA and Shoprider strive to provide you with world class quality, design, reliability and service. -
Page 4: Feature Guide
Feature Guide (889AE) Tiller with handlebars Fold down/reclining backrest Mirrors Small storage compartment Detachable basket Rear indicators/hazard lights LED headlight Rear reflectors Front bumper Brake lights/taillights Front indicators Anti-tipper wheels Footwell with foot mat Tiller angle adjustment lever Pneumatic non-marking wheels Charging port Battery compartment Ignition... -
Page 5: Safety Advice
Safety Advice Every care has been taken to ensure that your mobility scooter will give you a safe, reliable service provided you adhere to the advice given below and throughout the manual. • Read this manual carefully before using your scooter. •... - Page 6 • Attempt to tow any other devices. • Exceed the stated maximum user weight limit. • Operate the scooter or turn the key on while charging. • Connect any unauthorised devices to the battery or charging point as this could cause permanent damage to the scooter and void your warranty.
-
Page 7: Adjustments
Adjustments Tiller Angle Adjustment The tiller of your scooter is uniquely designed and very versatile, allowing you to adjust it to a comfortable driving position. To decide which position best fits your needs, carefully push the black lever that is located on the right side of tiller downwards, and gently lower or raise the tiller. -
Page 8: Þ Armrest Height
Adjust the strap length by pulling on the open end of the belt. As a guide, the belt should be adjusted so that there is sufficient room for two fingers to slide between your body and the belt. Caution: Should any damage occur to the lap belt, please replace immediately. DO NOT sit in the scooter whilst in any moving vehicle. -
Page 9: Battery
Battery Battery performance can be affected by temperature, weather conditions, terrain, condition of the battery, type of battery charger, the weight of the user, etc. The battery level indicator is only a guide and is most effective when the scooter is moving, only then is the true discharge level displayed. When the scooter stops the battery level may indicate full. -
Page 10: Þ Charger
Battery Charger The battery charger is an off board 8-Amp switch mode type (AC 220/110 V / DC 24V 8A). The battery charger supplied is special to your scooter and may not be suitable for any other power mobility product. Use only the charger supplied with your scooter; other makes of chargers may permanently damage your scooter batteries and would void the warranty. -
Page 11: Operating The Scooter
Operating The Scooter Select an area with plenty of space. Mount the scooter, either by lifting the arm and sliding onto the seat or rotate the seat outwards and then rotate the seat back to face the tiller when seated. Adjust the tiller and seat to ensure that when seated in the scooter you are in a comfortable position and can easily and freely operate the controls. -
Page 12: Þ Kerb Climbing
Kerb Climbing We recommend that a suitable access point such as a drop kerb or ramp be used at all times. If mounting a kerb is necessary, only mount kerbs less than 6.5cm. When driving up the kerb, always approach the edge at an angle of 90º (as shown in the illustration on the previous page) and at a low speed. -
Page 13: Scooter Tiller Controls
Scooter Tiller Controls This screen tells you all the current information about the scooter. This shows the current temperature of the air. Temperature Gauge This shows if the scooter is in high speed mode (depicted by an ‘H’) or low speed mode (depicted by High/Low Speed Display Mode... - Page 14 This is an 8-segment display, which gives the state of charge of the battery. The ‘F’ at the top of the display indicates full whilst the ‘E’ along the side of the display Battery Gauge indicates empty. The closer the bars are to the corresponding letters indicates the fullness/emptiness of the battery.
-
Page 15: Maintenance
Maintenance The scooter has been designed to provide the user with a long, reliable life provided it is correctly maintained and regularly serviced by an authorised supplier. However, due to inevitable wear and tear and technological improvements, it is recommended by the MHRA (Medicines and Healthcare products Regulatory Agency) that the average useable life of this scooter is five years. -
Page 16: Þ Circuit Breaker
Circuit Breaker Your scooter is fitted with the latest in electronic controls that are programmed to protect the electrical system from abnormal overloads. Fitted for extra protection is a circuit breaker, which is located under the seat at the back of the footwell by the battery compartment. -
Page 17: Þ Troubleshooting Error Codes
The acceleration/reverse finger lever(s) should not be engaged/pulled forward before the ignition is switched on. This operation will be prohibited and cause an intermittent beeping noise. To correct this, turn the ignition on and off and only touch the levers after waiting a few seconds after the ignition switch is turned on. -
Page 18: Further Information
Further Information General Use Take heed of the information given in this manual regarding safety and the maintenance of your scooter. If adhered to, your scooter should give you years of reliable mobility. When the scooter has degraded to the point it is no longer suitable for safe use, please contact your supplier to dispose of the scooter. -
Page 19: Þ Driving In Pedestrian Areas
Driving In Pedestrian Areas When using the scooter on public roads and in public areas, always follow the UK Highway Code or the necessary rules in your country. Highway Code & DVLA – UK Users According to the UK Highway Code, this scooter is a Class 3 Invalid Carriage. You do not need to have a driver’s license to use this mobility scooter, but you do have to register the vehicle if the person you have purchased it from has not already done so. -
Page 20: Warnings
Warnings Read this manual fully before operating the scooter. Suitability for this product has been assessed on the user’s current state of health. It is essential that the user regularly monitors their ability to use the scooter safely. Make sure that you are physically capable of operating the scooter, and for individuals with balance problems, practice getting on the scooter with the assistance of a qualified healthcare professional. - Page 21 Do not turn sharply when travelling at full speed or shift your centre of gravity suddenly as these things can cause the scooter to become unstable. Care must be taken when reaching and stretching for objects as this may affect the stability of the scooter.
- Page 22 ® Do not use parts or accessories that are not supplied by RMA/Shoprider Take heed of the Safety Information Regarding Electromagnetic Interference (EMI) and make sure you understand what can affect your scooter. Follow the cleaning, storage and general care advice specified. Never leave the scooter unattended whilst in freewheel mode as it will roll away down an incline.
-
Page 23: Warranty Terms & Conditions
Warranty Terms & Conditions Please ensure that your purchase is registered, either by returning the warranty card enclosed in your product box to RMA or going to the RMA website and completing the online product registration section. This is to certify that your RMA product is warranted for a period of 12 months from the date of original purchase. -
Page 24: Notes
Notes Distributer: oma Medical Aids Ltd Manufacturer: PIHSIANG MACHINERY MFG. CO., LTD. No. 108, Hsin-He Road, Hsin-Feng Hsiang 30472 Hsinchu County, Taiwan UK Address: York Road Bridgend Industrial Estate Bridgend CF31 3TB UK Representative (UK REP): South Wales Wellkang Ltd, 16 Castle Street, European Address: Dover, CT16 1PW...
