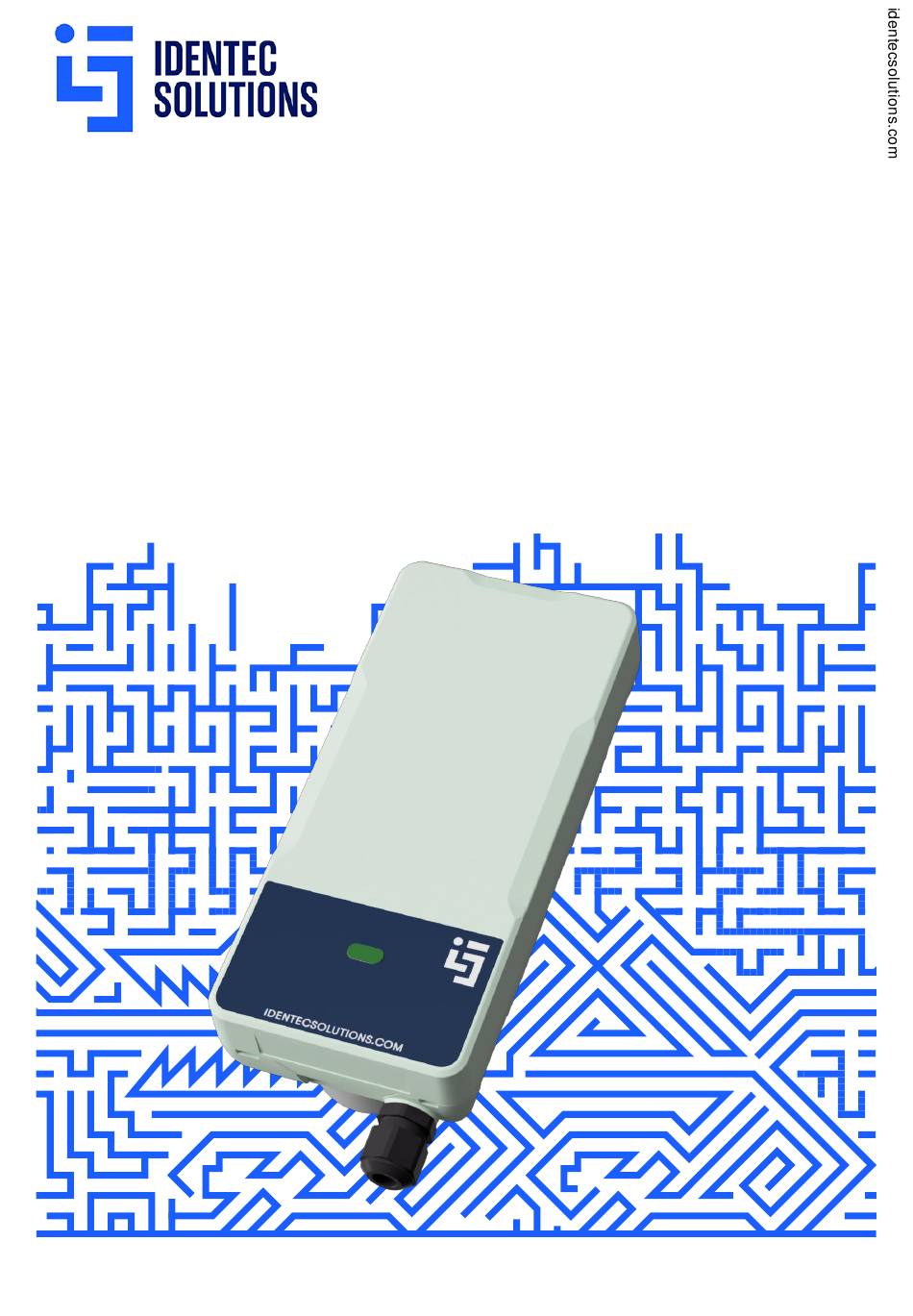

- Page 1 (IDS1009) Hardware User Manual...
-
Page 2: Table Of Contents
2.0 INTRODUCTION ........................8 2.1. Status Display (LED) ....................... 8 3.0 SYSTEM COMPONENTS ....................... 9 3.1. Readers .......................... 9 3.2. I-Q350-RNB Tag ......................10 3.2.1 UHF Interface ....................... 10 3.2.2 5G/NB-IoT Interface ..................... 10 3.2.3 GPS/GNSS Receiver ................... 10 3.2.4 Wired Interface ..................... 10 3.2.5 Tag Polarization .................... - Page 3 Deutschland GmbH; b) IDENTEC SOLUTIONS Norway AS; c) IDENTEC SOLUTIONS Inc; d) IDENTEC SOLUTIONS Australia and New Zealand PTY LTD. IDENTEC SOLUTIONS AG reserves the right to establish additional subsidiaries at its sole discretion at any time without prior notice.
- Page 4 European Declaration of Conformity according to RED Directive IDENTEC SOLUTIONS AG hereby declares that the device i-Q350-RNB is in conformity with the essential requirements of Directive 2014/53/EU. The declaration of conformity can be found at: www.identecsolutions.com...
- Page 5 These notes are not sufficient to guarantee complete protection from electrostatic discharges! We recommend the use of suitable protective equipment. IDENTEC SOLUTIONS does not accept the return of products where the regulations concerning the ESD precautions and protective packaging materials were not followed.
- Page 6 If there is a possibility that safe operations cannot be guaranteed, the system must be switched off, secured against accidental use and the service unit responsible immediately informed. Safety Documents The i-Q350-RNB was designed, tested, and supplied in perfect condition, according to document IEC/EN 60950-1 Safety Requirements. Condensate / Change of Temperature To avoid condensation in the system, the unit must be allowed to slowly adjust itself to warmer temperatures after removal from cold and cool environments.
-
Page 7: Preface
This installation manual must be read carefully prior to starting the installation. The described installation works assuming that installation materials like cables, antennas and any mechanical parts are available. This document is the hardware description of the i-Q350-RNB. This document is intended only for mechanical and electrical installation of these units. -
Page 8: Introduction
iQ350 RNB | Hardware User Manual | 05/12/2023 Introduction The iQ350-RNB tag uses robust and industry-proven wireless technology, together with a NBIoT & LTE CAT M1 interface and a GPS interface, to deliver true asset tracking and management for exceptional visibility of your goods. The robust housing can be easily mounted stand-alone on moving assets or used in a ports environment, where it can be attached to a reefer unit to monitor refrigerated units. -
Page 9: System Components
Readers Identec offers a range of readers and markers that can be used together with the i-Q350-RNB tag in the system. The tags provide long range communication with the readers/Markers of up to 500 m (1640 ft), using advanced UHF radio frequency technology. -
Page 10: I-Q350-Rnb Tag
500 meters (1,640 feet) from a fixed reader. Also, LED supports visual signals during search, locate and alarms. The i-Q350-RNB tag operates in the 850 – 928 MHz UHF band. 3.2.2 5G/NB-IoT Interface •... -
Page 11: Tag Polarization
iQ350 RNB | Hardware User Manual | 05/12/2023 3.2.5 Tag Polarization Vertically Polarised Horizontally Polarised Polarization is dependent on orientation and is rotation symmetrical. -
Page 12: Mechanical Information And Installation
iQ350 RNB | Hardware User Manual | 05/12/2023 Mechanical Information and Installation 4.1. Dimensions 4.2. Tag Mounting The Tag can be mounted using the magnets available on the back side of the unit:... - Page 13 iQ350 RNB | Hardware User Manual | 05/12/2023 The tag can be easily removed by grabbing it from the side and tilting to one side: DO NOT pull the cable. Slightly pull it off the wall and the magnetic holding force is removed at once.
- Page 14 iQ350 RNB | Hardware User Manual | 05/12/2023 WALL / FIXING SURFACE...
-
Page 15: Troubleshooting And Maintainance
Parts or main components returned for repair or exchange must be handled with great care. All returns should include an error description and a short application overview and be sent to the local distributor or to: IDENTEC SOLUTIONS AG Millennium Park 2... -
Page 16: Technical Specifications
iQ350 RNB | Hardware User Manual | 05/12/2023 Technical Specifications Communication Technology Operation Mode 350 Broadcast and Response Communication Read Range Up to 300m (1000 ft) Compatibility i-PORT, iPOINT Operating Frequency UHF ISM Band (868 MHz - EU or 920 MHz - NA) Antenna Integrated Antenna Transmit Power... - Page 17 RNB | Hardware User Manual | 05/12/2023 Weight 160 g (5.6 Oz) - 1m (3.28ft) cable Ordering Information i-Q350-RNB (IDS1009) 456240 The communication range depends on the antenna type, the antenna cable runs and the environmental conditions. Other country frequencies are available, please contact IDENTEC SOLUTIONS...
