Related Manuals for S&T Kontron 3.5"-SBC-VR1000
Summary of Contents for S&T Kontron 3.5"-SBC-VR1000

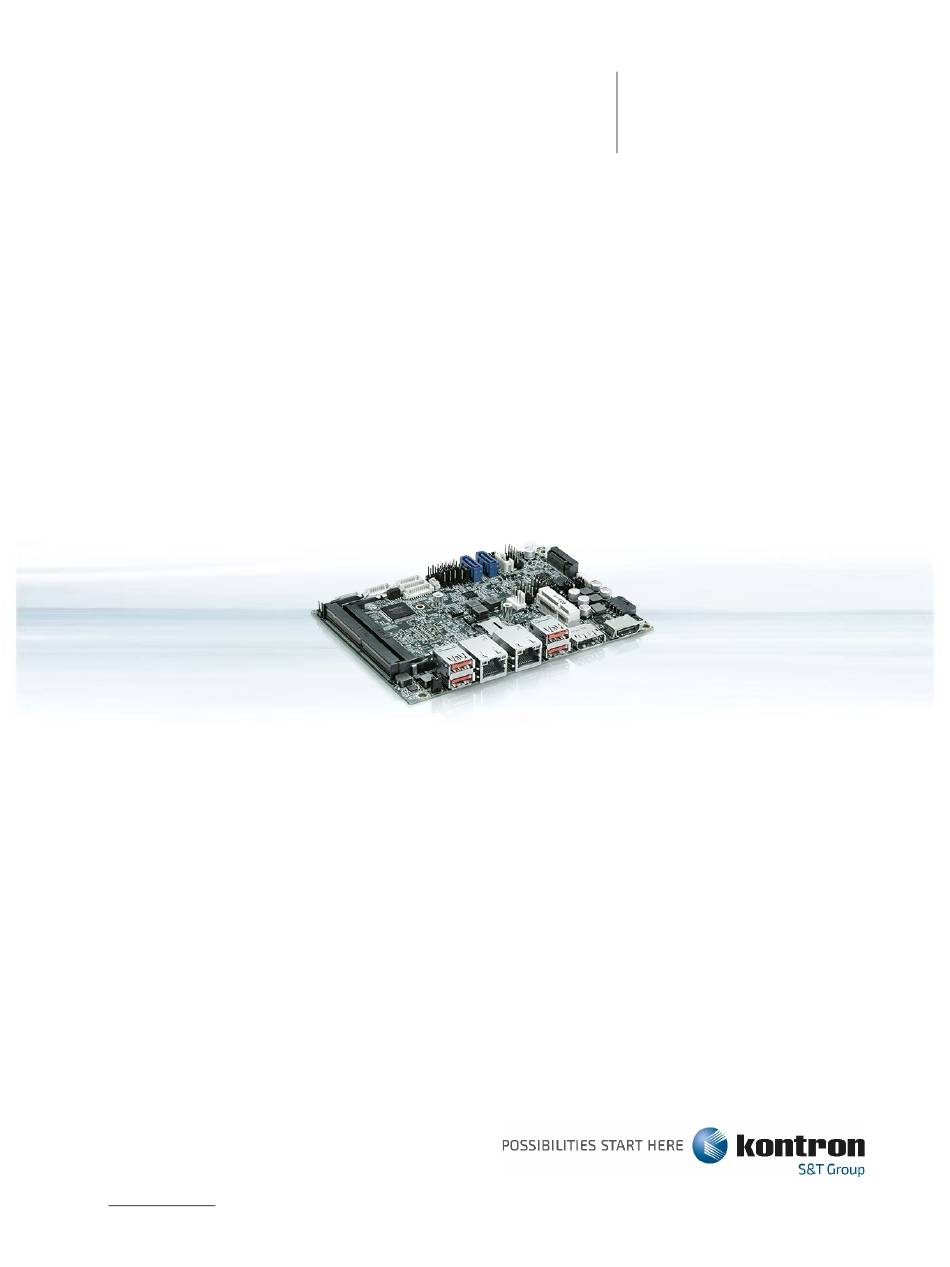

- Page 1 USER GUIDE 3.5"-SBC-VR1000 Doc. User Guide, Rev. 1.7 Doc. ID: [To be Determined] www.kontron.com...
- Page 2 3.5"-SBC-VR1000 - User Guide, Rev. 1.7 This page has been intentionally left blank www.kontron.com // 2...
- Page 3 3.5"-SBC-VR1000 - User Guide, Rev. 1.7 3.5"-SBC-VR1000 - USER GUIDE Disclaimer Kontron would like to point out that the information contained in this user guide may be subject to alteration, particularly as a result of the constant upgrading of Kontron products. This document does not entail any guarantee on the part of Kontron with respect to technical processes described in the user guide or any product characteristics set out in the user guide.
- Page 4 3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Intended Use THIS DEVICE AND ASSOCIATED SOFTWARE ARE NOT DESIGNED, MANUFACTURED OR INTENDED FOR USE OR RESALE FOR THE OPERATION OF NUCLEAR FACILITIES, THE NAVIGATION, CONTROL OR COMMUNICATION SYSTEMS FOR AIRCRAFT OR OTHER TRANSPORTATION, AIR TRAFFIC CONTROL, LIFE SUPPORT OR LIFE SUSTAINING APPLICATIONS, WEAPONS SYSTEMS, OR ANY OTHER APPLICATION IN A HAZARDOUS ENVIRONMENT, OR REQUIRING FAIL-SAFE PERFORMANCE, OR IN WHICH THE FAILURE OF PRODUCTS COULD LEAD DIRECTLY TO DEATH, PERSONAL INJURY, OR SEVERE PHYSICAL OR...
- Page 5 3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Revision History Revision Brief Description of Changes Date of Issue Author/ Editor Initial Issue 2020-Apr-17 Add mating connector info 2020-Oct-28 Modify USB 3.1 to USB 3.2 Gen 2 per new naming 2021-Sep-13 Add max. current value 2021-Dec-06 Update audio codec 2022-Feb-25...
-
Page 6: Symbols
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Symbols The following symbols may be used in this user guide DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. -
Page 7: For Your Safety
3.5"-SBC-VR1000 - - User Guide, Rev. 1.7 For Your Safety Your new Kontron product was developed and tested carefully to provide all features necessary to ensure its compliance with electrical safety requirements. It was also designed for a long fault-free life. However, the life expectancy of your product can be drastically reduced by improper treatment during unpacking and installation. -
Page 8: Lithium Battery Precautions
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Lithium Battery Precautions If your product is equipped with a lithium battery, take the following precautions when replacing the battery. Danger of explosion if the battery is replaced incorrectly. Replace only with same or equivalent battery type recommended by the manufacturer. ... -
Page 9: Table Of Contents
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Table of Contents Symbols .......................................... 6 For Your Safety ......................................7 High Voltage Safety Instructions ..................................7 Special Handling and Unpacking Instruction ..............................7 Lithium Battery Precautions ....................................8 General Instructions on Usage ................................8 Quality and Environmental Management ............................ -
Page 10: List Of Tables
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 7.7. Audio Input / Output Pin Header (CN14) ............................... 40 7.8. Front Panel Pin Header (FP1 & FP2) ................................ 41 7.9. Serial COM1, COM2, COM3 & COM4 Ports (CN12, CN17, CN21 & CN22) ..................43 7.10. -
Page 11: List Of Figures
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Table 18: Pin Assignment CN7 ..................................33 Table 19: Pin Assignment BAT1 ..................................34 Table 20: Pin Assignment FAN1 ..................................35 Table 21: Pin Assignment SATA1, SATA2 ............................... 36 Table 22: Pin Assignment CN15 ..................................37 Table 23: Pin Assignment CN9, CN10 ................................ - Page 12 3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Figure 23: LVDS Connector LVDS1 ................................... 45 Figure 24: Backlight Power Output Wafer CN8 ............................47 Figure 25: Digital Input / Output Wafer CN20 ............................48 Figure 26: mPCIe Socket MPCIE1 ..................................49 Figure 27: M.2 Key M Socket M2M2 ................................. 51 Figure 28: Micro SIM Card Holder SIM1 .................................
-
Page 13: 1/ Introduction
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 1/ Introduction This user guide describes the 3.5"-SBC-VR1000 board made by Kontron. This board will also be denoted 3.5"-SBC- VR1000 within this user guide. Use of this user guide implies a basic knowledge of PC-AT hardware and software. This user guide focuses on describing the 3.5"-SBC-VR1000 board's special features and is not intended to be a standard PC-AT textbook. -
Page 14: 2/ Installation Procedures
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 2/ Installation Procedures 2.1. Installing the Board ESD Sensitive Device! Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. Wear ESD-protective clothing and shoes Wear an ESD-preventive wrist strap attached to a good earth ground ... -
Page 15: Chassis Safety Standards
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 2.2. Chassis Safety Standards Before installing the 3.5"-SBC-VR1000 in the chassis, users must evaluate the end product to ensure compliance with the requirements of the IEC60950-1 safety standard: The board must be installed in a suitable mechanical, electrical and fire enclosure. ... -
Page 16: 3/ System Specifications
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 3/ System Specifications 3.1. System Block Diagram Figure 1: System Block Diagram 3.5"-SBC-VR1000 www.kontron.com // 16... -
Page 17: Component Main Data
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 3.2. Component Main Data The table below summarizes the features of the 3.5"-SBC-VR1000 single board computer. Table 1: Component Main Data System Processor AMD Ryzen™ V1000 Series Processors AMD Ryzen™ R1000 Series Processors Memory ... -
Page 18: Environmental Conditions
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 System Front Panel Header 1x Header Reset Button, HDD LED & External Speaker 1x Header for Power Button, Power LED & SM bus 1x Header for mPCIe activity LED 1x Header for M.2 Key M activity LED Cooling ... - Page 19 3.5"-SBC-VR1000 - User Guide, Rev. 1.7 ICES-003: 2016 Issue 6 ANSI C63.4: 2014 www.kontron.com // 19...
-
Page 20: Processor Support
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 3.5. Processor Support The 3.5"-SBC-VR1000 is designed to support AMD Ryzen™ V1000 / R1000 Series Processors. The BGA CPU is remounted from factory. Kontron has defined the board versions as listed in the following table, so far all based on Embedded CPUs. -
Page 21: On-Board Graphics Subsystem
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 SO-DIMM Type Module Name Memory Data Processor Resulting Peak Transfer Transfer (MT/s) System Bus Memory Clock Rate (MB/s) Frequency Frequency (MHz) (MHz) DDR4 2400 PC4-19200 2400 1200 19200 Memory modules have in general a much lower longevity than embedded motherboards, and therefore EOL of modules can be expected several times during lifetime of the motherboard. -
Page 22: Table 8: Power Consumption Test Result
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Phison ESMP256GTB3C2-E12 M.2 PCIe 256 GByte SSD Windows 10 Enterprise LTSC 1809 (17763.107) Table 8: Power Consumption Test Result State Maximum Current Draw Boot Into Idle 1.55 A Full Loading 3.83 A Into S3 Mode 43 mA Into S4 Mode... -
Page 23: 4/ Connector Locations
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 4/ Connector Locations 4.1. Top Side Figure 2: Top Side 19 30 32 12 Table 9: Jumper List Item Designation Description See Chapter EEPROM WP Selection 7.17.1 Backlight Enable Selection 7.17.2 Panel & Backlight Power Selection 7.17.3 AT / ATX Power Mode Selection 7.17.4... -
Page 24: Table 10: Top Side Internal Connector Pin Assignment
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Table 10: Top Side Internal Connector Pin Assignment Item Designation Description See Chapter BAT1 CR2032 Battery Power Input Wafer 7.1.2 DC 12 V Power Input Wafer 7.1.1 Backlight Power Output Wafer 7.11 USB 2.0 Port DN 3, 4 Pin Header CN10 USB 2.0 Port DN 1, 2 Pin Header CN12... -
Page 25: Rear Side
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 4.2. Rear Side Figure 3: Rear Side Table 11: Rear Side Internal Connector Pin Assignment Item Designation Description See Chapter LVDS1 18/24-bit, 2-channel LVDS Panel Connector 7.10 www.kontron.com // 25... -
Page 26: Connector Panel Side
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 4.3. Connector Panel Side Figure 4: Connector Panel Side Table 12: Connector Panel Side Connector List Item Designation Description See Chapter HDMI 2.0 Connector DP Connector USB 3.2 Gen 2 Port 1, 2 Type A Connector (V1000 Model) USB 2.0 Port 1, 2 Type A Connector (R1000 Model) USB 3.2 Gen 2 Port 3, 4 Type A Connector GbE LAN1 RJ45 Connector... -
Page 27: 5/ Connector Definitions
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 5/ Connector Definitions The following defined terms are used within this user guide to give more information concerning the pin assignment and to describe the connector's signals. Defined Term Description Shows the pin numbers in the connector Signal The abbreviated name of the signal at the current pin The notation "XX#"... -
Page 28: 6/ I/O-Area Connectors
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 6/ I/O-Area Connectors 6.1. HDMI Connector (CN1) The HDMI connector is based on standard HDMI type A and compliant with HDMI 2.0. Figure 5: HDMI Connector CN1 Table 13: Pin Assignment HDMI Connector CN1 Signal Description Note... -
Page 29: Dp Connector (Cn2)
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 6.2. DP Connector (CN2) The DP (DisplayPort) connectors are based on standard DP female port. Figure 6: DP Connector CN2 Table 14: Pin Assignment DP Connector CN2 Signal Description Note TX0+ DisplayPort Lane 0 transmitter differential pair (+) Ground TX0- DisplayPort Lane 0 transmitter differential pair (-) -
Page 30: Ethernet Connectors (Cn5 & Cn6)
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 6.3. Ethernet Connectors (CN5 & CN6) The 3.5"-SBC-VR1000 supports two channels of 10/100/1000 Mbit Ethernet, which are based Intel® I210-AT and Intel® I211-AT controller respectively. In order to achieve the specified performance of the Ethernet port, Category 5 twisted pair cables must be used with 10/100 MByte and Category 5E, 6 or 6E with 1 Gbit LAN networks. -
Page 31: Usb Connectors (I/O Area)
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 6.4. USB Connectors (I/O Area) The external I/O connector panel supports two dual USB 3.2 Gen 2 connectors for models with AMD Ryzen™ V1000 Series processors; and one dual USB 3.2 Gen 2 connector and one dual USB 2.0 connector for models with AMD Ryzen™... -
Page 32: Figure 10: Usb 2.0 High Speed Cable
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 * The power source of +USB_VCC can be selected by JP6. For HiSpeed rates it is required to use a USB cable, which is specified in USB 2.0 standard: Figure 10: USB 2.0 High Speed Cable Polyviny Chloride (PVC) Jacket On-Twisted Power Pair: Red: V Black: Power Ground... -
Page 33: 7/ Internal Connectors
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 7/ Internal Connectors 7.1. Power Connector Power connector must be used to supply the board with +12 VDC (±5 %). Hot plugging any of the power connector is not allowed. Hot plugging might damage the board. In other words, turn off main supply etc. to make sure all the power lines are turned off when connecting to the motherboard. -
Page 34: Cr2032 Battery Power Input Wafer (Bat1)
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 7.1.2. CR2032 Battery Power Input Wafer (BAT1) The 1x2-pin 1.25 mm pitch CR2032 battery power input wafer is intended to be connected to the battery. The battery provides power to the system clock to retain the time when power is turn off. Figure 13: CR2032 Battery Power Input Wafer BAT1 Table 19: Pin Assignment BAT1 Signal... -
Page 35: Fan Wafer (Fan1)
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 7.2. Fan Wafer (FAN1) The 1x4-pin 2.54 mm pitch CPU fan wafer (FAN1) is used for the connection of the fan for the processor. Figure 14: Fan Wafer FAN1 Table 20: Pin Assignment FAN1 Signal Description Note... -
Page 36: Sata (Serial Ata) Port 0 & 1 Connector (Sata1 & Sata2)
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 7.3. SATA (Serial ATA) Port 0 & 1 Connector (SATA1 & SATA2) The SATA connectors supply the data connection for the SATA hard disks and are SATA 3.0 compatible. Figure 15: SATA Port 0, 1 Connector SATA1, SATA2 Table 21: Pin Assignment SATA1, SATA2 Signal Description... -
Page 37: Hdd / Ssd Power Output Wafer (Cn15)
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 7.4. HDD / SSD Power Output Wafer (CN15) The 1x4-pin 2.0 mm pitch HDD / SSD power output wafer provides power to the SATA hard disk. Figure 16: HDD / SSD Power Output Wafer CN15 Table 22: Pin Assignment CN15 Signal Description... -
Page 38: Usb Connectors (Internal) (Cn9 & Cn10)
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 7.5. USB Connectors (Internal) (CN9 & CN10) The 10-pin 2.54 mm pitch USB port pin header CN9 & CN10 supports two USB 2.0 ports each. Figure 17: USB 2.0 Port 3, 4 Pin Header CN9, Port 1, 2 Pin Header CN10 Table 23: Pin Assignment CN9, CN10 Signal Description... -
Page 39: Audio Amp Output Wafer (Cn13 & Cn23)
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 7.6. Audio AMP Output Wafer (CN13 & CN23) The 3 W Speaker audio-out interface is available through the 2-pin 2.0 mm pitch wafers CN13 and CN23. These outputs are shared with the audio output (Line-out) signals of the audio pin header CN14. Figure 18: Audio AMP Output Wafer CN13 (Right Channel), CN23 (Left Channel) Table 24: Pin Assignment CN13, CN23 Signal... -
Page 40: Audio Input / Output Pin Header (Cn14)
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 7.7. Audio Input / Output Pin Header (CN14) The audio input / output pin header provides audio output (Line-Out), audio input (Line-In) and microphone (Mic-In) signals through the 12-pin 2.54 mm pitch wafer CN14. The audio output signals are shared with those of the speaker connectors CN13 &... -
Page 41: Front Panel Pin Header (Fp1 & Fp2)
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 7.8. Front Panel Pin Header (FP1 & FP2) The 8-pin 2.54 mm pitch front panel pin header FP1 supplies signals for the reset button, storage LED and system warning speaker. The 10-pin 2.54 mm pitch front panel pin header FP2 supplies signals for the power button, power LED, and SM Bus. Figure 20: Front Panel 1 Pin Header FP1 RSTBTN SPKR... - Page 42 3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Signal Description Note system power, and blinks when the system is in sleep mode. Power Button + System power button (+). Pressing the power button turns the system on or puts the system in sleep or soft-off mode depending on the operating system settings.
-
Page 43: Serial Com1, Com2, Com3 & Com4 Ports (Cn12, Cn17, Cn21 & Cn22)
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 7.9. Serial COM1, COM2, COM3 & COM4 Ports (CN12, CN17, CN21 & CN22) The 10-pin 1.25 mm pitch serial COM wafer CN12 and CN17 provide RS232/422/485 connections. The 10-pin 1.25 mm pitch serial COM wafer CN21 and CN22 provide RS232 connections. Figure 22: Serial COM CN12, CN17, CN21, CN22 Table 28: Pin Assignment CN12, CN17 RS232 Signal... -
Page 44: Table 30: Signal Description
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 RS232 Signal Note Connector Type B2W, 1x10-pin, 1.25 mm pitch Mating Connector Vendor PINREX Housing Model No. 712-75-10W001 Terminal Model No. 712-70-T00001 Table 30: Signal Description Signal Description Transmitted Data, sends data to the communications link. The signal is set to the marking state (-12 V) on hardware reset when the transmitter is empty or when loop mode operation is initiated. -
Page 45: Lvds Panel Connector (Lvds1)
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 7.10. LVDS Panel Connector (LVDS1) The 30-pole 1.0 mm pitch JAE connector provides 18/24-bit, 2-channel LVDS panel connection. Figure 23: LVDS Connector LVDS1 Table 31: Pin Assignment LVDS1 Signal Description Note LVDS_A0- LVDS Channel A Data 0 differential pair (-) LVDS_A0+ LVDS Channel A Data 0 differential pair (+) LVDS_A1-... - Page 46 3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Signal Description Note LVDS_B3- / NC LVDS Channel B Data 3 differential pair (-) LVDS_B3+ / NC LVDS Channel B Data 3 differential pair (+) Ground DDC_DATA DDC channel Data VDDEN Output Display Enable DDC_CLK DDC Channel Clock +3.3V / +5V *...
-
Page 47: Backlight Power Output Wafer (Cn8)
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 7.11. Backlight Power Output Wafer (CN8) The 7-pin 1.25 mm pitch wafer CN8 provides power supply for flat panel and its backlight inverter. Figure 24: Backlight Power Output Wafer CN8 Table 32: Pin Assignment CN8 Signal Description Note... -
Page 48: Digital Input / Output Header (Cn20)
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 7.12. Digital Input / Output Header (CN20) The 10-pin 1.25 mm pitch header CN20 supports 8-bit digital input / output signals to provide powering-on function of the connected devices. Figure 25: Digital Input / Output Wafer CN20 Table 33: Pin Assignment CN20 Signal Description... -
Page 49: Mpcie Socket (Mpcie1)
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 7.13. mPCIe Socket (MPCIE1) Half-sized Mini-PCI Express V1.2 socket (MPCIE1). Socket MPCIE1 supports PCIe x1, USB 2.0 and SIM-card socket. The SIM-card socket makes it possible to use a WWAN wireless modem in this mPCIe slot. The USB does support WAKE function. - Page 50 3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Signal Description Note PERp0 PCIe Lane 0 receiver differential pair (+) Ground Ground +1.5V +1.5 V power supply Ground SMB_CLK System management bus clock PETn0 PCIe Lane 0 transmitter differential pair (-) SMB_DATA System management bus data PETp0 PCIe Lane 0 transmitter differential pair (+) Ground...
-
Page 51: Key M Socket (M2M2)
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 7.14. M.2 Key M Socket (M2M2) The 3.5"-SBC-VR1000 supports M.2 modules in format 2280 with Key M. The M.2 specification supports PCIe x4 signals. The slot can be used to integrate an M.2 PCIe x4 SSD (NVMe) to the mainboard. Figure 27: M.2 Key M Socket M2M2 Table 35: Pin Assignment M2M2 Signal... - Page 52 3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Signal Description Note Ground No connection M2M_RXN1 PCIe Lane 1 receiver pair (-) No connection M2M_RXP1 PCIe Lane 1 receiver pair (+) No connection Ground No connection M2M_TXN1 PCIe Lane 1 transmitter pair (-) No connection M2M_TXP1 PCIe Lane 1 transmitter pair (+)
- Page 53 3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Signal Description Note PEDET PCIe detect +3.3V 3.3 V power supply Ground +3.3V 3.3 V power supply Ground +3.3V 3.3 V power supply Ground www.kontron.com // 53...
-
Page 54: Micro Sim Card Holder (Sim1)
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 7.15. Micro SIM Card Holder (SIM1) The Micro SIM card holder SIM1 is intended to accommodate an Micro SIM card and connected to UIM signals on the mPCIe socket. Figure 28: Micro SIM Card Holder SIM1 Table 36: Pin Assignment SIM1 Signal Description... -
Page 55: Key M / Mpcie Activity Led Pin Header (Cn18 & Cn19)
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 7.16. M.2 Key M / mPCIe Activity LED Pin Header (CN18 & CN19) The header CN18 is intended to connect M.2 Key M activity LED cable. The pin header CN19 is intended to connect mPCIe activity LED cable. Figure 29: M.2 Key M / mPCIe Activity LED Pin Header CN18, CN19 Table 37: Pin Assignment CN18, CN19 Signal... -
Page 56: Switches And Jumpers
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 7.17. Switches and Jumpers The product has several jumpers which must be properly configured to ensure correct operation. Figure 30: Jumper Connector For a three-pin jumper (see Figure 29), the jumper setting is designated ‘‘1-2’’ when the jumper connects pins 1 and 2. The jumper setting is designated ‘‘2-3’’... -
Page 57: Backlight Enable Selection (Jp2)
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 7.17.2. Backlight Enable Selection (JP2) The 2.0 mm patch "Backlight Enable Selection" jumper (JP2) can be used to select voltage level of backlight enable signal. Figure 32: Backlight Enable Selection JP2 Table 39: Pin Assignment JP2 Jumper 1 Position Description Pin 1-3... -
Page 58: Panel & Backlight Power Selection (Jp3)
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 7.17.3. Panel & Backlight Power Selection (JP3) The 2.0 mm pitch "Panel & Backlight Power Selection" jumper (JP3) can be used to select LVDS panel and backlight power voltage. Figure 33: Panel & Backlight Power Selection JP3 Table 40: Pin Assignment JP3 Jumper 1 Position Description... -
Page 59: Usb Power Selection (Jp6)
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 7.17.5. USB Power Selection (JP6) The 2.54 mm pitch "USB Power Selection" jumper (JP6) can be used to determine whether the USB ports are powered in the S4 / S5 state. Figure 35: USB Power Selection JP6 Table 42: Pin Assignment JP6 Jumper 1 Position Description... -
Page 60: Backlight Adjustment Selection (Jp9)
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 7.17.7. Backlight Adjustment Selection (JP9) The 2.0 mm pitch "Backlight Adjustment Selection" jumper (JP9) can be used to select by which mode the brightness level in the LCD panel is adjusted. Figure 37: Backlight Control Selection JP9 Table 44: Pin Assignment JP9 Jumper 1 Position Description... -
Page 61: 8/ Bios
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 8/ BIOS 8.1. Starting the uEFI BIOS The 3.5"-SBC-VR1000 is provided with a Kontron-customized, pre-installed and configured version of AMI Aptio® V uEFI BIOS. AMI BIOS firmware is based on the Unified Extensible Firmware Interface (UEFI) specification and the Intel® Platform Innovation Framework for EFI. -
Page 62: Starting The Uefi Bios
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 8.2. Starting the uEFI BIOS The Setup utility features shows six menus in the selection bar at the top of the screen: Main Advanced Power Boot Security Save & Exit The Setup menus are selected via the left and right arrow keys. -
Page 63: Figure 39: Bios Main Menu
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Figure 39: BIOS Main Menu BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Product Information Product Name 3.5-SBC-VR1000 BIOS Version VR1KEX.004 (x64) BIOS Build Date 02/14/2020 CPU Information AMD Ryzen Embedded R1606G with Radeon Vega Gfx 2600 Mhz, 2 Core(s), 4 Logical Processor(s) Processor ID 810F81h... -
Page 64: Figure 40: Bios Main Menu - Amd Firmware Version
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Figure 40: BIOS Main Menu - AMD Firmware Version BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit AMD Firmware Version AGESA Version EmbeddedPI-FP5_1.2.0.2RC2 PSP BootLoader Version 0.8.0.74 PSP SecureOS Version 0.8.0.74 ABL Version 19071700 APCB Version... -
Page 65: Advanced Setup Menu
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 8.2.2. Advanced Setup Menu The Advanced setup menu provides sub-screens and functions for advanced configurations. The following sub- screen functions are included in the menu: LAN Configuration Display Configuration CPU Chipset Configuration ... -
Page 66: Figure 41: Bios Advanced Menu
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Figure 41: BIOS Advanced Menu BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Onboard LAN1 Controller [Enabled] Onboard LAN2 Controller [Enabled] Load Intel I211/I210 UNDI [Disabled] LAN Boot I210-AT [Disabled] LAN Boot I211-AT [Disabled] >... -
Page 67: Figure 42: Bios Advanced Menu - Display Configuration
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Figure 42: BIOS Advanced Menu - Display Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Display Configuration Integrated Graphics Controller [Enabled) UMA Frame Buffer Size* [512M] → ←: Select Screen ↑... - Page 68 3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Feature Option Description LVDS Backlight [0.0 V], [0.5 V], [1.0 V], Min: 0.0 V Control - Voltage [1.5 V], [2.0 V], [2.5 V], Max: 5.0 V [3.0 V], [3.5 V], [4.0 V], [4.5 V], [5.0 V] www.kontron.com // 68...
-
Page 69: Figure 43: Bios Advanced Menu - Cpu Chipset Configuration
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Figure 43: BIOS Advanced Menu - CPU Chipset Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit CPU Chipset Configuration SVM Mode [Enabled] → ←: Select Screen NX Mode [Enabled] ↑ ↓: Select Item IOMMU [Enabled] Enter: Select... -
Page 70: Figure 44: Bios Advanced Menu - Nvme Configuration
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Figure 44: BIOS Advanced Menu - NVMe Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit NVMe Configuration No NVMe Device Found → ←: Select Screen ↑ ↓: Select Item Enter: Select +/-: Change Opt. -
Page 71: Figure 45: Bios Advanced Menu - Sata Configuration
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Figure 45: BIOS Advanced Menu - SATA Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit SATA Configuration SATA Controller [Enabled] → ←: Select Screen ↑ ↓: Select Item SATA1* Not Present Enter: Select SATA2* Not Present... -
Page 72: Figure 46: Bios Advanced Menu - Usb Configuration
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Figure 46: BIOS Advanced Menu - USB Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit USB Configuration USB Devices: → ←: Select Screen 1 Keyboard, 1 Hub ↑ ↓: Select Item Enter: Select Legacy USB Support [Enabled]... -
Page 73: Figure 47: Bios Advanced Menu - Trusted Computing
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Figure 47: BIOS Advanced Menu - Trusted Computing BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Configuration Security Device Support [Disabled] No Security Device Found → ←: Select Screen ↑ ↓: Select Item Enter: Select +/-: Change Opt. -
Page 74: Figure 48: Bios Advanced Menu - Dio Configuration
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Figure 48: BIOS Advanced Menu - DIO Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit DIO Configuration User Configuration [Disabled] DIO_0* [Output High] DIO_1* [Output High] DIO_2* [Output High] DIO_3* [Output High] DIO_4* [Output High]... -
Page 75: Figure 49: Bios Advanced Menu - Super Io Configuration
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Figure 49: BIOS Advanced Menu - Super IO Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Super IO Configuration Serial Port UART Protection [No Protection] → ←: Select Screen > Serial Port 1 Configuration ↑... -
Page 76: Figure 50: Bios Advanced Menu - Super Io Configuration - Serial Port 1 Configuration
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Figure 50: BIOS Advanced Menu - Super IO Configuration - Serial Port 1 Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Super Port 1 Configuration Serial Port [Enabled] → ←: Select Screen Device Settings IO=3F8h;... -
Page 77: Figure 51: Bios Advanced Menu - Super Io Configuration - Serial Port 2 Configuration
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Figure 51: BIOS Advanced Menu - Super IO Configuration - Serial Port 2 Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Super Port 2 Configuration Serial Port [Enabled] → ←: Select Screen Device Settings IO=2F8h;... -
Page 78: Figure 52: Bios Advanced Menu - Super Io Configuration - Serial Port 3 Configuration
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Figure 52: BIOS Advanced Menu - Super IO Configuration - Serial Port 3 Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Super Port 3 Configuration Serial Port [Enabled] → ←: Select Screen Device Settings* IO=3E8h;... -
Page 79: Figure 53: Bios Advanced Menu - Super Io Configuration - Serial Port 4 Configuration
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Figure 53: BIOS Advanced Menu - Super IO Configuration - Serial Port 4 Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Super Port 4 Configuration Serial Port [Enabled] → ←: Select Screen Device Settings* IO=2E8h;... -
Page 80: Figure 54: Bios Advanced Menu - H/W Monitor
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Figure 54: BIOS Advanced Menu - H/W Monitor BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit PC Health Status > Smart FAN Configuration CPU Temperature - TSI : +53 C CPU Temperature - Thermistor : +40 C System Temperature : +37 C... -
Page 81: Figure 55: Bios Advanced Menu - H/W Monitor - Smart Fan Configuration
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Figure 55: BIOS Advanced Menu - H/W Monitor - Smart FAN Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Smart FAN Configuration CPU FAN Setting [Manual] Manual Duty* → ←: Select Screen 1st Boundary Temperature** ↑... -
Page 82: Figure 56: Bios Advanced Menu - Tls Auth Configuration
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Figure 56: BIOS Advanced Menu - Tls Auth Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit > Server CA Configuration > Client Cert Configuration → ←: Select Screen ↑ ↓: Select Item Enter: Select +/-: Change Opt. -
Page 83: Figure 58: Bios Advanced Menu - Tls Auth Configuration - Server Ca Configuration - Enroll Cert
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Figure 58: BIOS Advanced Menu - Tls Auth Configuration - Server CA Configuration - Enroll Cert BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit > Enroll Cert Cert GUID → ←: Select Screen ↑... -
Page 84: Figure 59: Bios Advanced Menu - Network Stack Configuration
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Figure 59: BIOS Advanced Menu - Network Stack Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Network Stack [Enabled] Ipv4 PXE Support* [Enabled] Ipv4 HTTP Support* [Disabled] → ←: Select Screen Ipv6 PXE Support* [Disabled] ↑... -
Page 85: Power Setup Menu
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 8.2.3. Power Setup Menu The Power setup menu provides functions and a sub-screen for power configurations. The following sub-screen function is included in the menu: WatchDog Timer Configuration Figure 60: BIOS Power Setup Menu BIOS SETUP UTILITY Main Advanced... -
Page 86: Figure 61: Bios Power Setup Menu - Watchdog Timer Configuration
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Feature Option Description Resume By RTC [Disabled], [Enabled] Select whether to enable or disable Wake Up on Alarm, to turn Alarm on your system on a special day of the month. Figure 61: BIOS Power Setup Menu - WatchDog Timer Configuration BIOS SETUP UTILITY Main Advanced... -
Page 87: Boot Setup Menu
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 8.2.4. Boot Setup Menu The boot setup menu lists the for boot device priority order, that is generated dynamically. Figure 62: BIOS Boot Setup Menu BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Boot Configuration Full Screen LOGO Display [Disabled]... -
Page 88: Security Setup Menu
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 8.2.5. Security Setup Menu The Security setup menu provides information about the passwords and functions for specifying the security settings. The passwords are case-sensitive. The 3.5"-SBC-VR1000 provides no factory-set passwords. If there is already a password installed, the system asks for this first. To clear a password, simply enter nothing and acknowledge by pressing <RETURN>. - Page 89 3.5"-SBC-VR1000 - User Guide, Rev. 1.7 8.2.5.1. Remember the password It is highly recommended to keep a record of all passwords in a safe place. Forgotten passwords results in being locked out of the system. If the system cannot be booted because the User Password or the Supervisor Password are not know, contact Kontron Support for further assistance.
-
Page 90: Save & Exit Setup Menu
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 8.2.6. Save & Exit Setup Menu The exit setup menu provides functions for handling changes made to the UEFI BIOS settings and the exiting of the setup program. Figure 64: BIOS Save & Exit Setup Menu BIOS SETUP UTILITY Main Advanced... -
Page 91: Appendix A: List Of Acronyms
3.5"-SBC-VR1000 - User Guide, Rev. 1.7 Appendix A: List of Acronyms The following table does not contain the complete acronyms used in signal names, signal type definitions or similar. A description of the signals is included in the I/O Connector and Internal connector chapters within this user guide. Table 48: List of Acronyms Two-Dimensional Real-Time Clock... -
Page 92: About Kontron
3.5"-SBC-VR1000 - - User Guide, Rev. 1.7 About Kontron Kontron, a global leader in Embedded Computing Technology (ECT), offers a combined portfolio of secure hardware, middleware and services for Internet of Things (IoT) and Industry 4.0 applications. With its standard products and tailor-made solutions based on highly reliable state-of-the-art embedded technologies, Kontron provides secure and innovative applications for a variety of industries.
