Summary of Contents for Feider FTRTPRO45-2C

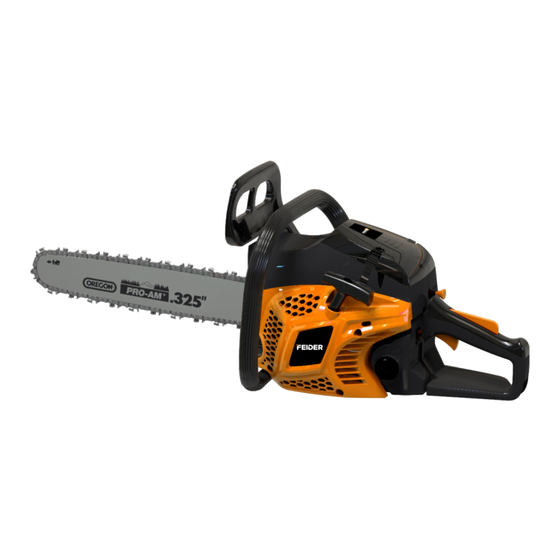

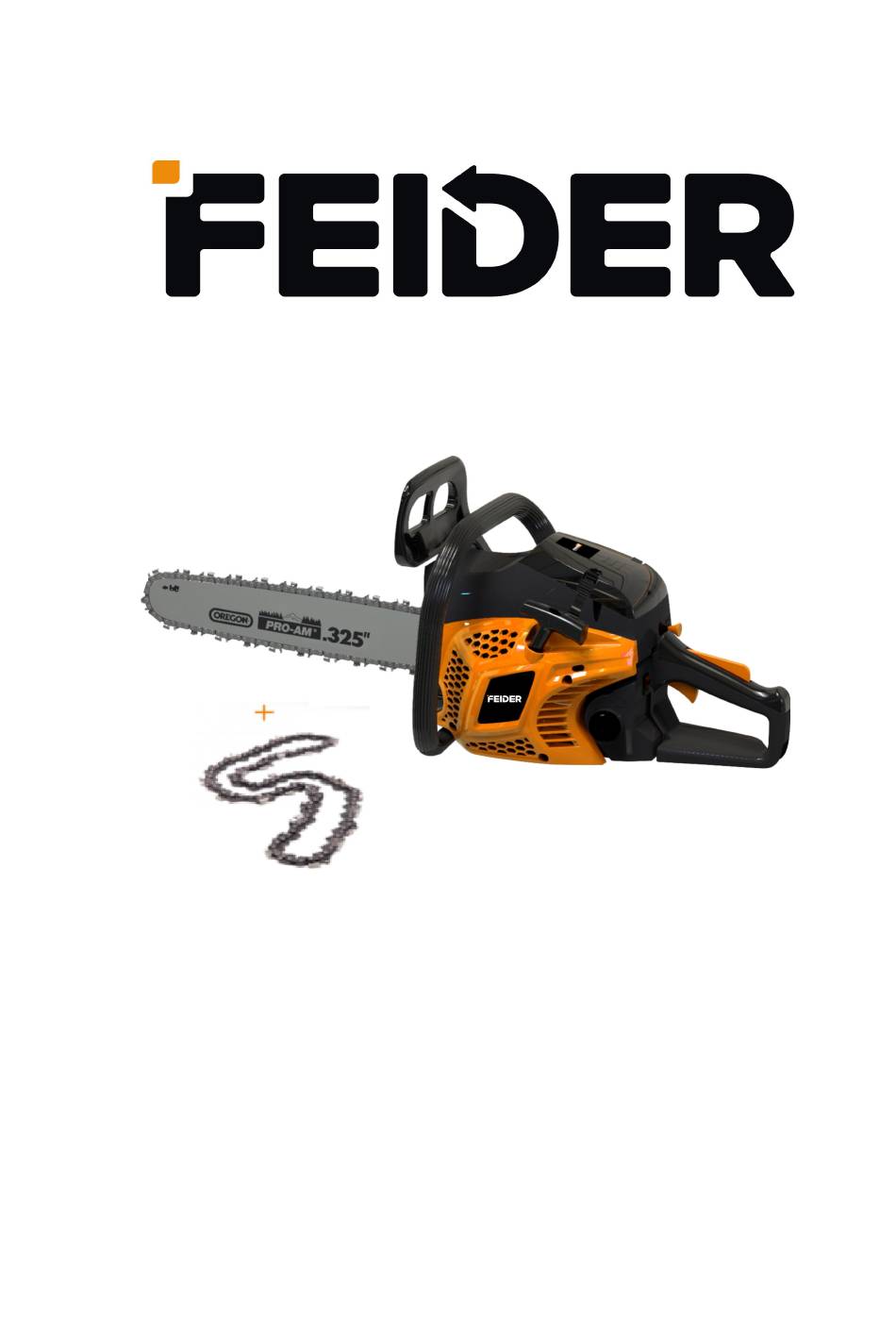

- Page 1 ORIGINAL INSTRUCTIONS >EN PETROL CHAINSAW FTRTPRO45-2C USER GUIDE CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS........................3 2. YOUR PRODUCT........................... 8 3. ASSEMBLY............................. 9 4. REFUELLING............................11 5. OPERATION............................12 6. MAINTENANCE AND STORAGE..................... 17 7. DECLARATION OF CONFORMITY....................20 8. WARRANTY............................21 9. PRODUCT FAILURE........................... 22 10. WARRANTY EXCLUSIONS......................23... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS WARNING! When using this type of garden tool, basic precautions should always be followed to reduce the risk of fire, electric shock and injury. Read all instructions carefully before attempting to use this product and retain these instructions. - Page 4 “Technical Information” section of this manual or ask your dealer for advice. The risks of slipping and skidding must be foreseen as there is a high risk of kickback. Do not lean. Keep a good balance at all times. Do not lose your balance at the end of a cut. ...
- Page 5 hand" and "left hand" positions is reversed. When cutting a branch that is under stress, pay attention to the risk of elastic return. When the tension of the wood fibers is released, the spring-loaded limb may strike the operator and / or project the chain saw out of control.
- Page 6 Store the tool where fuel vapor will not reach a flame or spark. When transporting and storing, always place the tool in its transport guard and protective device on it. Causes of rebounds and prevention by the operator ...
- Page 7 Symbols Warning symbol. Read and refer to these operating instructions. Wear safety equipment that includes protective helmet and protective goggles. Guarantee sound power level The contact of the end of the bar with any object must be avoided. Do not operate the tool with one hand. Always hold it with both hands.
-
Page 8: Your Product
2. YOUR PRODUCT a. Description 1- Chain 8- Fuel tank 15-Tool kit 2- Chain Guide 9- Starter rope 16-Air filter 3- Handle protection 10-Oil tank 17-Fastening nut 4- Main handle 11-Guide chain protection 18-Screws of fixation 5- Safety trigger 12-bracket 19-ON/OFF switch 6- Accelerator throttle 13-screws... -
Page 9: Assembly
Technical data Model FTRTPRO45-2C Type of engine RY1E44F (air cooled 2-stroke petrol engine) Fuel Tank Volume 550cm³ Oil tank volume 260cm³ Idle speed of the engine 3100±300/min Engine speed with clutch engage 4300/min Maximum power 1.8 kW Displacement 46cm³... - Page 10 5) Attach the spiked bumper and screw it in place (if not installed). 6) Reinstall the cover and screw it with the two screws. 7) Adjust the chain tension by turning the tension screw until the straps touch just the bottom side of the bar.
-
Page 11: Refuelling
While lifting the chain guide, turn the content screw to apply correct tension to the chain. Then lock the crankcase nuts. Rotate the chain with your hand to check that it is turning without excessive resistance and that it is properly tightened. Repeat the installation if the chain is not tight. -
Page 12: Operation
Note: To avoid damage and accidents, DO NOT USE OTHER MIXTURES AND OTHER TYPES OF OIL / PETROL c. Storage of fuel The fuel must be kept in a clean and safe container and always closed. If you are not using the product for a long time, remove the fuel mixture and add it to a container. Do not leave the fuel for a long time in the product. - Page 13 Hold the chainsaw firmly against the ground. Put the chainsaw: Either on the left side of your body holding the handle firmly with your left hand. Use your right hand to pull the starter rope Either on the right side of your body holding the handle firmly with your right hand. Use your left hand to pull on the starter rope.
- Page 14 3. Main settings a. Adjusting the carburetor The carburetor is preset at the factory. To avoid malfunction, it is recommended not to adjust the adjustment screws. If these screws require readjustment, have the machine serviced by your service center. Stop the tool and tighten the needle L until it stops. Do not force it. Then set it to its initial number of turns as shown below.
- Page 15 c. Release of the chain brake To use the chain saw again, the chain brake must be released. This must be done machine off and cooled. Pull the shield until it returns to its original position. Stop activated Releasing d. Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain.
- Page 16 a. Felling of trees Examine the work area and estimate where the tree will fall. Start the machine as described above. Start by making a notch in the direction of fall chosen. When the tree falls, shout or make a beep to alert people in the vicinity. When the shaft falls, you must move away from the cutting area.
-
Page 17: Maintenance And Storage
6. MAINTENANCE AND STORAGE 1. Maintenance Before any maintenance work, the machine must be switched off and completely cooled. Perform the maintenance work according to the instructions below and perform them regularly. A clean, well-maintained machine increases its standard of living and efficiency. On the contrary, a machine maintained can cause damage, accidents and render the tool inoperable in the short term. - Page 18 e. Sprocket Check the sprocket on signs of wear. If wearing is important, replace it with a new one. Do not install a chain on a worn or damaged sprocket. Do not install a worn chain on a pinion. f. Spark plug Clean the electrodes with a wire brush and set the gap to 0.6mm if necessary.
- Page 19 h. Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain. The chain can either be sharpened by a professional or by yourself by providing you with a sharpening guide (make sure you know how to use it). The chain must be sharpened when: Wood chips have become powder To perform a normal cut, force on the tool#...
-
Page 20: Declaration Of Conformity
BUILDER ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: Petrol chainsaw FTRTPRO45-2C Serial number: 20240509026-20240509325 Complies with the provisions of the Directive "machinery" 2006/42/EC and regulations National transposing it; Also complies with the following European directives: EMC Directive 2014/30/UE Emission directive (EU) 2016/1628 &... -
Page 21: Warranty
8 . WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identifed as defective by the designated distributor. -
Page 22: Product Failure
9 . PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 23: Warranty Exclusions
10. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 24 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France MADE IN PRC...
