- Page 1 ORIGINAL INSTRUCTIONS INSTRUCTION MANUAL PETROL PRUNING CHAIN SAW FELPRO25 BUILDER SAS 32, rue Aristide Bergès -ZI 31270 Cugnaux –France Warning: read the following instructions before using the machine Made in Chine - 2020...
-
Page 2: Table Of Contents
ORIGINAL INSTRUCTIONS CONTENTS SAFETY WARNINGS YOUR PRODUCT ASSEMBLY FILLING THE FUEL TANK OPERATION MAINTENANCE AND STORAGE DECLARATION OF CONFORMITY... -
Page 3: Safety Warnings
ORIGINAL INSTRUCTIONS 1. SAFETY WARNINGS WARNING! When using this type of garden tool, basic precautions should always be followed to reduce the risk of fire, electric shock and injury. Read all instructions carefully before attempting to use this product and retain these instructions. Be familiar with all the operations described in these operating instructions. - Page 4 ORIGINAL INSTRUCTIONS Before using the product and after any shock, please check it for signs of wear or damage. Please carry out repairs if necessary. Always switch off the machine: Every time you leave the device unattended; Before releasing an obstruction; Before checking, cleaning or working on the product;...
- Page 5 ORIGINAL INSTRUCTIONS During maintenance and storage Stop the tool and wait until it stops. Make sure all moving parts have come to a standstill. Allow the machine to cool before performing inspection, adjustments, maintenance, servicing and storage. Store the tool where fuel vapor will not reach a flame or spark.
- Page 6 ORIGINAL INSTRUCTIONS Symbols Warning symbol Read and refer to these operating instructions Wear safety equipment that includes protective helmet and protective goggles Value of sound emission according to European Directive 2000/14 / EC The contact of the end of the bar with any object must be avoided. Do not operate the tool with one hand.
-
Page 7: Your Product

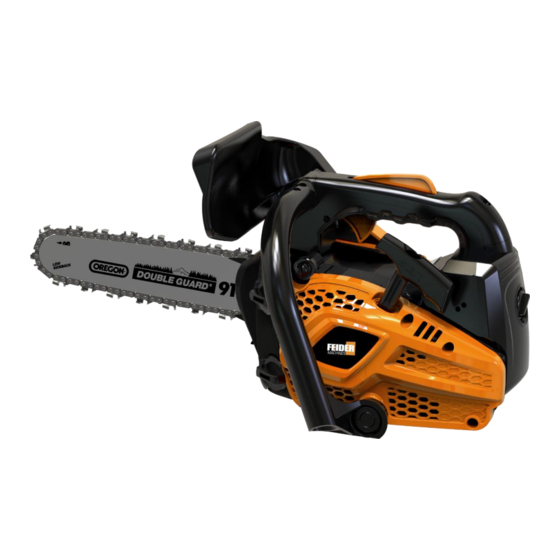

ORIGINAL INSTRUCTIONS 2. YOUR PRODUCT a. Description 1- Safety protection 10- Cable starter 2- Chain 11- Handle 3- Chain Guide 12- Oil reservoir 4- Fastening nut 13- Fuel Tank 5- Engine 14- Switch 6- Ventilation opening 15- Starter 7- Safety Trigger 16- Fuel mixing bottle 8- Handle 17- Blade protection... - Page 8 The chain brake is a device that automatically stops the chain in case of backward movement, causing the saw to jump. The chain is the cutting device, installed on the chain guide. b. Technical data Model FELPRO25 Type of engine 1E34FC (air cooled 2-stroke petrol engine) Fuel Tank Volume 230cm³...
-
Page 9: Assembly
ORIGINAL INSTRUCTIONS 3. ASSEMBLY a. Assembly of the chain guide IMPORTANT: The machine must not be started during assembly. Wear protective gloves when handling the blade. Note: the spiked bumper is already mounted on the tool. 1) Pull the protective guard toward the front handle to check that the chain brake is not engaged. 2) Loosen the nuts and remove the chain cover. - Page 10 ORIGINAL INSTRUCTIONS 7) Adjust the chain tension by turning the tension screw until the straps touch just the bottom side of the bar. 8) Tighten the nuts and check if the chain is rotated correctly and tight. While lifting the chain guide, turn the content screw to apply correct tension to the chain. Then lock the crankcase nuts.
-
Page 11: Filling The Fuel Tank
ORIGINAL INSTRUCTIONS 4. REFUELLING 1) Fuel tank WARNING: When filling the tank: The chainsaw must always be stopped and cooled. Never smoke during refueling. It must not have flames or sparks near the fuel. Before refueling, allow the chainsaw to cool completely. Do not attempt to refuel when the engine is hot. If fuel has been spilled, immediately stop refueling and do not start the engine. -
Page 12: Operation
ORIGINAL INSTRUCTIONS 5. OPERATION Before using the chainsaw, inspect the work area. This must be cleared. Remove any branches, obstacles and other items that may cause damage during cutting. The unit should always be filled with fuel and be usable. Check the level of filling and refill when necessary. 1. - Page 13 ORIGINAL INSTRUCTIONS 2. Stopping the engine Allow the chainsaw to run for a few minutes. Then turn the switch to the OFF position. 3. Main settings a. Adjusting the carburetor The carburetor is preset at the factory. To avoid malfunction, it is recommended not to adjust the adjustment screws.
- Page 14 ORIGINAL INSTRUCTIONS c. Release of the chain brake To use the chain saw again, the chain brake must be released. This must be done machine off and cooled. Pull the shield until it returns to its original position. d. Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain.
- Page 15 ORIGINAL INSTRUCTIONS NOTE: It is necessary to have a complete training before working at high. It is strongly recommended that only experienced and trained persons carry out work at high. Know all emergency procedures to be carried out. These instructions are examples of good practice. Follow and abide by local laws and regulations as well. It is also recommended that the operator who is going to work at height be assisted by another person.
- Page 16 ORIGINAL INSTRUCTIONS c. Starting the saw in the tree When starting the saw in the shaft, the operator should: Apply the chain brake before starting, and Hold the saw on the left side, either on the right side before starting: ...
- Page 17 ORIGINAL INSTRUCTIONS Operators should: Never cut with the rebound area at the end of the chain saw chain guide Never hold and cut sections or Never try to catch sections when they fall. e. Release of a jammed saw If the saw gets stuck during cutting, the operators should: Saw the saw and attach it securely to the cutting foot of the shaft (ie trunk side) or has a separate chord from the tool Pull the saw of the cluster while the branch is lifted, if necessary,...
- Page 18 ORIGINAL INSTRUCTIONS c. Trunk in elevation Begin by cutting a first part from below and then from above. Then, on the second part, repeat this operation. Pruning of a felled tree Observe first the direction of flexion of the branch. Make a first notch on the side in flexion and finish the cut on the opposite side.
-
Page 19: Maintenance And Storage
ORIGINAL INSTRUCTIONS 6. MAINTENANCE AND STORAGE 1. Maintenance Before any maintenance work, the machine must be switched off and completely cooled. Perform the maintenance work according to the instructions below and perform them regularly. A clean, well-maintained machine increases its standard of living and efficiency. On the contrary, a machine maintained can cause damage, accidents and render the tool inoperable in the short term. - Page 20 ORIGINAL INSTRUCTIONS d. Cleaning the oil filter and fuel filter Clean these items regularly. Remove them from the tanks using clamps. Clean them with gasoline and then put them back in place afterwards e. Guide bar Cleaning: Remove bar guide to remove dirt from grooves and oil inlet. Regularly grease the pinion.
- Page 21 ORIGINAL INSTRUCTIONS Sprocket Check the sprocket on signs of wear. If wearing is important, replace it with a new one. Do not install a chain on a worn or damaged sprocket. Do not install a worn chain on a pinion. g.
- Page 22 ORIGINAL INSTRUCTIONS The chain must be sharpened when: Wood chips have become powder To perform a normal cut, force on the tool# The cut is not straight Vibration increase Fuel consumption has increased Sharpening method: The chain saw must be switched off and locked before sharpening. Use a round file or sharpening device (see in store).
-
Page 23: Declaration Of Conformity
BUILDER SAS ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: PERTROL PRUNING CHAIN SAW FELPRO25 Serial number: 20200726550-20200726699 Complies with the provisions of the Directive "machinery" 2006/42/EC and regulations National transposing it;...
