drew & jonathan Boulevard P306DJ160 Quick Start Manual

A
x1 Headboard panel
x1 Tête de lit
x1 Panel de la cabecera
E
x5 Slats
x5 Bancs de lit
x5 Listones
I
∅
x14 Lock washer 5/16"
∅
x14 Rondelle de blocage 5/16"
∅
x14 Arandela de Seguridad 5/16"
M
∅
x8 Flat Washer 5/16"x16x2mm
∅
x8 Rondelle plate 5/16"x16x2mm
∅
x8 Arandela plana 5/16"x16x2mm
Page 1 of 4
PARTS LIST / LISTE DES PIÈCES / LISTA DE PIEZAS
PRODUCT NAME / NUMBER(S) : P306DJ160/161/167

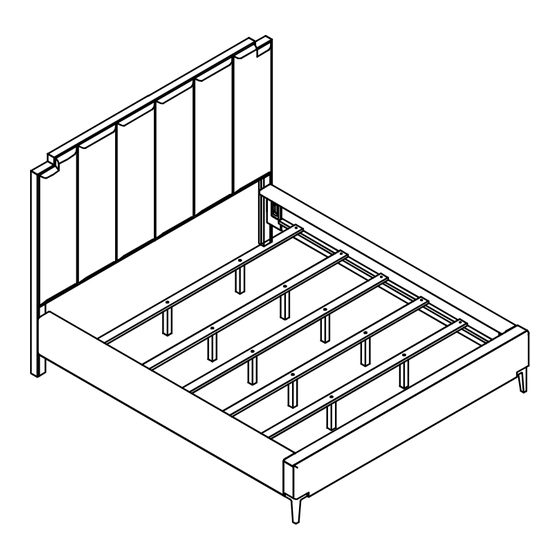

Description if Available / Needed : UPH California king bed
B
x1 Footboard Panel
x1 Pied de lit
x1 Panel de pie de cama
F
x10 Center leg x4 Allen bolt
x4 Vis à tête creuse hexagonale
x10 Pattes centrales
x10 Patas centrales x4 Perno Allen
J
∅
x6 Flat Washer 5/16"x19x2mm
∅
x6 Rondelle plate 5/16"x19x2mm
∅
x6 Arandela plana 5/16"x19x2mm
N
∅
x8 Hex nut 5/16"
∅
x8 Écrou hexagonal
5/16"
∅
x8 Tuerca hexagona 5/16"
Assembly Instructions-Instructions d'assemblage-Instrucciones para el ensamblaje
Très grand lit à planches et californien
Cama estilo de 6/0
C
x2 Metal leg
x2 Cadre en métal
x2 Armazón de metal
G
∅
5/16"x25mm
∅
5/16"x25mm
∅
5/16"x25mm
K
x1 Allen Key 5mm
x1 Clé hexagonale 5mm
x1 Llave Allen5mm
P
∅
x1 Open wrench 5/16"
∅
x1 Clé à fourche
5/16"
∅
x1 Llave de boca 5/16"
Made in VietNam / Fabrique en VietNam / Hecho en VietNam.
D
x2 Side Rail
x2 Traverse
x2 Travesaño lateral
H
∅
x2 Allen bolt 5/16"x45mm
∅
x2 Vis à tête creuse hexagonale
5/16"x45mm
∅
x2 Perno Allen 5/16"x45mm
L
∅
x8 Hanger bolt 5/16"x88mm
∅
x8 Boulon-vis 5/16"x88mm
∅
x8 Perno de suspensión 5/16"x88mm
Q
x10 Wood Screw #8x25mm
x10 Vis à bois #8x25mm
x10 Tornillo para madera #8x25mm
*
Replaceable part
