- Page 1 Mounting Instruction Q-Tee II Gas receiver box Q-Tee II C Gas receiver box 12-0000-6511 rev. 1...

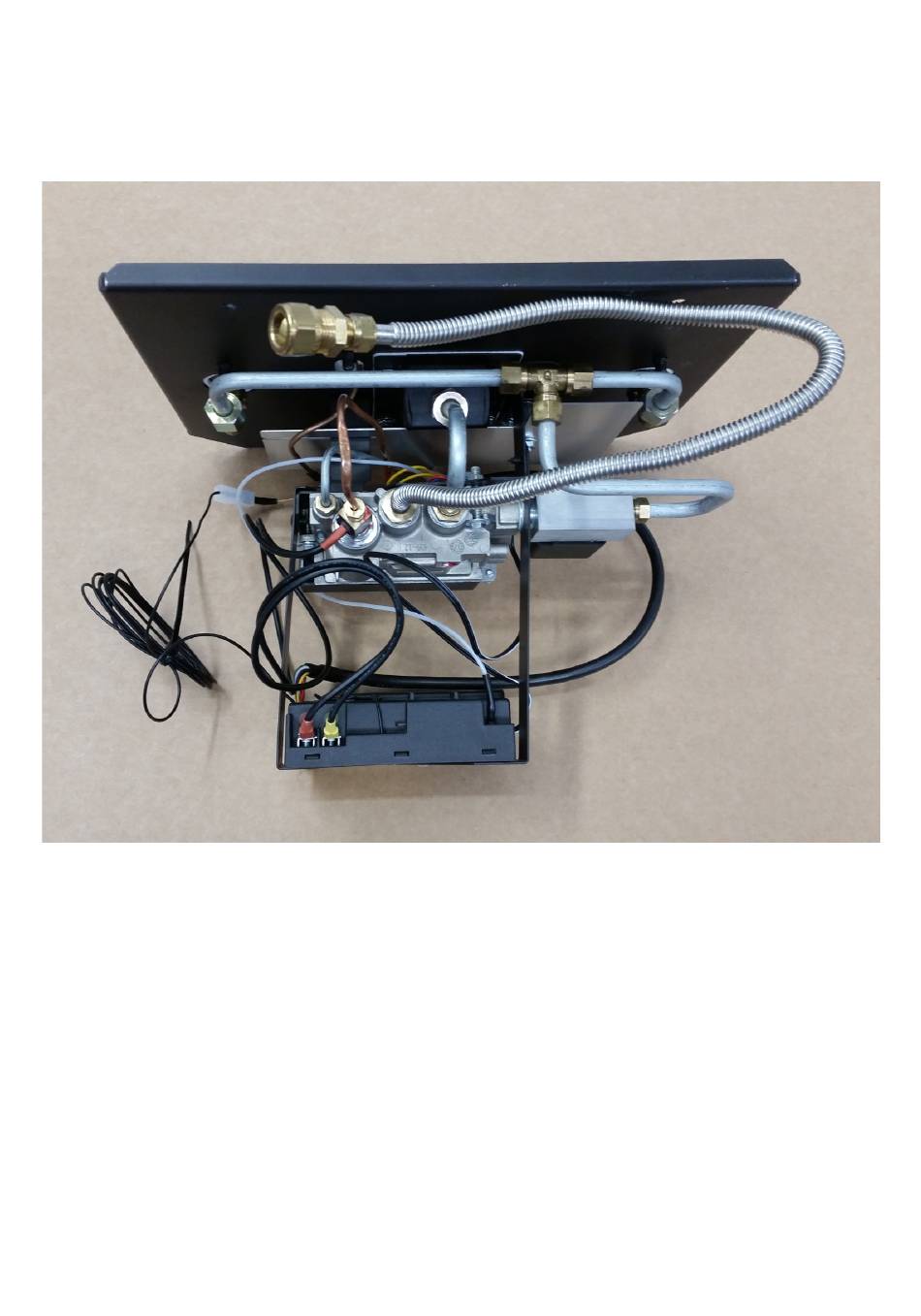

- Page 2 English Mounting instruction Q-Tee II Gas / Q-Tee II C Gas Take the gas burner out of the box and lay it on a plane sur- face. unscrew the receiver box from the receiver mount. Unscrew the receiver bracket from the burner assembly.
- Page 3 English Mounting instruction Q-Tee II Gas / Q-Tee II C Gas Receiver bracket are thrown away Remove the receiver plate which is hanging under the stove...
- Page 4 English Mounting instruction Q-Tee II Gas / Q-Tee II C Gas Mount the receiver on the receiver plate with the screws from the bracket Mount the reflector plate on the reciever plate. Place the receiver on the two fasteners under the burning chamber when mounting the burner assembly.
- Page 5 ATTIKA FEUER AG Brunnmatt 16 CH-6330 Cham Switzerland www.attika.ch RAIS A/S Industrivej 20 DK-9900 Frederikshavn Denmark www.rais.dk...
