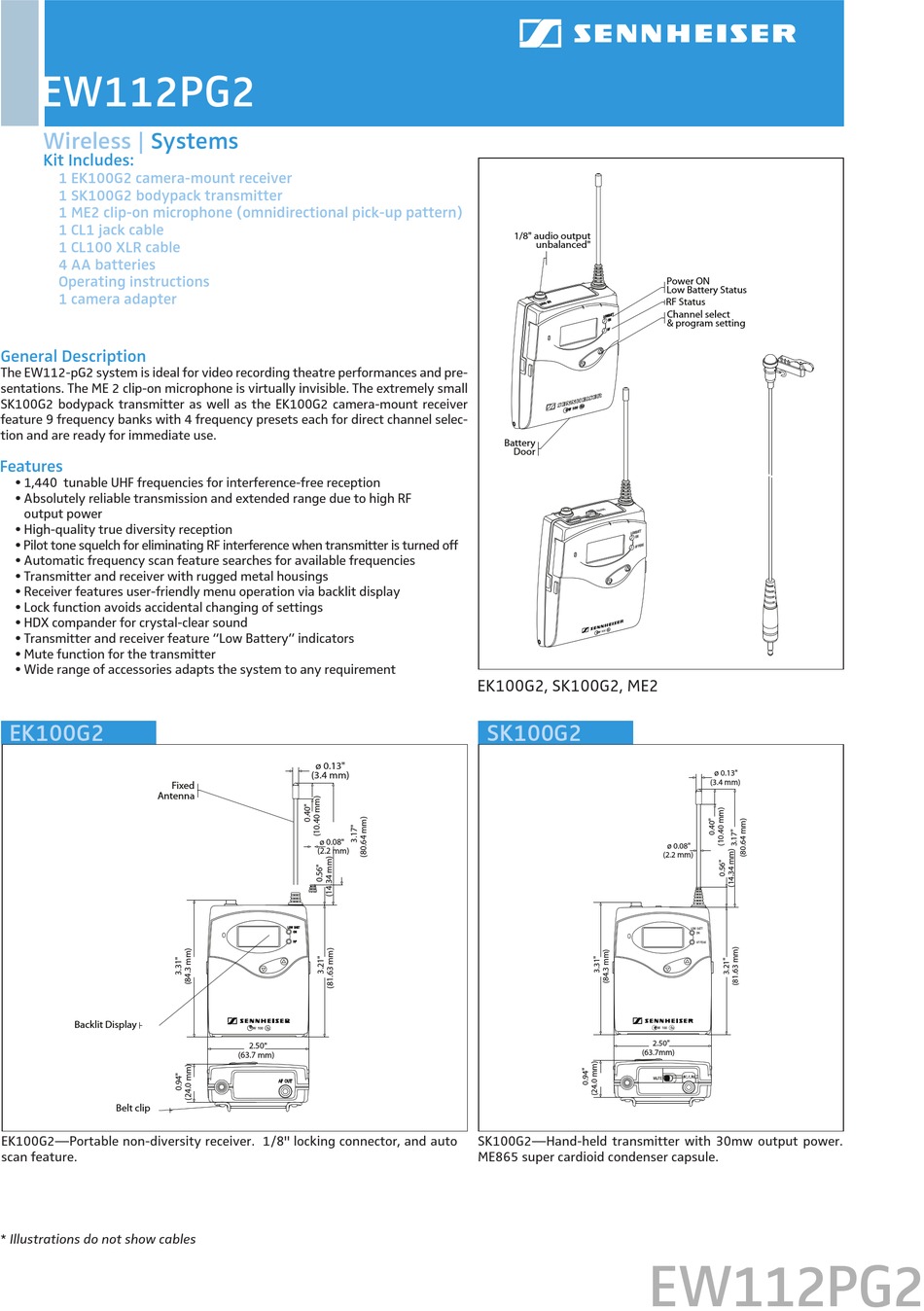

EW112PG2
Wireless |
Systems
Kit Includes:
1 EK100G2 camera-mount receiver
1 SK100G2 bodypack transmitter
1 ME2 clip-on microphone (omnidirectional pick-up pattern)
1 CL1 jack cable
1 CL100 XLR cable
4 AA batteries
Operating instructions
1 camera adapter
General Description
The EW112-pG2 system is ideal for video recording theatre performances and pre-
sentations. The ME 2 clip-on microphone is virtually invisible. The extremely small
SK100G2 bodypack transmitter as well as the EK100G2 camera-mount receiver
feature 9 frequency banks with 4 frequency presets each for direct channel selec-
tion and are ready for immediate use.
Features
• 1,440 tunable UHF frequencies for interference-free reception
• Absolutely reliable transmission and extended range due to high RF
output power
• High-quality true diversity reception
• Pilot tone squelch for eliminating RF interference when transmitter is turned off
• Automatic frequency scan feature searches for available frequencies
• Transmitter and receiver with rugged metal housings
• Receiver features user-friendly menu operation via backlit display
• Lock function avoids accidental changing of settings
• HDX compander for crystal-clear sound
• Transmitter and receiver feature "Low Battery" indicators
• Mute function for the transmitter
• Wide range of accessories adapts the system to any requirement
EK100G2
Fixed
Antenna
Backlit Display
Belt clip
EK100G2—Portable non-diversity receiver. 1/8" locking connector, and auto
scan feature.
* Illustrations do not show cables
63.000"
(1600.20 mm)
1/8" TRS Connector
ø 0.13"
(3.4 mm)
ø 0.08"
(2.2 mm)
e
2.50"
(63.7 mm)
1/8" audio output
unbalanced"
Battery
Door
1.000"
(25.40 mm)
EK100G2, SK100G2, ME2
SK100G2
2.50"
(63.7mm)
SK100G2—Hand-held transmitter with 30mw output power.
ME865 super cardioid condenser capsule.
EW112PG2
Power ON
Low Battery Status
RF Status
Channel select
& program setting
Backlit Display
ø 0.13"
(3.4 mm)
ø 0.08"
(2.2 mm)
2.50"
(63.7mm)
ø 0.13"
(3.4 mm)
ø 0.08"
(2.2 mm)
Fix
Anten
Belt clip
