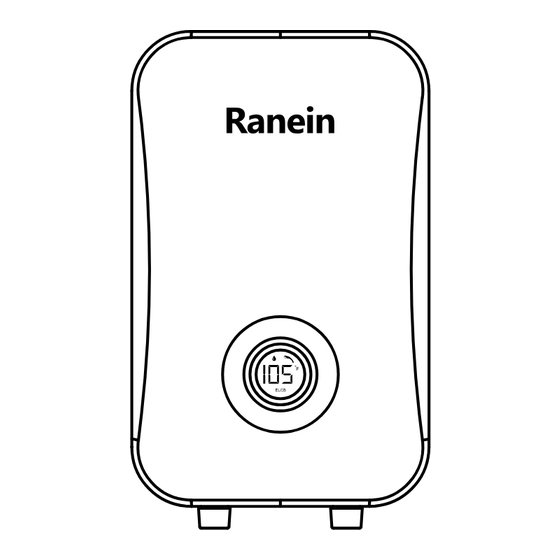

- Page 1 Tankless Electric Water Heaters Instruction For Installation And Use Model:RE6.5K / RE9K / RE11K Contact Service...
-
Page 2: Important Information
IMPORTANT SAFETY INFORMATION. This water heater is used to provide domestic hot water for household use and can provide multiple outputs. READ ALL INSTRUCTIONS BEFORE USING Cut off the connection with power supply when the water heater is not used in order to avoid a hazard. -
Page 3: Table Of Contents
This unit has more than one power-supply connection point, Disconnect all Product Warranty power supplies before servicing. Ranein warranties this water heater to be free of defects in material and/or • To avoid damage, the unit needs to be kept dry, Keep unit away from direct workmanship for a period of two (2) years commencing on the day on which the sunlight, moisture, dust, steam, and other liquids. -
Page 4: Technical Specification
Wait a few seconds for Technical Specification the water to cool down to the set temperature before using. Caution: Regularly Model RE6.5K RE9K RE11K clean the inlet filter and the shower head to get enough flow. -
Page 5: Installation Instructions
• Piping that has been treated with boiler seal, chromates, or other chemicals is not allowed to use. RE6.5K / RE9K / RE11K • Special branch circuit shall be used for circuit connection of water heater. Check whether the voltage, circuit breaker, wire diameter, electrical switch, etc. meet 8.9”(225mm) -
Page 6: Mounting Your Water Heater
Mounting Your Water Heater Before mounting • THE UNIT MUST BE INSTALLED BY QUALIFIED ELECTRIC ENGINEER 1. The wall for installation of the water heater must be firm and solid and can bear four times the weight of the water heater. 2. -
Page 7: Installation Guide
4. The RE6.5K hot water unit needs 30AMP double pole breaker, a set of 12AWG/2 (9)Switch on power supply on the breaker panel, run water through and then wires \ The RE9K hot water unit needs 40AMP double pole breaker, a set of press the Power button of the unit to turn on. -
Page 8: Operating Instructions
Circuit Breaker Panel Electrical Specifications by Heater Input HEATER INPUT 6.5 kw 9 kw 11 kw Circuit Breaker ELEMENTS VOLTAGE 240 v 240 v 240 v MAX kW 6.5 kw 9 kw 11 kw Ground MAX AMPERAGE DRAW 27 AMPS 37.5 AMPS 45.8 AMPS REQUIRED BREAKERS... -
Page 9: Normal Maintenance
2. There is built-in filter and flow sensor at the inlet connection which should be cleaned from time to time. Please cut the water supply before doing this.If Water heater is not heating at all. You should get to the Ranein service with video or other detail information to get professional assistance. -
Page 10: Product Inner Structure
A.Select lower power level or turn down Heating Element Triac 55°C. the temperature. Thermostat PCB board B.lncrease water flow. (Manual Reset) control system Leakage of electricity. Send to after-sales service. Inlet water temp sensor failure Contact Ranein service Outlet water temp sensor failure Contact Ranein service...
