Summary of Contents for Ranein RA65L

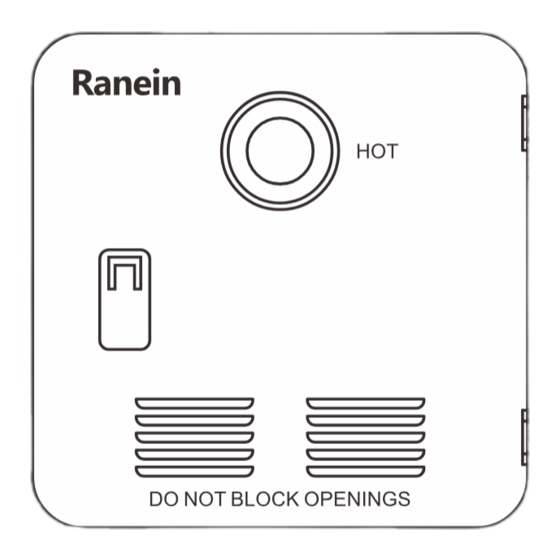

- Page 1 RV TANKLESS WATER HEATER Instruction For Installation And Use Model:RA65L Scan QR codeto start a chat...
-
Page 2: Table Of Contents
What to do if you smell gas • Evacuate all persons from the vehicle. Ranein provides a one-year warranty for customers who purchase on the Ranein • Shut off the gas supply at the gas container or source. Amazon store and the Ranein ofcial website. -
Page 3: Explanation Of Symbols
• Always turn the appliance off, and shut off the fuel supply while parking the RV in an Explanation of Symbols enclosed space, such as a garage or repair shop. • Never place seating or picnic tables in the direct path of the exhaust outlet. This manual has safety information and instructions to help you eliminate or reduce the risk of accidents and injuries. -
Page 4: About Your Product
Product Features About Your Product The appliance is equipped with the following safety devices: Product Overview • Flame monitoring device If the ame goes out, the device switches the gas supply to the burner. Access Door • Anti-freeze function The appliance is equipped with an anti-freeze device. When the outdoor temperature drops below freezing, the unit will automatic heating the water system to 32 degrees Fahrenheit then the team will stop (Note: Need to turn on the power and gas supply during the anti-freeze time). -
Page 5: What's In The Box
What’s in the Box WARNING Remove product from packaging and ensure you include the following list of items. If any item is damaged or missing, contact your Ranein dealer. Suffocation Hazard • Dispose packaging material or keep from reach of small children. - Page 6 Installation extended. • DO NOT install this appliance on any door or slide-out area. DANGER • DO NOT install the appliance where the access door is less than. 9" (229mm) from any opening into the vehicle. Observe all installation material by governing codes and ordinances. 36"...
- Page 7 NOTE: Prepare Utilities Min.1 3/4" Fiberglass, lm, and corrugated aluminum a general connection diagram. (Mesa 1")are all acceptable exterior wall Gas Connection siding solutions. Cutout The exterior wall opening must be the exact dimensions with no radius corners. 4. Refer to depth "C" for minimum rear Spacing clearances for cabinets, appliances, and utility entry locations.
- Page 8 • The appliance requires a power source that adequately provides 10~17V DC to Cone seal rubber Seal gasket function correctly. Contact Ranein for available Power centers, converters, and distribution panels. 1. Select a distribution branch greater than 3A, preferably 15 amp, to provide a nominal 12V to the appliance from the distribution panel.
- Page 9 Prepare Water Heater Check the sealing between the backside ange and the out wall. May sure 1. Take the water heater out of its packaging by grasping the metal sides of the housing the ange touches the RV's out wall. and lifting upward until entirely removed from the box.
- Page 10 Electrical Connection Door frame installation 1. Unpack the door assembly from the package. 1. Set the power switch before the water heater to the “OFF” position. 2. Connect the power supply wires (on the rear of the water heater- white and black 2.
- Page 11 Wall controller installation Fixing door frame with ST3.9*30 mm self screws(14Pcs). 1.Disassemble the wall controller. 1. Press and push up the buckle of the wall controller. 2. Open the cover with a finger or with a flat blade. 2.Install the back cover of the wall controller. Install the back cover of the wall controller over the ¾”...
- Page 12 5. Note: After leak checking, ensure the gas supply pressure corresponds to the Wiring Diagram operating pressure of the appliance 10.5~14 in.WC (2620Pa~3490Pa). Electric Diagram Checking for water leak Fuse 1. Verify that the power switch on the water heater is in the “OFF” position. 2.
-
Page 13: Operation Instruction
Temperature °F (°C) Time before skin becomes scalded Operation Instruction Controller operation 155 (68) 1 Second Before regular operation of the appliance, perform a basic functional test check out 148 (64) 2 Seconds each time the RV and water system is set up for use (May be sure electric, water, and gas supply are standard). -
Page 14: Storage And Transit
Consider the following points for the safe use of the appliance: 4. sure the water in the appliance has totally drained. Then screw Note: The appliance's electric and gas supply must be turned on, and the controller can the drain plug and the filter again. be turned off (on standby). -
Page 15: For Next Season Using
Hard water may lead to performance reduction of your appliance overtime. 5. Before actively using the vehicle, verify that the exhaust tube and screen are Contact Ranein for decalcication instructions. completely clear of obstructions, including mud, leaves, twigs, insects, nests, etc. -
Page 16: Troubleshooting
• If you encounter a problem with the appliance, as the table below states, try the suggested Power supply to the appliance is solutions. If difculties persist, please call the Ranein service or the dealer. Switch on the power supply to the appliance.
