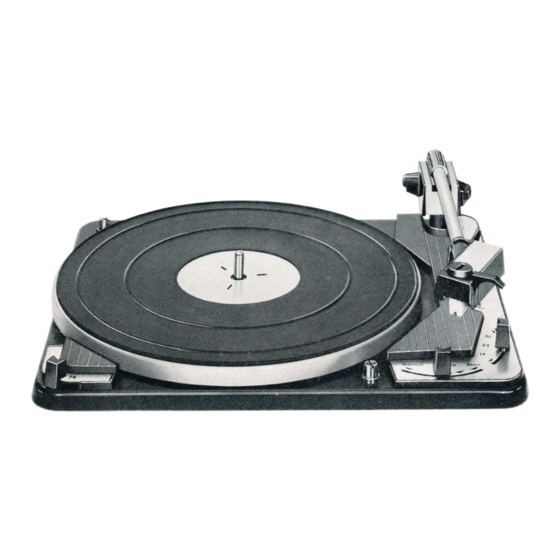

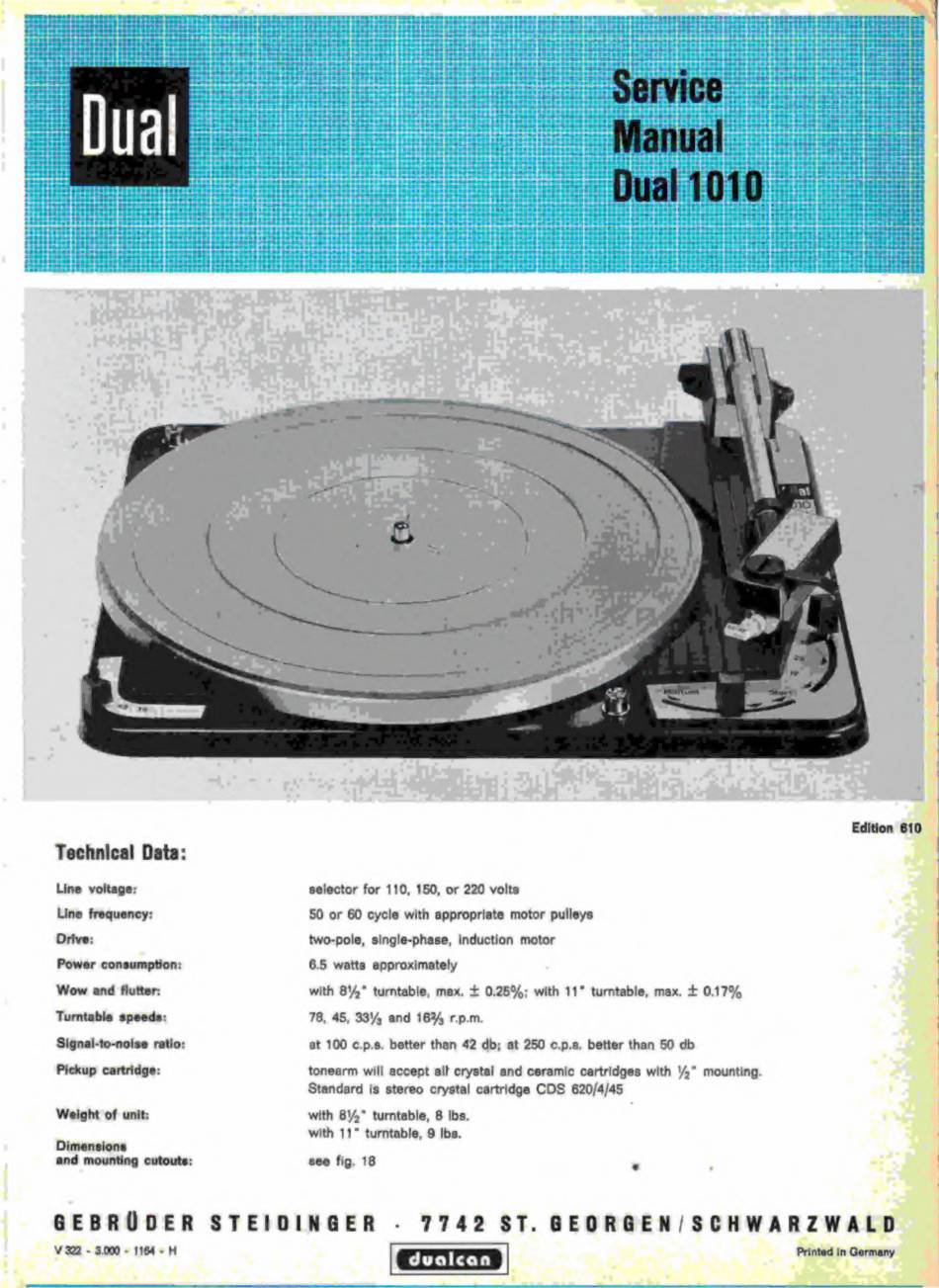

Dual 1010 Service Manual

Dual1010
Technical Data:
Edition 610
Line voltage:
selector for 110, 150, or 220 volts
Line frequency: 50 or 60 cycle with appropriate motor pulleys
Drive: two-pole, single-phase, induction motor
Power consumption: 6.5 watts epproximately
Wow and flutter: with 842" turntable, max. + 0.25%; with 11° turntable, max. + 0.17%
Turntable speeds: 78, 45, 33, and 16%, r.p.m.
Signal-to-noise ratio: at 100 c.p.s. better than 42 db; at 250 c.p.s, better than 50 db
Pickup cartridge: tonearm will accept all crystal and ceramic cartridges with 1" mounting.
Standard is stereo crystal cartridge CDS 620/4/45
Weight of unit: with 8," turntable, 8 Ibs.
with 11" turntable, 9 Ibs.
Dimensions
and mounting cutouts: see fig. 18
GEBRUDER STEIOINGER
V 322 - 3.000 - 1164 +H
7742 ST. GEQRGEN/SCHWARZWALD
Printed in Germany
