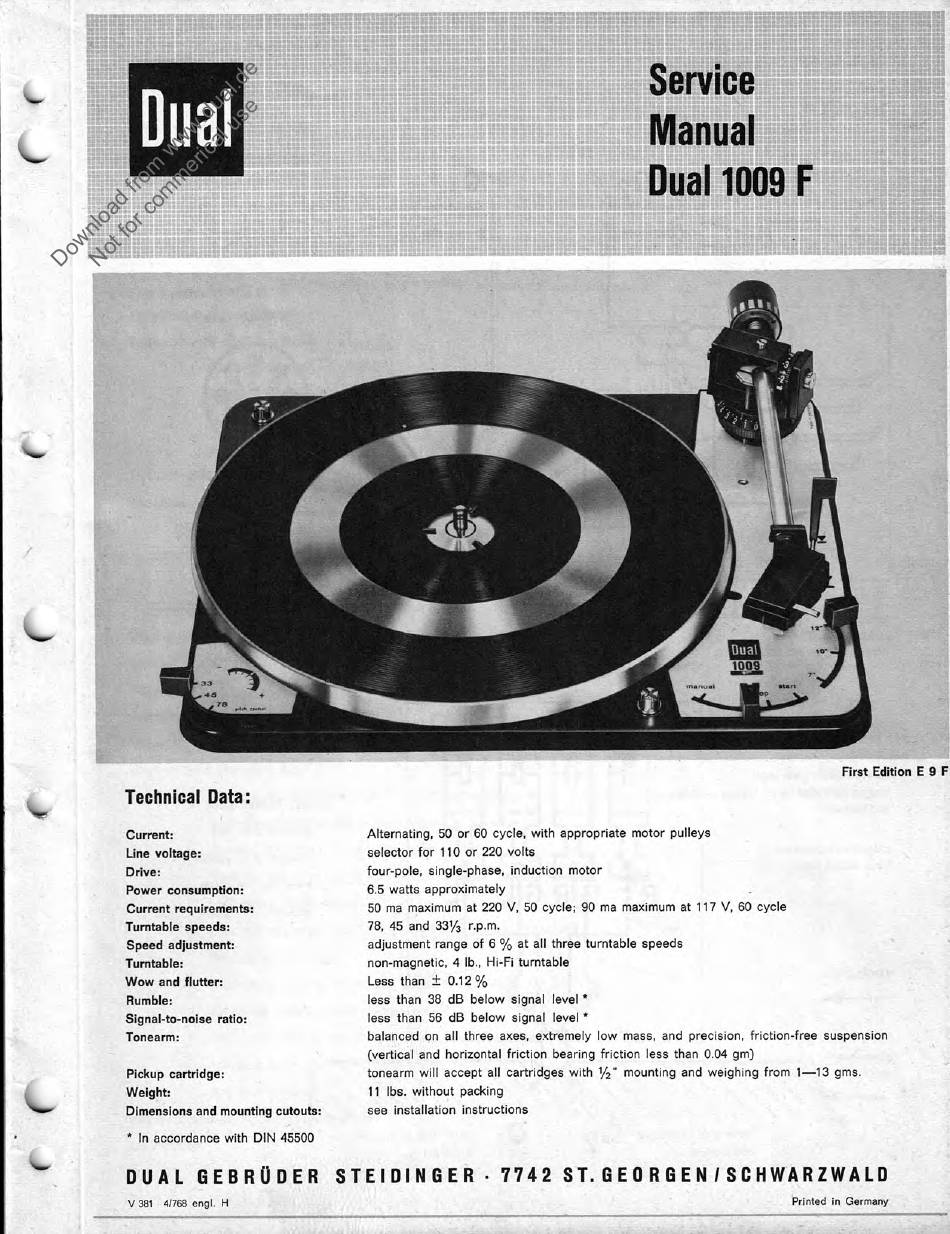

Dual 1009 F Service Manual

Ura
••••••••
Crleiggenranrigrläg:
Dual
Technical Data:
Current:
Line voltage:
Drive:
Power consumption:
Current requirements:
Turntable speeds:
Speed adjustment:
Turntable:
Wow and flutter:
Rumble:
Signal-to-noise ratio:
Tonearm:
Pickup cartridge:
Weight:
Dimensions and mounting cutouts:
* In accordance with DIN 45500
E.
• M
L
w Lqjjljji
no, Funiet mim
''
fra"
;::-
113 InalzU
ablillinerr
lim .
First Edition E 9 F
Alternating, 50 or 60 cycle, with appropriate motor pulleys
selector for 110 or 220 volts
four-pole, single-phase, induction motor
6.5 watts approximately
50 ma maximum at 220V, 50 cycle; 90 ma maximum at 117 V, 60 cycle
78, 45 and 331 / 2 r.p.m.
adjustment range of 6 ' 3 /0 at all three turntable speeds
non-magnetic, 4 lb., Hi-Fi turntable
Less than ± 0.12%
less than 38 dB below signal level *
less than 56 dB below signal levet *
balanced on all three axes, extremely low mass, and precision, friction-free suspension
(vertical and horizontal friction bearing friction less than 0.04 gm)
tonearm will accept all cartridges with 1 / 2 " mounting and weighing from 1-13 gms.
11 lbs. without packing
see installation instructions
DUAL GEBRÜDER STEIDINGER • 7742 ST.GEORGEN/SCHWARZWALD
V381 4/768 engl. H
Printed in Germany
