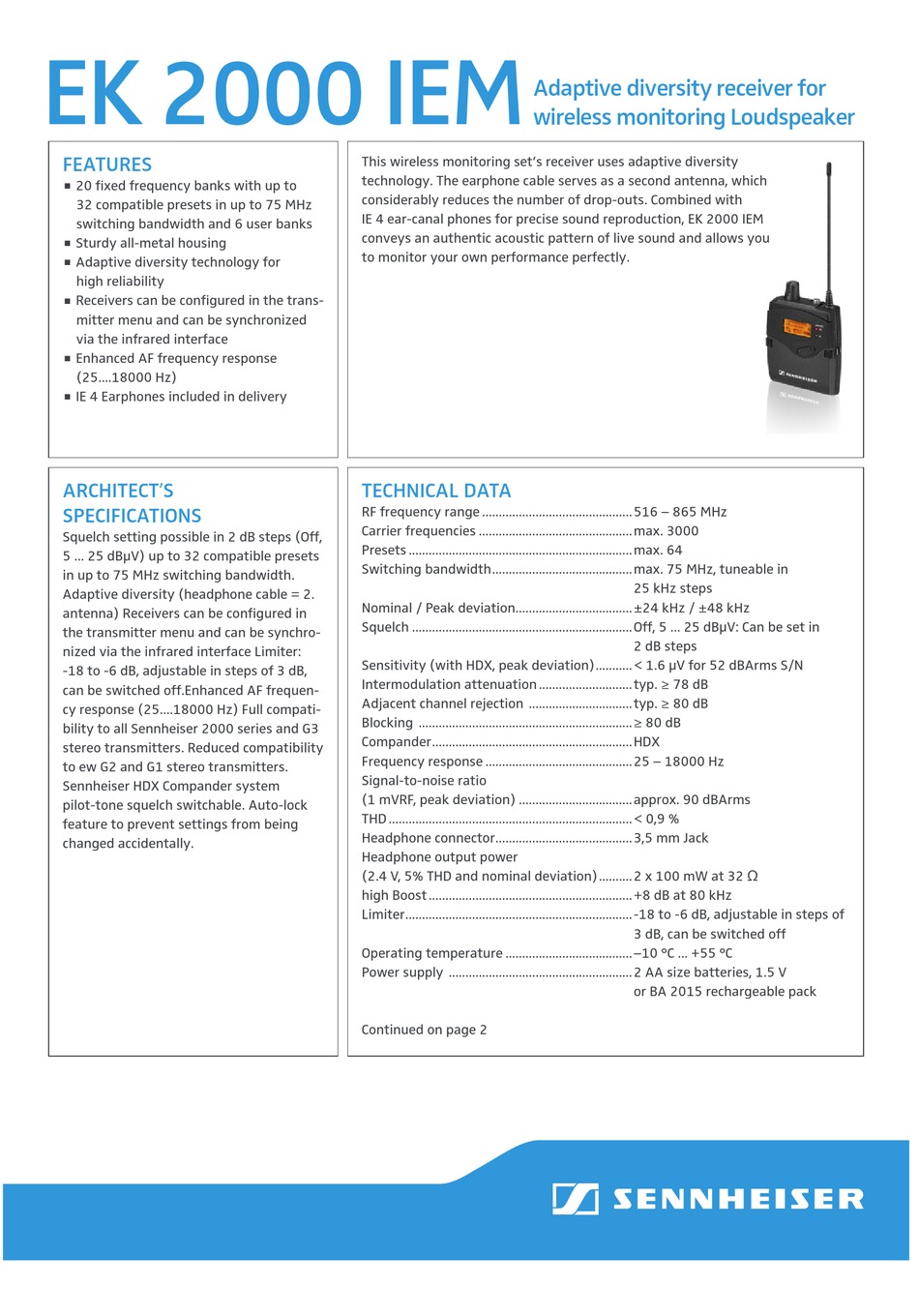

EK 2000 IEM
FEATURES
20 fixed frequency banks with up to

32 compatible presets in up to 75 MHz
switching bandwidth and 6 user banks
Sturdy all-metal housing

Adaptive diversity technology for

high reliability
Receivers can be configured in the trans-

mitter menu and can be synchronized
via the infrared interface
Enhanced AF frequency response

(25....18000 Hz)
IE 4 Earphones included in delivery

ARCHITECT'S

SPECIFICATIONS

Squelch setting possible in 2 dB steps (Off,
5 ... 25 dBμV) up to 32 compatible presets
in up to 75 MHz switching bandwidth.
Adaptive diversity (headphone cable = 2.
antenna) Receivers can be configured in
the transmitter menu and can be synchro-
nized via the infrared interface Limiter:
-18 to -6 dB, adjustable in steps of 3 dB,
can be switched off.Enhanced AF frequen-
cy response (25....18000 Hz) Full compati-
bility to all Sennheiser 2000 series and G3
stereo transmitters. Reduced compatibility
to ew G2 and G1 stereo transmitters.
Sennheiser HDX Compander system
pilot-tone squelch switchable. Auto-lock
feature to prevent settings from being
changed accidentally.
Adaptive diversity receiver for
wireless monitoring Loudspeaker
This wireless monitoring set's receiver uses adaptive diversity
technology. The earphone cable serves as a second antenna, which
considerably reduces the number of drop-outs. Combined with
IE 4 ear-canal phones for precise sound reproduction, EK 2000 IEM
conveys an authentic acoustic pattern of live sound and allows you
to monitor your own performance perfectly.

TECHNICAL DATA

RF frequency range ............................................. 516 – 865 MHz
Carrier frequencies .............................................. max. 3000
Presets ................................................................... max. 64
Switching bandwidth .......................................... max. 75 MHz, tuneable in
Nominal / Peak deviation................................... ±24 kHz / ±48 kHz
Squelch .................................................................. Off, 5 ... 25 dBμV: Can be set in
Sensitivity (with HDX, peak deviation) ........... < 1.6 μV for 52 dBArms S/N
Intermodulation attenuation ............................ typ. ≥ 78 dB
Adjacent channel rejection ............................... typ. ≥ 80 dB
Blocking ................................................................ ≥ 80 dB
Compander ............................................................ HDX
Frequency response ............................................ 25 – 18000 Hz
Signal-to-noise ratio
(1 mVRF, peak deviation) .................................. approx. 90 dBArms
THD ......................................................................... < 0,9 %
Headphone connector ......................................... 3,5 mm Jack
Headphone output power
(2.4 V, 5% THD and nominal deviation) .......... 2 x 100 mW at 32 O
high Boost ............................................................. +8 dB at 80 kHz
Limiter .................................................................... -18 to -6 dB, adjustable in steps of
Operating temperature ...................................... –10 °C ... +55 °C
Power supply ....................................................... 2 AA size batteries, 1.5 V
Continued on page 2
25 kHz steps
2 dB steps
3 dB, can be switched off
or BA 2015 rechargeable pack
