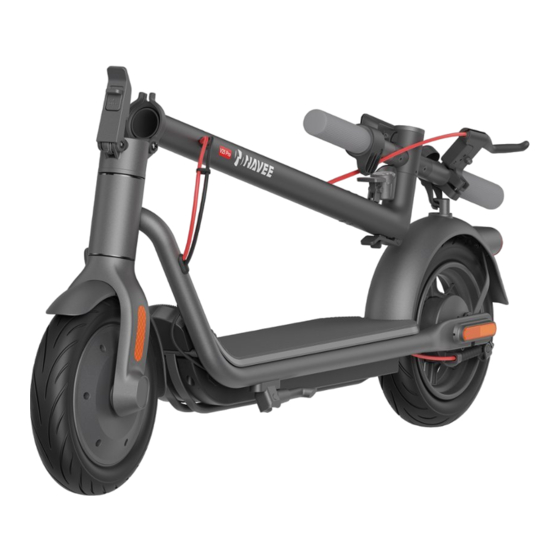

- Page 1 NAVEE Electric Scooter User Manual SPU: V25 Pro/V25i Pro...
-
Page 2: Safety Instructions
1. Safety Instructions Original instructions IMPORTANT! Please read carefully before using the product and keep for future reference. For detailed e-manual, please visit www.naveetech.com his appliance is not intended for use by persons (including children) with reduced physical, sensory or mental ·... - Page 3 Perform a basic inspection of the electric scooter before each ride. If there are abnormal conditions such as loose · parts, low battery alerts, flat tires or excessive wear of tires, strange sounds, malfunctions and other abnormal conditions, stop riding immediately and call for professional support. Take the time to learn the basics of the practice to avoid any serious accident that can take place in the first months.
- Page 4 The A-weighted emission sound pressure level is less than 70 dB(A). · The mechanical vibrations transmitted by KickScooter are less than 2.5 m/s². · For a better riding experience, it is recommended to carry out a regular maintenance of the product. ·...
-
Page 5: Environmental Instructions
Do not use the battery if it is damaged, has a strange odor, emits smoke, or gets overheated. Keep a leaking battery away from other objects. 3. Discard the removed batteries at a professional recycling facility. To find a qualified service shop, contact us via service@navee.tech/www.naveetech.com... -
Page 6: Package Contents
2. Package Contents Important Information Battery Charger Electric Scooter Allen Key... -
Page 7: Product Overview
3. Product Overview Electric Scooter Handlebar Scooter Bell Bell Lever/Buckle Dashboard Brake Lever Power Button Accelerator Headlight Safety Lock Front Reflector Quick Release Lever Stem Quick Release Lever Safety Lock Deck Hook Tail Light & Rear Reflector Mechanical Brake Side Reflector Wheel Motor Battery Compartment Kickstand... - Page 8 Electric Scooter Right Steering Light Handlebar Scooter Bell Bell Lever/Buckle Brake Lever Dashboard Left Steering Light Power Button Accelerator Steering light buttons Headlight Safety Lock Front Reflector Quick Release Lever Stem Quick Release Lever Safety Lock Deck Hook Tail Light & Rear Reflector Mechanical Brake Side Reflector...
- Page 9 3. Product Overview Dashboard Lock: When the icon lights up, it indicates that the scooter is locked. You can lock/unlock the scooter via the NAVEE app. Bluetooth: The Bluetooth icon is always on, indicating that the scooter has been successfully connected to the mobile device.
- Page 10 Power Button Power Button: Press the button to turn the scooter on, and hold the button for 2 to 3 seconds to turn the scooter off. When the scooter is on, press once to turn on/off the headlight and tail light, and press twice to change riding modes.
- Page 11 5. Charging The scooter is fully charged when the LED on the battery charger changes from red to green. 1. Open the charging 2. Plug the battery 3. After charging, pull port cover. charger into the the plug and close the charging port.
- Page 12 NOTE: For your safely, your new scooter is not activated before binding, and the scooter will keep beeping when turned on and is limited to 10 km/h. When the scooter is used for the first time, it must be activated via the NAVEE app, and learn how to ride safely.
- Page 13 Reset Bluetooth Make sure the scooter is turned on. Squeeze the brake lever, and press the power button 5 times to reset. When the scooter beeps, it has been reset successfully. Restore Factory Settings Make sure the scooter is turned on. Squeeze the brake lever, and simultaneously press and hold the power button for 7 seconds.
- Page 14 Starting & Accelerating Steering V≥5km/h Step on the deck with one foot, and slowly kicks off the other Tilt your body to the steering direction as you turn, and on the ground. When the scooter starts to coast, put both slowly turn the handlebar.
- Page 15 PARKING WARNING · Do not park your kick scooter on a slope. · Make sure that the kickstand is positioned on a flat surface and the kick scooter is stable enough to stand alone before leaving it. WARNING: To avoid others using the scooter without your permission, you can lock the scooter when it is parked.
- Page 16 Do not use this product beyond the maximum Do not press the accelerator when you're load (100 kg) as specified by this product. walking alongside the scooter. Do not abruptly change the steering direction at Avoid hitting your head on door frames, high speed.
- Page 17 Please do not wear high heels while riding. Do not use mobile phone or wear earphones when operating the scooter. Do not keep your feet on the rear mudguard. Do not touch the mechanical brake. Do not hang bags or other heavy stuff on the handlebar.
- Page 18 Please don't ride in bad weathers such as rain, Do not make dangerous actions during riding, snow, fog, hail,and when the road is slippery or such as riding with one leg or one hand. Make icy. If you encounter the above situations on the sure that both legs and hands are kept on the way, please do not make an emergency break.
- Page 19 9. Fold/Unfold & Carry The scooter MUST be turned off before being folded. Fold 1. Hold the handlebar, press 2. Hold the stem, lift the safety lock 3. Align the buckle with the hook and the safety lock, and pull out the and open the quick release lever. secure them together. quick release lever. Then turn the Lift the safety lock and quick release handlebar 90° clockwise and push lever again, then fold the stem。 the quick release lever inward. 90° Carry Unfold Pull the buckle upwards to release it from the hook. Hold Hold the stem with either one hand or both hands to up the stem, then lift the safety lock, and push the quick carry.
-
Page 20: Care And Maintenance
10. Care & Maintenance Cleaning Before cleaning the scooter, you must turn off the power, unplug the charging cables and close the charging cover tightly. Wipe the main chassis with a soft damp cloth, the hard-to-remove dirt can be scrubbed with a toothbrush. Afterwards, wipe all areas with a dry cloth. - Page 21 Inflate the Tire Valve Cap Check the tire pressure every month, and inflate the tires if the pressure is too low. The recommended tire pressure is 45-50 psi. WARNING! Tire removal is very complicated. Please do not remove the tire by yourself. Improper operation may affect the operation of the scooter.
- Page 22 Scooter Maintenance Schedule (Recommended): Maintaining the scooter regularly can help keep the scooter neat and in good condition, avoid safety hazards, minimize breakdowns, slow down the deterioration of the scooter, and extend the scooter's service life. Service Every Every 3 Every 500 km/ Every 1000 km/ Every 10000 km/...
- Page 23 Service Every Every 3 Every 500 km/ Every 1000 km/ Every 10000 km/ Item Actions Object month months 6 months 1 year 3 years Before adjusting, make sure the scooter is turned off and not being charged. Tool: 14 mm hex key (the tool needs to be prepared by the user).
-
Page 24: Specifications
11. Specifications Name NAVEE Electric Scooter Product Model V25-E V25-D V25i-E V25i-D 1140 × 485 × 1165 1140 × 570 × 1165 Vehicle: L × W × H (mm) Dimensions 1140 × 160 × 505 1180 × 160 × 505 After Folding: L ×... -
Page 25: Trademark And Legal Statement
12. Trademark and Legal Statement is a registered trademark of Brightway Ltd., and all rights are reserved. 13. Safety Warning Danger! WARNING Read user manual before use. For indoor use only (for the charger). WARNING WARNING Read carefully and keep for Class Il appliance future reference. -
Page 26: Troubleshooting
14. Troubleshooting Error Codes Reasons Solutions Dashboard failure Please timely contact after-sales service for detection and repair. 11/12/28/29/40 Controller failure Please check that the accelerator is returned to its position, otherwise it cannot run normally. Accelerator failure Please timely contact after-sales service for detection and repair if the accelerator wiring harness is loose or damaged. - Page 27 15. Certification Restriction of Hazardous Substances Directive (RoHS) This Brightway Innovation Intelligent Technology (Suzhou) Co., Ltd. product, with included parts (cables, cords, and so on) meets the restriction of the use of certain hazardous substances in electrical and electronic equipment 2011/65/EU Annex II and its amendment Directive (EU) 2015/863.
-
Page 28: Warranty
Waste Electrical and Electronic Equipment (WEEE) Directive All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. - Page 29 Please contact the manufacturer or dealer to replace the component as soon as possible. Navee provides warranty service according to local regulations, but different parts have different warranty periods. For details, please consult the official Navee or local dealer.
-
Page 30: Battery Charger
Battery Charger WARNING 1. The charger is designed for indoor use only. Do not expose it to rain or snow. 2. Do not used for non-rechargeable batteries, as they can overheat and break. 3. Misuse other types of batteries may burst causing personal injury and damage. 4. -
Page 31: Battery Pack
Battery Pack WARNING 1. Do not dismantle, open or shred secondary cells or batteries. 2. Keep batteries out of the reach of childrenBattery usage by children should be supervised. Especially keep small batteries out of reach ofsmall children. 3. Seek medical advice immediately if a cell or a battery has been swallowed. 4. - Page 32 Original instructions V25 Pro/V25i Pro - V1.0 - EN...
