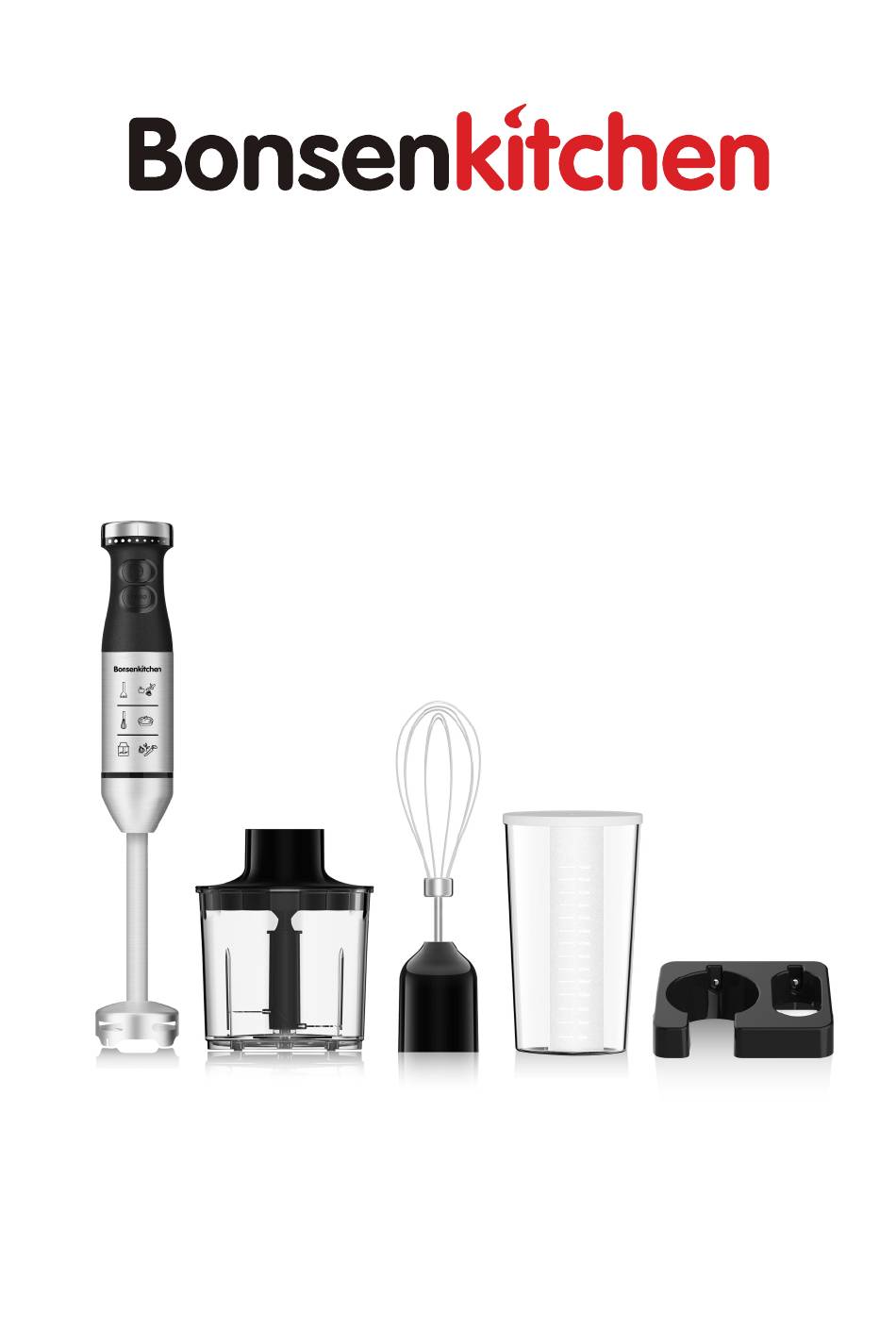

- Page 1 Hand Blender Operation Instructions Model: HB8001 www.bonsenkitchen.com...
-
Page 2: Table Of Contents
Contents ..................IMPORTANT SAFEGUARDS ..................NOTES ON THE CORD PLUG ....................PACKAGE CONTENTS .................. KNOW YOUR HAND BLENDER ....................TECHNICAL DETAILS ......................... INITIAL USE ................... INSTRUCTION FOR BLENDER ................... INSTRUCTION FOR CHOPPER 7-10 ..............INSTRUCTION FOR EGG WHITE BEATER 11-12 ................ -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS Before using the electrical appliance, the following basic precautions should always be followed including the following: 1. Read all instructions. 2. Before using check that the voltage of wall outlet correspond to the one shown on the rating plate. 3. - Page 4 11. The appliance cannot be used for chopping ice or blending hard and dry substance, otherwise the blade could be blunted. 12. To reduce the risk of injury, never place cutting blade on base without first putting bowl properly in place. 13.
- Page 5 19. The use of accessory not recommended by the manufacturer may cause injuries to persons. 20. Before removing the lid from the jar, release the button and unplug the appliance, wait until the blades have come to a complete stop. 21.
-
Page 6: Notes On The Cord Plug
NOTES ON THE CORD PLUG This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. -
Page 7: Know Your Hand Blender
KNOW YOUR HAND BLENDER 1. Top lid 7. Blend rod 2. Speed knob 8. Chopper lid 3. Low speed button 9. Kinfe blade 4. High speed button 10. Egg whisk (turbo button) 11. Chopper bowl 5. Motor unit 12. Blending jar 6. -
Page 8: Instruction For Blender
INSTRUCTION FOR BLENDER ( IT IS SUITABLE FOR BLENDING VEGETABLE AND FRUIT ) Max operation duration per time should less than 1 minute, and 3 minutes rest time must be maintained at two consecutive cycles. 1) To assemble the blend rod 2) Turn the shaft anti-clockwise direction with the motor unit. -
Page 9: Instruction For Chopper
5) Lower the hand-held blender into 6) To stop the hand-held blender by food.Then press and hold the low releasing the low speed button or speed button or high speed button high speed button. to start operating. Note: There is a stepless speed knob, you can turn clockwise to increase speed, and turn anticlockwise to decrease speed. - Page 10 3) Place food into the chopper bowl. 4) Attach the lid onto the chopper bowl Note: by pressing it down. To detach the lid remove the bone of by lifting it up. the meat, cut small piece, then place the meat into bowl, the max quantity of meat can’t exceed 200g in every blending.
- Page 11 7) To stop the appliance by releasing 8) After finishing chopping, unplug the the low speed button or high speed power outlet firstly, button of the motor unit. 9) Then remove the motor unit from 10) Open the chopper lid by turning it the chopper lid by turning it in in anti-clockwise and remove the anti-clockwise.
-
Page 12: Instruction For Egg White Beater
Caution: - To reduce the risk of injury, never place cutting blade on base without first putting bowl properly in place. - Be sure chopper lid is securely locked in place before operating appliance. - During operating or after chopping, for safety, you shall disassemble the motor unit from the chopper lid firstly, then remove the chopper lid. - Page 13 3) Place egg white into the cup, 4) Lower the hand-held blender generally, two eggs white is enough. into food. 5) Then press and hold the low speed 6) To stop the hand-held blender by button or high speed button to start releasing the low speed button or operating.
-
Page 14: Cleaning And Maintenance
CLEANING AND MAINTENANCE 1. Unplug the appliance and remove the detachable stem. Note: Do not immerse the detachable stem of the blender in water because overtime the lubrication on the bearings may wash away. 2. Wash the detachable stem under running water, without the use of abrasive cleaner or detergents. -
Page 15: Warranty Claim Procedure
If you request any further assistance, please contact us: Customer service: 1-888-965-8032 support@bonsenkitchen.com ENVIRONMENT FRIENDLY DISPOL This product must not be disposed together with the domestic waste. This product has to be disposed at an authorized place for recycling of electrical and electronic appliances. - Page 16 Register your product at www.bonsenkitchen.com to get more perks! Follow us @bonsenkitchen Bonsen Electronics Inc. : 5805C Peachtree Corners East Norcross, GA, 30092 : 1-888-965-8032 : support@bonsenkitchen.com...
