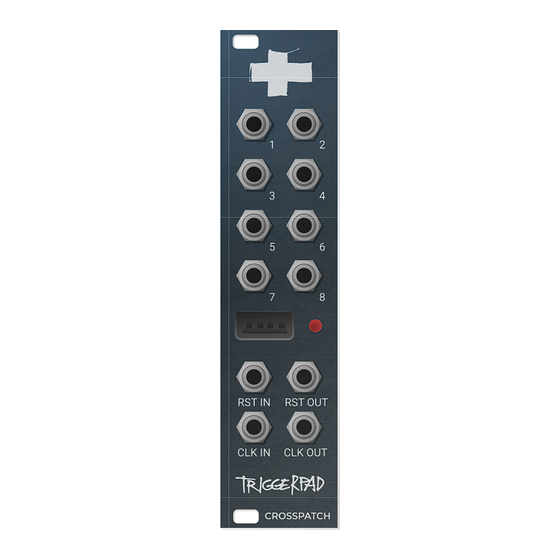

Page 1: Crosspatch
CROSSPATCH... - Page 2 + CROSSPATCH + Triggerpad – User Manual – Page 2...
-
Page 3: Table Of Contents
SCENES: SAVE AND ERASE..........................................10 SCENES: SWITCH AND CHAIN........................................10 SCENES: EDIT NON PLAYING SCENE......................................11 SAVE ALL SCENES TO USB DRIVE.........................................12 LOAD ALL SCENES FROM USB DRIVE......................................12 TRIGGERPAD CHEATSHEET...........................................13 FIRMWARE UPDATE............................................14 NOTES ON APC mini (MK1 and MK2)......................................15 Triggerpad – User Manual – Page 3... -
Page 12: Save All Scenes To Usb Drive
The LED on the module will start blinking red to signalize that Triggerpad is waiting for a USB key drive to be inserted and it’s ready to save all the 64 patterns to a file. While writing the file the LED will be flashing green. -
Page 14: Firmware Update
After a successful installation navigate to the folder with the firmware update file and enter the next line in the Terminal: dfu-util -a 0 --dfuse-address 0x08000000 -D Triggerpad.bin Make sure to replace Triggerpad.bin with the actual name of the file. When flashing is done, disconnect the module from the USB mini cable and reinstall it in the rack. -
Page 15: Notes On Apc Mini (Mk1 And Mk2)
NOTES ON APC mini (MK1 and MK2) APC mini mk1 & APC mini mk2 USB MIDI controllers have 9 sliders that can be used to control certain parameters on the Triggerpad. By default the first 8 sliders are mapped to the volume of the respective channel and the 9th slider is the master volume. The sliders can be mapped to shuffle or pulse length instead.
