PORTER-LITE
ASSEMBLY GUIDE
CPB002
w w w . c a r p - p o r t e r . c o m

Advertisement

loading
Need help?

Need help?

Do you have a question about the PORTER-LITE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CARP-PORTER PORTER-LITE

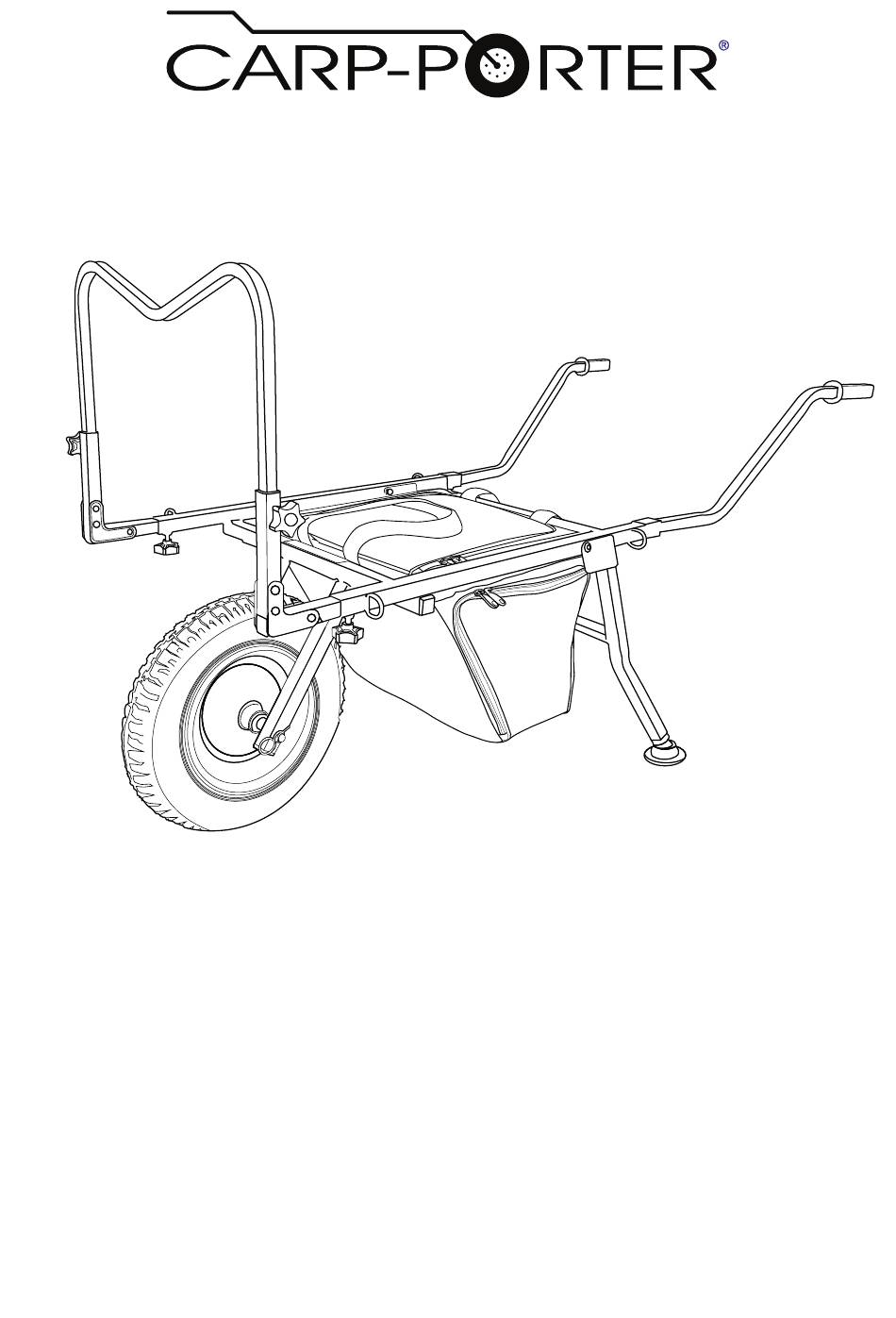

  • Page 1 PORTER-LITE ASSEMBLY GUIDE CPB002 w w w . c a r p - p o r t e r . c o m...
  • Page 3: Table Of Contents

    CONTENTS PARTS PARTS DIAGRAM WHEEL ASSEMBLY ADDING WHEEL TO FRAME 6 - 8 9 - 12 FRAME ASSEMBLY FINAL CHECKS 13 - 16 SPARE PARTS DISCLAIMER...
  • Page 4: Parts

    PARTS CPS011 CPS062 CPS035 A x 2 A x 1 A x 1 CPS034 CPS036 A x 2 M12 x 2 B x 1 C x 2 CPS063 CPS039 CPS040 D x 1 D x 1 E x 1...
  • Page 5 CPS025 F x 8 M6 x 4 M6 x 2 M6 x 2 CPS065 CPS064 G x 1 H x 1...
  • Page 7: Wheel Assembly

    WHEEL ASSEMBLY WHAT YOU'LL NEED... CPS011 M12 x 2 A x 2 CPS062 A x 1 CPS035 A x 2 A x 1...
  • Page 8 STEP 1 Fix figure of 8 pin to one end of axle shaft, using the holes at either end of the axle. STEP 2 Place axle shaft on to one of the fork uprights making sure the pin is on the same side as the hand screw on the upright.
  • Page 9: Adding Wheel To Frame

    ADDING WHEEL TO FRAME WHAT YOU'LL NEED... CPS025 F x 8 E x 1...
  • Page 10 STEP 1 Place frame (E) on the ground with fork lugs facing up. STEP 2 Position wheel assembly (A) on frame (E) locating axle uprights onto wheel fork lugs on frame.
  • Page 11 STEP 3 Ensure the axle forks slide easily onto the frame lugs and wheel rotates freely. Lock the wheel assembly in place by tightening the two hand screws (F) on the forks. STEP 4 Ensure the wheel rotates freely. The aim is to achieve a free running wheel with as little sideways movement as possible.
  • Page 12 FRAME ASSEMBLY WHAT YOU'LL NEED... CPS039 CPS040 CPS034 M6 x 4 D x 1 D x 1 B x 1 CPS036 CPS064 M6 x 2 M6 x 2 H x 1 C x 2...
  • Page 13 STEP 1 Ensure the rear leg locking pin locates into the corrosponding hole in the side of the frame. There is one locking pin on the leg assembly. STEP 2 Attach rear leg bar (H ) to frame using the M6 bolts, nuts and washers.
  • Page 14 STEP 4 Turn the barrow over so it is standing on the rear legs and wheel. STEP 5 Place the handles (D) in the frame tubes as shown and tighten hand screws (F) to lock in place...
  • Page 15 STEP 8 Fit the front bar (B)into the frame tubes at the front of the barrow once at desired position tighten both hand screws (F) to lock in place.
  • Page 16 FINAL CHECKS WHAT YOU'LL NEED... CPS065 G x 1...
  • Page 17 STEP 2 Place drop-in bag (G) into Porter-Lite frame as shown, ensure the support frame inside the Velcro flaps locate in the bag retaining channel on the frame.
  • Page 18 STEP 3 Once the bag is positioned correctly use the clips to secure the bag in place. STEP 4 Finally check all hand screws are tightened correctly, the wheel is inflated to the correct pressure of 25 psi the bolts and nuts on rear legs are tight and both pins on the wheel assembly are fitted correctly.
  • Page 19 STEP 5 You should now have your fully assembled Porter-Lite.
  • Page 20: Spare Parts

    SPARE PARTS The Porter-Lite comes with a pack of spare parts, this pack contains : • 2 Pins • 2 M12 Washers • 6 End caps • 6 Hand screws • 2 Wheel bearings • 2 Bungee straps If you require any other spare parts please use the product codes provided in this manual and visit our website: w w w .
  • Page 21: Disclaimer

    Be careful when handling your Porter-Lite, especially when lifting in and out your car. The Porter-Lite may be heavy and the wheel and rear legs or the unrestrained parts may open or move unexpectedly. At Carp Porter it is part of our mission to make our packaging as...

This manual is also suitable for:

Cpb002
